Dewalt DW65 Type 1 Saw Spare Parts

Home Details Reviews Delivery

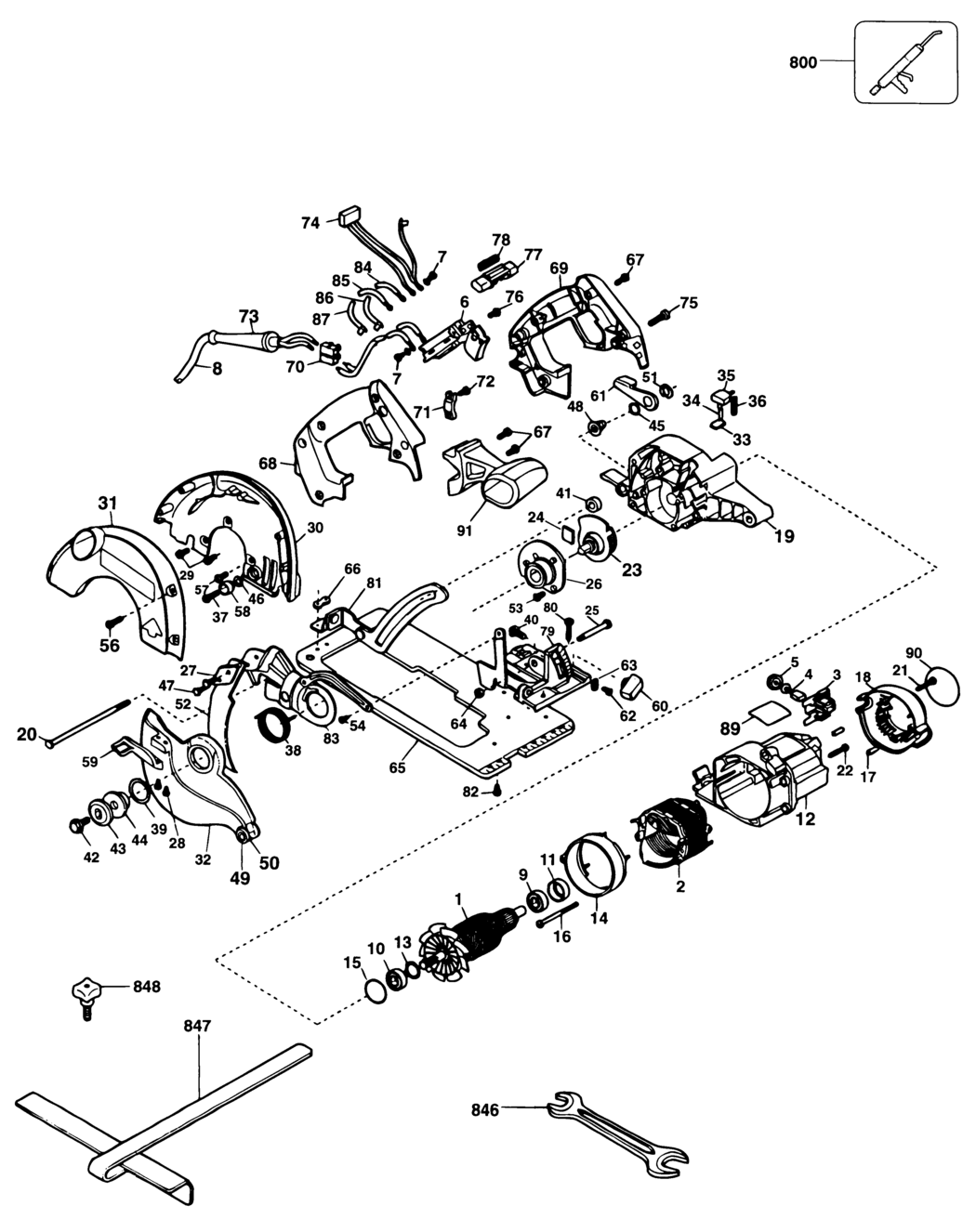

An exploded drawing and spare parts listing for the Dewalt DW65 Type 1 Saw

	Ex VAT	Inc VAT
1 - ARMATURE & FAN GB 240V BDE-144785-10SV.A1 144785-10SV	-
1 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A118390 000000-00	-
2 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A118391 000000-00	-
2 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A118392 000000-00	-
3 - BRUSH HOLDER SA BDE-147097-09.A21 147097-09	£16.03	£19.24
4 - BRUSH SA BDE-145323-06.A8 145323-06	£5.88	£7.06
5 - BRUSH CAP BDE-448084-01.A9 448084-01	-
6 - SWITCH BDE-450777-06.A0 450777-06	-
7 - SCREW BDE-384127-01.A16 384127-01	£1.50	£1.80
8 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A118393 000000-00	-
8 - CORDSET (M/PLUG) GB 240V BDE-330060-44.A1 330060-44	£14.57	£17.48
9 - BEARING BDE-605040-20.A203 605040-20	£4.69	£5.63
10 - BEARING BDE-868768-07.A128 868768-07	£7.85	£9.42
11 - SLEEVE BDE-137382-00.A0 137382-00	-
12 - NO LONGER AVAILABLE BDE-000000-00.A118394 000000-00	-
13 - RETAINER BDE-930098-00.A95 930098-00	£1.50	£1.80
14 - NO LONGER AVAILABLE BDE-000000-00.A118395 000000-00	-
15 - SEAL BDE-701297-00.A15 701297-00	£1.50	£1.80
16 - SCREW BDE-330019-19.A200 330019-19	£1.50	£1.80
17 - PLUG BDE-87205-00.A32 87205-00	£1.50	£1.80
18 - NO LONGER AVAILABLE BDE-000000-00.A118396 000000-00	-
19 - NO LONGER AVAILABLE BDE-000000-00.A118397 000000-00	-
20 - NO LONGER AVAILABLE BDE-000000-00.A118398 000000-00	-
21 - SCREW BDE-330019-20.A6 330019-20	£1.50	£1.80
22 - SCREW.TEMP BDE-330045-19.A13 330045-19	£1.50	£1.80
23 - NO LONGER AVAILABLE BDE-000000-00.A118399 000000-00	-
24 - NO LONGER AVAILABLE BDE-000000-00.A118400 000000-00	-
25 - NO LONGER AVAILABLE BDE-000000-00.A118401 000000-00	-
26 - NO LONGER AVAILABLE BDE-000000-00.A118402 000000-00	-
27 - NO LONGER AVAILABLE BDE-000000-00.A118403 000000-00	-
28 - SCREW BDE-330045-05.A159 330045-05	£1.50	£1.80
29 - SCREW.SPECIAL BDE-330045-23.A53 330045-23	£1.50	£1.80
30 - NO LONGER AVAILABLE BDE-000000-00.A118404 000000-00	-
31 - NO LONGER AVAILABLE BDE-000000-00.A118405 000000-00	-
32 - NO LONGER AVAILABLE BDE-000000-00.A118406 000000-00	-
33 - WIPER BDE-145351-00.A12 145351-00	-
34 - NO LONGER AVAILABLE BDE-000000-00.A118407 000000-00	-
35 - BUTTON BDE-145350-00.A7 145350-00	£1.50	£1.80
36 - NO LONGER AVAILABLE BDE-000000-00.A118408 000000-00	-
37 - NO LONGER AVAILABLE BDE-000000-00.A118409 000000-00	-
38 - NO LONGER AVAILABLE BDE-000000-00.A118410 000000-00	-
39 - NO LONGER AVAILABLE BDE-000000-00.A118411 000000-00	-
40 - CARRIAGE BOLT BDE-N022876.A9 N022876	£1.50	£1.80
41 - NO LONGER AVAILABLE BDE-000000-00.A118412 000000-00	-
42 - SCREW.SPECIAL BDE-145344-00.A29 145344-00	£1.88	£2.25
43 - WASHER OUTER CLAMP BDE-145446-00.A10 145446-00	£3.30	£3.96
44 - WASHER INNER CLAMP BDE-145442-03.A5 145442-03	£3.80	£4.56
45 - NO LONGER AVAILABLE BDE-000000-00.A118413 000000-00	-
46 - NO LONGER AVAILABLE BDE-000000-00.A118414 000000-00	-
47 - SCREW.TEMP BDE-98113-12.A4 98113-12	-
48 - NO LONGER AVAILABLE BDE-000000-00.A118415 000000-00	-
49 - NO LONGER AVAILABLE BDE-000000-00.A118416 000000-00	-
50 - NUT BDE-148460-00.A4 148460-00	-
51 - RING BDE-152211-00.A15 152211-00	£1.50	£1.80
52 - NO LONGER AVAILABLE BDE-000000-00.A118417 000000-00	-
53 - NO LONGER AVAILABLE BDE-000000-00.A118418 000000-00	-
54 - NO LONGER AVAILABLE BDE-000000-00.A118419 000000-00	-
56 - SCREW BDE-330045-06.A74 330045-06	£1.50	£1.80
57 - SCREW.TEMP BDE-330045-25.A7 330045-25	£1.50	£1.80
58 - NO LONGER AVAILABLE BDE-000000-00.A118420 000000-00	-
59 - NO LONGER AVAILABLE BDE-000000-00.A118421 000000-00	-
60 - KNOB BDE-147107-00.A10 147107-00	£1.82	£2.19
61 - LEVER BDE-145347-00.A22 145347-00	£1.50	£1.80
62 - SCREW.TEMP BDE-330045-04.A10 330045-04	£1.50	£1.80
63 - NO LONGER AVAILABLE BDE-000000-00.A118422 000000-00	-
64 - LOCK-NUT BDE-148641-00.A23 148641-00	£1.50	£1.80
65 - NO LONGER AVAILABLE BDE-000000-00.A118423 000000-00	-
66 - NO LONGER AVAILABLE BDE-000000-00.A118424 000000-00	-
67 - SCREW BDE-330019-14.A6 330019-14	£1.50	£1.80
69 - NO LONGER AVAILABLE BDE-000000-00.A118425 000000-00	-
70 - TERMINAL BLOCK BDE-320078-00.A67 320078-00	£2.26	£2.71
71 - CORD CLAMP BDE-003618-00.A6 003618-00	£1.50	£1.80
72 - NO LONGER AVAILABLE BDE-000000-00.A118426 000000-00	-
73 - CORD PROTECTOR BDE-445338-00.A6 445338-00	£1.50	£1.80
74 - CAPACITOR BDE-148679-02.A12 148679-02	-
75 - SCREW.TEMP BDE-330019-21.A32 330019-21	£1.50	£1.80
76 - SCREW.TEMP BDE-330019-01.A105 330019-01	£1.50	£1.80
77 - NO LONGER AVAILABLE BDE-000000-00.A118427 000000-00	-
78 - NO LONGER AVAILABLE BDE-000000-00.A118428 000000-00	-
79 - NO LONGER AVAILABLE BDE-000000-00.A118429 000000-00	-
80 - NO LONGER AVAILABLE BDE-000000-00.A118430 000000-00	-
81 - NO LONGER AVAILABLE BDE-000000-00.A118431 000000-00	-
82 - SCREW.TEMP BDE-98102-10.A25 98102-10	£1.50	£1.80
83 - NO LONGER AVAILABLE BDE-000000-00.A118432 000000-00	-
85 - NO LONGER AVAILABLE BDE-000000-00.A118433 000000-00	-
86 - NO LONGER AVAILABLE BDE-000000-00.A118434 000000-00	-
87 - NO LONGER AVAILABLE BDE-000000-00.A118435 000000-00	-
90 - NAMEPLATE BDE-149521-01.A15 149521-01	£1.42	£1.70
91 - NO LONGER AVAILABLE BDE-000000-00.A118436 000000-00	-
800 - GREASE 90 GMS BDE-870889-02.A668 870889-02	£7.85	£9.42
846 - WRENCH BDE-145378-01.A40 145378-01	£1.50	£1.80
847 - NO LONGER AVAILABLE BDE-000000-00.A118437 000000-00	-
848 - NO LONGER AVAILABLE BDE-000000-00.A118438 000000-00	-
