Dewalt D27112 Type 2 Table Top Mitre Saw Spare Parts

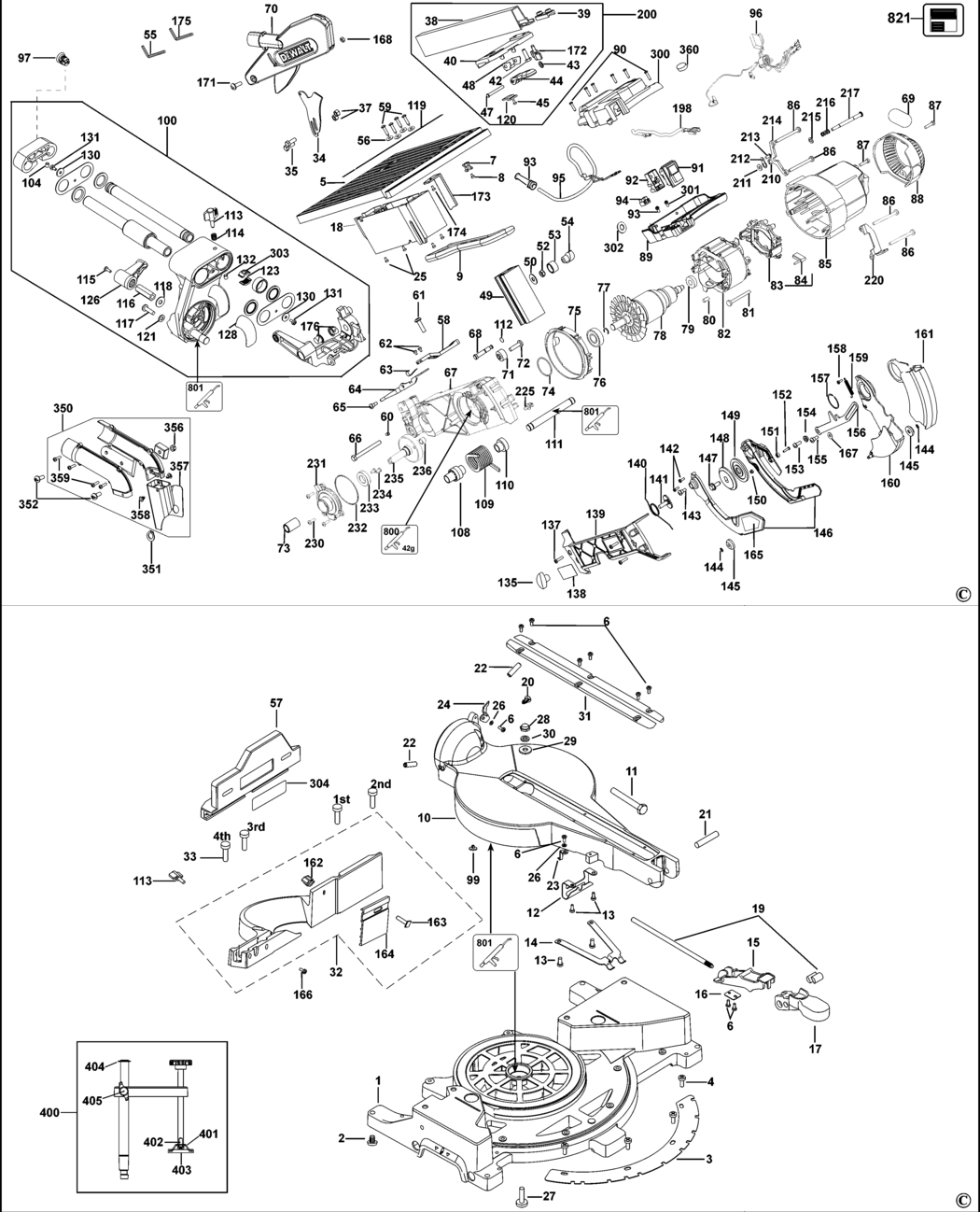

An exploded drawing and spare parts listing for the Dewalt D27112 Type 2 Table Top Mitre Saw

	Ex VAT	Inc VAT
1 - BASE SA BDE-869349-00.A11 869349-00	£119.32	£143.19
2 - FOOT BDE-153612-00.A22 153612-00	£1.50	£1.80
3 - DETENT BDE-397041-00.A13 397041-00	£44.14	£52.97
4 - SCREW BDE-604987-00.A14 604987-00	£1.50	£1.80
5 - TABLE BDE-N114229.A1 N114229	£131.46	£157.75
6 - SCREW BDE-330045-05.A64 330045-05	£1.50	£1.80
7 - HOLDER BDE-391358-01.A46 391358-01	£1.50	£1.80
8 - SCREW BDE-860094-02.A51 860094-02	£1.50	£1.80
9 - PUSHROD BDE-860610-01.A90 860610-01	£7.85	£9.42
10 - TABLE SA BDE-869350-00.A3 869350-00	£157.18	£188.61
11 - BOLT BDE-638875-00.A5 638875-00	£1.50	£1.80
12 - PLATE BDE-397062-00.A1 397062-00	£7.18	£8.62
13 - SCREW BDE-330045-55.A87 330045-55	£1.50	£1.80
14 - SPRING BDE-397070-00.A19 397070-00	£3.80	£4.56
15 - ACTUATOR BDE-397073-00.A1 397073-00	£3.30	£3.96
16 - CLAMP BDE-397075-00.A13 397075-00	£4.69	£5.63
17 - LEVER BDE-397065-00.A1 397065-00	£5.88	£7.06
18 - BRACKET BDE-635045-00.A1 635045-00	£10.85	£13.02
19 - LOCK SA BDE-629395-00.A1 629395-00	£18.91	£22.69
20 - COVER BDE-638835-00.A1 638835-00	£1.50	£1.80
21 - PIN BDE-397063-00.A13 397063-00	£1.50	£1.80
22 - SCREW BDE-153576-03.A12 153576-03	£1.50	£1.80
23 - POINTER BDE-397048-00.A13 397048-00	£1.50	£1.80
24 - POINTER BDE-397090-00.A7 397090-00	£1.50	£1.80
25 - SCREW BDE-330045-05.A63 330045-05	£1.50	£1.80
26 - WASHER BDE-249233-00.A69 249233-00	£1.50	£1.80
27 - SCREW BDE-860085-19.A72 860085-19	£1.50	£1.80
28 - NUT BDE-860092-05.A44 860092-05	£1.50	£1.80
29 - WASHER BDE-153781-00.A22 153781-00	£1.50	£1.80
30 - WASHER BDE-613270-00.A17 613270-00	£1.50	£1.80
31 - PLATE BDE-N714363.A1 N714363	£7.18	£8.62
32 - FENCE SA BDE-641363-00.A8 641363-00	£87.82	£105.39
33 - SCREW BDE-330045-33.A16 330045-33	£1.50	£1.80
34 - GUARD KIT BDE-N102812.A3 N102812	£60.94	£73.13
35 - SCREW BDE-330045-32.A47 330045-32	£1.50	£1.80
37 - NUT BDE-860083-04.A131 860083-04	£1.50	£1.80
38 - FENCE BDE-637806-00.A2 637806-00	£34.00	£40.80
39 - PLATE BDE-637805-00.A4 637805-00	£9.41	£11.29
40 - BRACKET BDE-634738-00.A2 634738-00	£7.85	£9.42
42 - SCREW BDE-612008-00.A26 612008-00	£1.50	£1.80
43 - WASHER CLAMP BDE-392948-00.A2 392948-00	£1.50	£1.80
44 - LEVER LOCK BDE-605794-00.A17 605794-00	£17.48	£20.97
45 - SCREW BDE-860094-02.A44 860094-02	£1.50	£1.80
47 - CLEVIS PIN BDE-605795-00.A3 605795-00	£1.50	£1.80
48 - BRACKET BDE-605796-00.A17 605796-00	£1.50	£1.80
49 - SUPPORT BDE-636091-00.A3 636091-00	£19.90	£23.88
50 - WASHER BDE-153781-00.A17 153781-00	£1.50	£1.80
52 - NUT BDE-860092-05.A47 860092-05	£1.50	£1.80
53 - BUSHING BDE-606362-01.A3 606362-01	£1.50	£1.80
54 - KNOB BDE-941756-00.A150 941756-00	£1.50	£1.80
55 - KEY BDE-385567-03.A0 385567-03	£1.82	£2.19
56 - WASHER BDE-860074-02.A1 860074-02	£1.50	£1.80
57 - FENCE BDE-640349-00.A8 640349-00	£24.39	£29.27
58 - LEVER LOCK BDE-637338-00.A1 637338-00	£1.50	£1.80
59 - SCREW BDE-860084-24.A3 860084-24	£1.50	£1.80
60 - SCREW BDE-150075-00.A57 150075-00	£1.50	£1.80
61 - SCREW BDE-330045-34.A2 330045-34	£1.50	£1.80
62 - SCREW BDE-949894-02.A9 949894-02	£1.50	£1.80
63 - SPRING BDE-637289-00.A4 637289-00	£1.50	£1.80
64 - LEVER BDE-637193-00.A2 637193-00	£4.69	£5.63
65 - SCREW BDE-153639-00.A25 153639-00	£1.50	£1.80
66 - SCREW BDE-949702-19.A22 949702-19	£1.50	£1.80
67 - ARM BDE-647382-00.A1 647382-00	£108.20	£129.84
68 - LOCKING PIN BDE-649653-00.A2 649653-00	£5.88	£7.06
69 - LABEL BDE-N625165.A13 N625165	£1.50	£1.80
70 - GUARD KIT BDE-N102812.A2 N102812	£60.94	£73.13
71 - BUSH BDE-385756-01.A7 385756-01	£1.50	£1.80
72 - SCREW BDE-330045-33.A17 330045-33	£1.50	£1.80
73 - INNER FLANGE SA BDE-N186624.A0 N186624	£17.48	£20.97
74 - RING BDE-696519-00.A10 696519-00	£1.50	£1.80
75 - BAFFLE FAN BDE-391375-00.A34 391375-00	£1.82	£2.19
76 - BEARING BDE-330003-13.A34 330003-13	£3.80	£4.56
77 - RETAINER BDE-930098-00.A52 930098-00	£1.50	£1.80
78 - ARMATURE 230V GB BDE-869290-00.A1 869290-00	£119.32	£143.19
78 - ARMATURE 115V LX BDE-869290-01.A0 869290-01	£125.16	£150.19
79 - BEARING BDE-N110359.A149 N110359	£3.75	£4.50
80 - PLUG BDE-145312-00.A83 145312-00	£1.50	£1.80
81 - SCREW BDE-330019-19.A51 330019-19	£1.50	£1.80
82 - FIELD 115V TO DCODE WK46 2017 LX BDE-869045-01.A12 869045-01	£47.08	£56.49
82 - FIELD 230V TO DCODE WK46-2016 GB BDE-869045-00.A9 869045-00	£47.08	£56.49
83 - BRUSH PLATE SA BDE-654838-00.A0 654838-00	£18.91	£22.69
84 - BRUSH & LEAD BDE-381028-08.A10 381028-08	£7.18	£8.62
85 - FIELDCASE BDE-391317-00.A34 391317-00	£12.17	£14.60
86 - SCREW BDE-98094-56.A16 98094-56	-
87 - SCREW BDE-330019-13.A146 330019-13	£1.50	£1.80
88 - END CAP BDE-391933-00.A56 391933-00	£4.69	£5.63
89 - HANDLE & COVER BDE-N121000.A1 N121000	£18.91	£22.69
90 - SCREW BDE-330019-13.A147 330019-13	£1.50	£1.80
91 - SWITCH GB BDE-640985-00.A2 640985-00	£19.90	£23.88
91 - SWITCH 115V LX BDE-640985-01.A1 640985-01	-
92 - COVER BDE-868320-00.A13 868320-00	£5.88	£7.06
93 - PROTECTOR BDE-863259-00.A20 863259-00	£3.80	£4.56
94 - TERMINAL BLOCK BDE-326057-00.A36 326057-00	£1.50	£1.80
95 - CORDSET GB BDE-330060-85.A16 330060-85	£19.90	£23.88
95 - CORDSET LX BDE-330061-22.A9 330061-22	£37.35	£44.82
96 - CAPACITOR 220V GB BDE-654791-00.A0 654791-00	£18.91	£22.69
96 - CAPACITOR 115V LX BDE-654791-01.A1 654791-01	£24.39	£29.27
97 - BUSHING BDE-615851-00.A15 615851-00	£1.50	£1.80
99 - PAD BDE-640146-00.A1 640146-00	£1.50	£1.80
100 - RAIL SA BDE-N176002.A0 N176002	£414.90	£497.88
104 - GRUB SCREW BDE-330022-08.A1 330022-08	£1.50	£1.80
108 - SPACER BDE-639383-00.A4 639383-00	£2.78	£3.34
109 - SPRING TORSION BDE-633290-04.A2 633290-04	£18.91	£22.69
110 - SPACER BDE-642980-00.A3 642980-00	£1.50	£1.80
111 - PIVOT SHAFT BDE-397128-00.A16 397128-00	£5.88	£7.06
112 - O RING BDE-943030-00.A6 943030-00	£1.50	£1.80
113 - KNOB BDE-147107-06.A16 147107-06	£3.80	£4.56
114 - SPRING BDE-606014-00.A10 606014-00	£1.50	£1.80
115 - SCREW BDE-330045-14.A47 330045-14	£1.50	£1.80
116 - NUT BDE-397089-00.A8 397089-00	£10.85	£13.02
117 - SCREW BDE-612008-00.A27 612008-00	£1.50	£1.80
118 - WASHER BDE-153781-00.A18 153781-00	£1.50	£1.80
119 - SCALE BDE-637807-00.A3 637807-00	£2.78	£3.34
120 - POINTER BDE-605798-00.A3 605798-00	£1.50	£1.80
121 - WASHER BDE-613270-00.A18 613270-00	£1.50	£1.80
123 - GUIDE BDE-628591-00.A1 628591-00	£2.78	£3.34
126 - HANDLE BDE-397080-00.A7 397080-00	£3.80	£4.56
128 - SCALE BDE-637334-00.A2 637334-00	£2.26	£2.71
130 - WASHER BDE-153586-00.A35 153586-00	£1.50	£1.80
131 - SCREW BDE-616001-00.A24 616001-00	£1.50	£1.80
132 - SCREW BDE-153576-00.A7 153576-00	£1.50	£1.80
135 - KNOB BDE-941756-00.A149 941756-00	£1.50	£1.80
137 - SCREW BDE-330045-15.A133 330045-15	£1.50	£1.80
138 - BRAND LABEL BDE-641845-00.A0 641845-00	£2.26	£2.71
139 - COVER BDE-635047-00.A0 635047-00	£12.17	£14.60
140 - SPRING BDE-637288-00.A0 637288-00	£1.50	£1.80
141 - SCREW.SPECIAL BDE-625857-00.A1 625857-00	£1.50	£1.80
142 - SCREW BDE-860094-05.A23 860094-05	£1.50	£1.80
143 - SCREW BDE-153639-00.A23 153639-00	£1.50	£1.80
144 - LOCKING RING BDE-604728-00.A30 604728-00	£1.66	£1.99
145 - ROLLER BDE-146774-00.A50 146774-00	£1.82	£2.19
146 - LOWER GUARD SA BDE-637998-00.A0 637998-00	£41.24	£49.49
147 - BLADE BOLT BDE-647776-00.A27 647776-00	£1.66	£1.99
148 - CLAMP OUTER BDE-604765-00.A30 604765-00	£5.88	£7.06
149 - WASHER INNER CLAMP BDE-616319-00.A5 616319-00	£16.03	£19.24
150 - NUT BDE-861340-00.A4 861340-00	£1.50	£1.80
151 - SPACER BDE-605040-51.A2 605040-51	£3.80	£4.56
152 - SCREW BDE-330024-49.A2 330024-49	£1.50	£1.80
153 - SCREW.SPECIAL BDE-330045-23.A131 330045-23	£1.50	£1.80
154 - SLEEVE BDE-146740-02.A13 146740-02	£1.50	£1.80
155 - SCREW BDE-153639-00.A24 153639-00	£1.50	£1.80
156 - CAM BDE-637192-00.A1 637192-00	£7.18	£8.62
157 - CIRCLIP BDE-629745-00.A9 629745-00	£1.50	£1.80
158 - SCREW BDE-330045-05.A61 330045-05	£1.50	£1.80
159 - SPRING BDE-640503-00.A2 640503-00	£1.50	£1.80
160 - GUARD BDE-634726-00.A1 634726-00	£34.00	£40.80
161 - GUARD BDE-635046-00.A3 635046-00	£12.17	£14.60
162 - KNOB BDE-653947-00.A4 653947-00	£1.50	£1.80
163 - BOLT BDE-653948-00.A6 653948-00	£3.80	£4.56
164 - FENCE BDE-634736-00.A1 634736-00	£10.85	£13.02
165 - LABEL BDE-645156-00.A2 645156-00	£2.78	£3.34
166 - SCREW BDE-860094-02.A47 860094-02	£1.50	£1.80
167 - SPRING BDE-860491-01.A13 860491-01	£1.50	£1.80
168 - WING NUT BDE-720929-00.A2 720929-00	£1.50	£1.80
171 - SCREW BDE-931997-00.A20 931997-00	£1.50	£1.80
172 - KNOB BDE-862427-00.A1 862427-00	£1.50	£1.80
173 - BRACKET BDE-634734-00.A2 634734-00	£3.30	£3.96
174 - SCREW BDE-860094-02.A46 860094-02	£1.50	£1.80
175 - KEY BDE-385567-04.A4 385567-04	£2.26	£2.71
176 - BUSH BDE-N083191.A5 N083191	£1.50	£1.80
198 - LEAD BLACK BDE-652236-00.A1 652236-00	£1.50	£1.80
200 - FENCE SA BDE-869231-04.A2 869231-04	£65.52	£78.62
210 - CIRCLIP BDE-860322-00.A28 860322-00	£1.50	£1.80
211 - FELT BDE-653767-00.A2 653767-00	£1.50	£1.80
212 - PLATE BDE-393071-00.A15 393071-00	£1.50	£1.80
213 - SCREW BDE-860094-02.A45 860094-02	£1.50	£1.80
214 - PLATE BDE-650829-00.A0 650829-00	£3.30	£3.96
215 - WASHER M6 BDE-860073-07.A50 860073-07	£1.50	£1.80
216 - SPRING BDE-868082-00.A2 868082-00	£1.50	£1.80
217 - LOCK PIN BDE-650846-00.A1 650846-00	£2.78	£3.34
220 - BRACKET BDE-650828-00.A3 650828-00	£7.18	£8.62
225 - HOLDER BDE-651250-00.A1 651250-00	£1.50	£1.80
230 - SCREW BDE-330045-14.A46 330045-14	£1.50	£1.80
231 - GEARCASE COVER BDE-647385-00.A0 647385-00	£30.08	£36.10
232 - O RING BDE-616979-01.A0 616979-01	£1.50	£1.80
233 - BEARING BALL BDE-330003-66.A40 330003-66	£14.57	£17.48
234 - SCREW BDE-860094-06.A20 860094-06	£1.50	£1.80
235 - SPINDLE & GEAR SA BDE-869219-08.A0 869219-08	£93.62	£112.35
236 - BEARING BDE-386780-00.A6 386780-00	£2.26	£2.71
300 - HANDLE & COVER BDE-N121000.A0 N121000	£18.91	£22.69
301 - SCREW BDE-330045-05.A240 330045-05	£1.50	£1.80
302 - BUSHING BDE-650889-00.A2 650889-00	£1.50	£1.80
303 - GUIDE BDE-397118-00.A3 397118-00	£3.30	£3.96
304 - WARNING LABEL BDE-621135-00.A8 621135-00	£1.50	£1.80
350 - DUST PORT BDE-654313-00.A2 654313-00	£16.03	£19.24
351 - RETAINER BDE-654787-00.A1 654787-00	£1.50	£1.80
352 - SCREW.SPECIAL BDE-330045-23.A132 330045-23	£1.50	£1.80
356 - NUT M6 BDE-860083-12.A75 860083-12	£1.50	£1.80
357 - SUPPORT BDE-654312-00.A1 654312-00	£10.85	£13.02
358 - RIVET BDE-607491-00.A12 607491-00	£1.62	£1.95
359 - SCREW BDE-330013-02.A1 330013-02	£1.42	£1.70
360 - FELT BDE-650855-00.A2 650855-00	£1.50	£1.80
400 - CLAMP SA BDE-N165958.A3 N165958	£30.08	£36.10
401 - SUPPORT BDE-630068-00.A10 630068-00	£1.50	£1.80
402 - CLAMP BDE-630067-00.A0 630067-00	£7.85	£9.42
403 - GRIP BDE-630085-00.A11 630085-00	£1.50	£1.80
404 - RETAINER BDE-389750-00.A2 389750-00	£1.42	£1.70
405 - KNOB LOWER BDE-147107-02.A37 147107-02	£2.26	£2.71
800 - GREASE BDE-5140061-28.A53 5140061-28	£51.90	£62.28
801 - GREASE BDE-93488-00.A74 93488-00	£17.48	£20.97
821 - RATING PLATE GB BDE-N162137 N162137	£4.69	£5.63
821 - RATING PLATE LX BDE-N162138 N162138	£4.69	£5.63

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Dewalt D27112 Type 2 Table Top Mitre Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Dewalt D27112 Type 2 Table Top Mitre Saw Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Dewalt D27112 Type 2 Table Top Mitre Saw Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
