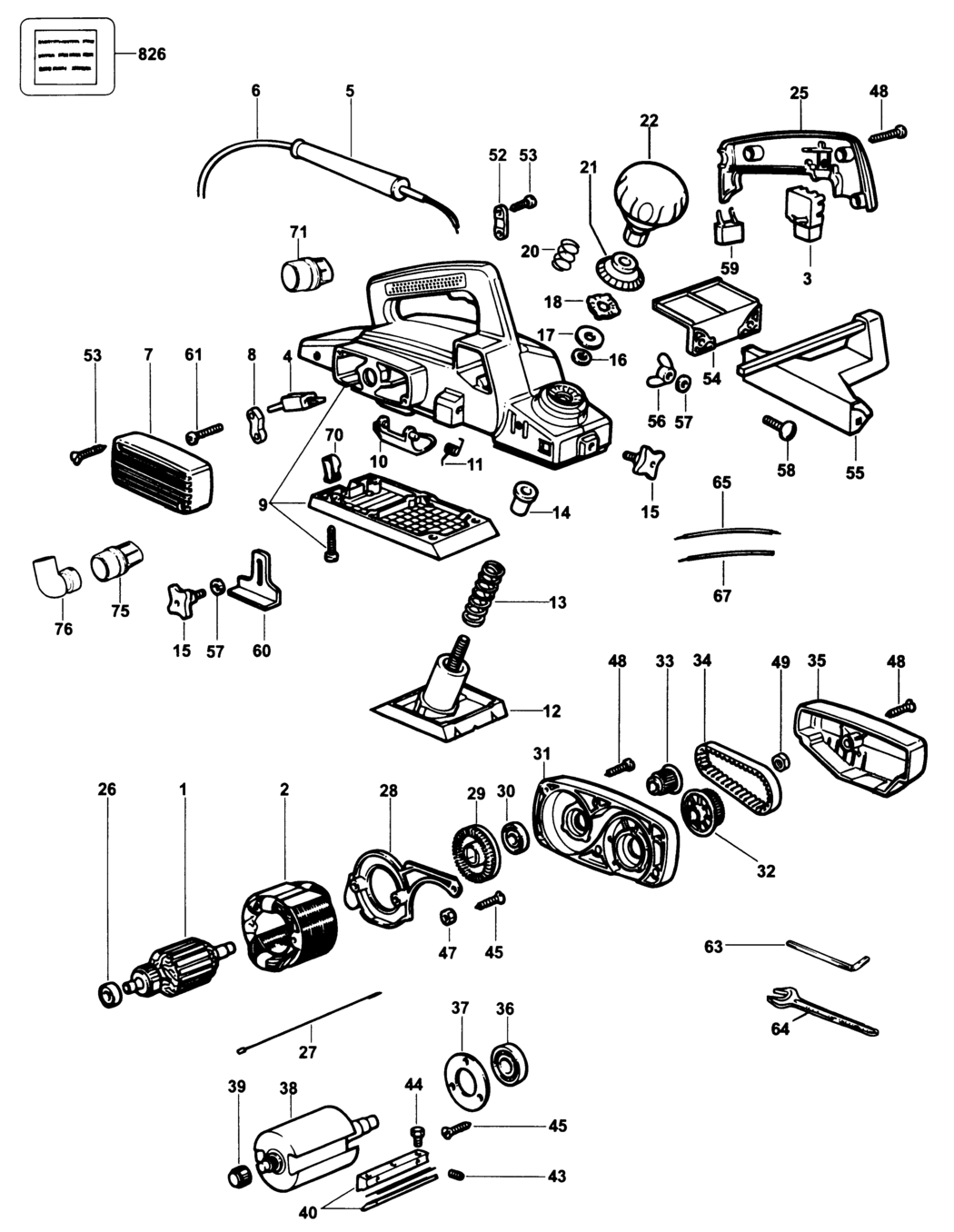

An exploded drawing and spare parts listing for the Dewalt DW676K Type 1 Planer
Ex VAT Inc VAT
1 - NO LONGER AVAILABLE 230V BDE-000000-00.A79598 000000-00 -
1 - NO LONGER AVAILABLE 115V BDE-000000-00.A79599 000000-00 -
2 - NO LONGER AVAILABLE 115V BDE-000000-00.A79600 000000-00 -
2 - NO LONGER AVAILABLE 230V BDE-000000-00.A79601 000000-00 -
3 - NO LONGER AVAILABLE BDE-000000-00.A79602 000000-00 -
4 - BRUSH & HOLDER SA 115V BDE-248447-11.A3 248447-11 £12.17 £14.60
4 - BRUSH & HOLDER 230V 230V BDE-247533-11.A20 247533-11 £10.85 £13.02
5 - PROTECTOR BDE-720703-00.A11 720703-00 £1.50 £1.80
6 - CORDSET IR-GB 240V BDE-324438-73.A31 324438-73 -
6 - CORDSET GB 115V BDE-378990.A15 378990 £9.41 £11.29
7 - NO LONGER AVAILABLE BDE-000000-00.A79604 000000-00 -
8 - CLAMP BDE-868069-00.A14 868069-00 £1.50 £1.80
9 - NO LONGER AVAILABLE BDE-000000-00.A79605 000000-00 -
10 - NO LONGER AVAILABLE BDE-000000-00.A79606 000000-00 -
11 - NO LONGER AVAILABLE BDE-000000-00.A79607 000000-00 -
12 - NO LONGER AVAILABLE BDE-000000-00.A79608 000000-00 -
13 - SPRING BDE-572255-00.A24 572255-00 £1.50 £1.80
14 - NO LONGER AVAILABLE BDE-000000-00.A79620 000000-00 -
15 - KNOB BDE-025922908.A102 025922908 -
16 - NO LONGER AVAILABLE BDE-000000-00.A79609 000000-00 -
17 - NO LONGER AVAILABLE BDE-000000-00.A79610 000000-00 -
18 - NO LONGER AVAILABLE BDE-000000-00.A79611 000000-00 -
20 - NO LONGER AVAILABLE BDE-000000-00.A79612 000000-00 -
21 - NO LONGER AVAILABLE BDE-000000-00.A79613 000000-00 -
25 - NO LONGER AVAILABLE BDE-000000-00.A79614 000000-00 -
26 - BEARING 608 BDE-N110358.A117 N110358 £3.32 £3.99
27 - NO LONGER AVAILABLE BDE-000000-00.A79615 000000-00 -
28 - NO LONGER AVAILABLE BDE-000000-00.A79616 000000-00 -
29 - NO LONGER AVAILABLE BDE-000000-00.A79617 000000-00 -
30 - BEARING BDE-013830000.A6 013830000 -
31 - NO LONGER AVAILABLE BDE-000000-00.A79618 000000-00 -
32 - NO LONGER AVAILABLE BDE-000000-00.A79619 000000-00 -
33 - PULLEY BDE-324105-00.A13 324105-00 £2.78 £3.34
34 - BELT TOOTHED BDE-325106-00.A19 325106-00 £16.03 £19.24
35 - NO LONGER AVAILABLE BDE-000000-00.A79621 000000-00 -
36 - BEARING BDE-861721-01.A54 861721-01 £7.85 £9.42
37 - PLATE BDE-868047-00.A40 868047-00 £7.85 £9.42
38 - NO LONGER AVAILABLE BDE-000000-00.A79622 000000-00 -
39 - BEARING NEEDLE BDE-330004-06.A60 330004-06 £1.50 £1.80
40 - SUPPORT KIT BDE-247941-00.A8 247941-00 £38.80 £46.56
43 - NO LONGER AVAILABLE BDE-000000-00.A79623 000000-00 -
44 - NO LONGER AVAILABLE BDE-000000-00.A79624 000000-00 -
45 - SCREW BDE-949896-12.A21 949896-12 £1.50 £1.80
47 - NUT M4 BDE-249232-00.A35 249232-00 £1.42 £1.70
48 - SCREW BDE-249416-04.A14 249416-04 £1.42 £1.70
49 - NUT BDE-761225-02.A37 761225-02 £1.50 £1.80
50 - WASHER BDE-249219-00.A2 249219-00 £1.42 £1.70
52 - CABLE CLAMP BDE-379684.A60 379684 £1.50 £1.80
53 - SCREW BDE-760978-01.A46 760978-01 £1.50 £1.80
54 - NO LONGER AVAILABLE BDE-000000-00.A79625 000000-00 -
55 - NO LONGER AVAILABLE BDE-000000-00.A79626 000000-00 -
56 - NO LONGER AVAILABLE BDE-000000-00.A79627 000000-00 -
57 - WASHER M6 BDE-249221-00.A53 249221-00 £1.50 £1.80
58 - NO LONGER AVAILABLE BDE-000000-00.A79628 000000-00 -
59 - CAPACITOR BDE-320842-03.A19 320842-03 -
60 - NO LONGER AVAILABLE BDE-000000-00.A79629 000000-00 -
61 - SCREW BDE-949896-12.A22 949896-12 £1.50 £1.80
64 - NO LONGER AVAILABLE BDE-000000-00.A79630 000000-00 -
65 - NO LONGER AVAILABLE BDE-000000-00.A79631 000000-00 -
70 - NO LONGER AVAILABLE BDE-000000-00.A79632 000000-00 -
71 - NO LONGER AVAILABLE BDE-000000-00.A79633 000000-00 -
76 - ADAPTOR BDE-247751-00.A7 247751-00 -
826 - NO LONGER AVAILABLE BDE-000000-00.A79634 000000-00 -
