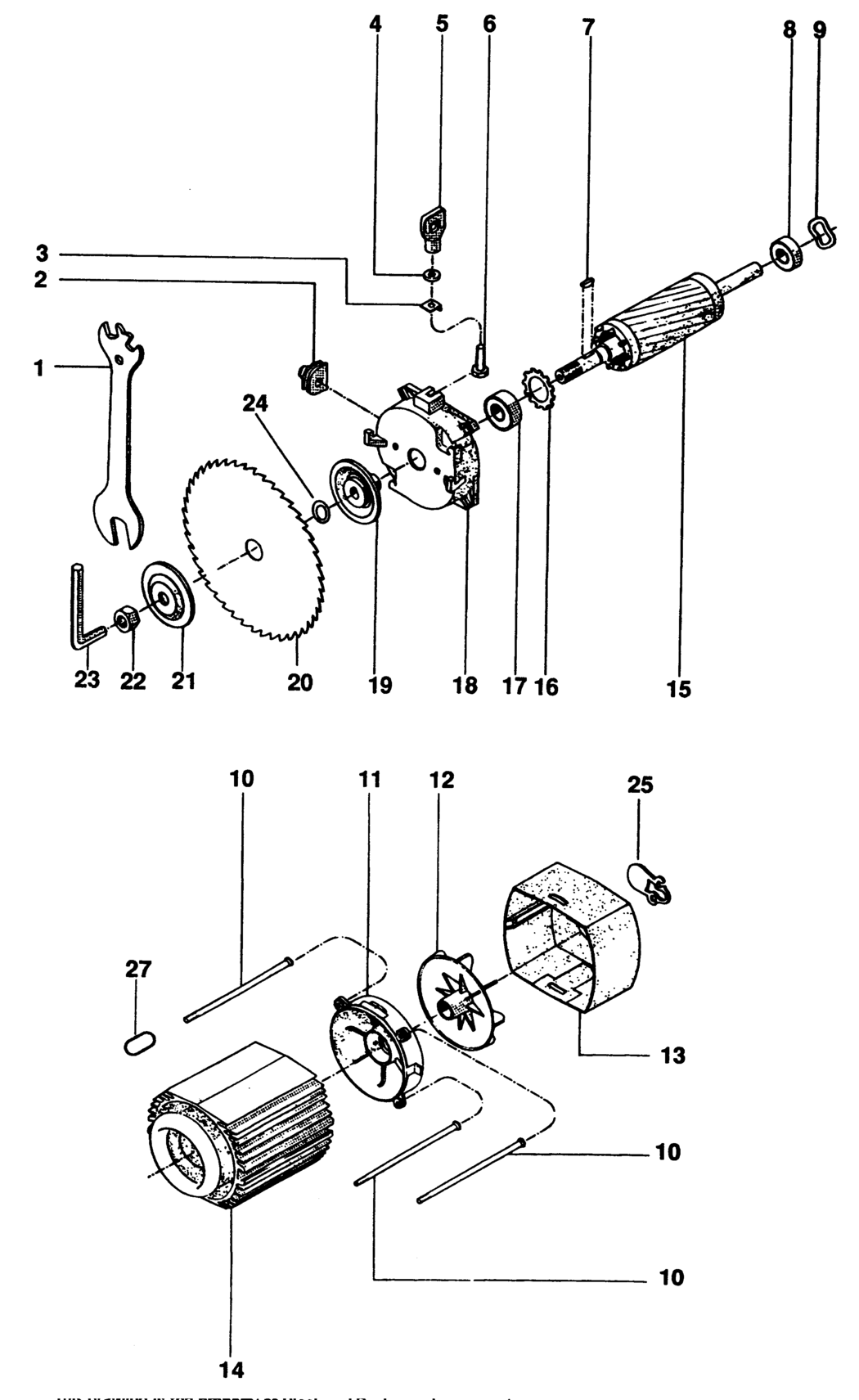

An exploded drawing and spare parts listing for the Dewalt DW1251----B Type 1 France Radial Arm Saw
Ex VAT Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A14516 000000-00 -
2 - BUSHING BDE-860447-00.A29 860447-00 £7.85 £9.42
3 - PLATE BDE-860807-00.A11 860807-00 £1.78 £2.13
4 - WASHER M8 BDE-860073-03.A369 860073-03 £1.50 £1.80
5 - NUT BDE-860655-01.A8 860655-01 -
6 - SCREW BDE-860085-19.A87 860085-19 £1.50 £1.80
7 - KEY BDE-860318-01.A36 860318-01 £1.50 £1.80
8 - BEARING BDE-868768-07.A79 868768-07 £7.85 £9.42
9 - RING BDE-860080-02.A57 860080-02 £1.50 £1.80
10 - ROD BDE-860446-00.A32 860446-00 £1.50 £1.80
11 - END CAP BDE-860443-00.A30 860443-00 £4.69 £5.63
12 - FAN BDE-860444-00.A38 860444-00 £4.69 £5.63
13 - COVER BDE-860445-00.A41 860445-00 £7.18 £8.62
14 - STATOR BDE-868413-00.A12 868413-00 £293.97 £352.76
15 - NO LONGER AVAILABLE BDE-000000-00.A14519 000000-00 -
16 - RING BDE-860806-00.A21 860806-00 £1.50 £1.80
17 - BEARING BDE-861721-12.A60 861721-12 £7.85 £9.42
18 - HOUSING BDE-860808-00.A20 860808-00 -
19 - NO LONGER AVAILABLE BDE-000000-00.A14520 000000-00 -
21 - OUTER FLANGE BDE-861241-00.A29 861241-00 -
22 - NUT BDE-860126-01.A21 860126-01 -
23 - HEX KEY 8 MM BDE-860098-05.A59 860098-05 £3.30 £3.96
24 - NO LONGER AVAILABLE BDE-000000-00.A14527 000000-00 -
25 - CAP BDE-863112-00.A39 863112-00 £1.50 £1.80
27 - NO LONGER AVAILABLE BDE-000000-00.A14521 000000-00 -
