Hitachi / Hikoki G10SD2 Disc Grinder Spare Parts

Home Details Reviews Delivery

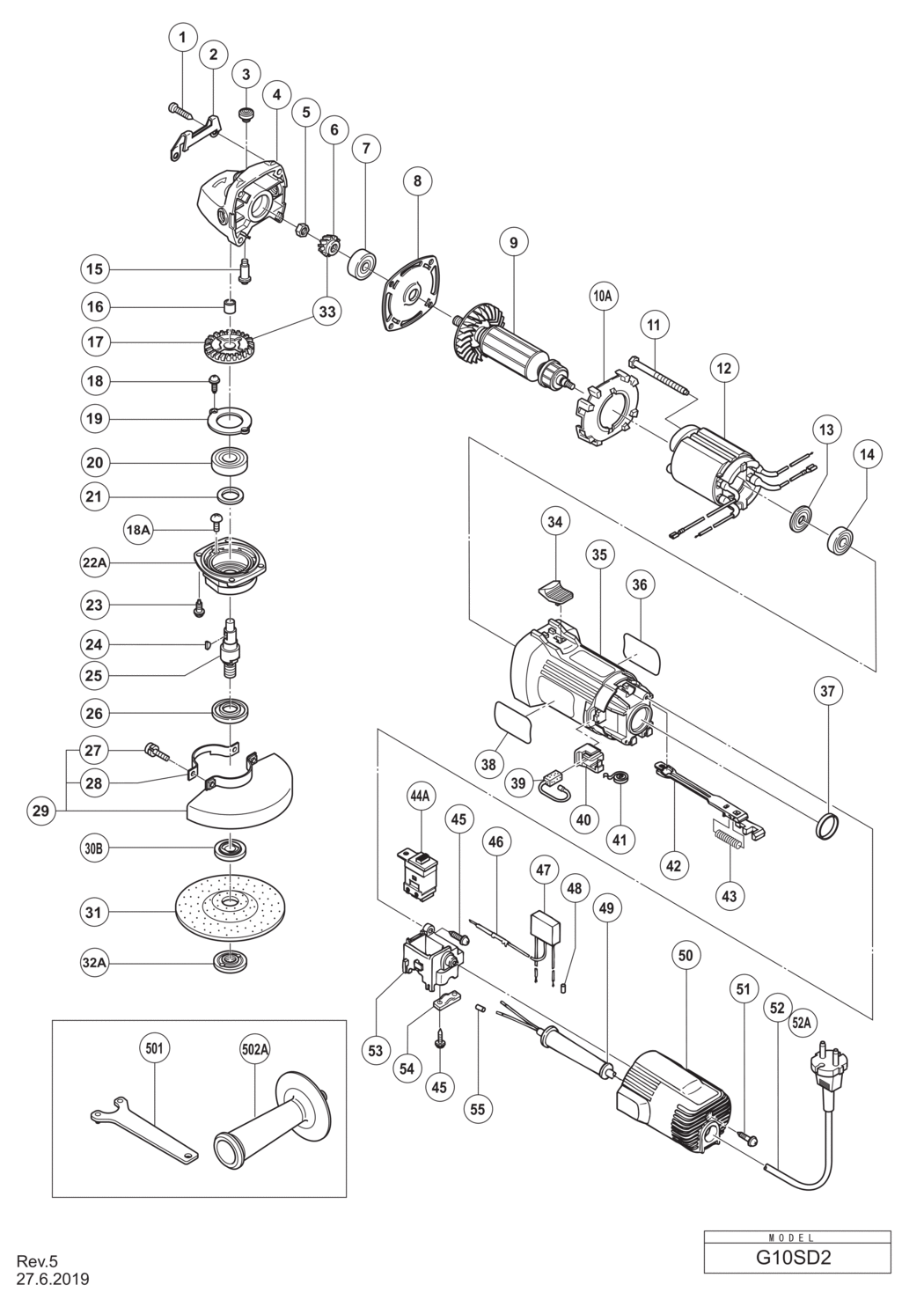

An exploded diagram and spare parts listing for the Hitachi / Hikoki G10SD2 Disc Grinder

	Ex VAT	Inc VAT
1 - TAPPING SCREW D5X25 HIT-937807.A5 937807	-
2 - GUARD PLATE HIT-317807.A4 317807	£1.67	£2.00
3 - PUSHING BUTTON HIT-301944.A31 301944	£1.67	£2.00
4 - GEAR COVER ASS'Y INCLUD.3 HIT-316484.A1 316484	£19.35	£23.22
5 - SPECIAL NUT M7 HIT-301941.A0 301941	£1.67	£2.00
6 - PINION HIT-317820.A1 317820	£20.67	£24.80
7 - BALL BEARING 628VVC2PS2-L HIT-628VVC.A8 628VVC	£6.56	£7.87
8 - BEARING HOLDER HIT-316480.A0 316480	-
*9 - ARMATURE 110V HIT-360497C.A1 360497C	£62.25	£74.70
*9 - ARMATURE 230V-240V HIT-360497F.A0 360497F	£62.25	£74.70
10A - FAN GUIDE HIT-319898.A2 319898	£1.67	£2.00
11 - HEX. HD. TAPPING SCREW D4X70 HIT-982021.A2 982021	£1.67	£2.00
*12 - STATOR (A) 110V-115V HIT-340441C.A1 340441C	£16.63	£19.96
*12 - STATOR (A) 220V-230V HIT-340441E.A0 340441E	£16.63	£19.96
13 - DUST SEAL HIT-315877.A9 315877	£1.67	£2.00
14 - BALL BEARING 608VVC2PS2L HIT-608VVM.A223 608VVM	£5.70	£6.84
15 - LOCK PIN HIT-301943.A14 301943	£3.28	£3.93
16 - NEEDLE BEARING (HK0709) HIT-673422.A1 673422	-
17 - GEAR HIT-317821.A0 317821	£18.48	£22.18
18 - SEAL LOCK SCREW (W/SP. WASHER) M4X10 TILL 09.2009 HIT-997263.A1 997263	-
18A - SLOTTED HD. SCREW (SEAL LOCK) M4X8 SINCE 10.2009 HIT-323556.A6 323556	-
19 - BEARING COVER TILL 09.2009 HIT-316490.A2 316490	£1.67	£2.00
20 - BALL BEARING 6201DDCMPS2L HIT-6201DD.A6 6201DD	£8.64	£10.37
21 - FELT PACKING HIT-301946.A6 301946	£1.67	£2.00
22A - PACKING GLAND HIT-333838.A0 333838	£5.07	£6.08
23 - SEAL LOCK SCREW (W/SP. WASHER) M4X12 HIT-307127.A3 307127	£1.67	£2.00
24 - WOODRUFF KEY HIT-302047.A7 302047	£1.67	£2.00
25 - SPINDLE HIT-317822.A0 317822	-
26 - FRINGER HIT-301945.A1 301945	£1.67	£2.00
27 - MACHINE SCREW (W/SP. WASHER) M5X16(BLACK HIT-308386.A6 308386	£1.67	£2.00
28 - SET PLATE HIT-301949.A0 301949	£1.67	£2.00
29 - WHEEL GUARD ASS'Y INCLUD.27 HIT-301948.A2 301948	£10.89	£13.07
30B - WHEEL WASHER HIT-372737.A4 372737	-
31 - D. C. WHEELS 100MMX4T A36Q (25 PCS.) HIT-316820.A6 316820	-
32A - WHEEL NUT M10 HIT-339578.A4 339578	-
33 - GEAR ASS'Y INCLUD.6 HIT-317819.A0 317819	£33.82	£40.58
34 - SLIDE KNOB HIT-314428.A26 314428	£1.67	£2.00
35 - HOUSING HIT-317802.A0 317802	£18.48	£22.18
36 - NAME PLATE HIT-000000.A1736 000000	-
37 - RUBBER RING HIT-995662.A4 995662	£1.67	£2.00
38 - BRAND LABEL HIT-000000.A1737 000000	-
39 - CARBON BRUSH (1 PAIR) HIT-999088.A0 999088	£6.42	£7.70
40 - BRUSH HOLDER HIT-317810.A8 317810	£6.09	£7.31
41 - SPRING HIT-308536.A16 308536	£1.67	£2.00
42 - SLIDE BAR HIT-317806.A1 317806	£1.67	£2.00
43 - SPRING HIT-314429.A3 314429	£1.67	£2.00
44A - SLIDE SWITCH (2P PILLAR TYPE) HIT-321208.A1 321208	-
45 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A200 984750	£1.67	£2.00
*46 - EARTH TERMINAL FOR NOISE SUPPRESSOR HIT-314854.A7 314854	£1.67	£2.00
*47 - NOISE SUPPRESSOR FOR NZL HIT-994273.A10 994273	£7.30	£8.76
*48 - TUBE (D) FOR NOISE SUPPRESSOR HIT-981373.A53 981373	£1.67	£2.00
49 - CORD ARMOR D8.8 HIT-953327.A93 953327	£1.67	£2.00
50 - TAIL COVER HIT-317808.A1 317808	£10.77	£12.92
51 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-307811.A29 307811	£1.67	£2.00
*52 - CORD (CORD ARMOR D8.8) FOR HKG HIT-500435Z.A36 500435Z	£14.14	£16.97
*52A - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500461Z.A26 500461Z	£15.56	£18.67
53 - SWITCH HOLDER HIT-317811.A1 317811	£3.02	£3.63
54 - CORD CLIP HIT-937631.A37 937631	£1.67	£2.00
55 - TUBE (D) FOR CORD HIT-981373.A54 981373	£1.67	£2.00
501 - WRENCH HIT-313933.A4 313933	£7.02	£8.42
502A - SIDE HANDLE HIT-711283.A23 711283	£7.02	£8.42
601 - RUBBER PAD HIT-936558Z.A4 936558Z	£8.50	£10.20
602 - WASHER NUT M10XP1.5 HIT-935513.A6 935513	£6.06	£7.27
603 - WASHER HIT-936548.A2 936548	£5.20	£6.24
604 - SANDING DISCS 100MM C-P16 (10 PCS.) HIT-314051.A6 314051	-
605 - SANDING DISCS 100MM C-P20 (10 PCS.) HIT-314052.A0 314052	-
606 - SANDING DISCS 100MM C-P24 (10 PCS.) HIT-314053.A6 314053	-
607 - SANDING DISCS 100MM C-P30 (10 PCS.) HIT-314054.A0 314054	-
608 - SANDING DISCS 100MM C-P36 (10 PCS.) HIT-314055.A6 314055	-
609 - SANDING DISCS 100MM C-P40 (10 PCS.) HIT-314056.A0 314056	-
610 - SANDING DISCS 100MM C-P50 (10 PCS.) HIT-314057.A6 314057	-
611 - SANDING DISCS 100MM C-P60 (10 PCS.) HIT-314058.A0 314058	-
612 - SANDING DISCS 100MM C-P80 (10 PCS.) HIT-314059.A6 314059	-
613 - SANDING DISCS 100MM C-P100 (10 PCS.) HIT-314060.A0 314060	-
614 - SANDING DISCS 100MM C-P120 (10 PCS.) HIT-314061.A6 314061	-
615 - GUIDE BASE HIT-302098.A0 302098	-
616A - DUST COLLECTION ADAPTER (DISC GRINDER) HIT-323918.A3 323918	£38.46	£46.15
617A - CASE HIT-325515.A0 325515	£36.87	£44.24

Attribute Name	Value
Brand	Hikoki
