Hitachi / Hikoki G10SN Disc Grinder Spare Parts

Home Details Reviews Delivery

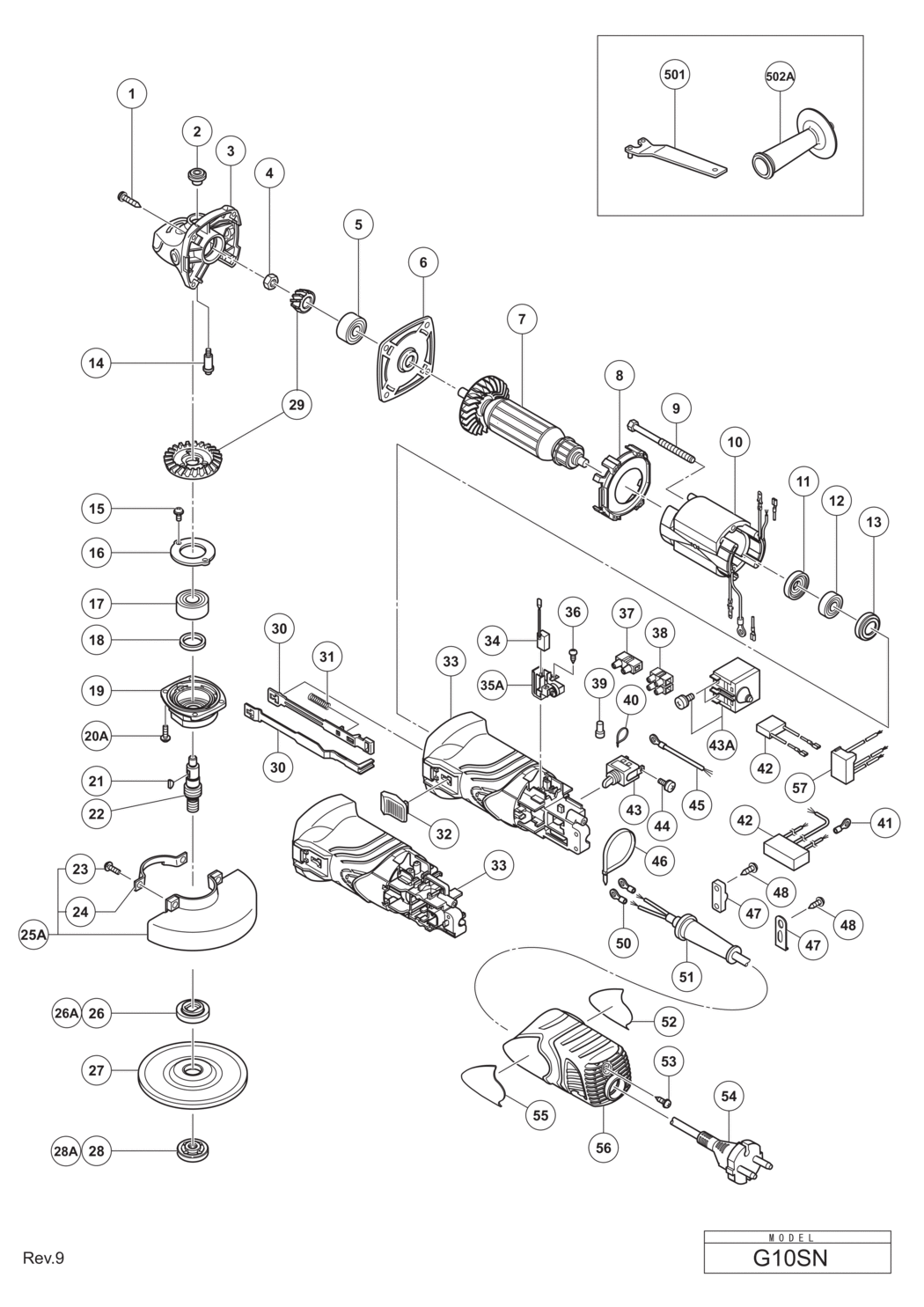

An exploded diagram and spare parts listing for the Hitachi / Hikoki G10SN Disc Grinder

	Ex VAT	Inc VAT
1 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-307028.A54 307028	£1.67	£2.00
2 - PUSHING BUTTON HIT-301944.A30 301944	£1.67	£2.00
3 - GEAR COVER ASS'Y INCLUD.2 HIT-332529.A3 332529	£14.83	£17.80
4 - SPECIAL NUT M6 HIT-309191.A14 309191	£1.67	£2.00
5 - BALL BEARING 628VVC2PS2-L HIT-628VVC.A7 628VVC	£6.56	£7.87
6 - BEARING HOLDER HIT-327887.A3 327887	£1.67	£2.00
*7 - ARMATURE 110V HIT-360891C.A2 360891C	£36.93	£44.32
*7 - ARMATURE 230V HIT-360891F.A2 360891F	£36.89	£44.27
8 - FAN GUIDE HIT-327886.A2 327886	£1.67	£2.00
9 - HEX. HD. TAPPING SCREW D4X70 HIT-982021.A1 982021	£1.67	£2.00
*10 - STATOR 110V HIT-340791B.A0 340791B	£38.88	£46.66
*10 - STATOR 230V-240V HIT-340791J.A2 340791J	£38.87	£46.64
*10 - STATOR 110V FOR MODEL (S) HIT-340791L.A0 340791L	£51.52	£61.82
*10 - STATOR 230V FOR MODEL (S) HIT-340791M.A2 340791M	£52.35	£62.82
11 - DUST SEAL HIT-321722.A13 321722	£1.67	£2.00
12 - BALL BEARING 626VVC2PS2L HIT-626VVM.A10 626VVM	£5.77	£6.92
13 - RUBBER BUSHING HIT-309929.A17 309929	£1.67	£2.00
14 - LOCK PIN HIT-301943.A15 301943	£3.28	£3.93
15 - SEAL LOCK SCREW (W/SP. WASHER) M4X10 HIT-987201.A4 987201	£1.67	£2.00
16 - BEARING COVER HIT-316490.A1 316490	£1.67	£2.00
17 - BALL BEARING 6201VV HIT-6201VV.A43 6201VV	£8.30	£9.96
18 - FELT PACKING HIT-301946.A7 301946	£1.67	£2.00
19 - PACKING GLAND HIT-316489.A5 316489	£8.35	£10.02
20A - SEAL LOCK SCREW (W/SP. WASHER) M4X12 HIT-307127.A2 307127	£1.67	£2.00
21 - WOODRUFF KEY HIT-302047.A6 302047	£1.67	£2.00
*22 - SPINDLE HIT-332526.A1 332526	-
23 - MACHINE SCREW (W/SP. WASHER) M5X16(BLACK HIT-308386.A5 308386	£1.67	£2.00
24 - SET PLATE HIT-301949.A1 301949	£1.67	£2.00
25A - WHEEL GUARD ASS'Y INCLUD.23 HIT-301948.A1 301948	£10.89	£13.07
*26A - WHEEL WASHER HIT-372737.A3 372737	-
27 - D. C. WHEELS 100MMX4T A36Q (25 PCS.) HIT-316820.A7 316820	-
*28A - WHEEL NUT M10 HIT-339578.A3 339578	-
29 - GEAR SET HIT-327888.A3 327888	£16.23	£19.48
*30 - SLIDE BAR HIT-333366.A2 333366	£1.67	£2.00
*30 - SLIDE BAR FOR MODEL (S) HIT-370042.A1 370042	£1.67	£2.00
*31 - SPRING EXCEPT FOR MODEL (S) HIT-314429.A4 314429	£1.67	£2.00
32 - SLIDE KNOB HIT-314428.A25 314428	£1.67	£2.00
*33 - HOUSING ASS'Y INCLUD.13 HIT-333365.A0 333365	£8.59	£10.31
*33 - HOUSING ASS'Y INCLUD.13 FOR MODEL (S) HIT-370040.A1 370040	£11.28	£13.53
34 - CARBON BRUSH (1 PAIR) HIT-999005.A4 999005	£13.25	£15.90
35A - BRUSH HOLDER HIT-333844.A3 333844	£3.12	£3.74
36 - TAPPING SCREW D3X8 HIT-328210.A21 328210	£1.67	£2.00
*37 - PILLAR TERMINAL FOR TPE HIT-938307.A10 938307	£3.28	£3.93
*39 - CONNECTOR 50091 (10 PCS.) EXCEPT FOR SIN HIT-959140.A46 959140	£4.98	£5.97
*41 - TERMINAL FOR TPE HIT-980063.A37 980063	£1.67	£2.00
*42 - NOISE SUPPRESSOR FOR TPE HIT-317491.A5 317491	£9.43	£11.32
*42 - NOISE SUPPRESSOR FOR MODEL (S) HIT-370051.A3 370051	-
*43 - SWITCH (1P SOLDER TYPE) HIT-314603.A9 314603	£15.38	£18.45
*43 - PUSHING BUTTON SWITCH 110V FOR MODEL (S) HIT-370044.A2 370044	£19.17	£23.00
*43A - PUSHING BUTTON SWITCH 220V-240V FOR MODEL (S) HIT-374280.A2 374280	£16.45	£19.74
*44 - MACHINE SCREW (W/WASHER) M3.5X6 EXCEPT FOR MODEL (S) HIT-305499.A20 305499	£1.67	£2.00
*45 - INTERNAL WIRE FOR TPE HIT-332545.A3 332545	-
*45 - INTERNAL WIRE FOR MODEL (S) HIT-370045.A0 370045	-
*47 - CORD CLIP HIT-937631.A40 937631	£1.67	£2.00
*47 - CORD CLIP FOR MODEL (S) HIT-338334.A7 338334	£1.67	£2.00
*48 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A201 984750	£1.67	£2.00
*48 - TAPPING SCREW (W/FLANGE) D4X12 FOR MODEL (S) HIT-305720.A2 305720	£1.67	£2.00
*50 - TERMINAL HIT-980063.A36 980063	£1.67	£2.00
*50 - TERMINAL FOR MODEL (S) HIT-311741.A8 311741	-
*51 - CORD ARMOR D8.8 HIT-953327.A97 953327	£1.67	£2.00
52 - NAME PLATE HIT-000000.A1714 000000	-
53 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-307811.A28 307811	£1.67	£2.00
*54 - CORD (CORD ARMOR D8.8) HIT-500436Z.A17 500436Z	-
*54 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500461Z.A24 500461Z	£15.56	£18.67
55 - BRAND LABEL HIT-000000.A1715 000000	-
*56 - TAIL COVER HIT-327894.A1 327894	£9.03	£10.84
*56 - TAIL COVER FOR MODEL (S) HIT-370041.A0 370041	-
*57 - VARISTOR (A) FOR MODEL (S) HIT-370043.A0 370043	£9.10	£10.92
501 - WRENCH HIT-313933.A6 313933	£7.02	£8.42
*502A - SIDE HANDLE HIT-711283.A21 711283	£7.02	£8.42
601 - SANDING DISCS 100MM C-P16 (10 PCS.) HIT-314051.A4 314051	-
602 - SANDING DISCS 100MM C-P20 (10 PCS.) HIT-314052.A2 314052	-
603 - SANDING DISCS 100MM C-P24 (10 PCS.) HIT-314053.A4 314053	-
604 - SANDING DISCS 100MM C-P30 (10 PCS.) HIT-314054.A2 314054	-
605 - SANDING DISCS 100MM C-P36 (10 PCS.) HIT-314055.A4 314055	-
606 - SANDING DISCS 100MM C-P40 (10 PCS.) HIT-314056.A2 314056	-
607 - SANDING DISCS 100MM C-P50 (10 PCS.) HIT-314057.A4 314057	-
608 - SANDING DISCS 100MM C-P60 (10 PCS.) HIT-314058.A2 314058	-
609 - SANDING DISCS 100MM C-P80 (10 PCS.) HIT-314059.A4 314059	-
610 - SANDING DISCS 100MM C-P100 (10 PCS.) HIT-314060.A2 314060	-
611 - SANDING DISCS 100MM C-P120 (10 PCS.) HIT-314061.A4 314061	-
*612 - WASHER NUT M10XP1.5 HIT-935513.A4 935513	£6.06	£7.27
613 - WASHER HIT-936548.A4 936548	£5.20	£6.24
614 - RUBBER PAD HIT-936558Z.A2 936558Z	£8.50	£10.20
615 - GUIDE BASE HIT-302098.A1 302098	-
616 - DUST COLLECTION ADAPTER (DISC GRINDER) HIT-323918.A4 323918	£38.46	£46.15
*617 - WHEEL GUARD FOR 100MM CUT-OFF WHEEL EXCEPT FOR USA HIT-302099.A0 302099	-
*618 - SILICON RUBBER (B) FOR MODEL (S) HIT-324688.A3 324688	£43.25	£51.90
