Hitachi / Hikoki G10SR3 Disc Grinder Spare Parts

Home Details Reviews Delivery

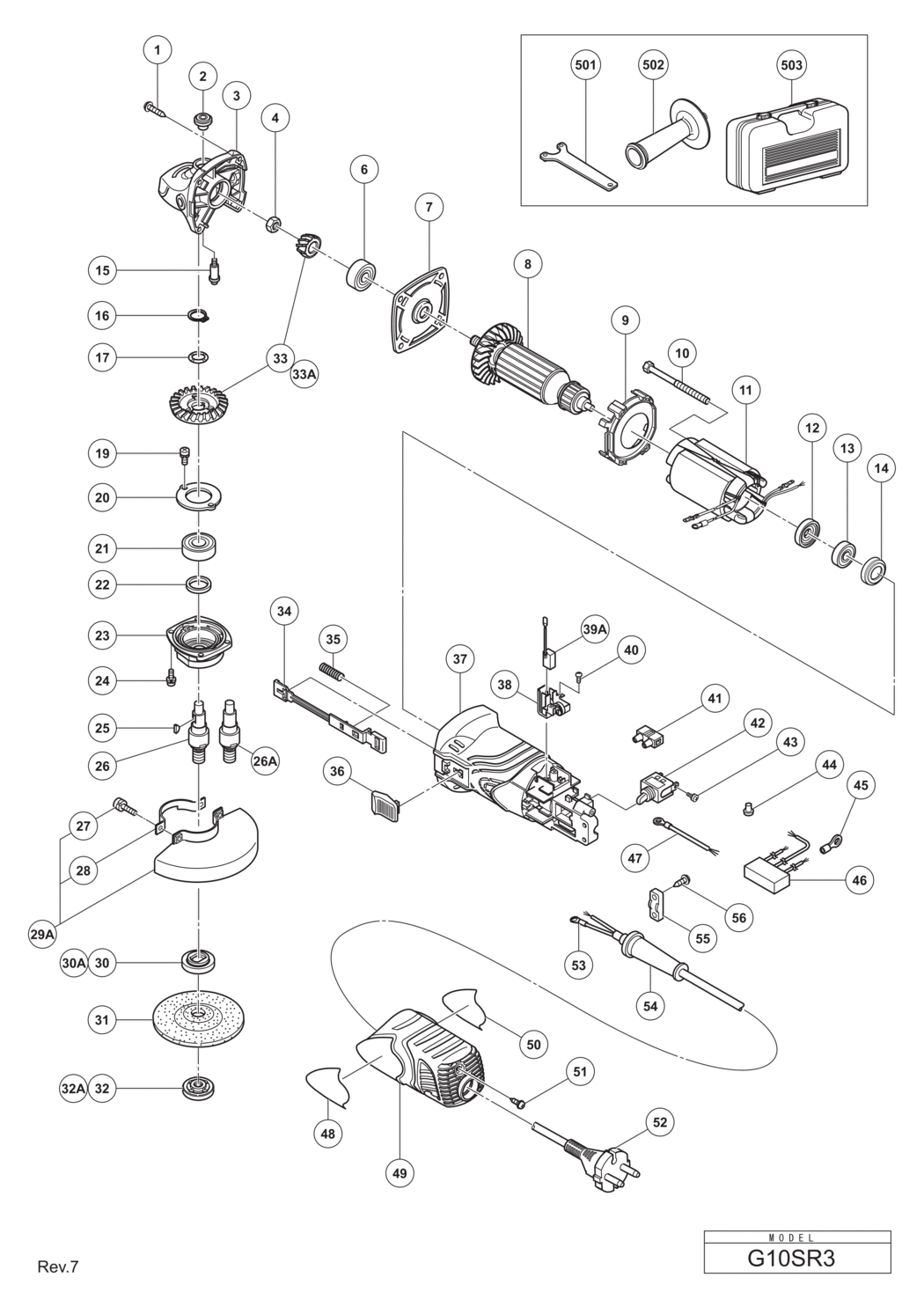

An exploded diagram and spare parts listing for the Hitachi / Hikoki G10SR3 Disc Grinder

	Ex VAT	Inc VAT
1 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-307028.A56 307028	£1.67	£2.00
2 - PUSHING BUTTON HIT-301944.A29 301944	£1.67	£2.00
3 - GEAR COVER ASS'Y INCLUD.2 HIT-327891.A0 327891	£13.09	£15.71
4 - SPECIAL NUT M6 HIT-309191.A16 309191	£1.67	£2.00
6 - BALL BEARING 628VVC2PS2-L HIT-628VVC.A5 628VVC	£6.56	£7.87
7 - BEARING HOLDER HIT-327887.A4 327887	£1.67	£2.00
*8 - ARMATURE 110V HIT-360799C.A0 360799C	£34.42	£41.31
*8 - ARMATURE 220V-240V HIT-360799E.A1 360799E	£34.42	£41.31
9 - FAN GUIDE HIT-327886.A1 327886	£1.67	£2.00
10 - HEX. HD. TAPPING SCREW D4X65 HIT-963712.A2 963712	-
*11 - STATOR 110V HIT-340702C.A0 340702C	£18.13	£21.76
*11 - STATOR 220V-230V HIT-340702E.A1 340702E	£18.13	£21.76
12 - DUST SEAL HIT-321722.A14 321722	£1.67	£2.00
13 - BALL BEARING 626VVC2PS2L HIT-626VVM.A12 626VVM	£5.77	£6.92
14 - RUBBER BUSHING HIT-309929.A16 309929	£1.67	£2.00
15 - LOCK PIN HIT-301943.A16 301943	£3.28	£3.93
16 - RETAINING RING FOR D11 SHAFT HIT-316487.A23 316487	£1.67	£2.00
17 - WAVE WASHER TILL 9.2010 HIT-316486.A0 316486	£1.67	£2.00
19 - SEAL LOCK SCREW (W/SP. WASHER) M4X10 HIT-987201.A5 987201	£1.67	£2.00
20 - BEARING COVER HIT-316490.A3 316490	£1.67	£2.00
21 - BALL BEARING 6201VV HIT-6201VV.A44 6201VV	£8.30	£9.96
22 - FELT PACKING HIT-301946.A9 301946	£1.67	£2.00
23 - PACKING GLAND HIT-316489.A4 316489	£8.35	£10.02
24 - SEAL LOCK SCREW (W/SP. WASHER) M4X12 HIT-987203.A10 987203	£1.67	£2.00
25 - WOODRUFF KEY TILL 9.2010 HIT-302047.A4 302047	£1.67	£2.00
*26 - NO LONGER AVAILABLE HIT-327903.A0 327903	-
*26A - SPINDLE SINCE 10.2010 HIT-334917.A0 334917	-
27 - MACHINE SCREW (W/SP. WASHER) M5X16(BLACK HIT-308386.A8 308386	£1.67	£2.00
28 - SET PLATE HIT-301949.A3 301949	£1.67	£2.00
29A - WHEEL GUARD ASS'Y INCLUD.27 HIT-331076.A0 331076	£7.57	£9.08
*30A - WHEEL WASHER HIT-372737.A2 372737	-
*32A - WHEEL NUT M10 HIT-339578.A1 339578	-
33 - GEAR SET TILL 9.2010 HIT-327888.A2 327888	£16.23	£19.48
33A - GEAR SET SINCE 10.2010 HIT-337382.A0 337382	£10.43	£12.52
34 - SLIDE BAR HIT-327893.A1 327893	£1.67	£2.00
35 - SPRING HIT-314429.A5 314429	£1.67	£2.00
36 - SLIDE KNOB HIT-314428.A24 314428	£1.67	£2.00
37 - HOUSING ASS'Y INCLUD.14 HIT-327885.A0 327885	£9.43	£11.32
38 - BRUSH HOLDER HIT-327895.A1 327895	£3.37	£4.04
39 - CARBON BRUSH (1 PAIR) HIT-999005.A2 999005	£13.25	£15.90
40 - TAPPING SCREW D3X8 HIT-328210.A19 328210	£1.67	£2.00
*41 - PILLAR TERMINAL HIT-938307.A7 938307	£3.28	£3.93
42 - SWITCH (1P SOLDER TYPE) HIT-314603.A10 314603	£15.38	£18.45
43 - MACHINE SCREW (W/WASHER) M3.5X6 HIT-305499.A21 305499	£1.67	£2.00
*44 - CONNECTOR 50091 (10 PCS.) FOR EUROPE HIT-959140.A47 959140	£4.98	£5.97
*45 - TERMINAL FOR NOISE SUPPRESSOR HIT-980063.A32 980063	£1.67	£2.00
*46 - NOISE SUPPRESSOR FOR EUROPE HIT-317491.A7 317491	£9.43	£11.32
*46 - NOISE SUPPRESSOR FOR GBR (110V) HIT-930039.A47 930039	£3.85	£4.62
*47 - INTERNAL WIRE FOR EUROPE HIT-328509.A0 328509	£1.67	£2.00
48 - BRAND LABEL HIT-000000.A1701 000000	-
49 - TAIL COVER HIT-327894.A0 327894	£9.03	£10.84
50 - NAME PLATE HIT-000000.A1702 000000	-
51 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-307811.A27 307811	£1.67	£2.00
*52 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500435Z.A33 500435Z	£14.14	£16.97
*52 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500461Z.A23 500461Z	£15.56	£18.67
53 - TERMINAL FOR CORD HIT-980063.A33 980063	£1.67	£2.00
54 - CORD ARMOR D8.8 HIT-953327.A95 953327	£1.67	£2.00
55 - CORD CLIP HIT-937631.A41 937631	£1.67	£2.00
56 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A204 984750	£1.67	£2.00
501 - WRENCH HIT-313933.A5 313933	£7.02	£8.42
502 - SIDE HANDLE HIT-318312.A12 318312	£7.62	£9.15
601 - SANDING DISCS 100MM C-P24 (10 PCS.) HIT-314053.A5 314053	-
602 - SANDING DISCS 100MM C-P30 (10 PCS.) HIT-314054.A1 314054	-
603 - SANDING DISCS 100MM C-P50 (10 PCS.) HIT-314057.A5 314057	-
604 - SANDING DISCS 100MM C-P80 (10 PCS.) HIT-314059.A5 314059	-
605 - SANDING DISCS 100MM C-P120 (10 PCS.) HIT-314061.A5 314061	-
606 - SANDING DISCS 100MM C-P16 (10 PCS.) HIT-314051.A5 314051	-
607 - SANDING DISCS 100MM C-P20 (10 PCS.) HIT-314052.A1 314052	-
608 - SANDING DISCS 100MM C-P36 (10 PCS.) HIT-314055.A5 314055	-
609 - SANDING DISCS 100MM C-P40 (10 PCS.) HIT-314056.A1 314056	-
610 - SANDING DISCS 100MM C-P60 (10 PCS.) HIT-314058.A1 314058	-
611 - SANDING DISCS 100MM C-P100 (10 PCS.) HIT-314060.A1 314060	-
*612 - WASHER NUT M10XP1.5 HIT-935513.A3 935513	£6.06	£7.27
613 - WASHER HIT-936548.A5 936548	£5.20	£6.24
614 - RUBBER PAD HIT-936558Z.A1 936558Z	£8.50	£10.20
615 - GUIDE BASE HIT-302098.A3 302098	-
616 - DUST COLLECTION ADAPTER (DISC GRINDER) HIT-323918.A6 323918	£38.46	£46.15
