Hitachi / Hikoki G12SR3 Disc Grinder Spare Parts

Home Details Reviews Delivery

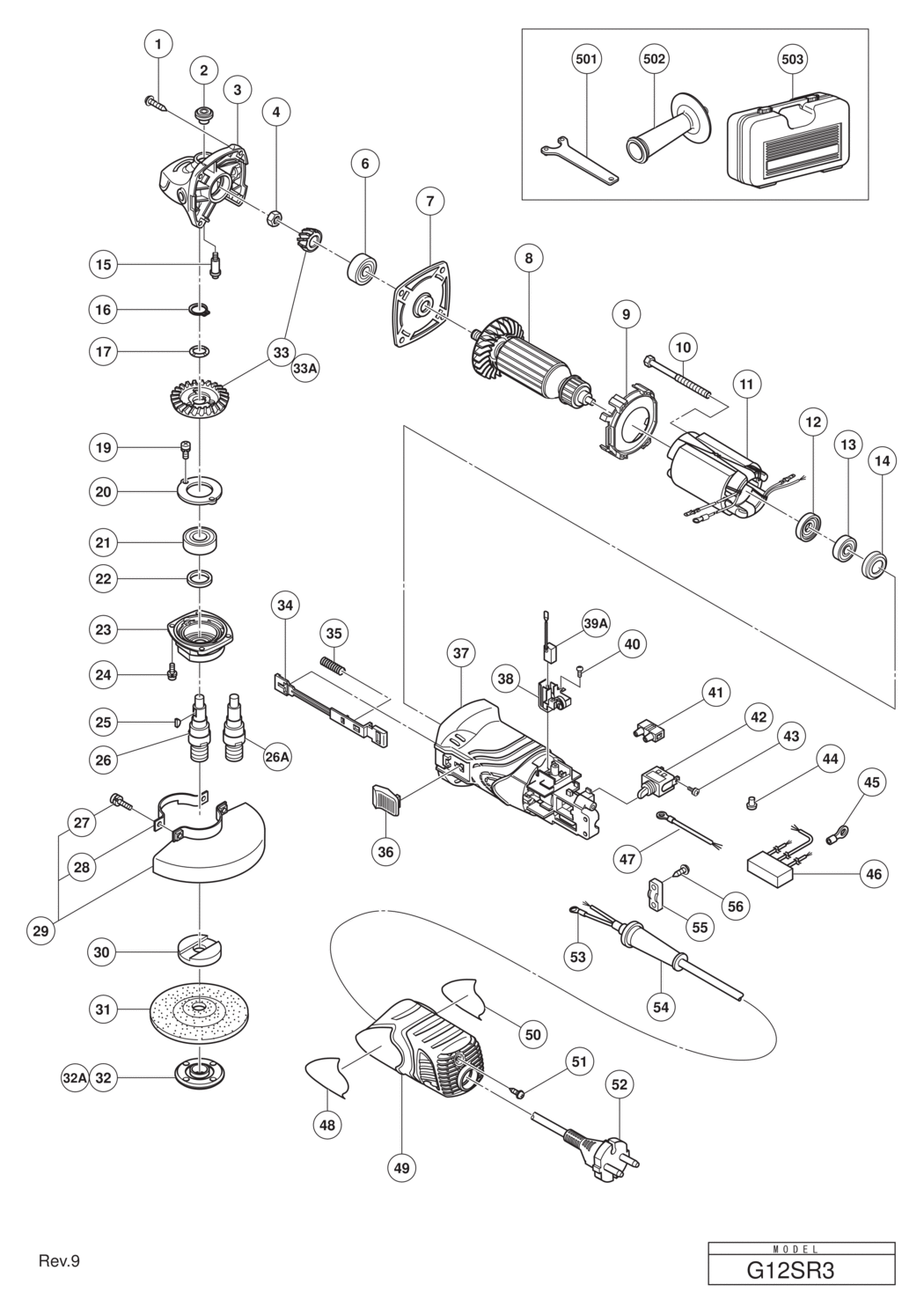

An exploded diagram and spare parts listing for the Hitachi / Hikoki G12SR3 Disc Grinder

	Ex VAT	Inc VAT
1 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-307028.A57 307028	£1.67	£2.00
2 - PUSHING BUTTON HIT-301944.A25 301944	£1.67	£2.00
3 - GEAR COVER ASS'Y INCLUD.2 HIT-327891.A1 327891	£13.09	£15.71
4 - SPECIAL NUT M6 HIT-309191.A19 309191	£1.67	£2.00
6 - BALL BEARING 628VVC2PS2-L HIT-628VVC.A1 628VVC	£6.56	£7.87
7 - BEARING HOLDER HIT-327887.A6 327887	£1.67	£2.00
*8 - ARMATURE 110V HIT-360799C.A1 360799C	£34.42	£41.31
*8 - ARMATURE 220V-240V HIT-360799E.A0 360799E	£34.42	£41.31
9 - FAN GUIDE HIT-327886.A0 327886	£1.67	£2.00
10 - HEX. HD. TAPPING SCREW D4X65 HIT-963712.A1 963712	-
*11 - STATOR 110V HIT-340702C.A1 340702C	£18.13	£21.76
*11 - STATOR 220V-230V HIT-340702E.A0 340702E	£18.13	£21.76
12 - DUST SEAL HIT-321722.A8 321722	£1.67	£2.00
13 - BALL BEARING 626VVC2PS2L HIT-626VVM.A16 626VVM	£5.77	£6.92
14 - RUBBER BUSHING HIT-309929.A18 309929	£1.67	£2.00
15 - LOCK PIN HIT-301943.A19 301943	£3.28	£3.93
16 - RETAINING RING FOR D11 SHAFT HIT-316487.A20 316487	£1.67	£2.00
17 - WAVE WASHER TILL 9.2010 HIT-316486.A1 316486	£1.67	£2.00
19 - SEAL LOCK SCREW (W/SP. WASHER) M4X10 HIT-987201.A1 987201	£1.67	£2.00
20 - BEARING COVER HIT-316490.A0 316490	£1.67	£2.00
21 - BALL BEARING 6201DDCMPS2L HIT-6201DD.A5 6201DD	£8.64	£10.37
22 - FELT PACKING HIT-301946.A13 301946	£1.67	£2.00
23 - PACKING GLAND HIT-316489.A6 316489	£8.35	£10.02
24 - MACHINE SCREW (W/SP. WASHER) M4X12 HIT-951039.A3 951039	£1.67	£2.00
25 - WOODRUFF KEY TILL 9.2010 HIT-302047.A0 302047	£1.67	£2.00
*26 - SPINDLE TILL 9.2010 HIT-327896.A0 327896	£6.38	£7.66
*26A - SPINDLE SINCE 10.2010 HIT-334919.A0 334919	£7.68	£9.21
27 - MACHINE SCREW (W/SP. WASHER) M5X16(BLACK HIT-308386.A12 308386	£1.67	£2.00
28 - SET PLATE HIT-301949.A6 301949	£1.67	£2.00
29 - WHEEL GUARD ASS'Y INCLUD.27 HIT-315492.A3 315492	£15.38	£18.45
*30 - WHEEL WASHER HIT-937817Z.A9 937817Z	£8.88	£10.66
*31 - D. C. WHEELS 115MM A36Q (25 PCS.) EXCEPT FOR FIN HIT-316821.A5 316821	-
*32A - WHEEL NUT M14 HIT-339579.A24 339579	£6.23	£7.48
33 - GEAR SET TILL 9.2010 HIT-327888.A0 327888	£16.23	£19.48
33A - GEAR SET SINCE 10.2010 HIT-337382.A1 337382	£10.43	£12.52
34 - SLIDE BAR HIT-327893.A0 327893	£1.67	£2.00
35 - SPRING HIT-314429.A7 314429	£1.67	£2.00
36 - SLIDE KNOB HIT-314428.A23 314428	£1.67	£2.00
37 - HOUSING ASS'Y INCLUD.14 HIT-327885.A1 327885	£9.43	£11.32
38 - BRUSH HOLDER HIT-327895.A0 327895	£3.37	£4.04
39 - CARBON BRUSH (1 PAIR) HIT-999005.A5 999005	£13.25	£15.90
40 - TAPPING SCREW D3X8 HIT-328210.A14 328210	£1.67	£2.00
41 - PILLAR TERMINAL HIT-938307.A1 938307	£3.28	£3.93
42 - SWITCH (1P SOLDER TYPE) HIT-314603.A7 314603	£15.38	£18.45
43 - MACHINE SCREW (W/WASHER) M3.5X6 HIT-305499.A25 305499	£1.67	£2.00
*44 - CONNECTOR 50091 (10 PCS.) FOR EUROPE HIT-959140.A51 959140	£4.98	£5.97
*45 - TERMINAL FOR NOISE SUPPRESSOR HIT-980063.A28 980063	£1.67	£2.00
*46 - NOISE SUPPRESSOR EXCEPT FOR SYR HIT-317491.A0 317491	£9.43	£11.32
*47 - INTERNAL WIRE FOR EUROPE HIT-328509.A1 328509	£1.67	£2.00
48 - BRAND LABEL HIT-000000.A1637 000000	-
49 - TAIL COVER HIT-327894.A3 327894	£9.03	£10.84
50 - NAME PLATE HIT-000000.A1636 000000	-
51 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-307811.A32 307811	£1.67	£2.00
*52 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500435Z.A28 500435Z	£14.14	£16.97
*52 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500461Z.A29 500461Z	£15.56	£18.67
53 - TERMINAL FOR CORD HIT-980063.A29 980063	£1.67	£2.00
54 - CORD ARMOR D8.8 HIT-953327.A85 953327	£1.67	£2.00
55 - CORD CLIP HIT-937631.A44 937631	£1.67	£2.00
56 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A218 984750	£1.67	£2.00
501 - WRENCH HIT-711271.A32 711271	£4.16	£4.99
502 - SIDE HANDLE HIT-318312.A11 318312	£7.62	£9.15
*601 - SANDING DISCS 115MM C-P16 (10 PCS.) HIT-314095.A2 314095	-
602 - SANDING DISCS 115MM C-P20 (10 PCS.) HIT-314096.A14 314096	-
603 - SANDING DISCS 115MM C-P24 (10 PCS.) HIT-314097.A3 314097	-
604 - SANDING DISCS 115MM C-P30 (10 PCS.) HIT-314098.A14 314098	-
605 - SANDING DISCS 115MM C-P36 (10 PCS.) HIT-314099.A3 314099	-
606 - SANDING DISCS 115MM C-P40 (10 PCS.) HIT-314100.A14 314100	-
607 - SANDING DISCS 115MM C-P50 (10 PCS.) HIT-314101.A3 314101	-
608 - SANDING DISCS 115MM C-P60 (10 PCS.) HIT-314102.A14 314102	-
609 - SANDING DISCS 115MM C-P80 (10 PCS.) HIT-314103.A3 314103	-
610 - SANDING DISCS 115MM C-P100 (10 PCS.) HIT-314104.A14 314104	-
611 - SANDING DISCS 115MM C-P120 (10 PCS.) HIT-314105.A2 314105	-
*612 - WASHER NUT HIT-937826Z.A22 937826Z	£8.48	£10.18
*613 - RUBBER PAD HIT-937825Z.A5 937825Z	-
*614 - WHEEL GUARD (FOR CUTTING) EXCEPT FOR USA HIT-332785.A3 332785	£12.61	£15.13

Attribute Name	Value
Brand	Hikoki
