Hitachi / Hikoki G12SS Disc Grinder Spare Parts

Home Details Reviews Delivery

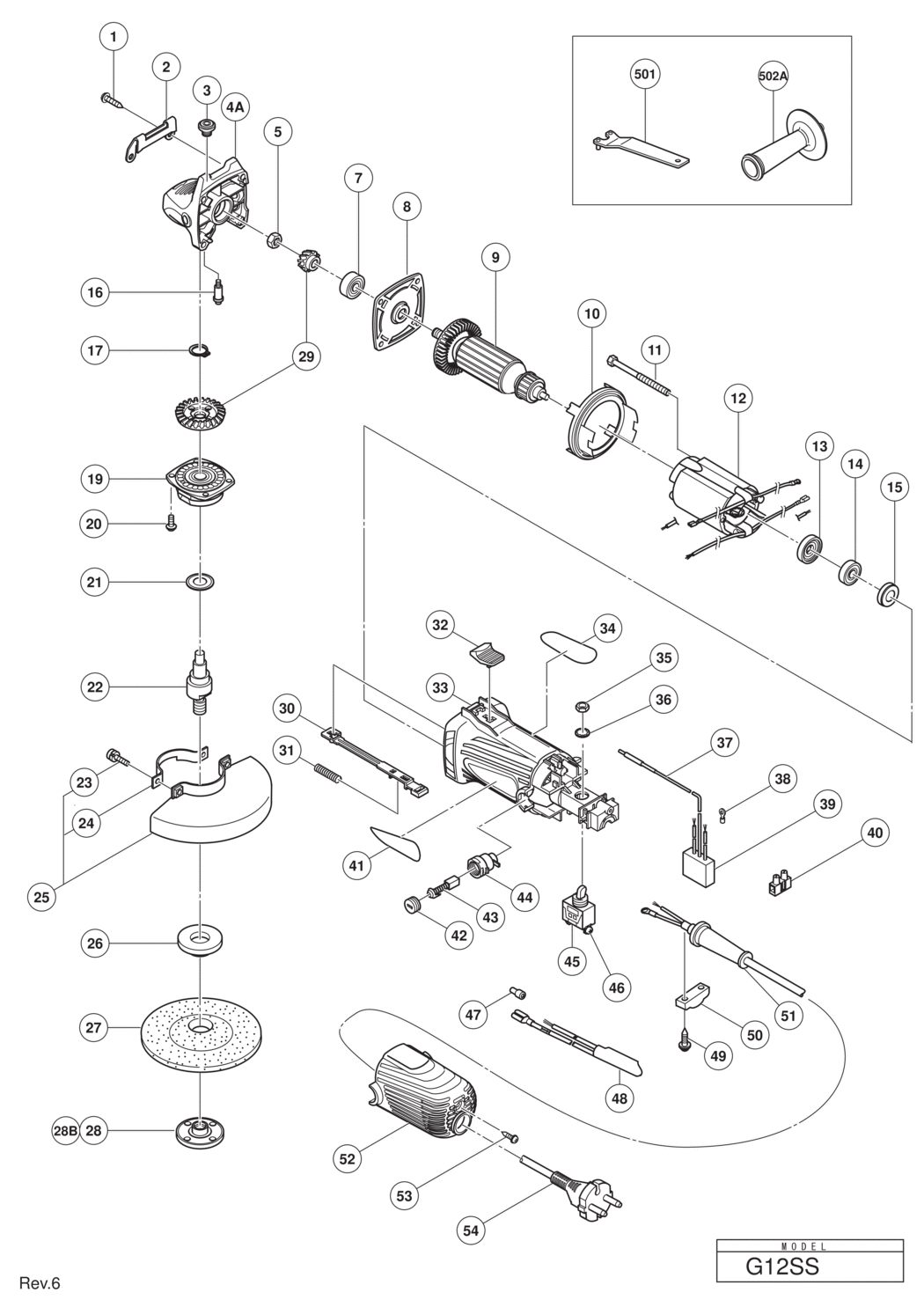

An exploded diagram and spare parts listing for the Hitachi / Hikoki G12SS Disc Grinder

	Ex VAT	Inc VAT
1 - TAPPING SCREW D5X25 (BLACK) HIT-320523.A6 320523	£1.67	£2.00
2 - GUARD PLATE TILL 2.2015 HIT-317807.A6 317807	£1.67	£2.00
3 - PUSHING BUTTON HIT-301944.A27 301944	£1.67	£2.00
4A - GEAR COVER ASS'Y INCLUD.3 HIT-339150.A1 339150	£12.02	£14.43
5 - SPECIAL NUT M6 HIT-309191.A17 309191	£1.67	£2.00
7 - BALL BEARING 608VVC2PS2L HIT-608VVM.A220 608VVM	£5.70	£6.84
8 - BEARING HOLDER HIT-328184.A0 328184	£1.67	£2.00
*9 - ARMATURE 110V-120V HIT-360802C.A0 360802C	£25.15	£30.18
*9 - ARMATURE 230V-240V HIT-360802E.A1 360802E	£19.98	£23.98
10 - FAN GUIDE HIT-328177.A1 328177	£1.67	£2.00
11 - HEX. HD. TAPPING SCREW D4X65 HIT-963712.A0 963712	-
*12 - STATOR 220V-230V HIT-340705E.A1 340705E	£15.27	£18.32
13 - DUST SEAL HIT-321722.A9 321722	£1.67	£2.00
14 - BALL BEARING 626VVC2PS2L HIT-626VVM.A17 626VVM	£5.77	£6.92
15 - RUBBER BUSHING HIT-309929.A20 309929	£1.67	£2.00
16 - LOCK PIN HIT-301943.A20 301943	£3.28	£3.93
17 - RETAINING RING FOR D11 SHAFT HIT-316487.A22 316487	£1.67	£2.00
19 - PACKING GLAND HIT-328182.A0 328182	£5.80	£6.96
20 - SEAL LOCK SCREW (W/WASHER) M4X12 HIT-328628.A2 328628	£1.67	£2.00
21 - WASHER (A) HIT-328185.A1 328185	£1.67	£2.00
*22 - SPINDLE HIT-328186.A0 328186	£6.35	£7.62
23 - MACHINE SCREW (W/SP. WASHER) M5X16(BLACK HIT-308386.A14 308386	£1.67	£2.00
24 - SET PLATE HIT-301949.A7 301949	£1.67	£2.00
25 - WHEEL GUARD ASS'Y INCLUD.23 HIT-315492.A2 315492	£15.38	£18.45
*26 - WHEEL WASHER HIT-937817Z.A10 937817Z	£8.88	£10.66
*28A - WHEEL NUT M14 HIT-339579.A25 339579	£6.23	£7.48
29 - GEAR AND PINION SET HIT-328178.A0 328178	£12.98	£15.57
30 - SLIDE BAR HIT-314427.A0 314427	£1.67	£2.00
31 - SPRING HIT-314429.A8 314429	£1.67	£2.00
32 - SLIDE KNOB HIT-314428.A22 314428	£1.67	£2.00
33 - HOUSING ASS'Y INCLUD.15 HIT-328176.A0 328176	£11.31	£13.57
34 - NAME PLATE HIT-000000.A1630 000000	-
35 - LOCK NUT HIT-000000.A1631 000000	-
36 - LOCK WASHER HIT-000000.A1632 000000	-
*37 - EARTH TERMINAL FOR NOISE SUPPRESSOR HIT-314854.A5 314854	£1.67	£2.00
*38 - TERMINAL FOR NOISE SUPPRESSOR HIT-980063.A31 980063	£1.67	£2.00
*39 - NOISE SUPPRESSOR FOR NZL HIT-317491.A1 317491	£9.43	£11.32
40 - PILLAR TERMINAL HIT-938307.A0 938307	£3.28	£3.93
41 - BRAND LABEL HIT-000000.A1633 000000	-
42 - BRUSH CAP HIT-936551.A0 936551	£1.67	£2.00
43 - CARBON BRUSH (1 PAIR) HIT-999021.A12 999021	£5.54	£6.65
44 - BRUSH HOLDER HIT-313777.A1 313777	£1.67	£2.00
45 - SWITCH (1P SCREW TYPE) INCLUD.35 HIT-955509.A1 955509	£12.72	£15.27
46 - MACHINE SCREW (W/WASHER) M3.5X6 HIT-305499.A26 305499	£1.67	£2.00
*47 - CONNECTOR 50091 (10 PCS.) FOR AUS HIT-959140.A50 959140	£4.98	£5.97
*48 - CHOKE COIL FOR AUS HIT-328629.A1 328629	£2.91	£3.49
49 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A217 984750	£1.67	£2.00
50 - CORD CLIP HIT-937631.A43 937631	£1.67	£2.00
51 - CORD ARMOR D8.8 HIT-953327.A84 953327	£1.67	£2.00
52 - TAIL COVER HIT-328183.A1 328183	£4.86	£5.83
53 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A26 305812	£1.67	£2.00
*54 - CORD (CORD ARMOR D8.8) FOR GBR HIT-500435Z.A27 500435Z	£14.14	£16.97
501 - WRENCH HIT-711271.A34 711271	£4.16	£4.99
*502A - SIDE HANDLE FOR NZL HIT-711283.A24 711283	£7.02	£8.42
601 - SANDING DISCS 115MM C-P16 (10 PCS.) HIT-314095.A0 314095	-
602 - SANDING DISCS 115MM C-P20 (10 PCS.) HIT-314096.A16 314096	-
603 - SANDING DISCS 115MM C-P24 (10 PCS.) HIT-314097.A1 314097	-
604 - SANDING DISCS 115MM C-P30 (10 PCS.) HIT-314098.A16 314098	-
605 - SANDING DISCS 115MM C-P36 (10 PCS.) HIT-314099.A1 314099	-
606 - SANDING DISCS 115MM C-P40 (10 PCS.) HIT-314100.A16 314100	-
607 - SANDING DISCS 115MM C-P50 (10 PCS.) HIT-314101.A1 314101	-
608 - SANDING DISCS 115MM C-P60 (10 PCS.) HIT-314102.A16 314102	-
609 - SANDING DISCS 115MM C-P80 (10 PCS.) HIT-314103.A1 314103	-
610 - SANDING DISCS 115MM C-P100 (10 PCS.) HIT-314104.A16 314104	-
611 - SANDING DISCS 115MM C-P120 (10 PCS.) HIT-314105.A10 314105	-
*612 - WASHER NUT HIT-937826Z.A25 937826Z	£8.48	£10.18
*613 - RUBBER PAD HIT-937825Z.A3 937825Z	-
*614 - WHEEL GUARD (FOR CUTTING) EXCEPT FOR USA HIT-332785.A7 332785	£12.61	£15.13

Attribute Name	Value
Brand	Hikoki
