Hitachi / Hikoki G13SN Disc Grinder Spare Parts

Hitachi / Hikoki G13SN Disc Grinder Spare Parts

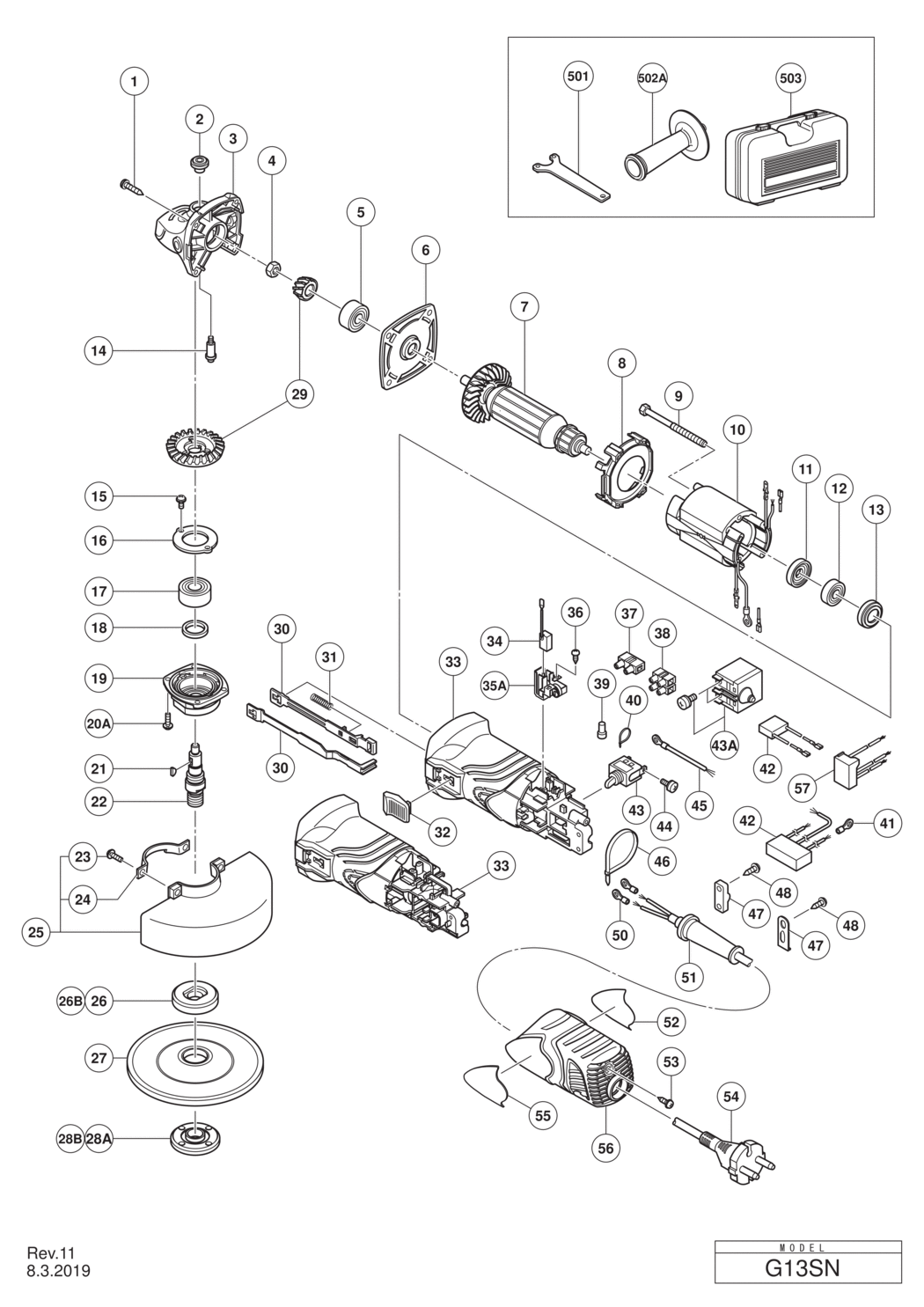

An exploded diagram and spare parts listing for the Hitachi / Hikoki G13SN Disc Grinder
Ex VAT Inc VAT
1 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-307028.A28 307028 £1.67 £2.00
2 - PUSHING BUTTON HIT-301944.A41 301944 £1.67 £2.00
3 - GEAR COVER ASS'Y INCLUD.2 HIT-332529.A4 332529 £14.83 £17.80
4 - SPECIAL NUT M6 HIT-309191.A21 309191 £1.67 £2.00
5 - BALL BEARING 628VVC2PS2-L HIT-628VVC.A0 628VVC £6.56 £7.87
6 - BEARING HOLDER HIT-327887.A0 327887 £1.67 £2.00
*7 - ARMATURE 110V HIT-360891C.A0 360891C £36.93 £44.32
*7 - ARMATURE 230V HIT-360891F.A4 360891F £36.89 £44.27
8 - FAN GUIDE HIT-327886.A4 327886 £1.67 £2.00
9 - HEX. HD. TAPPING SCREW D4X70 HIT-982021.A9 982021 £1.67 £2.00
*10 - STATOR 110V FOR TPE HIT-340791B.A2 340791B £38.88 £46.66
*10 - STATOR 230V-240V HIT-340791J.A0 340791J £38.87 £46.64
*10 - STATOR 110V FOR MODEL (S) HIT-340791L.A2 340791L £51.52 £61.82
*10 - STATOR 230V FOR MODEL (S) HIT-340791M.A0 340791M £52.35 £62.82
11 - DUST SEAL HIT-321722.A16 321722 £1.67 £2.00
12 - BALL BEARING 626VVC2PS2L HIT-626VVM.A4 626VVM £5.77 £6.92
13 - RUBBER BUSHING HIT-309929.A26 309929 £1.67 £2.00
14 - LOCK PIN HIT-301943.A2 301943 £3.28 £3.93
15 - SEAL LOCK SCREW (W/SP. WASHER) M4X10 HIT-987201.A8 987201 £1.67 £2.00
16 - BEARING COVER HIT-316490.A8 316490 £1.67 £2.00
17 - BALL BEARING 6201VV HIT-6201VV.A49 6201VV £8.30 £9.96
18 - FELT PACKING HIT-301946.A16 301946 £1.67 £2.00
19 - PACKING GLAND HIT-316489.A0 316489 £8.35 £10.02
20A - SEAL LOCK SCREW (W/SP. WASHER) M4X12 HIT-307127.A6 307127 £1.67 £2.00
21 - WOODRUFF KEY HIT-302047.A8 302047 £1.67 £2.00
*22 - SPINDLE HIT-332536.A2 332536 £6.14 £7.37
23 - MACHINE SCREW (W/SP. WASHER) M5X16(BLACK HIT-308386.A4 308386 £1.67 £2.00
24 - SET PLATE HIT-301949.A8 301949 £1.67 £2.00
*25 - WHEEL GUARD ASS'Y INCLUD.23 HIT-332539.A0 332539 -
*26 - WHEEL WASHER HIT-937817Z.A12 937817Z £8.88 £10.66
27 - D. C. WHEELS 125MM A36Q (25 PCS.) HIT-316822.A16 316822 -
*28B - WHEEL NUT M14 HIT-339579.A32 339579 £6.23 £7.48
29 - GEAR SET HIT-327888.A6 327888 £16.23 £19.48
*30 - SLIDE BAR HIT-333366.A0 333366 £1.67 £2.00
*30 - SLIDE BAR FOR MODEL (S) HIT-370042.A2 370042 £1.67 £2.00
*31 - SPRING EXCEPT FOR MODEL (S) HIT-314429.A10 314429 £1.67 £2.00
32 - SLIDE KNOB HIT-314428.A19 314428 £1.67 £2.00
*33 - HOUSING ASS'Y INCLUD.13 HIT-333365.A2 333365 £8.59 £10.31
*33 - HOUSING ASS'Y INCLUD.13 FOR MODEL (S) HIT-370040.A2 370040 £11.28 £13.53
34 - CARBON BRUSH (1 PAIR) HIT-999005.A6 999005 £13.25 £15.90
35A - BRUSH HOLDER HIT-333844.A8 333844 £3.12 £3.74
36 - TAPPING SCREW D3X8 HIT-328210.A10 328210 £1.67 £2.00
*37 - PILLAR TERMINAL EXCEPT FOR UAE HIT-938307.A31 938307 £3.28 £3.93
*39 - CONNECTOR 50091 (10 PCS.) EXCEPT FOR UAE (240V) HIT-959140.A8 959140 £4.98 £5.97
*41 - TERMINAL FOR AUS HIT-980063.A10 980063 £1.67 £2.00
*42 - NOISE SUPPRESSOR FOR AUS HIT-317491.A9 317491 £9.43 £11.32
*42 - NOISE SUPPRESSOR FOR MODEL (S) HIT-370051.A1 370051 -
*43 - SWITCH (1P SOLDER TYPE) HIT-314603.A16 314603 £15.38 £18.45
*43 - PUSHING BUTTON SWITCH 110V FOR MODEL (S) HIT-370044.A0 370044 £19.17 £23.00
*43 - PUSHING BUTTON SWITCH 230V FOR MODEL (S) HIT-370015.A0 370015 £18.01 £21.61
*44 - MACHINE SCREW (W/WASHER) M3.5X6 EXCEPT FOR MODEL (S) HIT-305499.A9 305499 £1.67 £2.00
*45 - INTERNAL WIRE FOR AUS HIT-332545.A4 332545 -
*45 - INTERNAL WIRE FOR MODEL (S) HIT-370045.A2 370045 -
*47 - CORD CLIP HIT-937631.A155 937631 £1.67 £2.00
*47 - CORD CLIP FOR MODEL (S) HIT-338334.A6 338334 £1.67 £2.00
*48 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A129 984750 £1.67 £2.00
*48 - TAPPING SCREW (W/FLANGE) D4X12 FOR MODEL (S) HIT-305720.A30 305720 £1.67 £2.00
*50 - TERMINAL HIT-980063.A94 980063 £1.67 £2.00
*50 - TERMINAL FOR MODEL (S) HIT-311741.A14 311741 -
*51 - CORD ARMOR D8.8 HIT-953327.A76 953327 £1.67 £2.00
52 - NAME PLATE HIT-000000.A3870 000000 -
53 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-307811.A51 307811 £1.67 £2.00
*54 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500436Z.A6 500436Z -
*54 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500461Z.A61 500461Z £15.56 £18.67
55 - BRAND LABEL HIT-000000.A3871 000000 -
*56 - TAIL COVER HIT-327894.A4 327894 £9.03 £10.84
*56 - TAIL COVER FOR MODEL (S) HIT-370041.A2 370041 -
*57 - VARISTOR (A) FOR MODEL (S) HIT-370043.A2 370043 £9.10 £10.92
501 - WRENCH HIT-711271.A19 711271 £4.16 £4.99
*502A - SIDE HANDLE HIT-711283.A2 711283 £7.02 £8.42
*503 - CASE FOR AUS HIT-319375.A0 319375 -
601 - SANDING DISCS 125MM C-P16 (10 PCS.) HIT-314062.A10 314062 -
602 - SANDING DISCS 125MM C-P20 (10 PCS.) HIT-314063.A2 314063 -
603 - SANDING DISCS 125MM C-P24 (10 PCS.) HIT-314064.A10 314064 -
604 - SANDING DISCS 125MM C-P30 (10 PCS.) HIT-314065.A2 314065 -
605 - SANDING DISCS 125MM C-P36 (10 PCS.) HIT-314066.A10 314066 -
606 - SANDING DISCS 125MM C-P40 (10 PCS.) HIT-314067.A2 314067 -
607 - SANDING DISCS 125MM C-P50 (10 PCS.) HIT-314068.A10 314068 -
608 - SANDING DISCS 125MM C-P60 (10 PCS.) HIT-314069.A2 314069 -
609 - SANDING DISCS 125MM C-P80 (10 PCS.) HIT-314070.A10 314070 -
610 - SANDING DISCS 125MM C-P100 (10 PCS.) HIT-314071.A2 314071 -
611 - SANDING DISCS 125MM C-P120 (10 PCS.) HIT-314072.A10 314072 -
*612 - WASHER NUT HIT-937826Z.A3 937826Z £8.48 £10.18
*613 - RUBBER PAD HIT-937825Z.A23 937825Z -
*614 - SILICON RUBBER (B) FOR (S) HIT-324688.A0 324688 £43.25 £51.90
