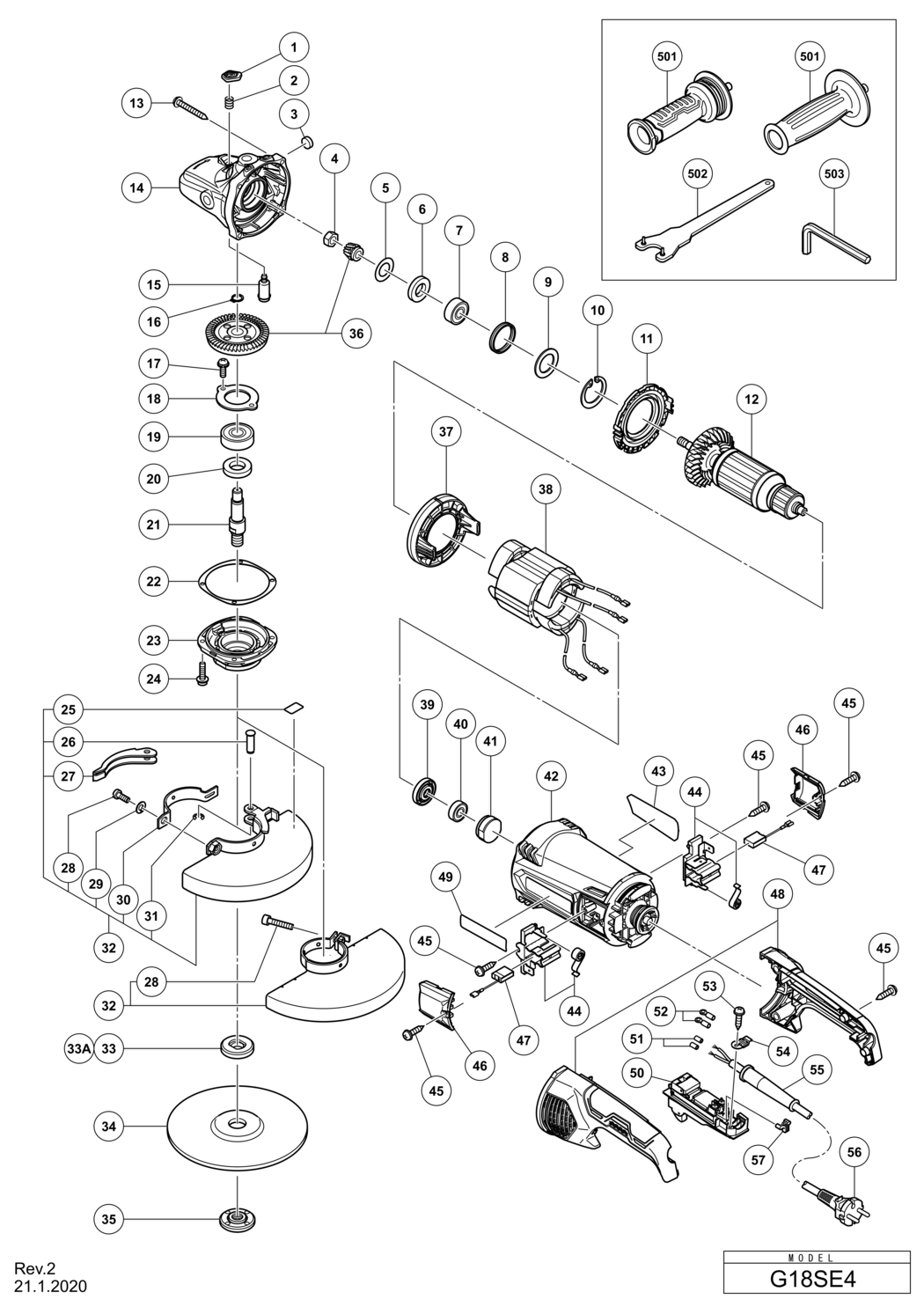

An exploded diagram and spare parts listing for the Hitachi / Hikoki G18SE4 Disc Grinder
Ex VAT Inc VAT
1 - PUSHING BUTTON HIT-337641.A2 337641 £1.67 £2.00
2 - SPRING HIT-320219.A16 320219 £1.67 £2.00
3 - FELT WASHER HIT-937033.A13 937033 £1.67 £2.00
4 - SPECIAL NUT M10 HIT-320226.A17 320226 £1.67 £2.00
5 - SEAL WASHER HIT-320221.A12 320221 £1.67 £2.00
6 - FELT PACKING HIT-320222.A9 320222 £1.67 £2.00
7 - BALL BEARING 6301DDCMPS2L HIT-6301DD.A9 6301DD £9.27 £11.12
8 - RUBBER RING HIT-330031.A5 330031 £1.67 £2.00
9 - WASHER HIT-337642.A2 337642 £1.67 £2.00
10 - RETAINING RING FOR D40 HOLE HIT-948391.A27 948391 £1.67 £2.00
11 - FAN GUIDE (B) HIT-337640.A2 337640 £1.67 £2.00
*12 - ARMATURE 110V HIT-361093C.A0 361093C -
*12 - ARMATURE 220V-230V HIT-361093E.A1 361093E £47.07 £56.48
13 - TAPPING SCREW (W/FLANGE) D5X35 (BLACK) HIT-323209.A12 323209 £1.67 £2.00
14 - GEAR COVER (A) ASS'Y INCLUD.1-3 HIT-374598.A0 374598 £20.24 £24.29
15 - LOCK PIN HIT-306890.A27 306890 £2.78 £3.34
16 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A86 939542 £2.98 £3.57
17 - SEAL LOCK SCREW (W/SP. WASHER) M5X10 HIT-992038.A22 992038 £1.67 £2.00
18 - BEARING COVER (B) HIT-320229.A9 320229 £1.67 £2.00
19 - BALL BEARING 6302VVCMPS2L HIT-6302VV.A13 6302VV £9.67 £11.60
20 - FELT PACKING (B) HIT-990852.A1 990852 £1.67 £2.00
*21 - SPINDLE HIT-320234.A10 320234 £11.83 £14.20
22 - SEAL PLATE HIT-320228.A16 320228 £1.67 £2.00
23 - PACKING GLAND HIT-320227.A11 320227 £8.32 £9.99
24 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 HIT-994192.A27 994192 £1.67 £2.00
25 - LABEL EXCEPT FOR CHN HIT-311492.A2 311492 £1.67 £2.00
26 - SET PIN EXCEPT FOR CHN HIT-321546.A11 321546 £4.86 £5.83
27 - LEVER EXCEPT FOR CHN HIT-321545.A5 321545 -
*28 - HEX. SOCKET HD. BOLT M8X25 (10 PCS.) HIT-949760.A9 949760 £6.62 £7.95
30 - SET PIECE EXCEPT FOR CHN HIT-321544.A11 321544 £1.67 £2.00
31 - RETAINING RING (E-TYPE) FOR D5 SHAFT EXCEPT FOR CHN HIT-673489.A31 673489 £1.67 £2.00
*32 - WHEEL GUARD ASS'Y INCLUD.25-28 HIT-337226.A2 337226 £21.27 £25.52
*33A - WHEEL WASHER (C) HIT-376202.A0 376202 £9.67 £11.60
*35 - WHEEL NUT M14X2 HIT-373779.A0 373779 £3.56 £4.27
*36 - GEAR AND PINION SET HIT-337919.A0 337919 -
37 - FAN GUIDE (C) HIT-373752.A0 373752 -
*38 - STATOR 110V HIT-341007C.A1 341007C -
*38 - STATOR 220V-230V HIT-341007E.A0 341007E £47.04 £56.45
39 - DUST SEAL HIT-330029.A6 330029 £1.67 £2.00
40 - BALL BEARING 6000VVCMPS2L HIT-6000VV.A57 6000VV £7.62 £9.15
41 - BEARING BUSHING HIT-321536.A2 321536 £15.83 £19.00
42 - HOUSING ASS'Y INCLUD.41 HIT-373751.A1 373751 -
43 - NAME PLATE HIT-000000.A3917 000000 -
44 - BRUSH HOLDER SET HIT-322323.A7 322323 £9.56 £11.47
45 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A96 305812 £1.67 £2.00
46 - BRUSH COVER HIT-373754.A1 373754 -
*47 - CARBON BRUSH 7X17X22.5 (1 PAIR) HIT-999061.A9 999061 £8.12 £9.75
48 - HANDLE SET HIT-373922.A0 373922 -
49 - BRAND LABEL HIT-000000.A3918 000000 -
*50 - SWITCH (2P PILLAR TYPE) W/SAFETY LOCK OFF/LOCK FOR EUROPE HIT-320238.A10 320238 £31.66 £37.99
*50 - SWITCH (2P PILLAR TYPE) W/SAFETY LOCK OFF/LOCK FOR GBR (110V) HIT-338295.A2 338295 £16.35 £19.62
51 - TUBE (D) EXCEPT FOR USA HIT-981373.A138 981373 £1.67 £2.00
53 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A121 984750 £1.67 £2.00
54 - CORD CLIP HIT-331336.A3 331336 -
*55 - CORD ARMOR D10.7 HIT-940778.A58 940778 £3.15 £3.78
*56 - CORD (CORD ARMOR D10.7) FOR GBR (110V) HIT-321539.A0 321539 £31.92 £38.31
*56 - CORD (CORD ARMOR D10.7) FOR GBR (230V) HIT-337366.A1 337366 -
*501 - SIDE HANDLE FOR VIBRATION-ABSORBING HIT-336864.A10 336864 £25.03 £30.04
502 - WRENCH HIT-711272.A11 711272 £6.18 £7.41
601 - D. C. WHEELS 180MM A24R (25 PCS.) HIT-316824.A0 316824 -
602 - SUPER WASHER HIT-310337.A3 310337 £23.30 £27.96
603 - PIPE HANDLE SET INCLUD.604 HIT-323993.A14 323993 £65.96 £79.15
604 - BOLT M14 HIT-985597.A24 985597 £3.28 £3.93
605 - WHEEL GUARD BASE SET WITH BASE FOOT EXCEPT FOR USA HIT-332795.A4 332795 -
606 - WHEEL GUARD (FOR CUTTING) WITHOUT BASE FOOT EXCEPT FOR USA HIT-332796.A2 332796 -
