Hitachi / Hikoki G23UBY Disc Grinder Spare Parts

Home Details Reviews Delivery

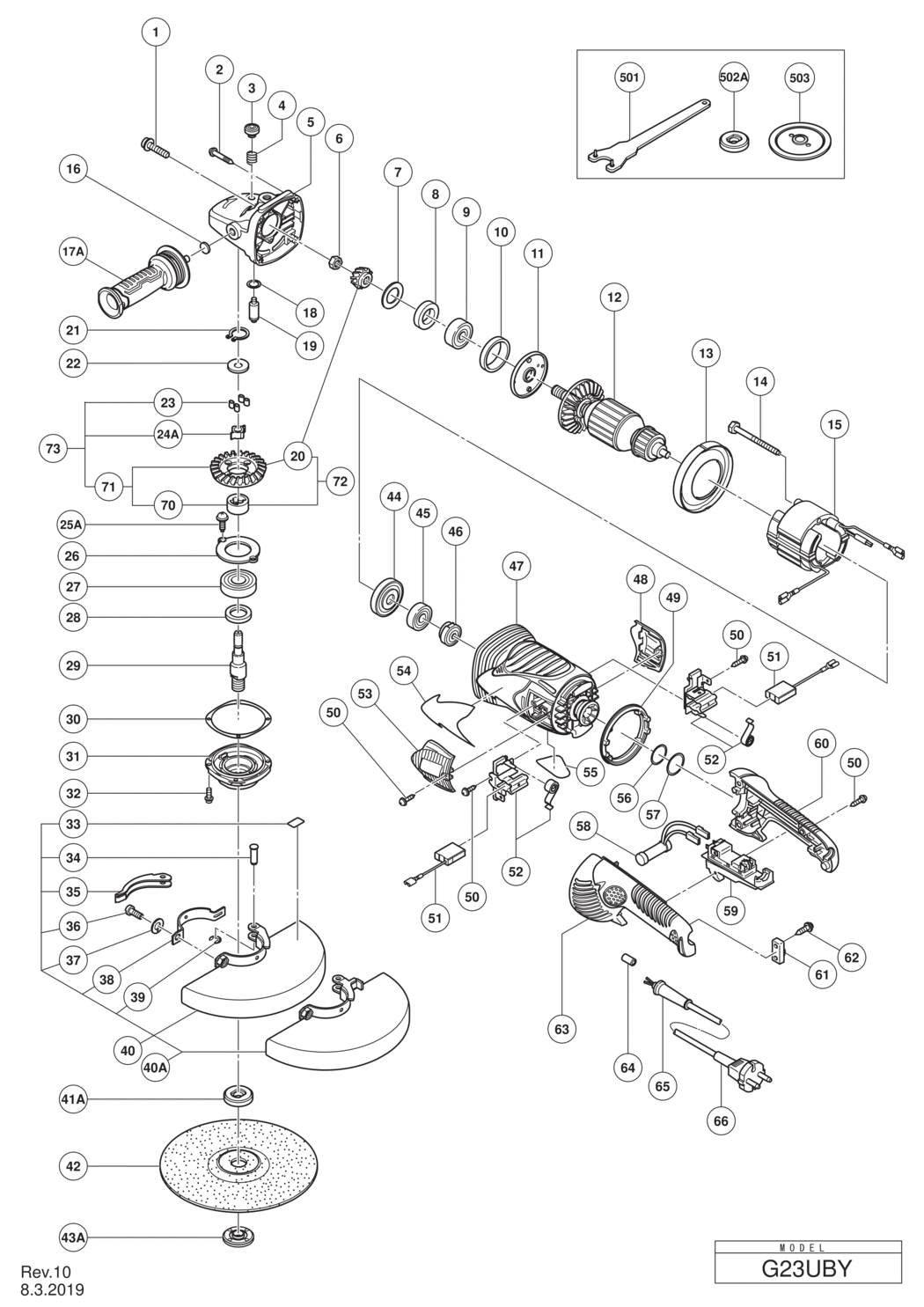

An exploded diagram and spare parts listing for the Hitachi / Hikoki G23UBY Disc Grinder

	Ex VAT	Inc VAT
1 - SEAL LOCK HEX. SOCKET HD. BOLT M5X14 HIT-984509.A26 984509	£1.67	£2.00
2 - TAPPING SCREW (W/FLANGE) D5X35 (BLACK) HIT-323209.A4 323209	£1.67	£2.00
3 - PUSHING BUTTON HIT-306888.A6 306888	£1.67	£2.00
4 - SPRING HIT-320219.A25 320219	£1.67	£2.00
5 - GEAR COVER ASS'Y INCLUD.3 HIT-326717.A2 326717	£34.92	£41.90
6 - SPECIAL NUT M10 HIT-320226.A24 320226	£1.67	£2.00
7 - SEAL WASHER HIT-320221.A19 320221	£1.67	£2.00
8 - FELT PACKING HIT-320222.A2 320222	£1.67	£2.00
9 - BALL BEARING 6301DDCMPS2L HIT-6301DD.A14 6301DD	£9.27	£11.12
10 - RUBBER RING (B) HIT-994208.A21 994208	£1.67	£2.00
11 - BEARING COVER (A) HIT-320220.A2 320220	£4.16	£4.99
*12 - ARMATURE ASS'Y 110V-120V INCLUD.8 HIT-360594U.A1 360594U	£82.12	£98.54
*12 - ARMATURE 220V-230V HIT-360777E.A0 360777E	£74.41	£89.29
13 - FAN GUIDE HIT-320215.A16 320215	£1.67	£2.00
14 - HEX. HD. TAPPING SCREW D5X75 HIT-984271.A1 984271	£1.67	£2.00
*15 - STATOR 110V-120V HIT-340682C.A0 340682C	-
*15 - STATOR 220V-240V HIT-340682E.A2 340682E	-
16 - FELT WASHER HIT-937033.A25 937033	£1.67	£2.00
17A - SIDE HANDLE HIT-336864.A1 336864	£25.03	£30.04
18 - O-RING HIT-320218.A2 320218	£1.67	£2.00
19 - LOCK PIN HIT-306890.A2 306890	£2.78	£3.34
20 - GEAR AND PINION SET HIT-326718.A2 326718	-
21 - RETAINING RING FOR D10 SHAFT (10 PCS.) HIT-939540.A26 939540	£1.67	£2.00
22 - COUPLING COVER HIT-326722.A0 326722	£1.67	£2.00
23 - COUPLING DAMPER HIT-326721.A6 326721	£14.23	£17.08
24A - COUPLING HIT-333147.A0 333147	£5.09	£6.11
25A - SEAL LOCK SCREW (W/SP. WASHER) M5X10 HIT-992038.A5 992038	£1.67	£2.00
26 - BEARING COVER (B) HIT-326723.A6 326723	£1.67	£2.00
27 - BALL BEARING 6302VVCMPS2L HIT-6302VV.A0 6302VV	£9.67	£11.60
28 - FELT PACKING (B) HIT-990852.A20 990852	£1.67	£2.00
29 - SPINDLE HIT-326727.A6 326727	£14.95	£17.94
30 - SEAL PLATE HIT-320228.A23 320228	£1.67	£2.00
31 - PACKING GLAND HIT-320227.A4 320227	£8.32	£9.99
32 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 HIT-994192.A1 994192	£1.67	£2.00
33 - LABEL HIT-311492.A16 311492	£1.67	£2.00
34 - SET PIN HIT-321546.A13 321546	£4.86	£5.83
35 - LEVER HIT-321545.A3 321545	-
36 - BOLT M8X22 HIT-306887.A11 306887	£1.67	£2.00
37 - SPRING WASHER M8 (10 PCS.) HIT-949457.A4 949457	£1.67	£2.00
38 - SET PIECE HIT-321544.A13 321544	£1.67	£2.00
39 - RETAINING RING (E-TYPE) FOR D5 SHAFT HIT-673489.A4 673489	£1.67	£2.00
*40A - WHEEL GUARD ASS'Y INCLUD.33-39 FOR ASIA HIT-337223.A3 337223	£24.16	£28.99
*41A - WHEEL WASHER (C) HIT-376202.A32 376202	£9.67	£11.60
43A - WHEEL NUT M14X2 HIT-373779.A28 373779	£3.56	£4.27
44 - DUST SEAL HIT-320216.A1 320216	£1.67	£2.00
45 - BALL BEARING 6000VVCMPS2L HIT-6000VV.A36 6000VV	£7.62	£9.15
46 - BEARING BUSHING HIT-321536.A16 321536	£15.83	£19.00
47 - HOUSING ASS'Y INCLUD.46 HIT-326712.A4 326712	-
48 - BRUSH COVER HIT-326715.A2 326715	-
49 - HANDLE DAMPER HIT-326726.A0 326726	-
50 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A41 305812	£1.67	£2.00
*51 - CARBON BRUSH 7X17X22.5 (1 PAIR) HIT-999061.A13 999061	£8.12	£9.75
52 - BRUSH HOLDER SET HIT-322323.A1 322323	£9.56	£11.47
53 - BRUSH COVER HIT-326716.A4 326716	£5.20	£6.24
54 - BRAND LABEL HIT-000000.A1623 000000	-
55 - NAME PLATE HIT-000000.A1624 000000	-
56 - O-RING HIT-326724.A0 326724	-
57 - O-RING HIT-326725.A6 326725	-
58 - RESISTOR HIT-320236.A2 320236	£15.66	£18.79
59 - SWITCH (2P PILLAR TYPE) W/SAFETY LOCK HIT-320371.A2 320371	£31.95	£38.34
60 - HANDLE (B) HIT-326714.A4 326714	£15.66	£18.79
61 - CORD CLIP HIT-960266.A10 960266	£1.67	£2.00
62 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A146 984750	£1.67	£2.00
63 - HANDLE (A) HIT-326713.A2 326713	£15.66	£18.79
64 - TUBE (D) FOR CORD HIT-981373.A21 981373	£1.67	£2.00
*65 - CORD ARMOR D10.7 HIT-940778.A25 940778	£3.15	£3.78
*66 - CORD (CORD ARMOR D10.7) FOR GBR (110V) HIT-321539.A10 321539	£31.92	£38.31
*66 - CORD (CORD ARMOR D10.7) FOR GBR (230V) HIT-500460Z.A7 500460Z	£41.12	£49.34
70 - INNER HIT-328700.A4 328700	-
71 - INNER SET (W/GEAR) INCLUD.70 HIT-328694.A2 328694	-
72 - GEAR AND PINION ASS'Y INCLUD.20 HIT-328697.A2 328697	£40.73	£48.88
73 - GEAR (A) ASS'Y INCLUD.23 HIT-328698.A0 328698	-
501 - WRENCH HIT-711272.A3 711272	£6.18	£7.41
601 - D. C. WHEELS 230MM A24R (25 PCS.) HIT-316825.A10 316825	-
602 - SUPER WASHER HIT-310337.A21 310337	£23.30	£27.96
603 - PIPE HANDLE SET INCLUD.604 HIT-323993.A20 323993	£65.96	£79.15
604 - BOLT M14 FOR PIPE HANDLE HIT-985597.A4 985597	£3.28	£3.93
605 - WHEEL GUARD (FOR CUTTING) HIT-332797.A4 332797	£39.17	£47.00
