Bosch ---- / 0601409032 / CH 220 Volt Spare Parts

Bosch ---- / 0601409032 / CH 220 Volt Spare Parts

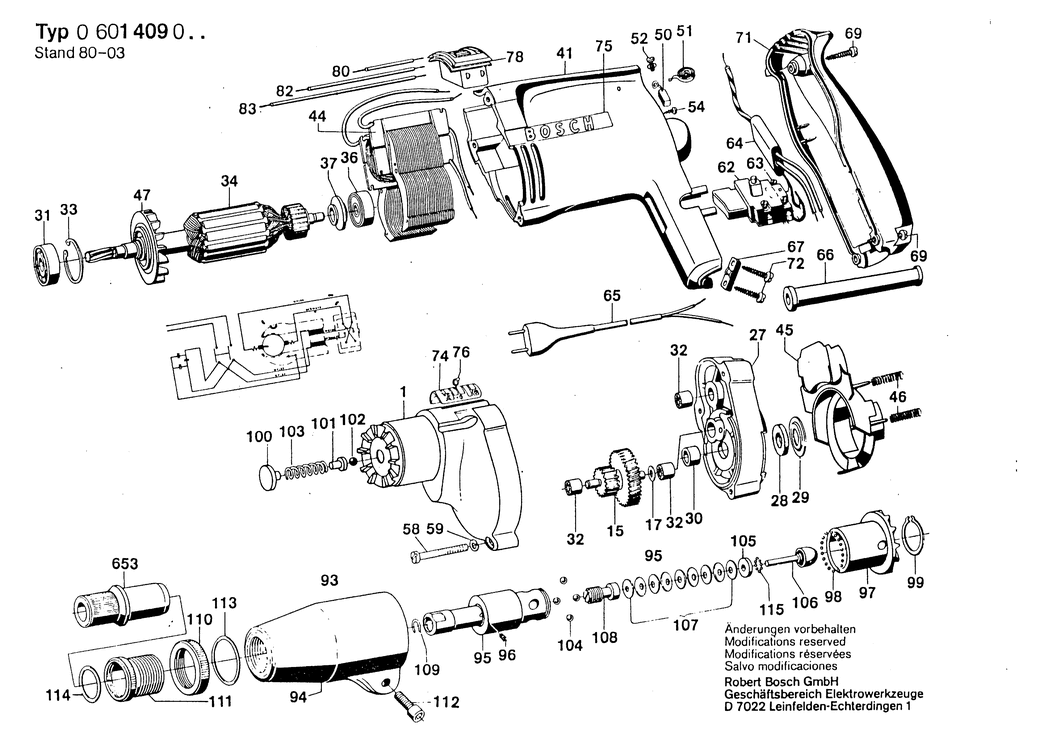

An exploded drawing and listing for the Bosch ---- / 0601409032 / CH 220 Volt
Ex VAT Inc VAT
1 - GEAR HOUSING BSD-2605806943.A5 2605806943 -
15 - TOOTHED SHAFT BSD-2606100910.A4 2606100910 -
17 - SHIM 0.3 MM BSD-2600100570.A250 2600100570 £1.75 £2.10
27 - INTERMEDIATE FLANGE BSD-2605700916.A14 2605700916 -
28 - FELT DISC BSD-2600108020.A206 2600108020 -
29 - CUPPED WASHER BSD-2600500008.A208 2600500008 -
30 - RECEPTACLE BSD-2600400020.A140 2600400020 -
31 - GROOVE BALL BEARING 10 MM DIN 625 BSD-2600905007.A201 2600905007 -
32 - NEEDLE BEARING BSD-2600914004.A28 2600914004 £4.26 £5.11
33 - SPRING RETAINING RING DIN 472-26x1.2 MM BSD-2916660010.A177 2916660010 £1.75 £2.10
34 - ARMATURE 220V BSD-2604010267.A2 2604010267 -
36 - BALL BEARING 7x22x7 BSD-1900905018.A929 1900905018 £18.96 £22.75
37 - ARMATURE PLATE BSD-2600121002.A28 2600121002 -
41 - MOTOR HOUSING BSD-2605104930.A14 2605104930 -
44 - POLE SHOE 220V BSD-2604222096.A3 2604222096 -
45 - COVER DISC BSD-2601328001.A6 2601328001 -
46 - COMPRESSION SPRING BSD-2604611026.A236 2604611026 -
47 - FAN BSD-2606610019.A22 2606610019 -
50 - CARBON-BRUSH SET BSD-2604320906.A87 2604320906 -
51 - SPIRAL SPRING BSD-2604652004.A54 2604652004 -
52 - SOCKET HEAD CAP SCREW BSD-2603410010.A32 2603410010 -
54 - TAPPING SCREW DIN 7971-BZ2.9x6.5 BSD-2910211004.A367 2910211004 -
58 - PAN HEAD SCREW BSD-2603410026.A21 2603410026 -
59 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A64 2916690003 £1.75 £2.10
62 - ON-OFF SWITCH BSD-2607200043.A158 2607200043 -
62 - ON-OFF SWITCH BSD-2607200006.A12 2607200006 -
63 - SOCKET HEAD CAP SCREW M3x10 MM BSD-2603410023.A408 2603410023 -
64 - SUPPRESSION FILTER BSD-2607329051.A266 2607329051 -
65 - ELEC. CABLE W/CONNECTION CH 2.65m 2 x 1.0mm H05 VV-F BSD-2604460053.A36 2604460053 -
66 - GROMMET dia8.3-dia9.4x95 MM BSD-2600703011.A245 2600703011 £2.80 £3.36
66 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A1213 2600703012 £2.80 £3.36
66 - GROMMET dia7.6-dia8.2x95 MM BSD-2600703013.A196 2600703013 £2.61 £3.13
67 - CABLE CLIP BSD-2601035001.A356 2601035001 £1.75 £2.10
69 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A646 2910211021 £1.75 £2.10
71 - HOUSING COVER BSD-2605132007.A51 2605132007 -
72 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A1576 2910211019 £1.75 £2.10
74 - NAMEPLATE BSD-160111A3H3.A768 160111A3H3 £2.61 £3.13
75 - MANUFACTURER'S NAMEPLATE BSD-2601007003.A111 2601007003 -
76 - GROOVED NAIL 2x4 DIN 1476-ST BSD-2917724032.A65 2917724032 -
78 - ON-OFF SWITCH BSD-2607200052.A18 2607200052 -
80 - CABLE BSD-2604411524.A41 2604411524 -
82 - CABLE BSD-2604411530.A57 2604411530 -
82 - SUPPRESSOR BOX BSD-2604465026.A25 2604465026 -
83 - CABLE BSD-2604411523.A35 2604411523 -
83 - SUPPRESSOR BOX BSD-2604465027.A40 2604465027 -
93 - WRENCH ATTACHMENT BSD-2608583005.A3 2608583005 -
94 - GEAR HOUSING BSD-2605806303.A5 2605806303 -
95 - TOOLHOLDER BSD-2606490902.A4 2606490902 -
96 - SET SCREW M 3x3-DIN 551-5.8 BSD-2912030045.A3 2912030045 -
97 - COUPLING HALF BSD-2606490024.A2 2606490024 -
98 - BALL 2 MM III DIN 5401 ST BSD-1903230002.A49 1903230002 £2.16 £2.59
99 - SPRING RETAINING RING BSD-2600118004.A4 2600118004 -
100 - SPRING DISK BSD-2603120012.A6 2603120012 -
101 - RETAINING PIN BSD-2603120015.A0 2603120015 -
102 - BALL DIN 5401-4 MM-III-ST BSD-1903230007.A260 1903230007 £1.75 £2.10
103 - COMPRESSION SPRING BSD-2604610013.A3 2604610013 -
104 - BALL DIN 5401-8 MM III-ST BSD-1903230014.A68 1903230014 £1.75 £2.10
105 - SUPPORTING DISC BSD-2600100023.A2 2600100023 -
106 - BALL STUD BSD-2603126003.A4 2603126003 -
107 - DISC SPRING BSD-2600550005.A1 2600550005 -
108 - ADJUSTING SCREW BSD-2603465001.A1 2603465001 -
109 - RETAINING RING BSD-2604601010.A1 2604601010 -
110 - ROUND NUT BSD-2603340006.A1 2603340006 -
111 - KNURLED BUSHING BSD-2600420001.A1 2600420001 -
112 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x15-8.8 BSD-2910141196.A43 2910141196 -
113 - O-RING 28x2.5 MM BSD-1900210128.A59 1900210128 £2.61 £3.13
114 - O-RING 21.0x2.0 MM BSD-2600210028.A50 2600210028 £1.32 £1.58
115 - BALL 2 MM III DIN 5401 ST BSD-1903230002.A48 1903230002 £2.16 £2.59
653 - GUIDE SLEEVE BSD-2600326006.A14 2600326006 -
653 - GUIDE SLEEVE BSD-2600326007.A8 2600326007 -
653 - GUIDE SLEEVE BSD-2600326008.A14 2600326008 -
