Festool AU-DR 20 / 768300 Spare Parts

Festool AU-DR 20 / 768300 Spare Parts
Home Details Reviews Delivery

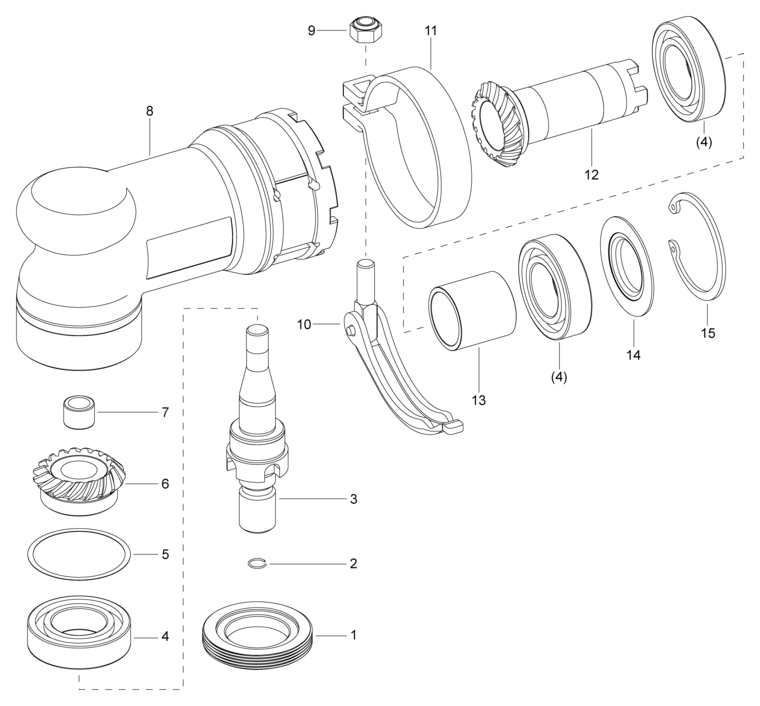

An exploded diagram and spare parts listing for the Festool AU-DR 20 / 768300
Ex VAT Inc VAT
1 - NUT FSP-630549.A0 630549 £18.09 £21.71
2 - CIRCLIP FSP-446416.A17 446416 £2.00 £2.40
3 - SPINDLE FSP-630548.A0 630548 £43.15 £51.78
4 - BEARING FSP-623540.A0 623540 £20.77 £24.92
5 - COMPENSATING WASHER FSP-630553.A0 630553 £2.00 £2.40
6 - CONICAL GEAR WHEEL FSP-630551.A0 630551 £42.24 £50.69
7 - BEARING FSP-617880.A1 617880 £6.30 £7.56
8 - GEAR HOUSING FSP-768350.A0 768350 £75.72 £90.87
9 - NUT FSP-619046.A2 619046 £2.00 £2.40
10 - ROCKER FSP-618715.A0 618715 £15.82 £18.98
11 - SAFETY CATCH FSP-633393.A0 633393 £15.60 £18.72
12 - CYLINDER GEAR FSP-630550.A0 630550 £59.78 £71.73
13 - DISTANCE TUBE FSP-630552.A0 630552 £12.98 £15.57
14 - COVER FSP-592444.A1 592444 £3.00 £3.60
15 - SNAP RING FSP-614804.A1 614804 £2.00 £2.40
