Fein ASz 648 a (50Hz 230V) / 72010699224 Spare Parts

Fein ASz 648 a ⡐Hz 230V) / 72010699224 Spare Parts

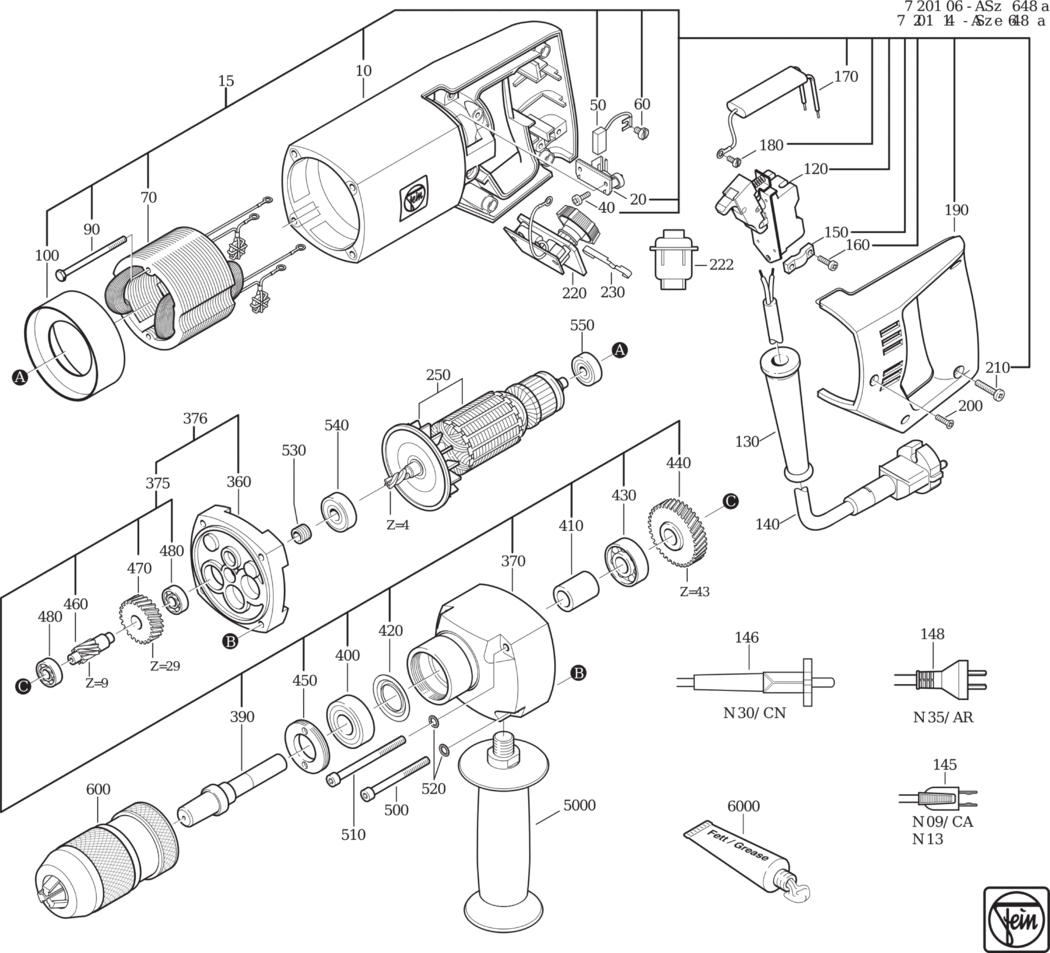

An exploded diagram and spare parts listing for the Fein ASz 648 a (50Hz 230V) / 72010699224

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31902023001.A0 31902023001	£131.27	£157.52
20 - BRUSH HOLDER FEI-30712067017.A22 30712067017	£11.92	£14.30
40 - FILLISTER HEAD SCREW M3 5X10 FEI-43041001994.A75 43041001994	£1.60	£1.92
50 - CARBON BRUSH (SOLD SINGLY) FEI-30711067004.A28 30711067004	£7.87	£9.44
60 - FLAT HEADED SCREW FEI-43003029048.A86 43003029048	-
70 - STATOR 50HZ220V FEI-51213002222.A0 51213002222	£102.00	£122.40
90 - HEXAGON SOCKET SCREW FEI-43001004042.A20 43001004042	£2.69	£3.23
100 - AIR GUIDE RING FEI-31428010005.A33 31428010005	£7.53	£9.04
120 - SWITCH FEI-30701073005.A12 30701073005	£36.31	£43.57
130 - CABLE GROMMET FEI-31413090003.A82 31413090003	£3.40	£4.08
140 - CABLE WITH PLUG FEI-30707133016.A3 30707133016	£15.55	£18.66
150 - CABLE CLAMPING PIECE FEI-32431021007.A40 32431021007	£1.60	£1.92
160 - FILLISTER HEAD SCREW FEI-43041011993.A39 43041011993	-
170 - CAPACITOR FEI-30722057002.A13 30722057002	£14.66	£17.59
180 - FLAT HEADED SCREW FEI-43003013991.A27 43003013991	£1.60	£1.92
190 - COVER FEI-32428051006.A0 32428051006	£23.98	£28.78
200 - COUNTERSUNK SCREW FEI-43066003996.A4 43066003996	-
210 - FILLISTER HEAD SCREW FEI-43041013047.A2 43041013047	£1.60	£1.92
222 - TOGGLE SWITCH FEI-30701085006.A0 30701085006	£31.21	£37.45
250 - ARMATURE 50HZ220V FEI-53213001221.A0 53213001221	£218.81	£262.57
360 - INTERMEDIATE GEAR BOX FEI-31506178000.A3 31506178000	£47.46	£56.95
370 - GEARBOX HOUSING FEI-31508121009.A4 31508121009	£77.04	£92.45
375 - GEARBOX HOUSING FEI-31508121024.A4 31508121024	-
376 - GEARBOX HOUSING FEI-31508121018.A1 31508121018	-
390 - SHAFT FEI-33401064008.A12 33401064008	£49.81	£59.77
400 - GROOVED BALL BEARING FEI-41701218024.A25 41701218024	£8.92	£10.70
410 - SLEEVE FEI-30501223007.A1 30501223007	£5.02	£6.03
420 - SEALING RING FEI-42639005000.A7 42639005000	-
430 - GROOVED BALL BEARING FEI-41701213011.A15 41701213011	£8.92	£10.70
440 - GEAR-WHEEL FEI-33663030001.A4 33663030001	£46.07	£55.28
450 - THREAD RING FEI-32618032006.A11 32618032006	£15.81	£18.97
460 - GEAR-WHEEL FEI-33763012004.A5 33763012004	£48.01	£57.61
470 - GEAR-WHEEL FEI-33663028005.A3 33663028005	£37.58	£45.09
480 - GROOVED BALL BEARING FEI-41701001010.A4 41701001010	£7.35	£8.82
500 - CYLINDER HEAD SCREW FEI-43035023057.A5 43035023057	-
510 - CYLINDER HEAD SCREW FEI-43035025059.A10 43035025059	£1.60	£1.92
520 - CIRCLIP M5 FEI-42443004057.A87 42443004057	£1.60	£1.92
530 - SEALING RING FEI-32612061008.A0 32612061008	£7.99	£9.59
540 - GROOVED BALL BEARING FEI-41701207096.A2 41701207096	£18.38	£22.06
550 - GROOVED BALL BEARING FEI-41701204131.A49 41701204131	£9.10	£10.92
600 - QUICK-ACTION CHUCKS FEI-63204025003.A11 63204025003	£143.43	£172.12
5000 - SIDE HANDLE FEI-32119032002.A6 32119032002	£12.89	£15.47
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A325 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A41 34130054061	-
