Fein ASz 648 a (50Hz 42V) / 72010695044 Spare Parts

Fein ASz 648 a ⡐Hz 42V) / 72010695044 Spare Parts

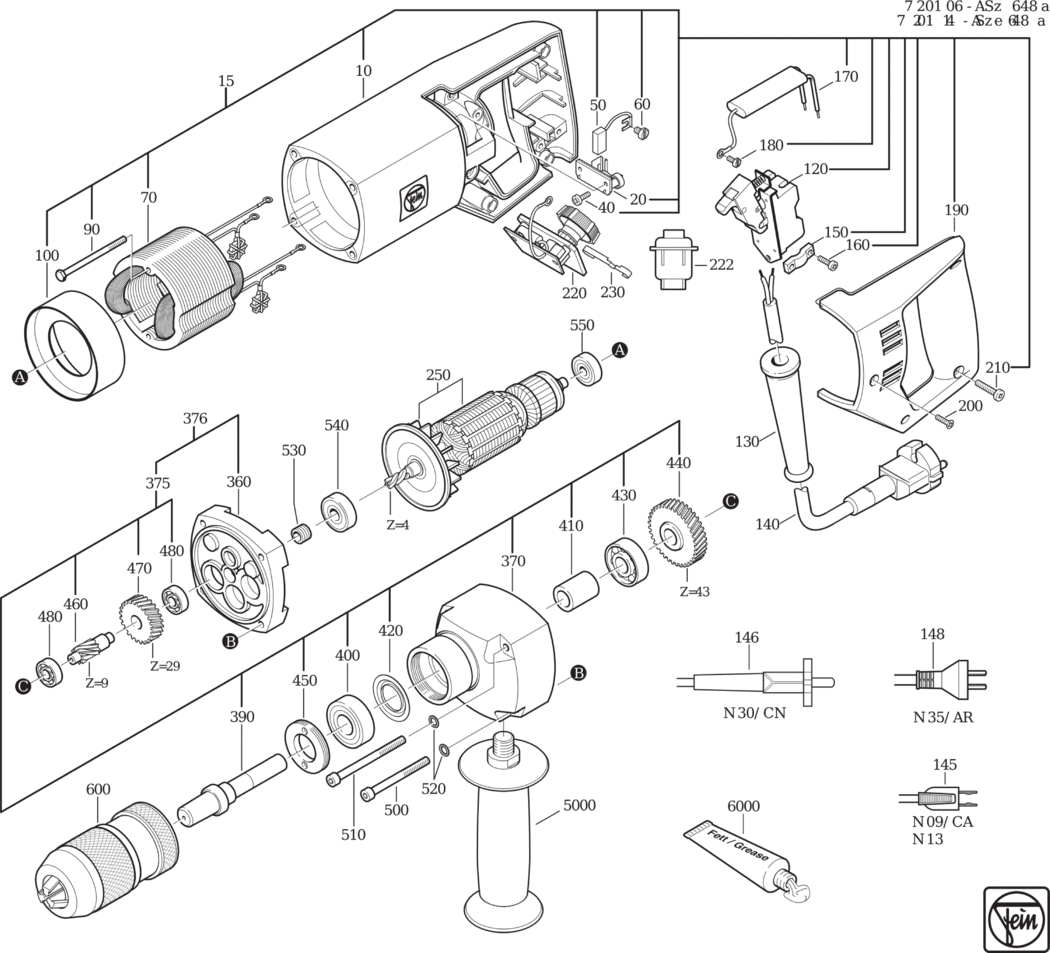

An exploded diagram and spare parts listing for the Fein ASz 648 a (50Hz 42V) / 72010695044

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31902028008.A0 31902028008	£100.74	£120.89
20 - BRUSH HOLDER FEI-30712068015.A1 30712068015	£22.16	£26.59
40 - FILLISTER HEAD SCREW M3 5X10 FEI-43041001994.A72 43041001994	£1.60	£1.92
50 - CARBON BRUSH (SOLD SINGLY) FEI-30711072000.A2 30711072000	£17.81	£21.37
60 - FLAT HEADED SCREW FEI-43003029048.A87 43003029048	-
70 - STATOR 50HZ42V FEI-51213001048.A0 51213001048	-
90 - HEXAGON SOCKET SCREW FEI-43001004042.A21 43001004042	£2.69	£3.23
100 - AIR GUIDE RING FEI-31428010005.A32 31428010005	£7.53	£9.04
120 - SWITCH FEI-30701073005.A11 30701073005	£36.31	£43.57
130 - CABLE GROMMET FEI-31413090003.A83 31413090003	£3.40	£4.08
140 - CABLE FEI-30706110011.A0 30706110011	-
150 - CABLE CLAMPING PIECE FEI-32431021007.A41 32431021007	£1.60	£1.92
160 - FILLISTER HEAD SCREW FEI-43041011993.A38 43041011993	-
170 - CAPACITOR FEI-30722057002.A12 30722057002	£14.66	£17.59
180 - FLAT HEADED SCREW FEI-43003013991.A26 43003013991	£1.60	£1.92
190 - HANDLE HALF SHELL FEI-32428050007.A1 32428050007	£12.08	£14.50
200 - COUNTERSUNK SCREW FEI-43066003996.A3 43066003996	-
210 - FILLISTER HEAD SCREW FEI-43041013047.A3 43041013047	£1.60	£1.92
250 - ARMATURE 50HZ42V FEI-53213003047.A0 53213003047	-
360 - INTERMEDIATE GEAR BOX FEI-31506178000.A4 31506178000	£47.46	£56.95
370 - GEARBOX HOUSING FEI-31508121009.A3 31508121009	£77.04	£92.45
375 - GEARBOX HOUSING FEI-31508121024.A3 31508121024	-
376 - GEARBOX HOUSING FEI-31508121018.A2 31508121018	-
390 - SHAFT FEI-33401064008.A11 33401064008	£49.81	£59.77
400 - GROOVED BALL BEARING FEI-41701218024.A24 41701218024	£8.92	£10.70
410 - SLEEVE FEI-30501223007.A2 30501223007	£5.02	£6.03
420 - SEALING RING FEI-42639005000.A6 42639005000	-
430 - GROOVED BALL BEARING FEI-41701213011.A16 41701213011	£8.92	£10.70
440 - GEAR-WHEEL FEI-33663030001.A5 33663030001	£46.07	£55.28
450 - THREAD RING FEI-32618032006.A12 32618032006	£15.81	£18.97
460 - GEAR-WHEEL FEI-33763012004.A4 33763012004	£48.01	£57.61
470 - GEAR-WHEEL FEI-33663028005.A4 33663028005	£37.58	£45.09
480 - GROOVED BALL BEARING FEI-41701001010.A5 41701001010	£7.35	£8.82
500 - CYLINDER HEAD SCREW FEI-43035023057.A6 43035023057	-
510 - CYLINDER HEAD SCREW FEI-43035025059.A9 43035025059	£1.60	£1.92
520 - CIRCLIP M5 FEI-42443004057.A85 42443004057	£1.60	£1.92
530 - SEALING RING FEI-32612058003.A1 32612058003	£9.47	£11.37
540 - GROOVED BALL BEARING FEI-41701207096.A3 41701207096	£18.38	£22.06
550 - GROOVED BALL BEARING FEI-41701204131.A48 41701204131	£9.10	£10.92
5000 - SIDE HANDLE FEI-32119032002.A8 32119032002	£12.89	£15.47
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A323 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A40 34130054061	-
