Fein DSke 672 (50Hz 230V) / 72020900227 Spare Parts

Fein DSke 672 ⡐Hz 230V) / 72020900227 Spare Parts

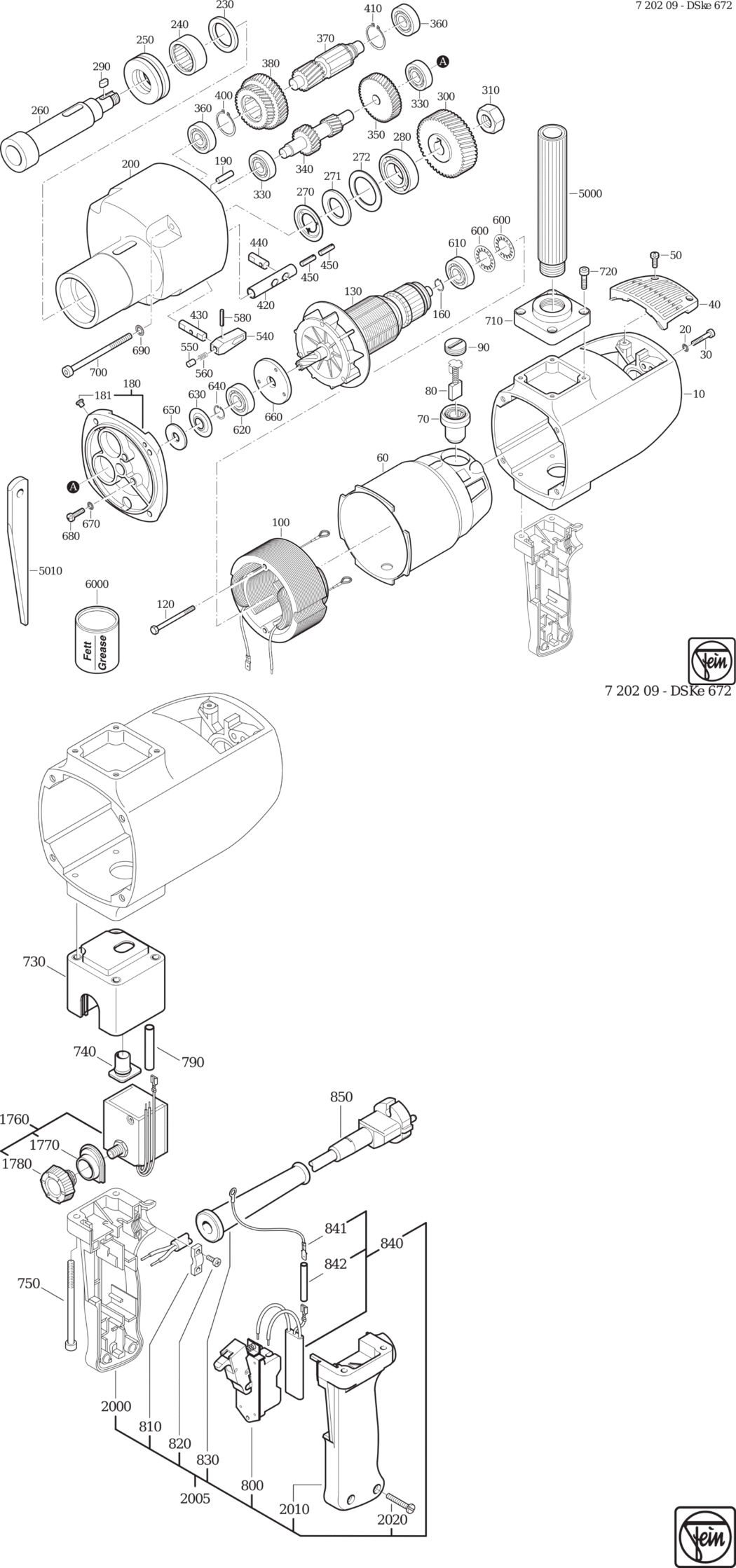

An exploded diagram and spare parts listing for the Fein DSke 672 (50Hz 230V) / 72020900227

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903095007.A6 31903095007	£285.77	£342.92
20 - CIRCLIP M5 FEI-42443004057.A394 42443004057	£1.60	£1.92
30 - CYLINDER HEAD SCREW M5X25 FEI-43033014058.A38 43033014058	£1.60	£1.92
40 - COVER FEI-32427031001.A12 32427031001	£6.73	£8.08
50 - CYLINDER HEAD SCREW M4X10 FEI-43002033045.A18 43002033045	£1.60	£1.92
60 - HOUSING FEI-31913018009.A12 31913018009	£59.20	£71.04
70 - BRUSH HOLDER FEI-30712048017.A0 30712048017	£9.94	£11.93
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711061008.A0 30711061008	£14.39	£17.27
90 - CAP FEI-30713009007.A12 30713009007	£2.55	£3.06
100 - STATOR 50HZ220V FEI-51232004220.A0 51232004220	-
120 - HEXAGON SOCKET SCREW M5X55 FEI-43001007059.A0 43001007059	-
130 - ARMATURE 50HZ220V FEI-53232002220.A0 53232002220	-
160 - RING FEI-42628001006.A10 42628001006	£1.60	£1.92
180 - INTERMEDIATE GEAR BOX FEI-31506151008.A0 31506151008	£160.05	£192.06
181 - NIPPLE FEI-32131001002.A2 32131001002	£2.68	£3.21
190 - STRAIGHT PIN FEI-40201050003.A7 40201050003	-
200 - GEARBOX HOUSING FEI-31509054003.A0 31509054003	£406.56	£487.87
230 - SEALING RING FEI-40608021007.A7 40608021007	-
240 - NEEDLE BEARING FEI-41706016000.A6 41706016000	-
250 - GROOVED BALL BEARING FEI-41707011009.A5 41707011009	-
260 - SHAFT FEI-33402037006.A3 33402037006	£232.03	£278.44
270 - DISC FEI-32411056009.A6 32411056009	£2.25	£2.70
271 - FELT RING FEI-30601062003.A6 30601062003	£1.60	£1.92
272 - DISC FEI-32411057003.A1 32411057003	£5.21	£6.25
280 - GROOVED BALL BEARING FEI-41701017021.A1 41701017021	-
290 - FEATHER KEY FEI-40221040006.A4 40221040006	£1.60	£1.92
300 - GEAR-WHEEL FEI-33667007003.A5 33667007003	£99.59	£119.51
310 - HEX NUT M16X1 5 FEI-42003007005.A4 42003007005	-
330 - GROOVED BALL BEARING FEI-41701210015.A6 41701210015	£8.55	£10.26
340 - GEAR-WHEEL FEI-33811012006.A0 33811012006	-
350 - GEAR-WHEEL FEI-33663019000.A0 33663019000	£60.58	£72.70
360 - GROOVED BALL BEARING FEI-41701213011.A38 41701213011	£8.92	£10.70
370 - SHAFT TOOTHED FEI-33767005005.A8 33767005005	-
380 - GEAR-WHEEL FEI-33665007016.A0 33665007016	£175.68	£210.82
400 - CIRCLIP FEI-42616043008.A6 42616043008	-
410 - CIRCLIP FEI-42616044006.A3 42616044006	-
420 - BOLT FEI-30217171000.A0 30217171000	£28.63	£34.36
430 - BOLT FEI-30217192001.A0 30217192001	£31.91	£38.29
440 - BOLT FEI-30217173007.A0 30217173007	£24.56	£29.47
450 - CLAMPING SLEEVE FEI-40238012001.A2 40238012001	-
540 - LEVER FEI-32805045007.A6 32805045007	£22.92	£27.50
550 - BOLT FEI-30216086001.A1 30216086001	£7.56	£9.07
560 - SPIRAL SPRING FEI-30901202001.A1 30901202001	£1.60	£1.92
580 - CLAMPING SLEEVE FEI-40238007005.A16 40238007005	£1.60	£1.92
600 - CUP SPRING FEI-30905019003.A0 30905019003	£1.60	£1.92
610 - GROOVED BALL BEARING FEI-41701210021.A9 41701210021	£8.89	£10.67
620 - GROOVED BALL BEARING FEI-41701213027.A19 41701213027	£9.82	£11.79
630 - DISC FEI-32411052000.A0 32411052000	£3.93	£4.72
640 - CIRCLIP FEI-42643001007.A15 42643001007	£1.60	£1.92
650 - FELT RING FEI-30601055000.A6 30601055000	£1.60	£1.92
660 - PLATE FEI-32410046001.A0 32410046001	£15.69	£18.83
670 - CIRCLIP M4 FEI-42443003043.A48 42443003043	£1.60	£1.92
680 - CYLINDER HEAD SCREW FEI-43002035047.A2 43002035047	-
690 - CIRCLIP M6 FEI-42443005064.A6 42443005064	£1.60	£1.92
700 - CYLINDER HEAD SCREW FEI-43033043060.A0 43033043060	-
710 - FLANGE FEI-32420020005.A18 32420020005	£40.01	£48.01
720 - CYLINDER HEAD SCREW M5X20 FEI-43033012056.A28 43033012056	£1.60	£1.92
730 - HOUSING FEI-31207204008.A10 31207204008	£61.58	£73.89
740 - SLEEVE FEI-31406031002.A6 31406031002	£5.10	£6.12
750 - CYLINDER HEAD SCREW M5X80 FEI-43035027056.A2 43035027056	£2.82	£3.38
790 - INSULATING HOSE FEI-31413138001.A1 31413138001	£1.60	£1.92
800 - SWITCH FEI-30701073005.A23 30701073005	£36.31	£43.57
810 - CABLE CLAMPING PIECE FEI-32431021007.A134 32431021007	£1.60	£1.92
820 - FILLISTER HEAD SCREW M3 5X10 FEI-43041001994.A34 43041001994	£1.60	£1.92
830 - CABLE GROMMET FEI-31413090003.A15 31413090003	£3.40	£4.08
840 - CAPACITOR FEI-30722122026.A8 30722122026	£25.42	£30.51
841 - CONNECTING CABLE FEI-30719164018.A21 30719164018	£3.92	£4.70
842 - INSULATING HOSE FEI-31413188006.A1 31413188006	£1.60	£1.92
850 - CABLE WITH PLUG FEI-30707105011.A6 30707105011	£26.49	£31.79
1760 - SPEED SETTING SWITCH FEI-30762010019.A1 30762010019	£234.74	£281.69
1770 - HOUSING INSERT FEI-32414042003.A0 32414042003	£5.39	£6.47
1780 - LEVER FEI-32805054002.A1 32805054002	£10.30	£12.36
2000 - HANDLE HALF SHELL FEI-31204161004.A9 31204161004	£38.65	£46.38
2005 - HANDLE FEI-31204064047.A13 31204064047	£120.45	£144.54
2010 - HANDLE HALF SHELL FEI-31204163001.A19 31204163001	£40.17	£48.20
2020 - FILLISTER HEAD SCREW FEI-43041027045.A25 43041027045	£1.60	£1.92
5000 - HANDLE FEI-32119153010.A18 32119153010	£67.33	£80.80
5010 - DRIFT KEYS FEI-63305004001.A6 63305004001	£12.32	£14.78
6000 - LUBRICANT CAN 0.850 kg FEI-32132007011.A7 32132007011	-
9000 - OPERATING INSTRUCTIONS FEI-34101095060.A2 34101095060	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A454 34130054061	-

Attribute Name	Value
Brand	Fein
