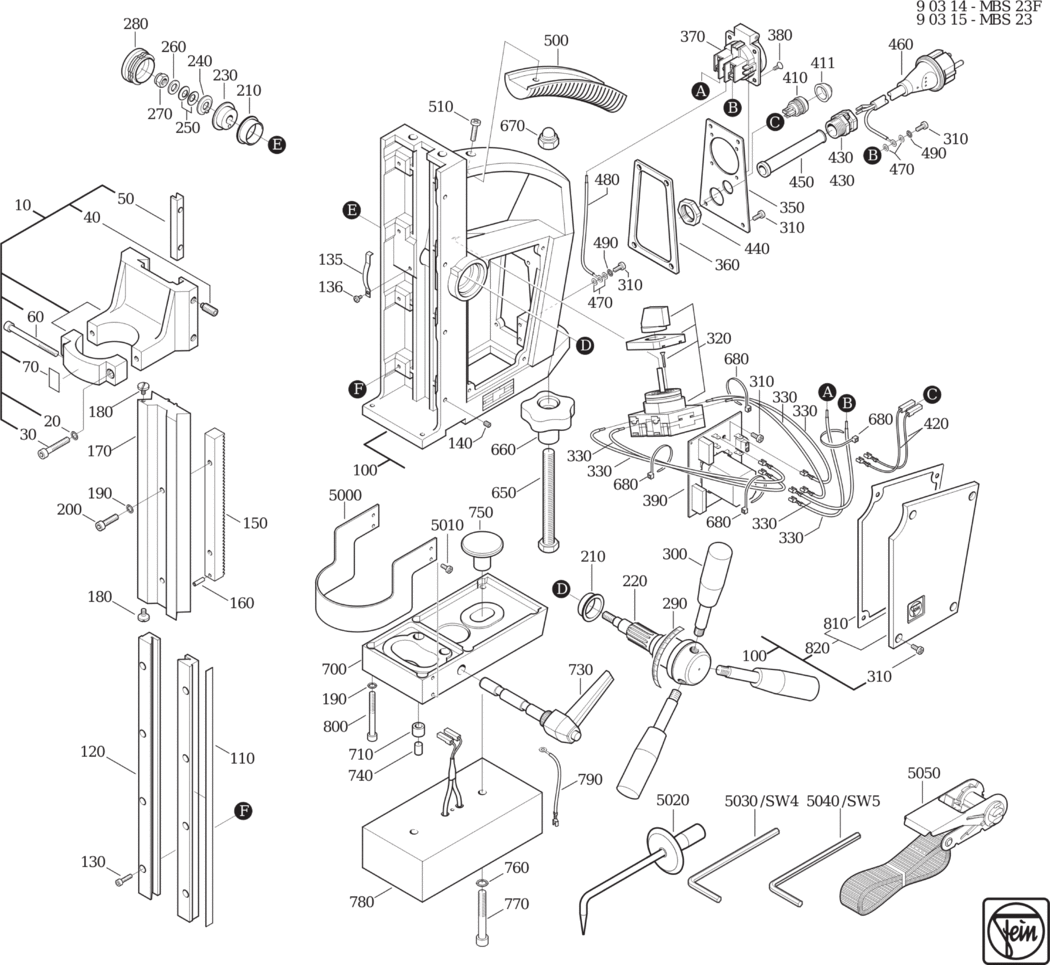

An exploded diagram and spare parts listing for the Fein MBS 23 F (50/60Hz 220/230V) / 90314223002
Ex VAT Inc VAT
10 - HOLDER FEI-33206081010.A1 33206081010 £359.54 £431.45
20 - CIRCLIP M6 FEI-42443005064.A18 42443005064 £1.60 £1.92
30 - CYLINDER HEAD SCREW FEI-43035137067.A2 43035137067 -
40 - SET SCREW FEI-43045045080.A3 43045045080 -
50 - PRESSURE PIECE FEI-30240216001.A3 30240216001 £41.50 £49.80
60 - CYLINDER HEAD SCREW FEI-43035127068.A3 43035127068 -
70 - STICKER FEI-32217406002.A56 32217406002 £1.60 £1.92
100 - HOUSING FEI-31207245017.A2 31207245017 -
110 - PRESSURE PIECE FEI-33216041004.A2 33216041004 £6.59 £7.91
120 - GUIDE STRIP FEI-33218111004.A2 33218111004 £51.68 £62.02
130 - CYLINDER HEAD SCREW FEI-43035076041.A89 43035076041 £1.60 £1.92
135 - LEAF SPRING FEI-30904041001.A64 30904041001 £5.78 £6.94
136 - FILLISTER HEAD SCREW FEI-43041026994.A15 43041026994 -
140 - SET SCREW FEI-43058008051.A25 43058008051 -
150 - GEAR RACK FEI-33812008002.A2 33812008002 -
160 - CLAMPING SLEEVE FEI-40238051004.A4 40238051004 -
170 - GUIDE FEI-33218112007.A2 33218112007 £101.26 £121.51
180 - FLAT HEADED SCREW FEI-43013048041.A3 43013048041 £1.60 £1.92
190 - CIRCLIP M6 FEI-42443005064.A17 42443005064 £1.60 £1.92
200 - CYLINDER HEAD SCREW FEI-43058021068.A10 43058021068 -
210 - BUSH FEI-31602089009.A37 31602089009 -
220 - SHAFT FEI-33717037007.A4 33717037007 -
230 - BUSH FEI-30510085008.A2 30510085008 £33.17 £39.80
240 - DISC FEI-42402012084.A4 42402012084 -
250 - CUP SPRING FEI-30905055000.A8 30905055000 -
260 - DISC FEI-42401019085.A3 42401019085 £1.60 £1.92
270 - NUT FEI-42019006080.A28 42019006080 £1.60 £1.92
280 - PLUG FEI-31420109007.A4 31420109007 £3.12 £3.75
290 - SCALE FEI-33213007001.A8 33213007001 £3.43 £4.12
300 - HANDLE FEI-32119114014.A44 32119114014 £19.35 £23.22
310 - FILLISTER HEAD SCREW FEI-43064023045.A60 43064023045 £1.60 £1.92
320 - SWITCH FEI-30701222001.A2 30701222001 £130.45 £156.54
330 - CONNECTING CABLE FEI-30719877010.A5 30719877010 -
350 - PLATE FEI-32422299003.A2 32422299003 £18.53 £22.24
360 - SEAL FEI-30605108002.A4 30605108002 £2.88 £3.46
370 - SOCKET FEI-30728344005.A0 30728344005 £17.13 £20.56
380 - SHEET METAL SCREW FEI-43067004005.A4 43067004005 -
390 - ELECTRONICS FEI-30762213991.A0 30762213991 £264.61 £317.53
410 - BUTTON FEI-30701223005.A14 30701223005 £14.97 £17.96
411 - CAP FEI-30701224003.A34 30701224003 £5.50 £6.60
420 - CONNECTING CABLE FEI-30719879010.A5 30719879010 -
430 - SCREW CONNECTION FEI-30723044003.A8 30723044003 £28.66 £34.39
440 - NUT FEI-30723043005.A13 30723043005 £2.73 £3.28
450 - CABLE GROMMET FEI-31413007007.A100 31413007007 £1.60 £1.92
460 - CABLE WITH PLUG FEI-30707423010.A1 30707423010 -
470 - DISC FEI-42404005048.A88 42404005048 £1.60 £1.92
480 - CONNECTING CABLE FEI-30719878010.A2 30719878010 -
490 - LOCK WASHER FEI-42439013046.A36 42439013046 £1.60 £1.92
500 - HANDLE FEI-32119108005.A2 32119108005 £39.65 £47.58
510 - FILLISTER HEAD SCREW FEI-43041037050.A4 43041037050 -
650 - HEXAGON SOCKET SCREW FEI-43048066120.A6 43048066120 -
660 - NUT FEI-42010034120.A2 42010034120 -
670 - NUT FEI-42019019121.A4 42019019121 -
680 - CABLE TIE FEI-30234026008.A14 30234026008 £1.60 £1.92
700 - PLATE FEI-32432074001.A1 32432074001 £151.06 £181.27
710 - BUSH FEI-30507226001.A1 30507226001 £23.12 £27.74
730 - ECCENTRIC SHAFT SET FEI-32170022000.A0 32170022000 -
740 - ROLLER FEI-41709041004.A12 41709041004 -
750 - BOLT FEI-30217323004.A1 30217323004 £27.12 £32.54
760 - DISC FEI-42443009085.A1 42443009085 -
770 - CYLINDER HEAD SCREW FEI-43035138087.A0 43035138087 -
780 - MAGNETIC FOOT FEI-33216042016.A0 33216042016 £567.65 £681.18
790 - CONNECTING CABLE FEI-30719526013.A1 30719526013 £2.32 £2.79
800 - CYLINDER HEAD SCREW FEI-43035129060.A0 43035129060 -
810 - SEAL FEI-30605107004.A2 30605107004 £4.94 £5.93
820 - COVER FEI-32429126010.A4 32429126010 £57.35 £68.82
2000 - STICKER FEI-32217407000.A19 32217407000 -
5000 - PROTECTIVE GRILLE FEI-31810239003.A0 31810239003 £39.10 £46.92
5010 - FILLISTER HEAD SCREW FEI-43064008044.A13 43064008044 £1.60 £1.92
5020 - HOOK F. CHIP REMOVAL FEI-32174005011.A0 32174005011 £48.43 £58.12
5030 - ALLEN KEY SW4 FEI-62907010000.A22 62907010000 £3.35 £4.02
5040 - ALLEN KEY SW5 FEI-62907011009.A11 62907011009 £3.29 £3.95
5050 - RATCHET BUCKLE W/ STRAP FEI-32174007009.A2 32174007009 £33.80 £40.56
