Black & Decker BD251 Type 3 Drill Spare Parts

Home Details Reviews Delivery

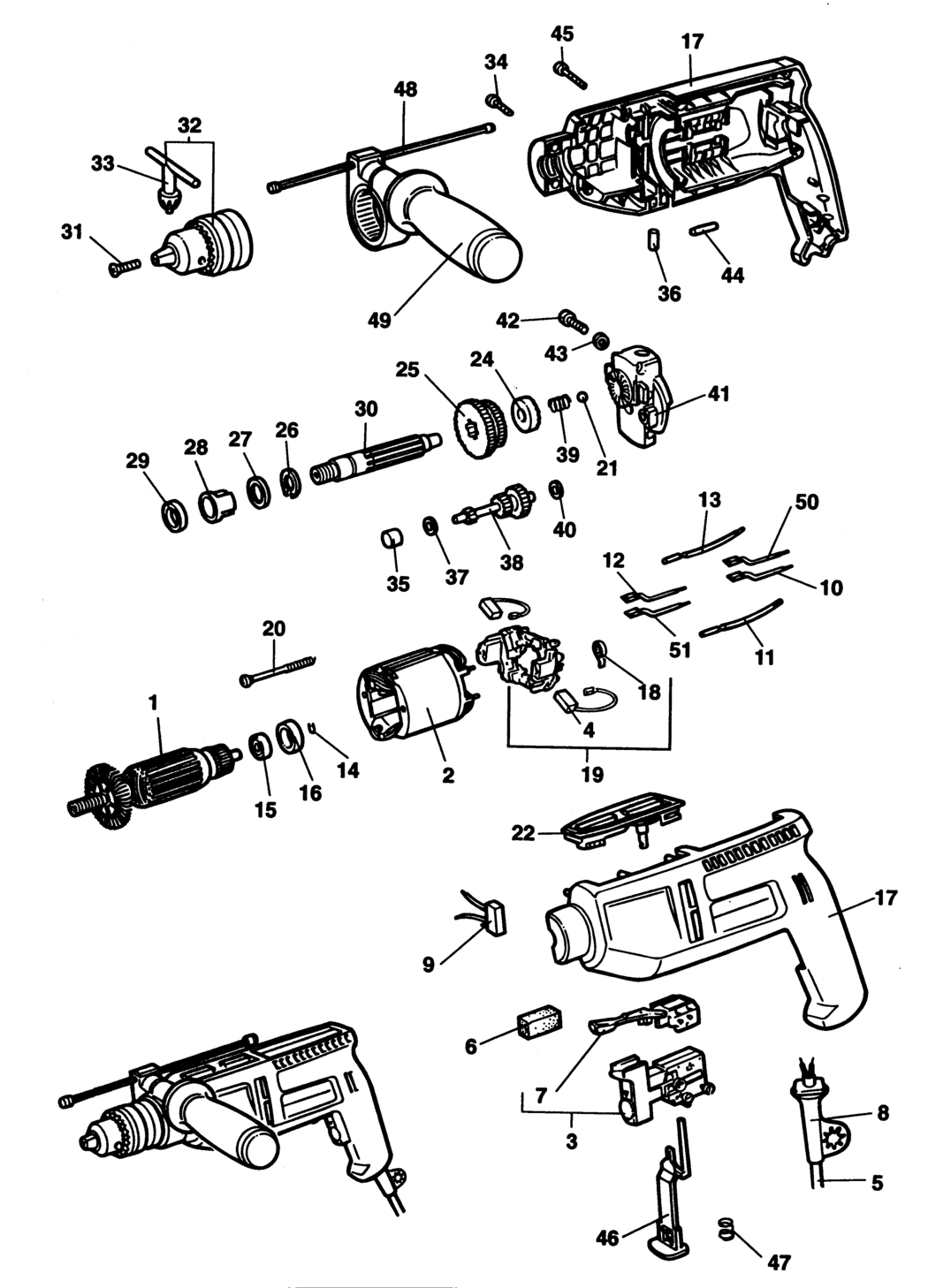

An exploded drawing and spare parts listing for the Black & Decker BD251 Type 3 Drill

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A99769 000000-00	-
2 - NO LONGER AVAILABLE BDE-000000-00.A99770 000000-00	-
3 - NO LONGER AVAILABLE BDE-000000-00.A99771 000000-00	-
4 - BRUSH BDE-949830-02.A6 949830-02	£4.69	£5.63
5 - NO LONGER AVAILABLE BDE-000000-00.A99774 000000-00	-
6 - NO LONGER AVAILABLE BDE-000000-00.A99775 000000-00	-
7 - NO LONGER AVAILABLE BDE-000000-00.A99776 000000-00	-
8 - PROTECTOR BDE-770236.A166 770236	£1.50	£1.80
9 - CAPACITOR BDE-949877-01.A165 949877-01	£1.50	£1.80
10 - NO LONGER AVAILABLE BDE-000000-00.A99777 000000-00	-
11 - NO LONGER AVAILABLE BDE-000000-00.A99778 000000-00	-
12 - NO LONGER AVAILABLE BDE-000000-00.A99779 000000-00	-
13 - NO LONGER AVAILABLE BDE-000000-00.A99780 000000-00	-
14 - NO LONGER AVAILABLE BDE-000000-00.A99781 000000-00	-
15 - BEARING BDE-330003-02.A77 330003-02	-
16 - SLEEVE BDE-930275-00.A70 930275-00	£2.26	£2.71
17 - NO LONGER AVAILABLE BDE-000000-00.A99783 000000-00	-
18 - BRUSH SPRING BDE-930090-00.A63 930090-00	£1.50	£1.80
19 - NO LONGER AVAILABLE BDE-000000-00.A99784 000000-00	-
20 - SCREW BDE-930752-00.A33 930752-00	£1.78	£2.13
21 - BALL BDE-930012.A71 930012	£1.42	£1.70
22 - NO LONGER AVAILABLE BDE-000000-00.A99785 000000-00	-
24 - RATCHET BDE-945706-00.A68 945706-00	£1.50	£1.80
25 - NO LONGER AVAILABLE BDE-000000-00.A99786 000000-00	-
26 - RETAINER BDE-930098-00.A79 930098-00	£1.50	£1.80
27 - NO LONGER AVAILABLE BDE-000000-00.A99787 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A99788 000000-00	-
30 - NO LONGER AVAILABLE BDE-000000-00.A99789 000000-00	-
31 - NO LONGER AVAILABLE BDE-000000-00.A99790 000000-00	-
32 - CHUCK 13MM BDE-5140071-68.A30 5140071-68	£14.57	£17.48
33 - CHUCK KEY BDE-330034-07.A58 330034-07	£1.50	£1.80
34 - SCREW BDE-930284-01.A133 930284-01	£1.50	£1.80
35 - BEARING BDE-330004-19.A9 330004-19	£7.01	£8.41
36 - NO LONGER AVAILABLE BDE-000000-00.A99791 000000-00	-
37 - WASHER BDE-930102-00.A166 930102-00	£1.50	£1.80
38 - NO LONGER AVAILABLE BDE-000000-00.A99792 000000-00	-
39 - NO LONGER AVAILABLE BDE-000000-00.A99793 000000-00	-
40 - WASHER BDE-931407-00.A21 931407-00	£5.88	£7.06
42 - NO LONGER AVAILABLE BDE-000000-00.A99794 000000-00	-
43 - WASHER BDE-932839-00.A50 932839-00	£1.50	£1.80
44 - NO LONGER AVAILABLE BDE-000000-00.A99795 000000-00	-
45 - SCREW BDE-930079-01.A261 930079-01	£1.42	£1.70
46 - NO LONGER AVAILABLE BDE-000000-00.A99796 000000-00	-
47 - SPRING BDE-748158.A5 748158	-
48 - NO LONGER AVAILABLE BDE-000000-00.A99797 000000-00	-
49 - NO LONGER AVAILABLE BDE-000000-00.A99798 000000-00	-
50 - NO LONGER AVAILABLE BDE-000000-00.A99799 000000-00	-
52 - NO LONGER AVAILABLE BDE-000000-00.A99800 000000-00	-
53 - NO LONGER AVAILABLE BDE-000000-00.A99801 000000-00	-

Attribute Name	Value
Brand	Black & Decker
