Black & Decker CON140 Type 1 Drill Spare Parts

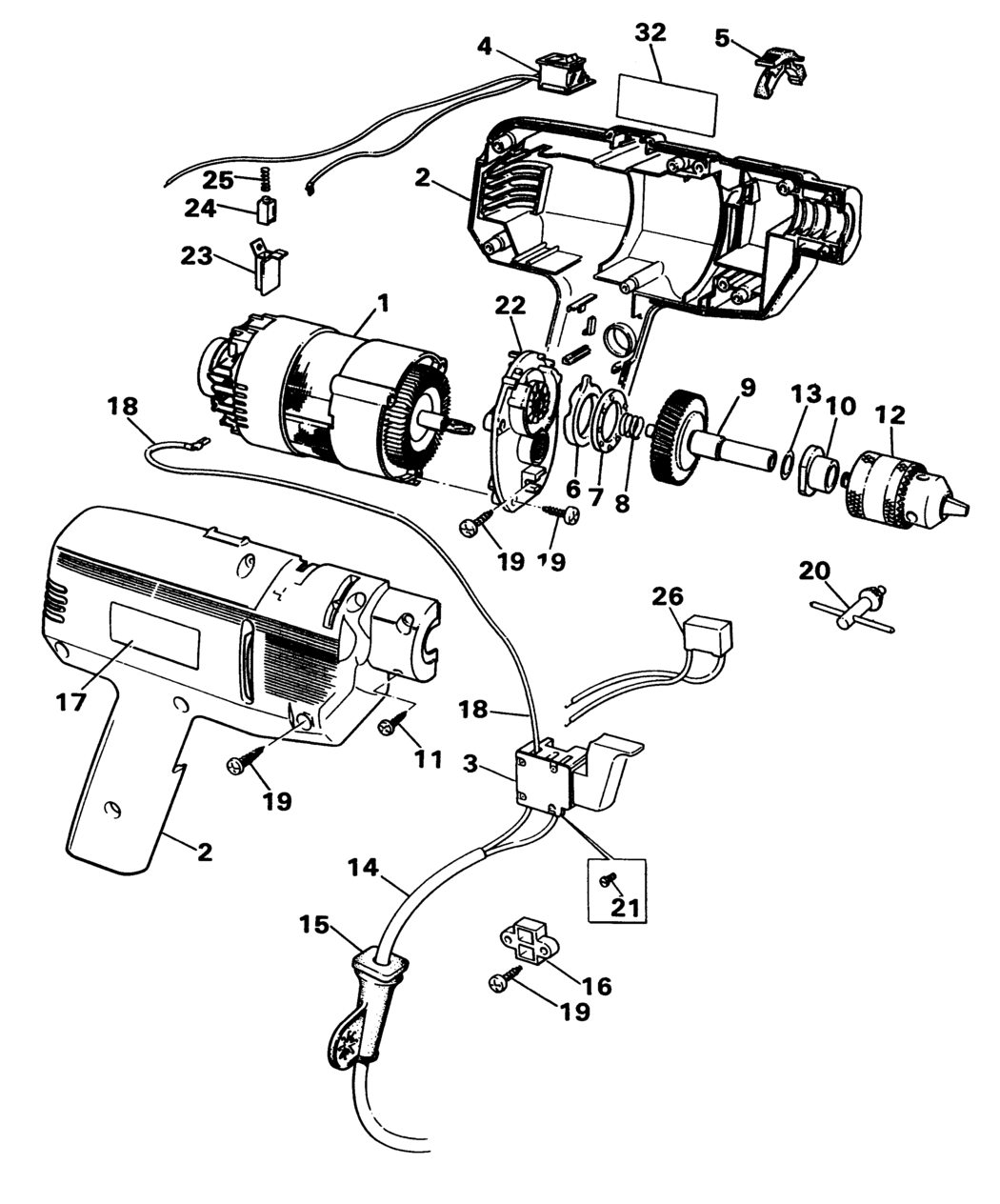

An exploded drawing and spare parts listing for the Black & Decker CON140 Type 1 Drill

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A100289 000000-00	-
2 - NO LONGER AVAILABLE BDE-000000-00.A100290 000000-00	-
3 - SWITCH GB BDE-794158.A1 794158	-
5 - NO LONGER AVAILABLE BDE-000000-00.A100291 000000-00	-
6 - NO LONGER AVAILABLE BDE-000000-00.A100292 000000-00	-
7 - BEARING BDE-892261.A47 892261	-
8 - SPRING BDE-821986.A197 821986	-
9 - NO LONGER AVAILABLE TYPE H1A-H1B-H1C BDE-000000-00.A100293 000000-00	-
10 - BEARING BDE-812973.A1 812973	-
11 - NO LONGER AVAILABLE BDE-000000-00.A100294 000000-00	-
12 - NO LONGER AVAILABLE CHUCK S2A BDE-000000-00.A100295 000000-00	-
13 - NO LONGER AVAILABLE BDE-000000-00.A100296 000000-00	-
14 - NO LONGER AVAILABLE GB BDE-000000-00.A100297 000000-00	-
15 - PROTECTOR BDE-770236.A155 770236	£1.50	£1.80
16 - CABLE CLAMP BDE-994808.A22 994808	£1.42	£1.70
18 - NO LONGER AVAILABLE BDE-000000-00.A100298 000000-00	-
19 - SCREW BDE-849256.A365 849256	-
20 - CHUCK KEY CHUCK S2A BDE-330034-07.A80 330034-07	£1.50	£1.80
20 - CHUCK KEY 10MM CHUCK NON S2A BDE-330034-00.A86 330034-00	-
22 - NO LONGER AVAILABLE BDE-000000-00.A100311 000000-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A2282 000000-00	-
24 - BRUSH BDE-376143.A110 376143	-
25 - SPRING BDE-847709.A102 847709	£3.30	£3.96
32 - NO LONGER AVAILABLE GB BDE-000000-00.A2283 000000-00	-
