Black & Decker H502 Type H1C Hammer Drill Spare Parts

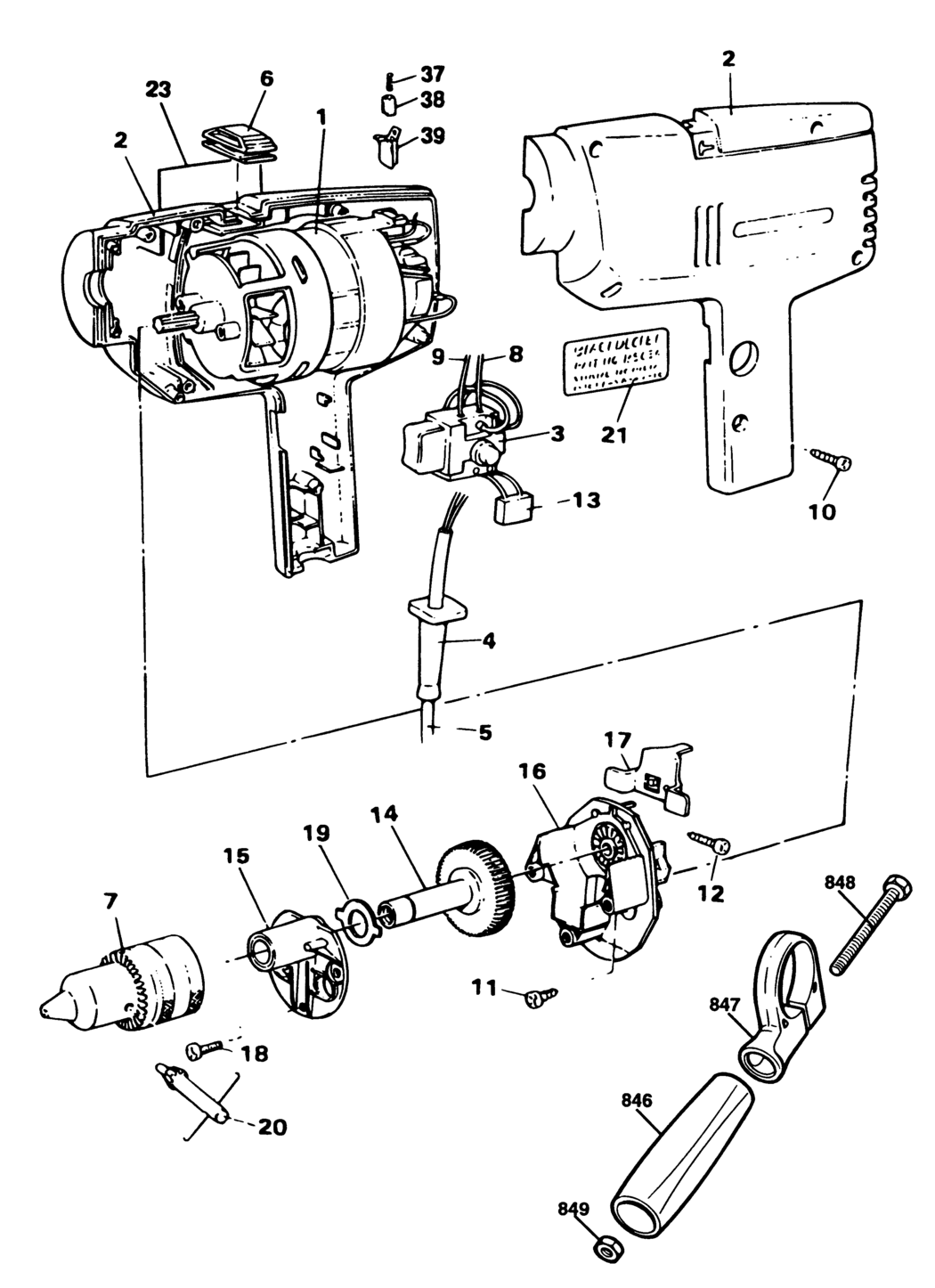

An exploded drawing and spare parts listing for the Black & Decker H502 Type H1C Hammer Drill

	Ex VAT	Inc VAT
4 - NO LONGER AVAILABLE BDE-000000-00.A34392 000000-00	-
5 - NO LONGER AVAILABLE GB BDE-000000-00.A34393 000000-00	-
6 - NO LONGER AVAILABLE BDE-000000-00.A34394 000000-00	-
7 - NO LONGER AVAILABLE CHUCK S2A BDE-000000-00.A34395 000000-00	-
10 - NO LONGER AVAILABLE BDE-000000-00.A34396 000000-00	-
11 - SCREW BDE-812171.A87 812171	£1.42	£1.70
12 - NO LONGER AVAILABLE BDE-000000-00.A34413 000000-00	-
13 - CAPACITOR GB BDE-807285-06.A15 807285-06	£1.50	£1.80
15 - NO LONGER AVAILABLE BDE-000000-00.A34398 000000-00	-
16 - NO LONGER AVAILABLE BDE-000000-00.A34399 000000-00	-
17 - NO LONGER AVAILABLE BDE-000000-00.A34400 000000-00	-
18 - SCREW BDE-812171.A91 812171	£1.42	£1.70
19 - NO LONGER AVAILABLE BDE-000000-00.A34414 000000-00	-
20 - CHUCK KEY CHUCK S2A BDE-330034-07.A301 330034-07	£1.50	£1.80
20 - CHUCK KEY 10MM CHUCK NON S2A BDE-330034-00.A50 330034-00	-
37 - SPRING BDE-847709.A33 847709	£3.30	£3.96
38 - NO LONGER AVAILABLE BDE-000000-00.A34401 000000-00	-
39 - NO LONGER AVAILABLE BDE-000000-00.A34402 000000-00	-
846 - NO LONGER AVAILABLE BDE-000000-00.A34403 000000-00	-
847 - NO LONGER AVAILABLE BDE-000000-00.A34404 000000-00	-
848 - NO LONGER AVAILABLE BDE-000000-00.A34405 000000-00	-
849 - NO LONGER AVAILABLE BDE-000000-00.A34406 000000-00	-

Attribute Name	Value
Brand	Black & Decker
