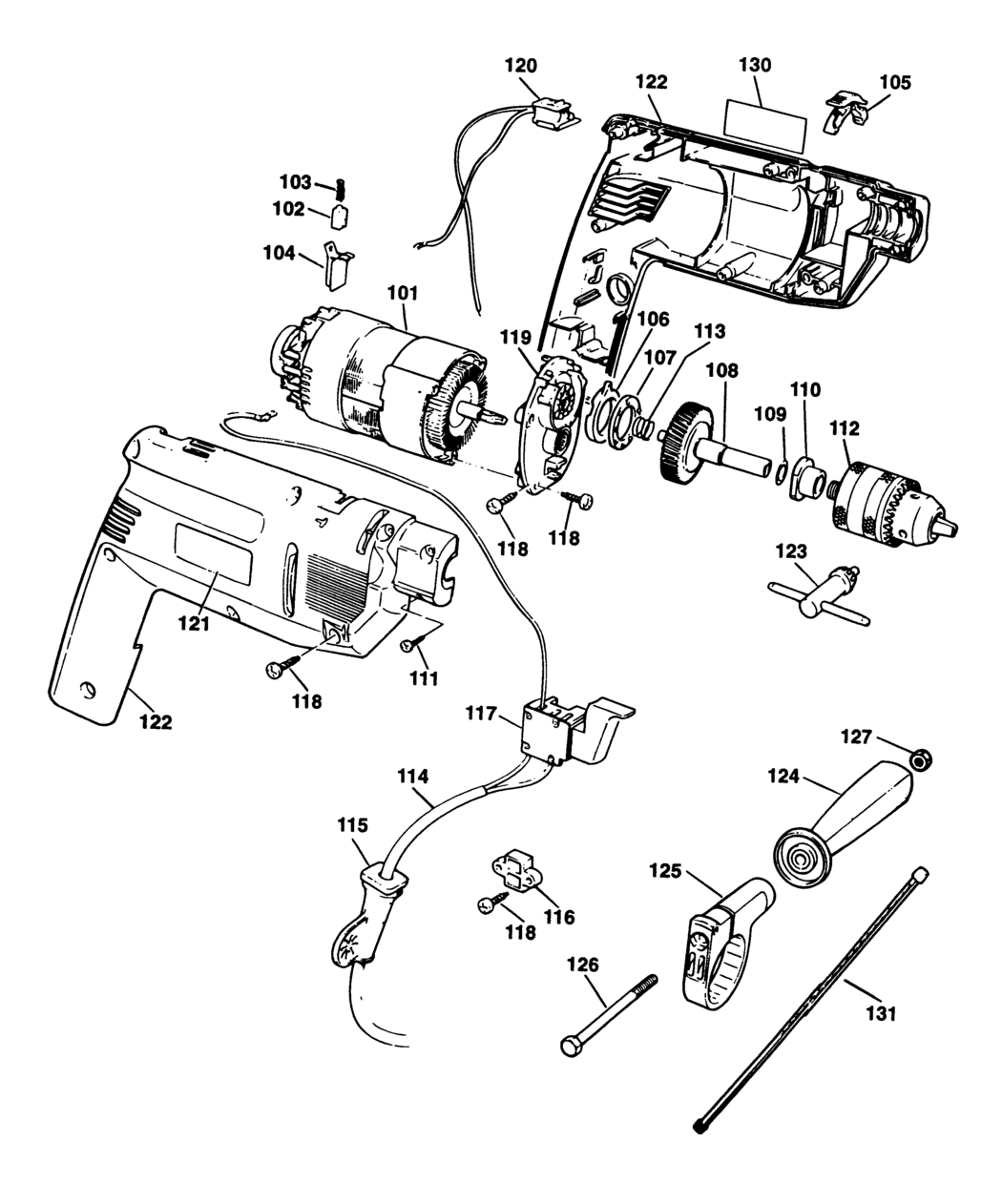

An exploded drawing and spare parts listing for the Black & Decker KD161 Type 1 Hammer Drill
Ex VAT Inc VAT
101 - NO LONGER AVAILABLE BDE-000000-00.A2701 000000-00 -
102 - BRUSH BDE-376143.A99 376143 -
103 - SPRING BDE-847709.A113 847709 £3.30 £3.96
104 - NO LONGER AVAILABLE BDE-000000-00.A2704 000000-00 -
105 - NO LONGER AVAILABLE BDE-000000-00.A2705 000000-00 -
106 - NO LONGER AVAILABLE BDE-000000-00.A2706 000000-00 -
107 - BEARING BDE-892261.A114 892261 -
108 - NO LONGER AVAILABLE BDE-000000-00.A2707 000000-00 -
109 - NO LONGER AVAILABLE BDE-000000-00.A2708 000000-00 -
110 - BEARING BDE-812973.A38 812973 -
111 - NO LONGER AVAILABLE BDE-000000-00.A2709 000000-00 -
112 - NO LONGER AVAILABLE BDE-000000-00.A2710 000000-00 -
113 - SPRING BDE-821986.A17 821986 -
114 - CORDSET GB BDE-330060-53.A40 330060-53 £10.85 £13.02
115 - PROTECTOR BDE-770236.A82 770236 £1.50 £1.80
116 - CABLE CLAMP BDE-994808.A156 994808 £1.42 £1.70
117 - SWITCH BDE-794158.A13 794158 -
118 - SCREW BDE-809961.A169 809961 -
119 - NO LONGER AVAILABLE BDE-000000-00.A2720 000000-00 -
122 - NO LONGER AVAILABLE BDE-000000-00.A2721 000000-00 -
123 - CHUCK KEY BDE-330034-07.A457 330034-07 £1.50 £1.80
124 - NO LONGER AVAILABLE BDE-000000-00.A2711 000000-00 -
125 - NO LONGER AVAILABLE BDE-000000-00.A2712 000000-00 -
126 - SCREW BDE-813918.A90 813918 -
127 - NUT BDE-896369.A10 896369 £1.78 £2.13
130 - NO LONGER AVAILABLE KD162 BDE-000000-00.A2713 000000-00 -
130 - NO LONGER AVAILABLE KD161 BDE-000000-00.A2714 000000-00 -
131 - NO LONGER AVAILABLE BDE-000000-00.A2715 000000-00 -
