Black & Decker KD990 Type 3 Rotary Hammer Spare Parts

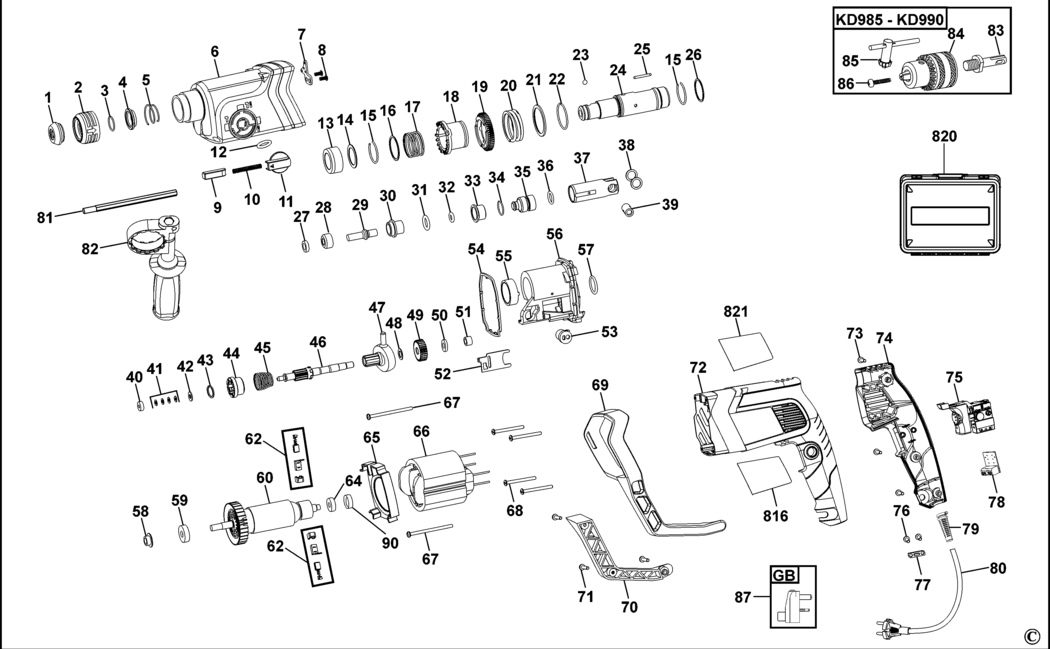

An exploded drawing and spare parts listing for the Black & Decker KD990 Type 3 Rotary Hammer

	Ex VAT	Inc VAT
1 - TIP BDE-90524563.A8 90524563	£1.50	£1.80
2 - COLLAR BDE-90524565.A18 90524565	£1.50	£1.80
3 - CLIP BDE-90553468.A0 90553468	£1.50	£1.80
4 - HOLDER BDE-90553469.A8 90553469	£1.50	£1.80
5 - SPRING BDE-90553470.A0 90553470	£1.50	£1.80
6 - GEARCASE BDE-90524523.A5 90524523	£14.57	£17.48
7 - BRAKE BDE-90553471.A19 90553471	£1.50	£1.80
8 - SCREW BDE-90553472.A0 90553472	£1.50	£1.80
9 - SELECTOR BDE-90524526.A4 90524526	£1.50	£1.80
10 - SPRING BDE-90553473.A8 90553473	£1.50	£1.80
11 - KNOB BDE-90524525.A3 90524525	£2.78	£3.34
12 - SEAL BDE-90553474.A0 90553474	£1.50	£1.80
13 - BEARING BDE-90553475.A19 90553475	£4.69	£5.63
14 - WASHER BDE-90553476.A0 90553476	£1.50	£1.80
15 - RING BDE-90553477.A19 90553477	£1.50	£1.80
16 - RING BDE-90553478.A0 90553478	£1.50	£1.80
17 - SPRING BDE-90553479.A19 90553479	£1.50	£1.80
18 - SLEEVE BDE-90553480.A0 90553480	£7.18	£8.62
19 - GEAR BDE-90553481.A19 90553481	£7.18	£8.62
20 - SPRING BDE-90553482.A0 90553482	£1.50	£1.80
21 - RING BDE-90553483.A19 90553483	£1.50	£1.80
22 - RING BDE-90553484.A0 90553484	£1.50	£1.80
23 - BALL STEEL BDE-90550363.A37 90550363	£1.50	£1.80
24 - SHAFT BDE-90553486.A8 90553486	£34.00	£40.80
25 - PIN BDE-90553487.A0 90553487	£1.50	£1.80
26 - WASHER BDE-90553488.A8 90553488	£1.50	£1.80
27 - SEAL BDE-90553674.A9 90553674	£1.50	£1.80
28 - BLOCK BDE-90553490.A0 90553490	£2.26	£2.71
29 - COLUMN BDE-90553491.A8 90553491	£2.78	£3.34
30 - SLEEVE BDE-90553492.A0 90553492	£2.26	£2.71
31 - O RING BDE-90553493.A8 90553493	£1.50	£1.80
32 - O RING BDE-90553494.A0 90553494	£1.50	£1.80
33 - SLEEVE BDE-90553495.A8 90553495	£2.78	£3.34
34 - WIRE STEEL BDE-90553496.A0 90553496	£1.50	£1.80
35 - RAM BDE-90553497.A8 90553497	£7.18	£8.62
36 - O RING BDE-90553505.A3 90553505	£1.50	£1.80
37 - CYLINDER BDE-90553506.A10 90553506	£7.85	£9.42
38 - WASHER BDE-90549884.A31 90549884	£1.50	£1.80
39 - PIN BDE-90553557.A10 90553557	£3.80	£4.56
40 - BEARING BDE-90553558.A9 90553558	£2.26	£2.71
41 - WASHER BDE-90553559.A4 90553559	£1.50	£1.80
42 - RING BDE-90553508.A9 90553508	£1.50	£1.80
43 - RING BDE-90553509.A5 90553509	£1.50	£1.80
44 - CLUTCH BDE-90553510.A9 90553510	£7.18	£8.62
45 - SPRING BDE-90553511.A10 90553511	£1.50	£1.80
46 - TRANSMISSION SA BDE-90553512.A3 90553512	£7.18	£8.62
47 - BEARING BDE-90553513.A5 90553513	£19.90	£23.88
48 - WASHER BDE-90553514.A3 90553514	£1.50	£1.80
49 - GEAR BDE-90553515.A5 90553515	£7.18	£8.62
50 - BEARING BDE-90553516.A3 90553516	£3.80	£4.56
51 - BEARING BDE-90553517.A5 90553517	£3.80	£4.56
52 - PLATE BDE-90553518.A3 90553518	£1.50	£1.80
53 - KNOB BDE-90553519.A5 90553519	£1.50	£1.80
54 - RUBBER SEAL BDE-90553520.A3 90553520	£2.26	£2.71
55 - SLEEVE BEARING BDE-90553521.A5 90553521	£3.80	£4.56
56 - HOLDER BDE-90553522.A3 90553522	£12.17	£14.60
57 - O RING BDE-90553523.A5 90553523	£1.50	£1.80
58 - SEAL BDE-90553524.A3 90553524	£1.50	£1.80
59 - BEARING BDE-90553525.A5 90553525	£3.80	£4.56
60 - ARMATURE SA BDE-90534211.A4 90534211	£41.24	£49.49
62 - BRUSH & HOLDER 230V BDE-90592921-01.A0 90592921-01	£7.18	£8.62
64 - BEARING BDE-90553593.A7 90553593	£3.80	£4.56
65 - BAFFLE FAN BDE-90524500.A4 90524500	£1.50	£1.80
66 - FIELD SA BDE-90534218.A4 90534218	£34.00	£40.80
67 - SCREW BDE-330065-11.A8 330065-11	£1.50	£1.80
68 - SCREW BDE-330065-16.A15 330065-16	£1.50	£1.80
69 - HANDLE LH BDE-90528090.A1 90528090	£14.57	£17.48
70 - HANDLE RH BDE-90528089.A1 90528089	£9.41	£11.29
71 - SCREW BDE-330065-07.A42 330065-07	£1.50	£1.80
73 - SCREW BDE-330065-07.A43 330065-07	£1.50	£1.80
74 - CLAMSHELL SA BDE-N505470.A0 N505470	£37.35	£44.82
75 - SWITCH KD990KA-B3LZ BDE-90555407N.A0 90555407N	-
76 - SCREW BDE-330065-05.A52 330065-05	£1.50	£1.80
77 - CORD CLAMP BDE-329301-00.A153 329301-00	£1.50	£1.80
78 - PCB SA BDE-90552756.A4 90552756	£5.88	£7.06
79 - CORD PROTECTOR BDE-629648-00.A3 629648-00	£1.50	£1.80
81 - DEPTH STOP BDE-580787-00.A204 580787-00	£1.50	£1.80
82 - SIDE HANDLE BDE-90533273.A4 90533273	£7.85	£9.42
83 - ADAPTOR BDE-352065.A13 352065	£14.57	£17.48
84 - CHUCK 13MM BDE-621050-00.A0 621050-00	£10.85	£13.02
85 - CHUCK KEY 13MM BDE-621400-00.A1 621400-00	£1.50	£1.80
86 - SCREW BDE-1005216-00.A3 1005216-00	£1.50	£1.80
90 - SLEEVE BEARING BDE-90553594.A1 90553594	£1.50	£1.80
816 - BRAND LABEL BDE-90611652.A0 90611652	£1.50	£1.80

Attribute Name	Value
Brand	Black & Decker
