Black & Decker KR111RE Type 1 Drill Spare Parts

Black & Decker KR111RE Type 1 Drill Spare Parts
Home Details Reviews Delivery

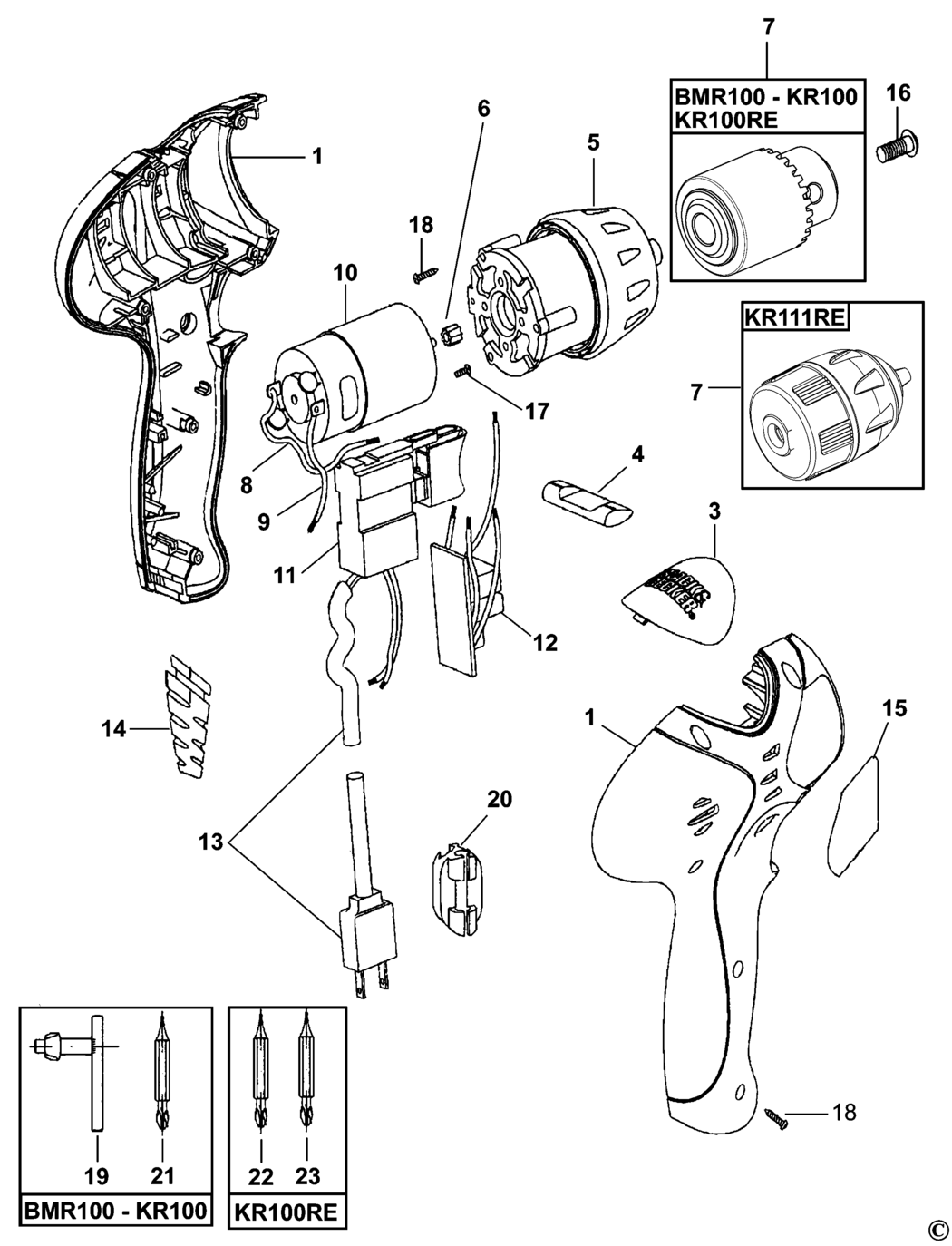

An exploded drawing and spare parts listing for the Black & Decker KR111RE Type 1 Drill
Ex VAT Inc VAT
1 - CLAMSHELL SET BDE-90524974.A0 90524974 -
3 - PLATE BDE-582204-00.A2 582204-00 -
4 - SWITCH REVERSE BDE-582205-00.A1 582205-00 -
5 - GEARBOX SA BDE-90531368 90531368 -
6 - PINION BDE-582207-00.A2 582207-00 -
7 - CHUCK KEYLESS BDE-90531369 90531369 -
8 - LEADWIRE BDE-582209-00.A3 582209-00 -
9 - LEADWIRE BDE-582209-01.A3 582209-01 -
10 - MOTOR BDE-582210-00.A0 582210-00 -
11 - SWITCH SA BDE-582211-00.A0 582211-00 -
12 - PCB BDE-582212-00.A2 582212-00 -
14 - CORD PROTECTOR BDE-582213-00.A2 582213-00 -
16 - SCREW BDE-157312-02.A0 157312-02 £1.50 £1.80
17 - SCREW BDE-562160-08.A2 562160-08 -
18 - SCREW BDE-562097-15.A4 562097-15 -
20 - HOLDER BIT BDE-582215-00.A0 582215-00 -
22 - BIT SCREWDRIVER BDE-607918-33.A0 607918-33 -
23 - BIT SCREWDRIVER BDE-607918-34.A2 607918-34 -
