Black & Decker KR650CRF Type 4 Drill Spare Parts

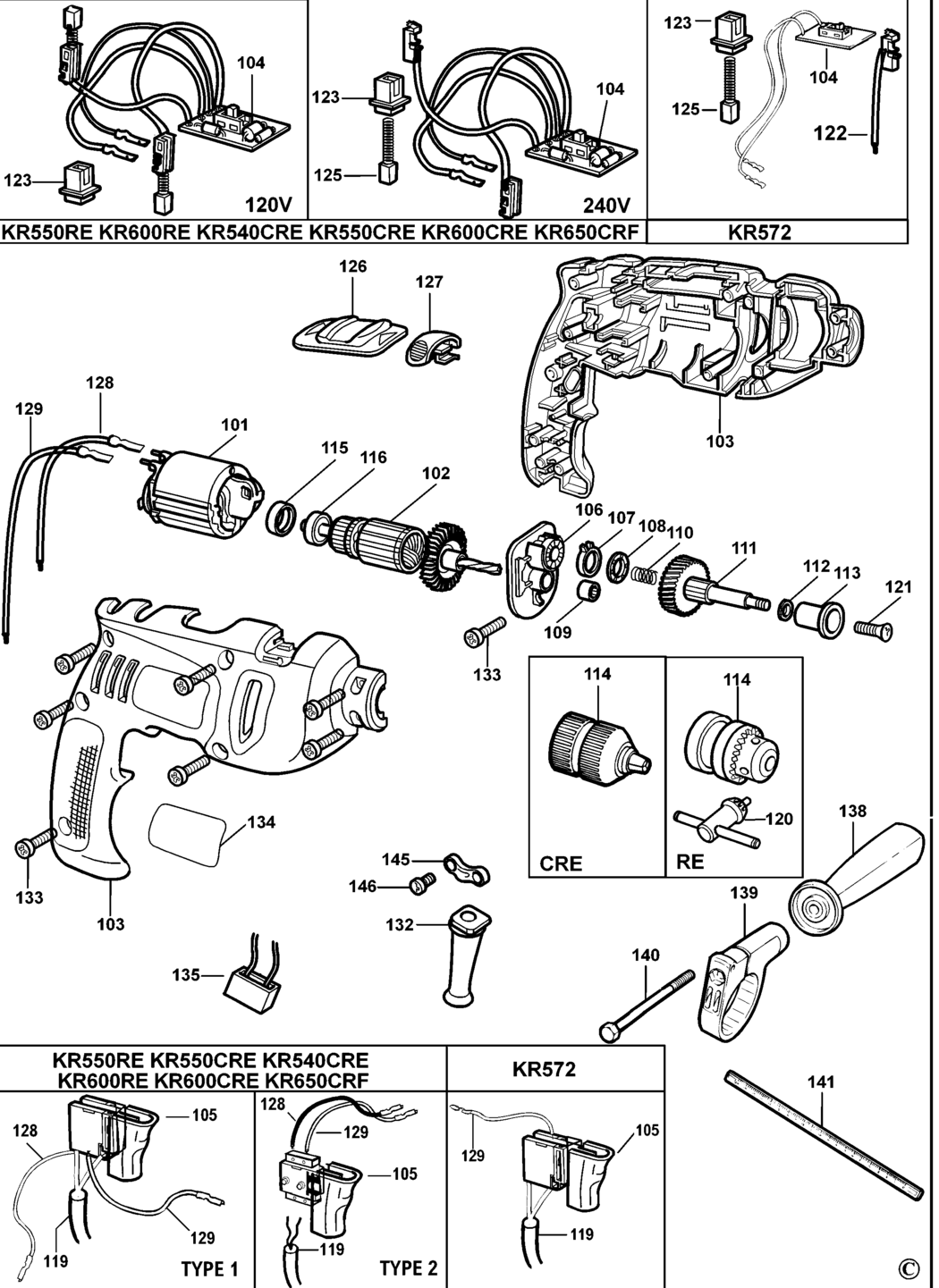

An exploded drawing and spare parts listing for the Black & Decker KR650CRF Type 4 Drill

	Ex VAT	Inc VAT
101 - NO LONGER AVAILABLE BDE-000000-00.A25498 000000-00	-
102 - NO LONGER AVAILABLE BDE-000000-00.A25499 000000-00	-
103 - NO LONGER AVAILABLE BDE-000000-00.A25500 000000-00	-
104 - PCB SA BDE-374217-01.A20 374217-01	-
105 - NO LONGER AVAILABLE BDE-000000-00.A25501 000000-00	-
106 - NO LONGER AVAILABLE BDE-000000-00.A25502 000000-00	-
107 - SELECTOR BDE-374189-00.A43 374189-00	-
108 - BEARING BDE-892261.A154 892261	-
109 - NO LONGER AVAILABLE BDE-000000-00.A25503 000000-00	-
110 - SPRING BDE-821986.A53 821986	-
111 - NO LONGER AVAILABLE BDE-000000-00.A25504 000000-00	-
112 - NO LONGER AVAILABLE BDE-000000-00.A25505 000000-00	-
113 - BEARING BDE-374193-00.A19 374193-00	£2.21	£2.65
114 - NO LONGER AVAILABLE BDE-000000-00.A125053 000000-00	-
115 - NO LONGER AVAILABLE BDE-000000-00.A125054 000000-00	-
116 - BEARING BDE-330003-02.A8 330003-02	-
119 - CORDSET GB BDE-330060-53.A198 330060-53	£10.85	£13.02
121 - NO LONGER AVAILABLE BDE-000000-00.A125055 000000-00	-
123 - INSERT BDE-875735.A90 875735	£1.50	£1.80
125 - BRUSH & SPRING BDE-570544-00.A0 570544-00	-
126 - ACTUATOR BDE-374218-01.A38 374218-01	-
127 - ACTUATOR BDE-374188-00.A20 374188-00	-
128 - NO LONGER AVAILABLE BDE-000000-00.A125056 000000-00	-
129 - NO LONGER AVAILABLE BDE-000000-00.A125057 000000-00	-
132 - PROTECTOR BDE-770235.A206 770235	£1.50	£1.80
133 - SCREW BDE-809961.A13 809961	-
134 - NO LONGER AVAILABLE BDE-000000-00.A125058 000000-00	-
135 - CAPACITOR BDE-807745.A7 807745	-
138 - NO LONGER AVAILABLE BDE-000000-00.A125059 000000-00	-
139 - CLAMP BDE-376552-03.A60 376552-03	-
140 - SCREW BDE-813918.A211 813918	-
141 - DEPTH STOP BDE-372814-00.A28 372814-00	£1.50	£1.80
145 - CORD CLAMP BDE-329301-00.A12 329301-00	£1.50	£1.80
146 - SCREW BDE-821057.A21 821057	£1.50	£1.80
