Black & Decker PL97K Type 1 Cordless Drill Spare Parts

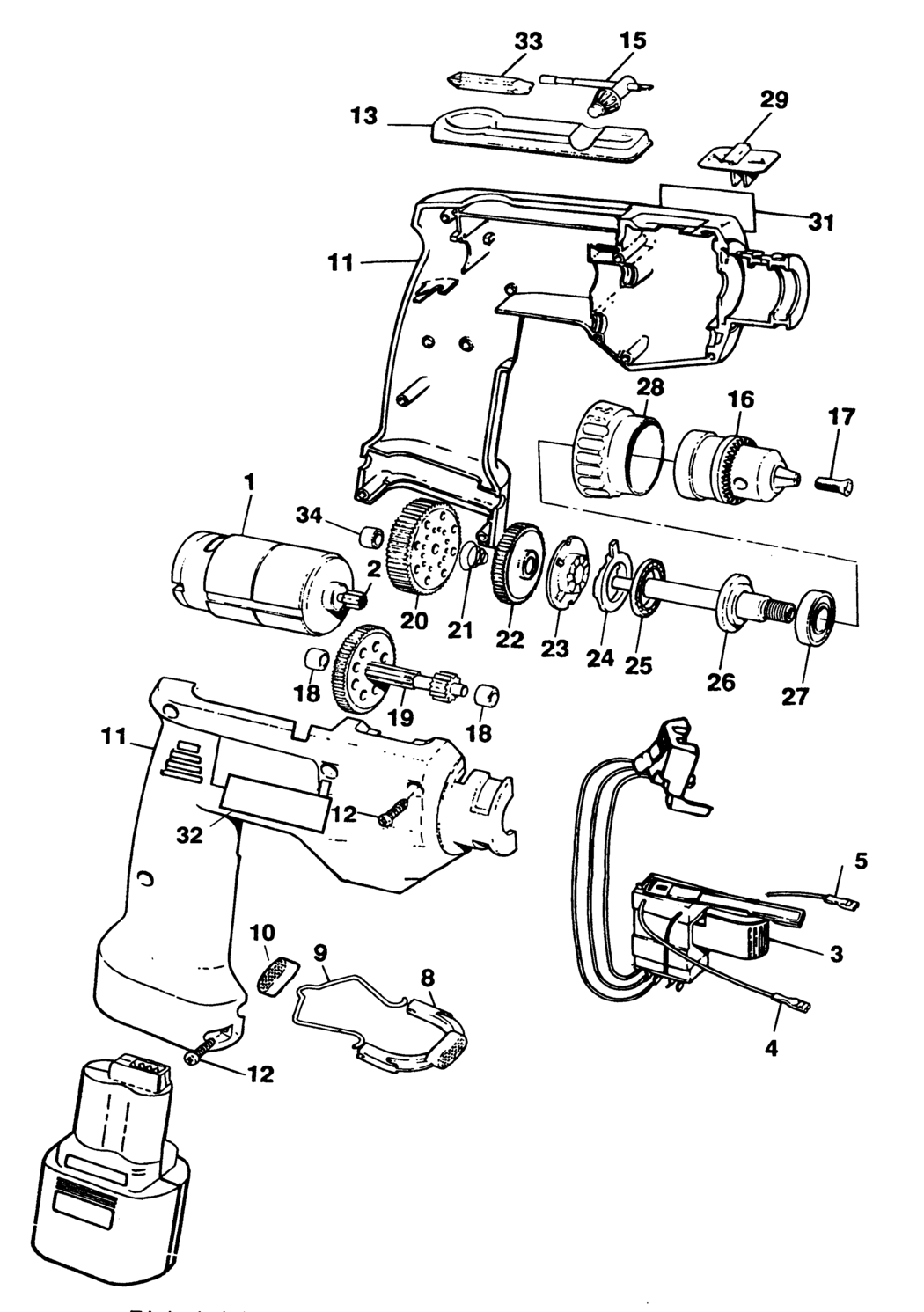

An exploded drawing and spare parts listing for the Black & Decker PL97K Type 1 Cordless Drill

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE ONLY PL97 BDE-000000-00.A99509 000000-00	-
1 - NO LONGER AVAILABLE ONLY PL99 BDE-000000-00.A99510 000000-00	-
3 - NO LONGER AVAILABLE BDE-000000-00.A99511 000000-00	-
4 - NO LONGER AVAILABLE BDE-000000-00.A99512 000000-00	-
5 - NO LONGER AVAILABLE BDE-000000-00.A99513 000000-00	-
8 - NO LONGER AVAILABLE BDE-000000-00.A99514 000000-00	-
9 - NO LONGER AVAILABLE BDE-000000-00.A99515 000000-00	-
10 - NO LONGER AVAILABLE BDE-000000-00.A99516 000000-00	-
11 - NO LONGER AVAILABLE ONLY PL97 BDE-000000-00.A99517 000000-00	-
11 - NO LONGER AVAILABLE ONLY PL99 BDE-000000-00.A99518 000000-00	-
12 - SCREW BDE-330013-04.A69 330013-04	-
13 - NO LONGER AVAILABLE BDE-000000-00.A99524 000000-00	-
15 - CHUCK KEY CHUCK S2A BDE-330034-07.A55 330034-07	£1.50	£1.80
15 - CHUCK KEY 10MM CHUCK NON S2A BDE-330034-00.A99 330034-00	-
16 - NO LONGER AVAILABLE CHUCK NON S2A BDE-000000-00.A99532 000000-00	-
16 - CHUCK 10MM CHUCK S2A BDE-330033-15.A107 330033-15	-
16 - NO LONGER AVAILABLE CHUCK KEYLESS BDE-000000-00.A99533 000000-00	-
17 - SCREW.SPECIAL BDE-805434.A135 805434	£1.50	£1.80
18 - NO LONGER AVAILABLE BDE-000000-00.A99525 000000-00	-
19 - NO LONGER AVAILABLE BDE-000000-00.A99526 000000-00	-
20 - NO LONGER AVAILABLE BDE-000000-00.A99527 000000-00	-
21 - NO LONGER AVAILABLE BDE-000000-00.A99528 000000-00	-
22 - NO LONGER AVAILABLE BDE-000000-00.A99529 000000-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A99530 000000-00	-
24 - NO LONGER AVAILABLE BDE-000000-00.A99531 000000-00	-
25 - BEARING BDE-892261.A61 892261	-
27 - NO LONGER AVAILABLE BDE-000000-00.A99534 000000-00	-
28 - NO LONGER AVAILABLE BDE-000000-00.A99535 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A99536 000000-00	-
32 - NO LONGER AVAILABLE ONLY PL97 BDE-000000-00.A99537 000000-00	-
33 - BIT PHILLIPS BDE-297757-02.A34 297757-02	£1.82	£2.19
34 - NO LONGER AVAILABLE BDE-000000-00.A99538 000000-00	-

Attribute Name	Value
Brand	Black & Decker
