Bosch ---- / 0601121042 / GB 240 Volt Spare Parts

Bosch ---- / 0601121042 / GB 240 Volt Spare Parts

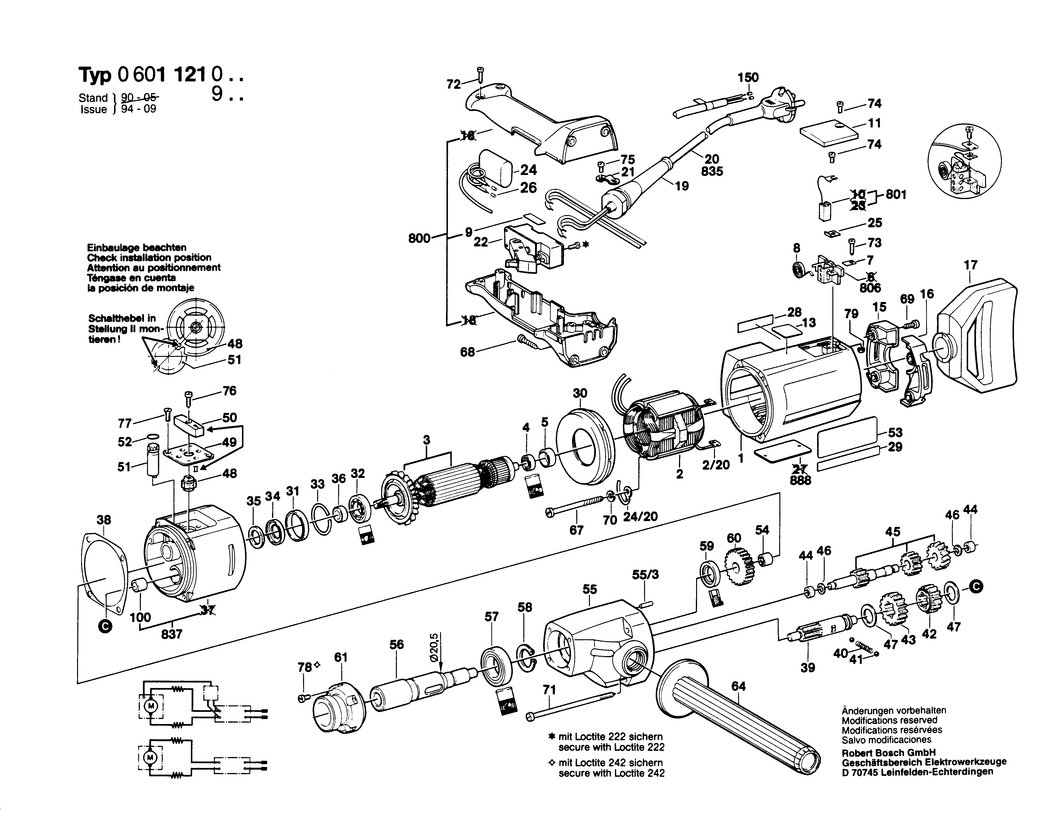

An exploded drawing and listing for the Bosch ---- / 0601121042 / GB 240 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-3605108113.A6 3605108113 -
2 - FIELD 240V BSD-1604220178.A1 1604220178 -
2/20 - TERMINAL LUG 1.5-4x4 BSD-1901350003.A22 1901350003 £1.75 £2.10
3 - ARMATURE WITH FAN 240V BSD-1604010190.A1 1604010190 -
4 - BALL BEARING 7x19x6 BSD-2600905032.A2219 2600905032 £5.30 £6.36
5 - INTERMEDIATE RING BSD-1600502011.A336 1600502011 £2.61 £3.13
7 - TAB WASHER BSD-1601030022.A527 1601030022 £1.75 £2.10
8 - SPIRAL SPRING BSD-1604652006.A348 1604652006 £1.75 £2.10
9 - INSULATING STRIP 33x10x6 MM BSD-1602381001.A85 1602381001 -
11 - SEALING CAP BSD-3605500063.A108 3605500063 £4.26 £5.11
15 - SEALING CAP BSD-3605500058.A100 3605500058 £13.12 £15.75
16 - SEALING CAP BSD-3605500059.A2 3605500059 £14.91 £17.89
17 - HANDLE BSD-3605133010.A20 3605133010 -
19 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A167 3600703011 £2.80 £3.36
21 - FASTENING CLAMP BSD-1601302014.A541 1601302014 £2.61 £3.13
22 - SWITCH BSD-1607200078.A95 1607200078 £40.80 £48.96
24 - SUPPRESSION CAPACITOR BSD-1607328024.A32 1607328024 -
26 - END SPLICE A 4-9 DIN 46 228 BSD-1900452004.A11 1900452004 -
28 - MANUFACTURER'S NAMEPLATE BSD-1601110130.A6 1601110130 -
29 - MANUFACTURER'S NAMEPLATE BSD-1601110005.A127 1601110005 -
30 - AIR-DEFLECTOR RING BSD-1600502019.A29 1600502019 £3.72 £4.47
31 - INTERMEDIATE RING BSD-1600206018.A94 1600206018 -
32 - GROOVE BALL BEARING 15x32x9 BSD-1600905004.A5 1600905004 -
33 - RETAINING RING 35 DIN 9045 BSD-2916600018.A65 2916600018 £1.75 £2.10
34 - COVER DISC BSD-1600500023.A3 1600500023 -
35 - FELT DISC BSD-1600108003.A228 1600108003 £1.32 £1.58
36 - INTERMEDIATE RING BSD-1600202034.A5 1600202034 -
38 - SEALING PLATE BSD-1601015013.A14 1601015013 £1.75 £2.10
39 - TOOTHED SHAFT Z=9 BSD-1606309066.A38 1606309066 £81.81 £98.17
40 - COMPRESSION SPRING BSD-1604611022.A65 1604611022 £1.75 £2.10
41 - BALL DIN 5401-5 G28 BSD-1903230009.A863 1903230009 £1.75 £2.10
42 - CYLINDRICAL GEAR Z=32 BSD-1606317074.A82 1606317074 £31.64 £37.97
43 - CYLINDRICAL GEAR Z=43 BSD-1606317082.A61 1606317082 £37.27 £44.72
44 - NEEDLE BEARING BSD-1600910013.A15 1600910013 £5.58 £6.70
45 - PINION SHAFT Z=14/24/33 BSD-1606309065.A5 1606309065 £81.81 £98.17
46 - SHIM 0.5 MM BSD-1600100631.A80 1600100631 £1.75 £2.10
47 - SHIM 0.6 MM BSD-1600101647.A127 1600101647 £2.16 £2.59
48 - CONTROL SHAFT Z=20 BSD-1606325025.A33 1606325025 £2.80 £3.36
49 - NOTCHED PLATE BSD-1601038025.A0 1601038025 £1.75 £2.10
50 - CONTROL LEVER BSD-1602026044.A95 1602026044 £7.36 £8.83
51 - CONTROL SHAFT Z=10 BSD-1606325027.A34 1606325027 £8.67 £10.41
52 - O-RING 8x2.5 MM BSD-1900210105.A61 1900210105 £1.75 £2.10
53 - REFERENCE PLATE BSD-1601110126.A1 1601110126 -
54 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A429 2600910001 £4.26 £5.11
55 - SPINDLE BEARING BSD-1605806382.A24 1605806382 £135.25 £162.30
55/3 - STRAIGHT PIN 5 H 8x18 DIN 7 BSD-2917500121.A55 2917500121 £1.75 £2.10
56 - DRILLING SPINDLE BSD-1606135017.A3 1606135017 -
57 - GROOVE BALL BEARING 25x47x12 BSD-1900905126.A0 1900905126 £33.74 £40.49
58 - SPRING RETAINING RING DIN 471 25x1.2 BSD-2916650014.A64 2916650014 £1.75 £2.10
59 - SEAL RING 20x31x7 MM BSD-3600290035.A32 3600290035 £13.12 £15.75
60 - CYLINDRICAL GEAR BSD-3606316108.A36 3606316108 £33.74 £40.49
61 - FASTENING FLANGE BSD-1605703075.A1 1605703075 £48.38 £58.06
64 - HANDLE 400 MM BSD-1600763010.A101 1600763010 £40.80 £48.96
67 - TAPPING SCREW 4.80x75 MM BSD-3603435508.A14 3603435508 -
68 - TAPPING SCREW 5x30 BSD-3603435027.A27 3603435027 £1.75 £2.10
69 - TORX OVAL-HEAD SCREW BSD-2914201529.A30 2914201529 £1.75 £2.10
70 - SPRING WASHER DIN 137-A5-FST BSD-2916060006.A240 2916060006 £1.32 £1.58
71 - TAPPING SCREW B4.8x115 MM BSD-1603435015.A27 1603435015 -
72 - TORX OVAL-HEAD SCREW BSD-2914201508.A7 2914201508 £1.75 £2.10
73 - TAPPING SCREW DIN 7971-BZ3.5x13 BSD-2910211011.A398 2910211011 £1.75 £2.10
74 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A791 2910021118 £1.75 £2.10
75 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8 BSD-2910021116.A522 2910021116 £2.16 £2.59
76 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A779 2910211019 £1.75 £2.10
77 - COUNTERSUNK-HEAD SCREW DIN 63-AM4x10-5.8 BSD-2910501120.A39 2910501120 £1.75 £2.10
78 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-8.8 BSD-2910021154.A242 2910021154 £1.75 £2.10
79 - HEX NUT DIN 934 -M4-m-8 BSD-2915011005.A311 2915011005 £1.75 £2.10
100 - BUSHING BSD-3600328033.A39 3600328033 £8.49 £10.19
150 - END SPLICE DIN 46 228-A1-6 BSD-1900452012.A237 1900452012 £1.75 £2.10
800 - HANDLE BSD-3605132031.A11 3605132031 £31.64 £37.97
801 - CARBON-BRUSH SET BSD-1607014126.A163 1607014126 £16.41 £19.69
806 - BRUSH HOLDER BSD-1604336017.A29 1604336017 £7.36 £8.83
835 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F BSD-1607000228.A1 1607000228 £23.86 £28.63
837 - INTERMEDIATE BEARING BSD-3605820035.A5 3605820035 -
888 - NAMEPLATE BSD-160111A3H3.A4840 160111A3H3 £2.61 £3.13
