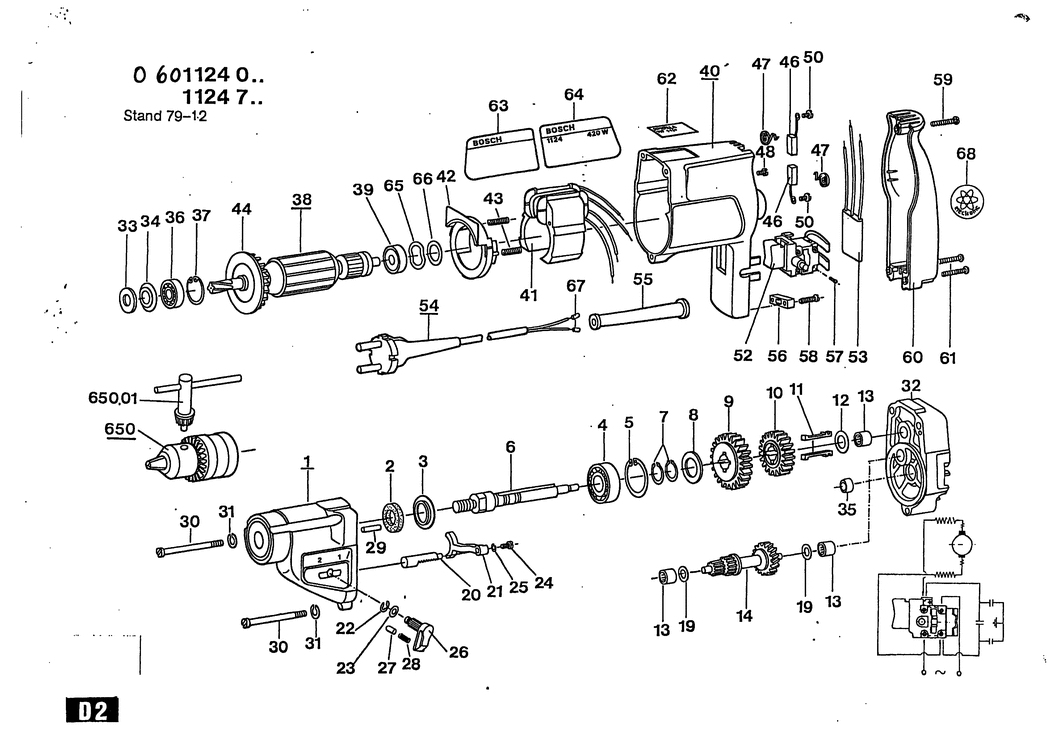

1 - GEAR HOUSING
BSD-2605806960.A4
2605806960
|
-
|
|
|
|
2 - FELT DISC
BSD-2600108075.A14
2600108075
|
-
|
|
|
|
3 - CUPPED WASHER
BSD-2600500007.A14
2600500007
|
-
|
|
|
|
4 - GROOVE BALL BEARING
BSD-3600905038.A47
3600905038
|
£14.91
|
£17.89
|
|
|
5 - SPRING RETAINING RING DIN 472-28x1.2 MM
BSD-2916660011.A164
2916660011
|
£1.75
|
£2.10
|
|
|
6 - DRILLING SPINDLE
BSD-2606135006.A5
2606135006
|
-
|
|
|
|
7 - SPRING RETAINING RING DIN 471-12x1-FSt
BSD-2916650003.A34
2916650003
|
£1.75
|
£2.10
|
|
|
8 - SHIM
BSD-2600101601.A8
2600101601
|
£1.75
|
£2.10
|
|
|
9 - CYLINDRICAL GEAR Z=38
BSD-2606316101.A1
2606316101
|
-
|
|
|
|
10 - CYLINDRICAL GEAR Z=32
BSD-2606316100.A16
2606316100
|
-
|
|
|
|
11 - FLAT KEY
BSD-2602300001.A7
2602300001
|
-
|
|
|
|
12 - PLAIN WASHER
BSD-2600101001.A8
2600101001
|
-
|
|
|
|
13 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A221
2600914010
|
£2.80
|
£3.36
|
|
|
14 - TOOTHED SHAFT Z= 14/20/41
BSD-2606308910.A12
2606308910
|
-
|
|
|
|
19 - SHIM 0.3 MM
BSD-2600100607.A482
2600100607
|
£1.75
|
£2.10
|
|
|
20 - TOOTHED RACK
BSD-2603070010.A81
2603070010
|
-
|
|
|
|
21 - FORK LEVER
BSD-2602033001.A27
2602033001
|
-
|
|
|
|
22 - LOCKING WASHER DIN 6799-4-FSt
BSD-2916080007.A639
2916080007
|
£2.61
|
£3.13
|
|
|
23 - SHIM WASHER
BSD-2600100618.A103
2600100618
|
£1.75
|
£2.10
|
|
|
24 - SOCKET HEAD CAP SCREW DIN 84-AM3x6-5.8
BSD-2910011048.A13
2910011048
|
£1.75
|
£2.10
|
|
|
25 - SPRING LOCK WASHER A3-FSt
BSD-2916690001.A143
2916690001
|
-
|
|
|
|
26 - ROTARY KNOB
BSD-2602026023.A72
2602026023
|
-
|
|
|
|
27 - RATCHET CAP
BSD-2600590006.A394
2600590006
|
£1.75
|
£2.10
|
|
|
28 - RATCHET CAP
BSD-2600590006.A395
2600590006
|
£1.75
|
£2.10
|
|
|
29 - NEEDLE ROLLER DIN 5402-A3x11.8-G2
BSD-1903201042.A248
1903201042
|
£2.16
|
£2.59
|
|
|
30 - SCREW AND WASHER ASSEMBLY DIN 84-BM 4x35-Z4-8.8
BSD-2914501027.A25
2914501027
|
-
|
|
|
|
30 - CENTERING SLEEVE
BSD-2600409013.A12
2600409013
|
-
|
|
|
|
31 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A690
2916690003
|
£1.75
|
£2.10
|
|
|
32 - INTERMEDIATE FLANGE
BSD-2605700927.A23
2605700927
|
-
|
|
|
|
33 - FELT DISC
BSD-2600108000.A67
2600108000
|
-
|
|
|
|
34 - CUPPED WASHER
BSD-2600500030.A141
2600500030
|
-
|
|
|
|
35 - SEAL BUSHING
BSD-2600300049.A166
2600300049
|
-
|
|
|
|
36 - BALL BEARING 8x22x7
BSD-1900905029.A123
1900905029
|
£21.52
|
£25.83
|
|
|
37 - SPRING RETAINING RING
BSD-2600119000.A134
2600119000
|
£1.75
|
£2.10
|
|
|
38 - ARMATURE WITH FAN 240V
BSD-2604010538.A5
2604010538
|
-
|
|
|
|
39 - BALL BEARING 7x22x7
BSD-1900905018.A545
1900905018
|
£18.96
|
£22.75
|
|
|
40 - MOTOR HOUSING
BSD-2605104960.A29
2605104960
|
-
|
|
|
|
41 - FIELD 240V
BSD-2604222297.A2
2604222297
|
-
|
|
|
|
42 - COVER DISC
BSD-2601328041.A59
2601328041
|
-
|
|
|
|
43 - COMPRESSION SPRING
BSD-2604611026.A115
2604611026
|
-
|
|
|
|
44 - FAN
BSD-2606610021.A83
2606610021
|
-
|
|
|
|
46 - CARBON-BRUSH SET
BSD-2604320902.A74
2604320902
|
-
|
|
|
|
47 - SPIRAL SPRING
BSD-2604652002.A79
2604652002
|
-
|
|
|
|
48 - TAPPING SCREW 2.2x6.5
BSD-2603435016.A23
2603435016
|
-
|
|
|
|
50 - SCREW AND WASHER ASSEMBLY DIN7985-M3x6-Z1-4.8
BSD-2914501011.A65
2914501011
|
£1.75
|
£2.10
|
|
|
52 - ON-OFF SWITCH
BSD-2607200043.A39
2607200043
|
-
|
|
|
|
53 - SUPPRESSION CAPACITOR
BSD-2607329102.A5
2607329102
|
-
|
|
|
|
54 - POWER SUPPLY CORD GB 230V 4.15m 2 x 1.0mm H07 RN-F
BSD-3604460138.A8
3604460138
|
-
|
|
|
|
55 - GROMMET dia6.9 MM
BSD-2600707059.A172
2600707059
|
£3.72
|
£4.47
|
|
|
55 - GROMMET dia11.6-dia12.5x84 MM
BSD-2600707060.A194
2600707060
|
£2.61
|
£3.13
|
|
|
55 - GROMMET dia8.8 MM
BSD-2600707061.A112
2600707061
|
£2.80
|
£3.36
|
|
|
56 - CABLE CLIP
BSD-2601035001.A2646
2601035001
|
£1.75
|
£2.10
|
|
|
57 - SOCKET HEAD CAP SCREW M3x10 MM
BSD-2603410023.A25
2603410023
|
-
|
|
|
|
58 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A630
2910611019
|
£2.80
|
£3.36
|
|
|
59 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A167
2912401020
|
£2.16
|
£2.59
|
|
|
60 - HOUSING COVER
BSD-2605132017.A16
2605132017
|
-
|
|
|
|
61 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A448
2603490023
|
£1.75
|
£2.10
|
|
|
62 - NAMEPLATE
BSD-160111A3H3.A4357
160111A3H3
|
£2.61
|
£3.13
|
|
|
63 - MANUFACTURER'S NAMEPLATE
BSD-2601110099.A75
2601110099
|
-
|
|
|
|
64 - REFERENCE PLATE
BSD-2601110168.A3
2601110168
|
-
|
|
|
|
65 - SHIM
BSD-2600150004.A480
2600150004
|
£2.16
|
£2.59
|
|
|
66 - SHIM 0.3 MM
BSD-2600101023.A337
2600101023
|
£1.75
|
£2.10
|
|
|
66 - SHIM 0.2 MM
BSD-2600101022.A226
2600101022
|
£1.75
|
£2.10
|
|
|
66 - SHIM 0.5 MM
BSD-2600101020.A406
2600101020
|
£1.75
|
£2.10
|
|
|
67 - END SPLICE DIN 46 228-A1-6
BSD-1900452012.A84
1900452012
|
£1.75
|
£2.10
|
|
|
68 - STICKER
BSD-2601110230.A155
2601110230
|
-
|
|
|
|
650 - KEY CHUCK dia1-10 MM. 3/8
BSD-1608571020.A13
1608571020
|
-
|
|
|
|
650/01 - CHUCK WRENCH SG2
BSD-2607950007.A782
2607950007
|
£6.52
|
£7.83
|
|
