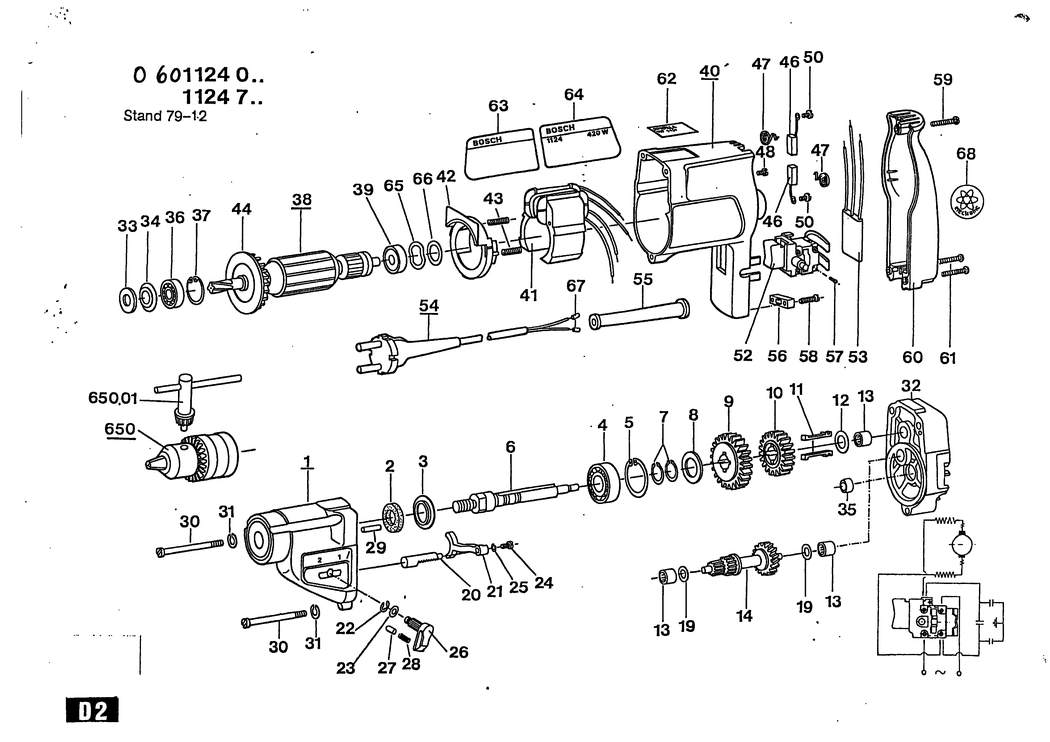

An exploded drawing and listing for the Bosch ---- / 0601124703 / EU 220 Volt
Ex VAT Inc VAT
1 - GEAR HOUSING BSD-2605806960.A6 2605806960 -
2 - FELT DISC BSD-2600108075.A17 2600108075 -
3 - CUPPED WASHER BSD-2600500007.A11 2600500007 -
4 - GROOVE BALL BEARING 12x28x8 BSD-1900900289.A0 1900900289 £11.30 £13.56
5 - SPRING RETAINING RING DIN 472-28x1.2 MM BSD-2916660011.A167 2916660011 £1.75 £2.10
6 - DRILLING SPINDLE BSD-2606135006.A3 2606135006 -
7 - SPRING RETAINING RING DIN 471-12x1-FSt BSD-2916650003.A32 2916650003 £1.75 £2.10
8 - SHIM BSD-2600101601.A11 2600101601 £1.75 £2.10
9 - CYLINDRICAL GEAR Z=38 BSD-2606316101.A3 2606316101 -
10 - CYLINDRICAL GEAR Z=32 BSD-2606316100.A13 2606316100 -
11 - FLAT KEY BSD-2602300001.A6 2602300001 -
12 - PLAIN WASHER BSD-2600101001.A11 2600101001 -
13 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A218 2600914010 £2.80 £3.36
14 - TOOTHED SHAFT Z= 14/20/41 BSD-2606308910.A15 2606308910 -
19 - SHIM 0.3 MM BSD-2600100607.A485 2600100607 £1.75 £2.10
20 - TOOTHED RACK BSD-2603070010.A83 2603070010 -
21 - FORK LEVER BSD-2602033001.A28 2602033001 -
22 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A643 2916080007 £2.61 £3.13
23 - SHIM WASHER BSD-2600100618.A100 2600100618 £1.75 £2.10
24 - SOCKET HEAD CAP SCREW DIN 84-AM3x6-5.8 BSD-2910011048.A9 2910011048 £1.75 £2.10
25 - SPRING LOCK WASHER A3-FSt BSD-2916690001.A139 2916690001 -
26 - ROTARY KNOB BSD-2602026023.A71 2602026023 -
27 - RATCHET CAP BSD-2600590006.A388 2600590006 £1.75 £2.10
28 - RATCHET CAP BSD-2600590006.A389 2600590006 £1.75 £2.10
29 - NEEDLE ROLLER DIN 5402-A3x11.8-G2 BSD-1903201042.A246 1903201042 £2.16 £2.59
30 - SCREW AND WASHER ASSEMBLY DIN 84-BM 4x35-Z4-8.8 BSD-2914501027.A22 2914501027 -
30 - CENTERING SLEEVE BSD-2600409013.A1 2600409013 -
31 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A699 2916690003 £1.75 £2.10
32 - INTERMEDIATE FLANGE BSD-2605700927.A12 2605700927 -
33 - FELT DISC BSD-2600108000.A64 2600108000 -
34 - CUPPED WASHER BSD-2600500030.A144 2600500030 -
35 - SEAL BUSHING BSD-2600300049.A163 2600300049 -
36 - BALL BEARING 8x22x7 BSD-1900905029.A126 1900905029 £21.52 £25.83
37 - SPRING RETAINING RING BSD-2600119000.A131 2600119000 £1.75 £2.10
38 - ARMATURE 220V BSD-2604010537.A2 2604010537 -
39 - BALL BEARING 7x22x7 BSD-1900905018.A542 1900905018 £18.96 £22.75
40 - MOTOR HOUSING BSD-2605104960.A17 2605104960 -
41 - FIELD 220V BSD-2604222298.A12 2604222298 -
42 - COVER DISC BSD-2601328041.A48 2601328041 -
43 - COMPRESSION SPRING BSD-2604611026.A103 2604611026 -
44 - FAN BSD-2606610021.A71 2606610021 -
46 - CARBON-BRUSH SET BSD-2604320902.A78 2604320902 -
47 - SPIRAL SPRING BSD-2604652002.A91 2604652002 -
48 - TAPPING SCREW 2.2x6.5 BSD-2603435016.A19 2603435016 -
50 - SCREW AND WASHER ASSEMBLY DIN7985-M3x6-Z1-4.8 BSD-2914501011.A61 2914501011 £1.75 £2.10
52 - ON-OFF SWITCH BSD-2607200065.A66 2607200065 -
53 - SUPPRESSION FILTER BSD-2607329051.A41 2607329051 -
54 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000227.A564 1607000227 £23.86 £28.63
55 - GROMMET dia6.9 MM BSD-2600707059.A175 2600707059 £3.72 £4.47
55 - GROMMET dia11.6-dia12.5x84 MM BSD-2600707060.A191 2600707060 £2.61 £3.13
55 - GROMMET dia8.8 MM BSD-2600707061.A115 2600707061 £2.80 £3.36
56 - CABLE CLIP BSD-2601035001.A2649 2601035001 £1.75 £2.10
57 - SOCKET HEAD CAP SCREW M3x10 MM BSD-2603410023.A16 2603410023 -
58 - TAPPING SCREW DIN 7981-ST3.9x16-C-H BSD-2910611019.A626 2910611019 £2.80 £3.36
59 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST BSD-2912401020.A171 2912401020 £2.16 £2.59
60 - HOUSING COVER BSD-2605132017.A27 2605132017 -
61 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A439 2603490023 £1.75 £2.10
62 - NAMEPLATE BSD-160111A3H3.A4360 160111A3H3 £2.61 £3.13
63 - MANUFACTURER'S NAMEPLATE BSD-2601110099.A77 2601110099 -
64 - REFERENCE PLATE BSD-2601110169.A5 2601110169 -
65 - SHIM BSD-2600150004.A483 2600150004 £2.16 £2.59
66 - SHIM 0.3 MM BSD-2600101023.A347 2600101023 £1.75 £2.10
66 - SHIM 0.2 MM BSD-2600101022.A216 2600101022 £1.75 £2.10
66 - SHIM 0.5 MM BSD-2600101020.A416 2600101020 £1.75 £2.10
67 - END SPLICE DIN 46 228-A1-6 BSD-1900452012.A82 1900452012 £1.75 £2.10
68 - STICKER BSD-2601110041.A5 2601110041 -
650 - KEY CHUCK dia1-10 MM. 3/8 BSD-1608571020.A2 1608571020 -
650/01 - CHUCK WRENCH SG2 BSD-2607950007.A795 2607950007 £6.52 £7.83
