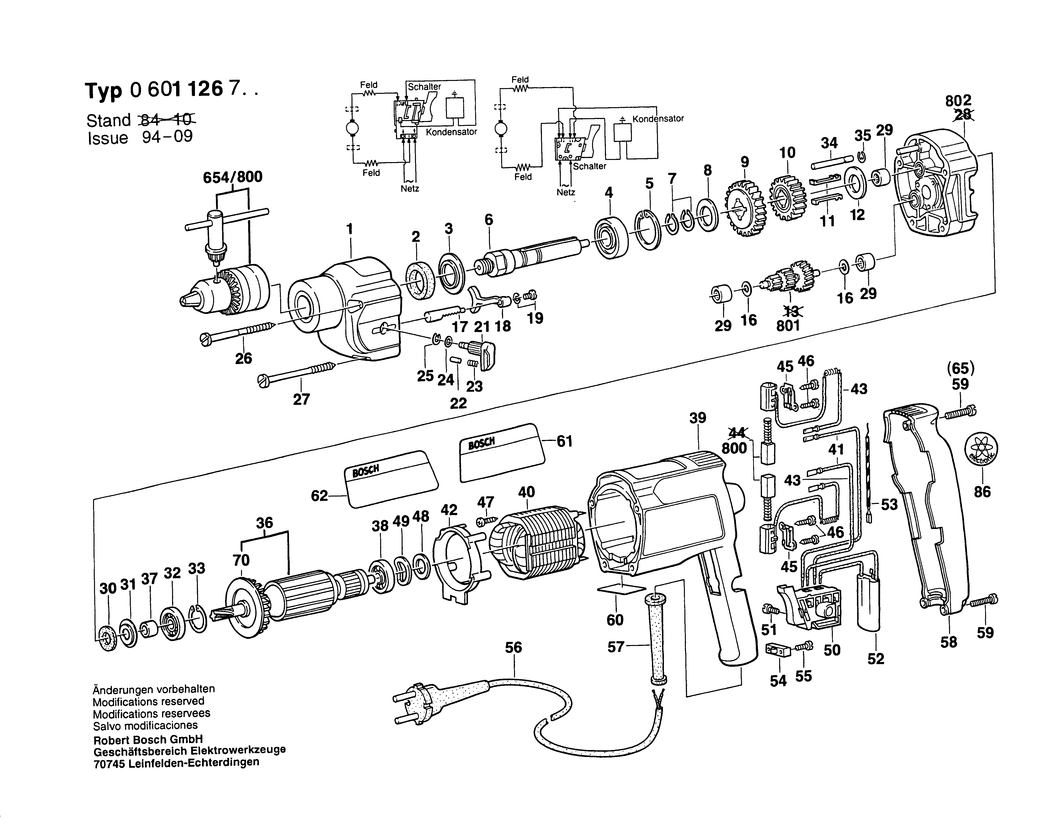

An exploded drawing and listing for the Bosch ---- / 0601126732 / CH 220 Volt
Ex VAT Inc VAT
1 - GEAR HOUSING BSD-2605806972.A35 2605806972 -
2 - FELT WASHER BSD-2600108076.A30 2600108076 -
3 - CUPPED WASHER BSD-2600550019.A0 2600550019 -
4 - BALL BEARING dia15 MM BSD-1900905110.A34 1900905110 £10.10 £12.12
5 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A320 2916660013 £2.16 £2.59
6 - DRILLING SPINDLE 1/2. SW 17 BSD-2606135011.A73 2606135011 £27.31 £32.77
7 - RETAINING CLIP DIN 471-15x1-FSt BSD-2916650006.A578 2916650006 £1.75 £2.10
8 - SHIM 0.5 MM BSD-2600100695.A276 2600100695 £1.75 £2.10
9 - CYLINDRICAL GEAR BSD-2606316316.A71 2606316316 £27.23 £32.68
10 - CYLINDRICAL GEAR Z=45 BSD-2606316105.A12 2606316105 -
11 - FLAT KEY BSD-2602300033.A2 2602300033 £5.58 £6.70
12 - SHIM 1.5 MM BSD-2600101668.A7 2600101668 £2.80 £3.36
16 - SHIM 0.3 MM BSD-2600100607.A569 2600100607 £1.75 £2.10
17 - TOOTHED RACK BSD-2603070010.A53 2603070010 -
18 - FORK LEVER BSD-2602033002.A33 2602033002 -
19 - SCREW AND WASHER ASSEMBLY DIN7985-M3x6-Z1-4.8 BSD-2914501011.A200 2914501011 £1.75 £2.10
21 - ROTARY KNOB BSD-2602026023.A24 2602026023 -
22 - RATCHET CAP BSD-2600590006.A785 2600590006 £1.75 £2.10
23 - RATCHET CAP BSD-2600590006.A786 2600590006 £1.75 £2.10
24 - SHIM WASHER BSD-2600100618.A318 2600100618 £1.75 £2.10
25 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A291 2916080007 £2.61 £3.13
26 - HEADLESS SCREW BSD-2603435017.A19 2603435017 £2.61 £3.13
27 - HEADLESS SCREW BSD-2603435018.A48 2603435018 -
29 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A604 2600914010 £2.80 £3.36
30 - FELT WASHER BSD-2600108077.A196 2600108077 £1.75 £2.10
31 - CUPPED WASHER BSD-2600500002.A332 2600500002 £1.75 £2.10
32 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A430 2600905021 £8.67 £10.41
33 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A536 2916660008 £2.16 £2.59
34 - HOLDING PIN BSD-2603100036.A19 2603100036 -
35 - LOCKING WASHER DIN 6799-3.2 BSD-2916080906.A63 2916080906 £1.75 £2.10
36 - ARMATURE 220-240V BSD-2604010575.A39 2604010575 £54.42 £65.30
37 - RECEPTACLE BSD-2600400008.A99 2600400008 £1.75 £2.10
38 - BALL BEARING 7x22x7 BSD-1900905018.A761 1900905018 £18.96 £22.75
39 - MOTOR HOUSING BSD-2605104116.A44 2605104116 -
40 - FIELD 220-230V BSD-2604220445.A43 2604220445 £27.23 £32.68
41 - CABLE L=130 MM BSD-2604448005.A352 2604448005 £1.75 £2.10
42 - COVER DISC BSD-2601328033.A40 2601328033 -
43 - SUPPRESSION FILTER BSD-2604465068.A12 2604465068 -
45 - BRUSH HOLDER BSD-2604337003.A288 2604337003 £2.16 £2.59
46 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A1254 2603490017 £2.16 £2.59
47 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A64 2603435015 £2.16 £2.59
48 - SHIM 0.3 MM BSD-2600101023.A91 2600101023 £1.75 £2.10
48 - SHIM 0.2 MM BSD-2600101022.A559 2600101022 £1.75 £2.10
48 - SHIM 0.5 MM BSD-2600101020.A91 2600101020 £1.75 £2.10
49 - SHIM BSD-2600150004.A9 2600150004 £2.16 £2.59
50 - SWITCH BSD-1617200089.A50 1617200089 -
51 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A329 2603410001 £1.75 £2.10
52 - SUPPRESSION FILTER BSD-2607329096.A33 2607329096 £7.36 £8.83
53 - CABLE BSD-2604448003.A195 2604448003 -
54 - CABLE CLIP BSD-2601035001.A129 2601035001 £1.75 £2.10
55 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A1668 2910211019 £1.75 £2.10
56 - ELEC. CABLE W/CONNECTION CH 2.65m 2 x 1.0mm H05 VV-F BSD-2604460053.A77 2604460053 -
57 - GROMMET dia6.9 MM BSD-2600707059.A369 2600707059 £3.72 £4.47
57 - GROMMET dia11.6-dia12.5x84 MM BSD-2600707060.A122 2600707060 £2.61 £3.13
57 - GROMMET dia8.8 MM BSD-2600707061.A180 2600707061 £2.80 £3.36
58 - HOUSING COVER BSD-2605132040.A95 2605132040 -
59 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A793 2603490023 £1.75 £2.10
60 - NAMEPLATE BSD-160111A3H3.A505 160111A3H3 £2.61 £3.13
61 - REFERENCE PLATE BSD-2601110202.A1 2601110202 -
62 - STICKER BSD-2601110093.A101 2601110093 -
65 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A428 2603490024 £1.75 £2.10
70 - FAN BSD-2606610049.A465 2606610049 £2.16 £2.59
653 - AUXILIARY HANDLE dia43 MM BSD-1619P10682.A403 1619P10682 £12.49 £14.99
654/800 - CHUCK dia1.5-13 MM. 1/2 BSD-1608571069.A67 1608571069 £23.86 £28.63
654/800 - CHUCK WRENCH SG2 BSD-2607950007.A1341 2607950007 £6.52 £7.83
654/800 - KEYLESS CHUCK dia1.5-13 MM. 1/2 BSD-1608572017.A2 1608572017 £56.87 £68.24
800 - CARBON-BRUSH SET BSD-2604321905.A515 2604321905 £11.30 £13.56
801 - TOOTHED SHAFT Z= 10/20/29 BSD-2606308911.A13 2606308911 -
802 - INTERMEDIATE FLANGE BSD-2605700932.A40 2605700932 -
