Bosch ---- / 0601127732 / CH 220 Volt Spare Parts

Bosch ---- / 0601127732 / CH 220 Volt Spare Parts

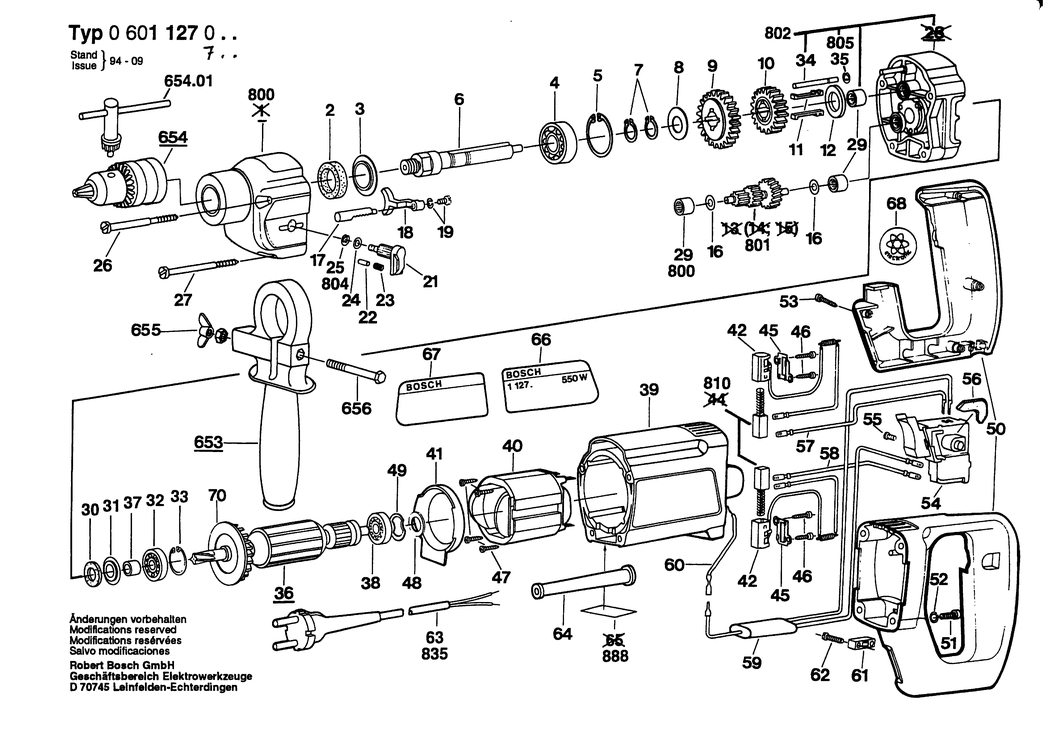

An exploded drawing and listing for the Bosch ---- / 0601127732 / CH 220 Volt
Ex VAT Inc VAT
2 - FELT WASHER BSD-2600108076.A34 2600108076 -
3 - CUPPED WASHER BSD-2600550019.A16 2600550019 -
4 - BALL BEARING dia15 MM BSD-1900905110.A36 1900905110 £10.10 £12.12
5 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A332 2916660013 £2.16 £2.59
6 - DRILLING SPINDLE 1/2. SW 17 BSD-2606135011.A63 2606135011 £27.31 £32.77
7 - RETAINING CLIP DIN 471-15x1-FSt BSD-2916650006.A590 2916650006 £1.75 £2.10
8 - SHIM 0.5 MM BSD-2600100695.A285 2600100695 £1.75 £2.10
9 - CYLINDRICAL GEAR BSD-2606316316.A62 2606316316 £27.23 £32.68
10 - CYLINDRICAL GEAR Z=45 BSD-2606316105.A21 2606316105 -
11 - FLAT KEY BSD-2602300033.A15 2602300033 £5.58 £6.70
12 - SHIM 1.5 MM BSD-2600101668.A17 2600101668 £2.80 £3.36
16 - SHIM 0.3 MM BSD-2600100570.A312 2600100570 £1.75 £2.10
17 - TOOTHED RACK BSD-2603070010.A40 2603070010 -
18 - FORK LEVER BSD-2602033002.A20 2602033002 -
19 - SCREW AND WASHER ASSEMBLY DIN7985-M3x6-Z1-4.8 BSD-2914501011.A217 2914501011 £1.75 £2.10
21 - ROTARY KNOB BSD-2602026023.A20 2602026023 -
22 - RATCHET CAP BSD-2600590006.A748 2600590006 £1.75 £2.10
23 - RATCHET CAP BSD-2600590006.A749 2600590006 £1.75 £2.10
24 - SHIM WASHER BSD-2600100618.A309 2600100618 £1.75 £2.10
25 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A293 2916080007 £2.61 £3.13
26 - HEADLESS SCREW BSD-2603435017.A22 2603435017 £2.61 £3.13
27 - HEADLESS SCREW BSD-2603435018.A45 2603435018 -
29 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A601 2600914010 £2.80 £3.36
30 - FELT WASHER BSD-2600108002.A30 2600108002 £2.16 £2.59
31 - CUPPED WASHER BSD-2600500002.A311 2600500002 £1.75 £2.10
32 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A410 2600905021 £8.67 £10.41
33 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A524 2916660008 £2.16 £2.59
34 - HOLDING PIN BSD-2603100036.A32 2603100036 -
35 - LOCKING WASHER DIN 6799-2.3 BSD-2916080005.A195 2916080005 -
36 - ARMATURE 220-240V BSD-2604010575.A42 2604010575 £54.42 £65.30
37 - RECEPTACLE BSD-2600400008.A86 2600400008 £1.75 £2.10
38 - BALL BEARING 7x22x7 BSD-1900905018.A759 1900905018 £18.96 £22.75
39 - MOTOR HOUSING BSD-2605108014.A29 2605108014 -
40 - FIELD 220-230V BSD-2604220429.A138 2604220429 £23.86 £28.63
41 - COVER DISC BSD-2601328033.A46 2601328033 -
42 - SUPPRESSOR BOX BSD-2604465025.A16 2604465025 -
45 - BRUSH PLATE BSD-2601015047.A194 2601015047 -
46 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A1257 2603490017 £2.16 £2.59
47 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A59 2603435015 £2.16 £2.59
48 - SHIM 0.3 MM BSD-2600101023.A86 2600101023 £1.75 £2.10
48 - SHIM 0.2 MM BSD-2600101022.A564 2600101022 £1.75 £2.10
48 - SHIM 0.5 MM BSD-2600101020.A86 2600101020 £1.75 £2.10
49 - SHIM BSD-2600150004.A17 2600150004 £2.16 £2.59
50 - HANDLE BSD-2605133000.A20 2605133000 -
51 - SOCKET HEAD CAP SCREW DIN 84-AM4x25-8.8 BSD-2910021132.A24 2910021132 £1.75 £2.10
52 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A132 2916690003 £1.75 £2.10
53 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST BSD-2912401020.A795 2912401020 £2.16 £2.59
54 - ON-OFF SWITCH BSD-2607200137.A83 2607200137 -
55 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A318 2603410001 £1.75 £2.10
56 - DAMPING PLATE BSD-2601022000.A447 2601022000 £1.75 £2.10
57 - CONNECTING CABLE L=193 MM BSD-2604448043.A0 2604448043 £1.75 £2.10
58 - CONNECTING CABLE BSD-2604448036.A4 2604448036 -
59 - SUPPRESSION CAPACITOR BSD-2607329103.A9 2607329103 -
60 - CABLE BSD-2604448003.A189 2604448003 -
61 - CABLE CLIP BSD-2601035001.A135 2601035001 £1.75 £2.10
62 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A1676 2910211019 £1.75 £2.10
63 - ELEC. CABLE W/CONNECTION CH 2.65m 2 x 1.0mm H05 VV-F BSD-2604460053.A72 2604460053 -
64 - GROMMET dia6.9 MM BSD-2600707059.A386 2600707059 £3.72 £4.47
64 - GROMMET dia11.6-dia12.5x84 MM BSD-2600707060.A105 2600707060 £2.61 £3.13
64 - GROMMET dia8.8 MM BSD-2600707061.A197 2600707061 £2.80 £3.36
66 - STICKER BSD-2601110247.A5 2601110247 -
67 - STICKER BSD-2601110093.A89 2601110093 -
68 - STICKER BSD-2601110041.A135 2601110041 -
70 - FAN BSD-2606610049.A454 2606610049 £2.16 £2.59
653 - AUXILIARY HANDLE BSD-2602025031.A14 2602025031 -
654 - KEY CHUCK dia 1.5-13 MM.1/2 BSD-1608571048.A8 1608571048 -
654/01 - CHUCK WRENCH SG2 BSD-2607950007.A1319 2607950007 £6.52 £7.83
655 - WING NUT M6 DIN 315-G-GTW-40 BSD-2915191006.A127 2915191006 -
656 - HEX SCREW DIN 931-M6x75-8.8 BSD-2911001220.A11 2911001220 -
800 - GEAR HOUSING BSD-2605806972.A24 2605806972 -
801 - TOOTHED SHAFT Z= 10/20/29 BSD-2606308911.A7 2606308911 -
802 - INTERMEDIATE FLANGE BSD-2605700932.A29 2605700932 -
804 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A296 2916080007 £2.61 £3.13
805 - LOCKING WASHER DIN 6799-3.2 BSD-2916080906.A60 2916080906 £1.75 £2.10
810 - CARBON-BRUSH SET BSD-2604321905.A531 2604321905 £11.30 £13.56
888 - NAMEPLATE BSD-160111A3H3.A495 160111A3H3 £2.61 £3.13
