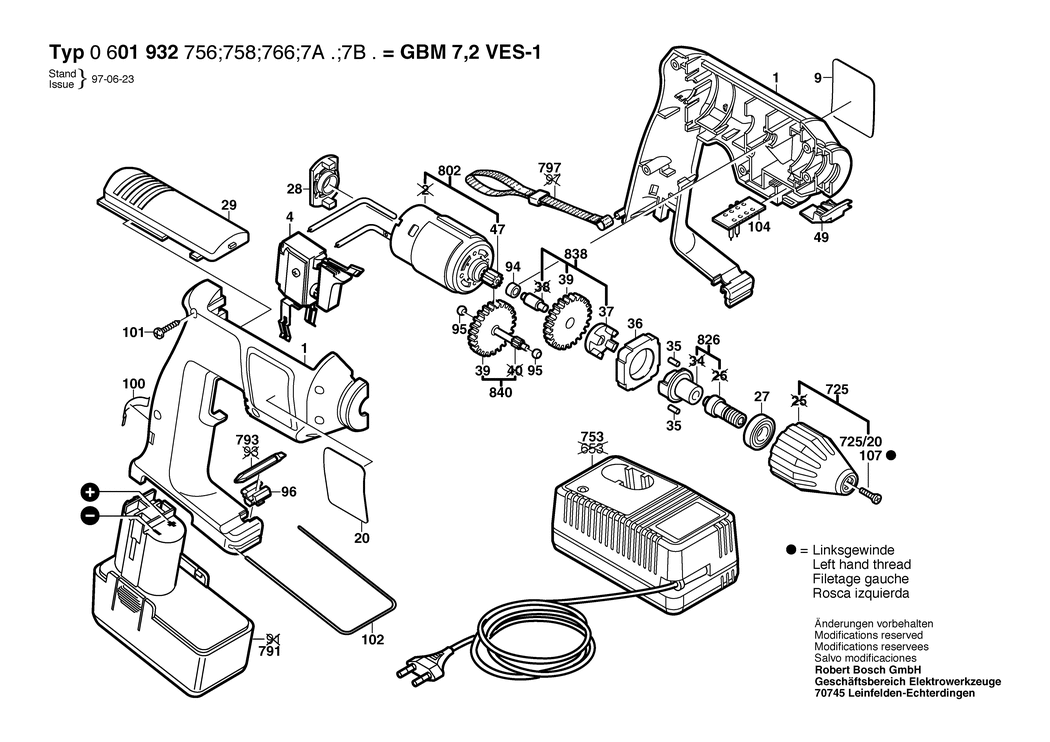

1 - HOUSING SECTION
BSD-2605104611.A2
2605104611
|
-
|
|
|
4 - ON-OFF SWITCH
BSD-2607200393.A49
2607200393
|
£63.50
|
£76.20
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601118555.A3
2601118555
|
-
|
|
|
20 - REFERENCE PLATE
BSD-2601118556.A7
2601118556
|
-
|
|
|
27 - GROOVE BALL BEARING 10x26x8
BSD-1900905120.A20
1900905120
|
-
|
|
|
28 - ADAPTER INSERT
BSD-2605719007.A16
2605719007
|
-
|
|
|
29 - INSERT PIECE
BSD-2605510120.A6
2605510120
|
£1.32
|
£1.58
|
|
35 - ROLLER BODY
BSD-2602329024.A57
2602329024
|
-
|
|
|
36 - RETAINING SNAP RING
BSD-2600202026.A8
2600202026
|
-
|
|
|
37 - CARRIER
BSD-2606440002.A34
2606440002
|
-
|
|
|
39 - CYLINDRICAL GEAR Z=65
BSD-2606316128.A13
2606316128
|
-
|
|
|
47 - PINION Z=14
BSD-2606316120.A3
2606316120
|
-
|
|
|
49 - INSERT PIECE
BSD-2605510117.A100
2605510117
|
£1.75
|
£2.10
|
|
94 - SINTERED-METAL BUSHING
BSD-2600301011.A237
2600301011
|
£1.75
|
£2.10
|
|
95 - SINTERED-METAL BUSHING
BSD-2600302002.A232
2600302002
|
£1.75
|
£2.10
|
|
96 - SUPPORT
BSD-2608040131.A314
2608040131
|
£1.95
|
£2.34
|
|
100 - CLAMP SPRING
BSD-2601322016.A32
2601322016
|
£2.52
|
£3.02
|
|
101 - SCREW 4x16
BSD-2603490022.A1214
2603490022
|
£1.75
|
£2.10
|
|
102 - RETAINING BRACKET
BSD-2601329041.A369
2601329041
|
£2.33
|
£2.80
|
|
104 - CONTACT RETAINER
BSD-2608018004.A155
2608018004
|
£5.58
|
£6.70
|
|
107 - COUNTERSUNK-HEAD SCREW M5x20
BSD-2609110721.A337
2609110721
|
£2.16
|
£2.59
|
|
108 - SUPPORT
BSD-2602180001.A33
2602180001
|
£1.75
|
£2.10
|
|
725 - KEYLESS CHUCK
BSD-2608572214.A69
2608572214
|
£45.67
|
£54.80
|
|
725/20 - COUNTERSUNK-HEAD SCREW M5x20
BSD-2609110721.A336
2609110721
|
£2.16
|
£2.59
|
|
753 - FAST CHARGER EU 230/7.2-24V. 1h
BSD-2607224425.A478
2607224425
|
£88.07
|
£105.68
|
|
753 - FAST CHARGER EU 230/7.2-14.4V. 30 MIN.
BSD-2607224701.A144
2607224701
|
£88.07
|
£105.68
|
|
791 - ACCUMULATOR BATTERY 7.2V.2.0Ah.NiCd
BSD-2607335150.A15
2607335150
|
-
|
|
|
793 - SCREWDRIVER BLADE
BSD-2608521018.A248
2608521018
|
£5.01
|
£6.01
|
|
797 - CARRYING LOOP
BSD-2601398009.A370
2601398009
|
-
|
|
|
802 - DC MOTOR 7.2V
BSD-2607022917.A10
2607022917
|
-
|
|
|
826 - DRILLING SPINDLE 3/8
BSD-2606135917.A58
2606135917
|
-
|
|
|
838 - JACK SHAFT Z= 65
BSD-2606100915.A7
2606100915
|
-
|
|
|
840 - INTMD. TRANSMISSION HSG Z= 12/63
BSD-2606308916.A14
2606308916
|
-
|
|
|
