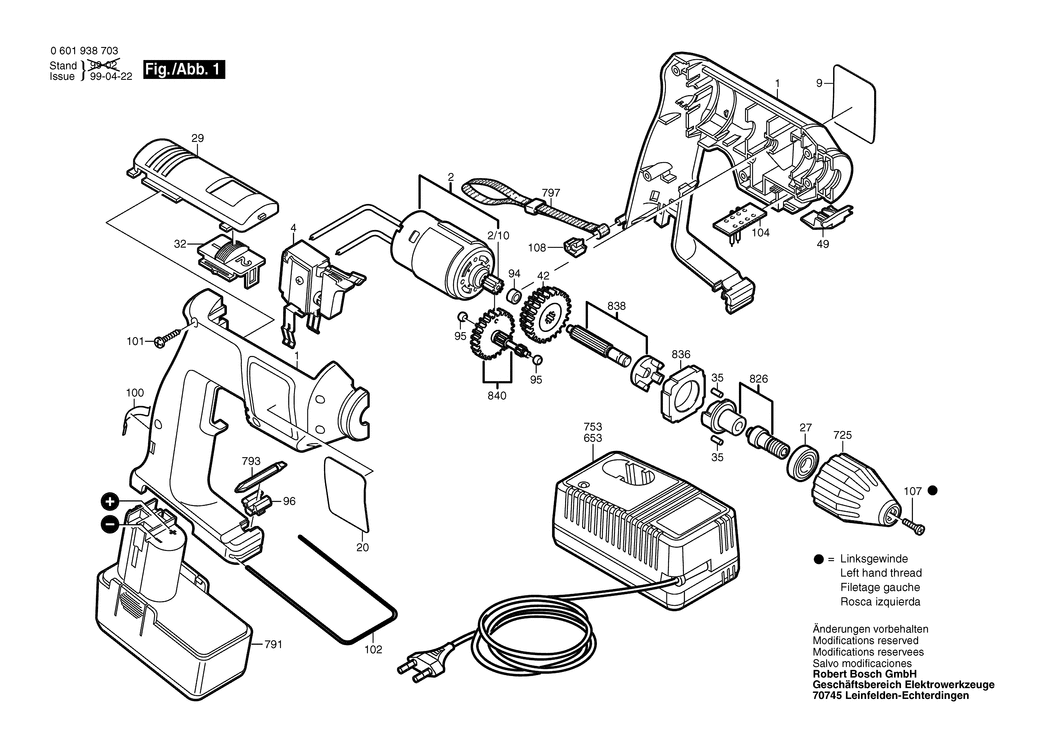

1 - HOUSING SECTION
BSD-2605104421.A4
2605104421
|
-
|
|
|
2 - DC MOTOR 9.6-12V
BSD-2607022928.A47
2607022928
|
-
|
|
|
2/10 - PINION Z=11
BSD-2606316112.A5
2606316112
|
£4.26
|
£5.11
|
|
4 - ON-OFF SWITCH
BSD-2607200309.A14
2607200309
|
-
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601118536.A8
2601118536
|
-
|
|
|
20 - REFERENCE PLATE
BSD-2601118537.A8
2601118537
|
-
|
|
|
27 - GROOVE BALL BEARING 10x26x8
BSD-1900905120.A91
1900905120
|
-
|
|
|
29 - INSERT PIECE
BSD-2605510136.A55
2605510136
|
-
|
|
|
32 - ADJUSTING SLIDE
BSD-2601099056.A64
2601099056
|
-
|
|
|
35 - ROLLER BODY
BSD-2602329024.A65
2602329024
|
-
|
|
|
42 - SET OF GEARS Z=58/67
BSD-1609340007.A238
1609340007
|
£14.91
|
£17.89
|
|
49 - INSERT PIECE
BSD-2605510117.A195
2605510117
|
£1.75
|
£2.10
|
|
94 - SINTERED-METAL BUSHING
BSD-2600301011.A341
2600301011
|
£1.75
|
£2.10
|
|
95 - SINTERED-METAL BUSHING
BSD-2600302002.A257
2600302002
|
£1.75
|
£2.10
|
|
96 - SUPPORT
BSD-2608040131.A228
2608040131
|
£1.95
|
£2.34
|
|
100 - CLAMP SPRING
BSD-2601322016.A109
2601322016
|
£2.52
|
£3.02
|
|
101 - SCREW 4x16
BSD-2603490022.A13
2603490022
|
£1.75
|
£2.10
|
|
102 - RETAINING BRACKET
BSD-2601329041.A328
2601329041
|
£2.33
|
£2.80
|
|
104 - CONTACT RETAINER
BSD-2608018004.A192
2608018004
|
£5.58
|
£6.70
|
|
107 - COUNTERSUNK-HEAD SCREW M5x20
BSD-2609110721.A235
2609110721
|
£2.16
|
£2.59
|
|
108 - SUPPORT
BSD-2602180001.A79
2602180001
|
£1.75
|
£2.10
|
|
725 - KEYLESS CHUCK
BSD-2608572214.A136
2608572214
|
£45.67
|
£54.80
|
|
753 - FAST CHARGER EU 230/7.2-24V. 1h
BSD-2607224425.A436
2607224425
|
£88.07
|
£105.68
|
|
753 - FAST CHARGER EU 230/7.2-14.4V. 30 MIN.
BSD-2607224701.A66
2607224701
|
£88.07
|
£105.68
|
|
791 - SLIDE-IN ACCU PACKAGE 7.2V.1.5Ah.NiCd
BSD-2607336141.A22
2607336141
|
-
|
|
|
793 - SCREWDRIVER BLADE
BSD-2608521018.A210
2608521018
|
£5.01
|
£6.01
|
|
797 - CARRYING LOOP
BSD-2601398009.A270
2601398009
|
-
|
|
|
826 - DRILLING SPINDLE 3/8
BSD-2606135917.A24
2606135917
|
-
|
|
|
836 - RING
BSD-2600202025.A80
2600202025
|
-
|
|
|
838 - SPLINED SHAFT
BSD-2606309914.A28
2606309914
|
-
|
|
|
840 - TOOTHED SHAFT Z=10/19/81
BSD-1609340005.A57
1609340005
|
£16.74
|
£20.09
|
|
899 - CORDLESS DRILL 7.2V
BSD-0601938723.A7
0601938723
|
-
|
|
|
