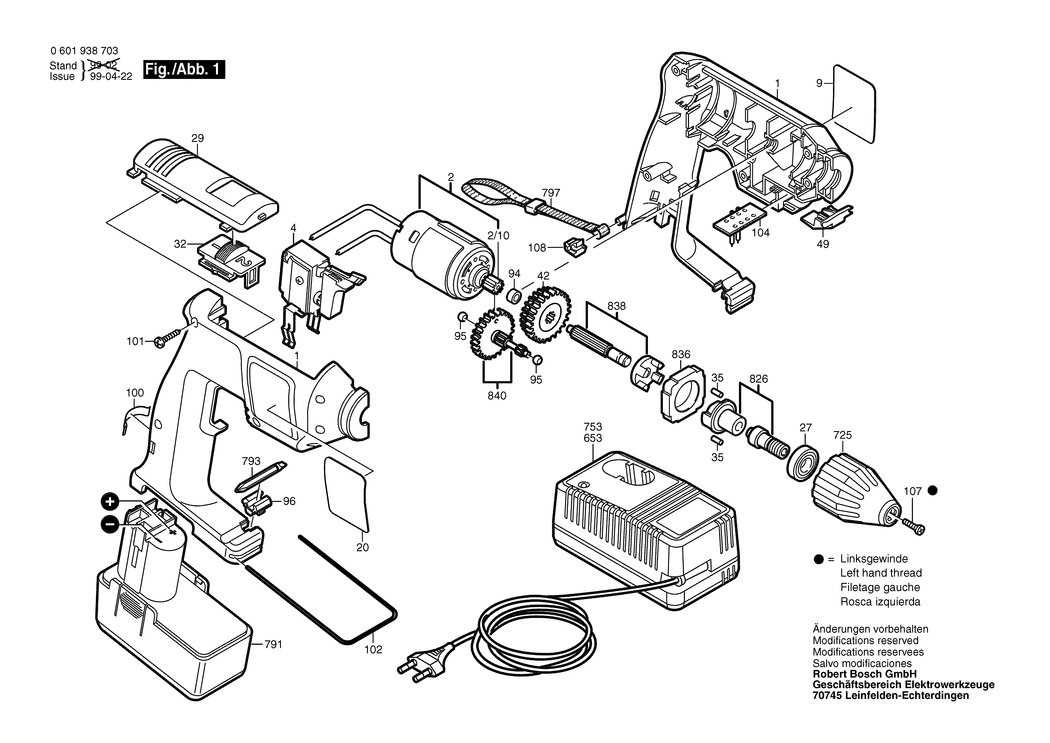

1 - HOUSING SECTION
BSD-2605104612.A6
2605104612
|
-
|
|
|
2 - DC MOTOR 9.6-12V
BSD-2607022928.A51
2607022928
|
-
|
|
|
2/10 - PINION Z=11
BSD-2606316112.A2
2606316112
|
£4.26
|
£5.11
|
|
4 - ON-OFF SWITCH
BSD-2607200393.A34
2607200393
|
£63.50
|
£76.20
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601118536.A13
2601118536
|
-
|
|
|
20 - REFERENCE PLATE
BSD-2601118537.A3
2601118537
|
-
|
|
|
27 - GROOVE BALL BEARING 10x26x8
BSD-1900905120.A87
1900905120
|
-
|
|
|
29 - INSERT PIECE
BSD-2605510136.A59
2605510136
|
-
|
|
|
32 - ADJUSTING SLIDE
BSD-2601099056.A60
2601099056
|
-
|
|
|
35 - ROLLER BODY
BSD-2602329024.A69
2602329024
|
-
|
|
|
42 - SET OF GEARS Z=58/67
BSD-1609340007.A243
1609340007
|
£14.91
|
£17.89
|
|
49 - INSERT PIECE
BSD-2605510117.A201
2605510117
|
£1.75
|
£2.10
|
|
94 - SINTERED-METAL BUSHING
BSD-2600301011.A348
2600301011
|
£1.75
|
£2.10
|
|
95 - SINTERED-METAL BUSHING
BSD-2600302002.A250
2600302002
|
£1.75
|
£2.10
|
|
96 - SUPPORT
BSD-2608040131.A215
2608040131
|
£1.95
|
£2.34
|
|
100 - CLAMP SPRING
BSD-2601322016.A102
2601322016
|
£2.52
|
£3.02
|
|
101 - SCREW 4x16
BSD-2603490022.A5
2603490022
|
£1.75
|
£2.10
|
|
102 - RETAINING BRACKET
BSD-2601329041.A335
2601329041
|
£2.33
|
£2.80
|
|
104 - CONTACT RETAINER
BSD-2608018004.A200
2608018004
|
£5.58
|
£6.70
|
|
107 - COUNTERSUNK-HEAD SCREW M5x20
BSD-2609110721.A244
2609110721
|
£2.16
|
£2.59
|
|
725 - KEYLESS CHUCK
BSD-2608572214.A127
2608572214
|
£45.67
|
£54.80
|
|
753 - FAST CHARGER EU 230/7.2-24V. 1h
BSD-2607224425.A440
2607224425
|
£88.07
|
£105.68
|
|
753 - FAST CHARGER EU 230/7.2-14.4V. 30 MIN.
BSD-2607224701.A69
2607224701
|
£88.07
|
£105.68
|
|
791 - ACCUMULATOR BATTERY 7.2V.2.0Ah.NiCd
BSD-2607335150.A3
2607335150
|
-
|
|
|
793 - SCREWDRIVER BLADE
BSD-2608521018.A220
2608521018
|
£5.01
|
£6.01
|
|
797 - CARRYING LOOP
BSD-2601398009.A266
2601398009
|
-
|
|
|
826 - DRILLING SPINDLE 3/8
BSD-2606135917.A16
2606135917
|
-
|
|
|
836 - RING
BSD-2600202025.A76
2600202025
|
-
|
|
|
838 - SPLINED SHAFT
BSD-2606309914.A25
2606309914
|
-
|
|
|
840 - TOOTHED SHAFT Z=10/19/81
BSD-1609340005.A50
1609340005
|
£16.74
|
£20.09
|
|
899 - CORDLESS DRILL 7.2V
BSD-0601938723.A13
0601938723
|
-
|
|
|
