Fein ASCT 5-40 U (14.40V) / 71130900950 Spare Parts

Fein ASCT 5-40 U ⠔.40V) / 71130900950 Spare Parts

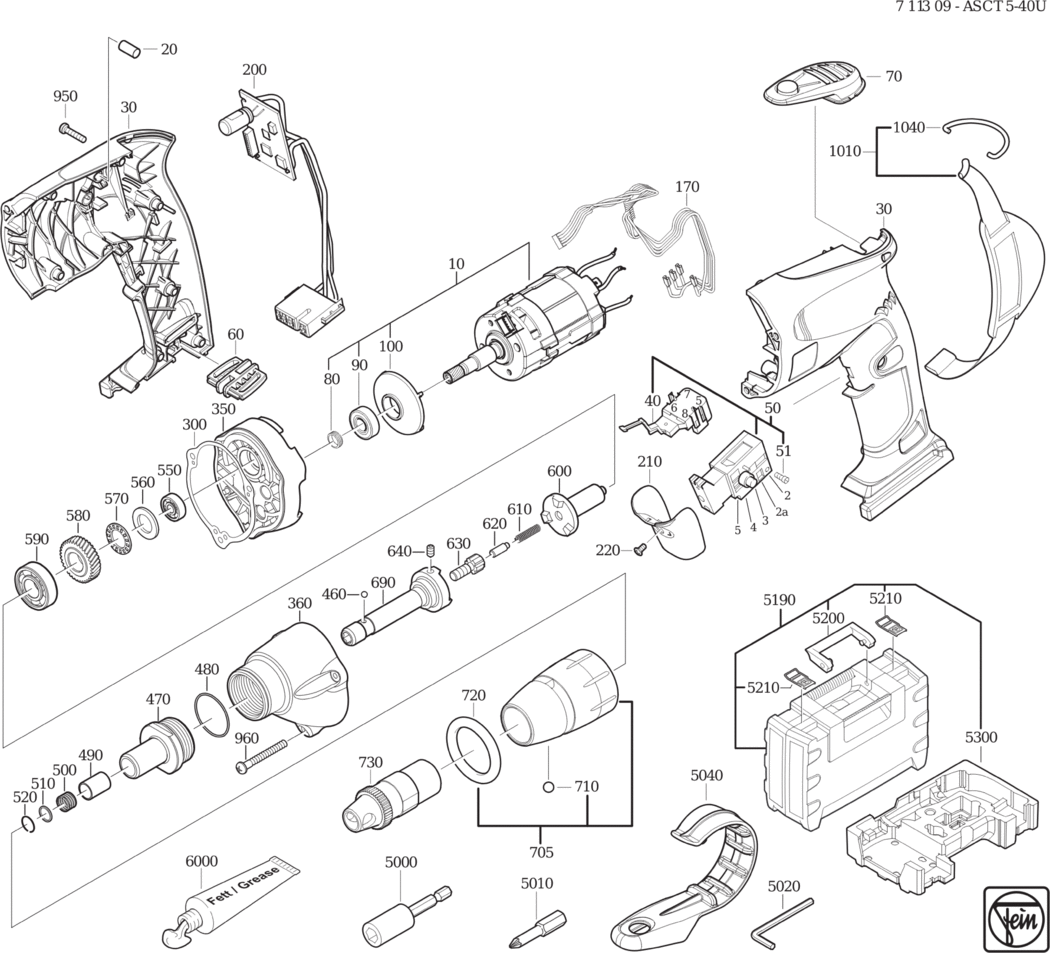

An exploded diagram and spare parts listing for the Fein ASCT 5-40 U (14.40V) / 71130900950

	Ex VAT	Inc VAT
10 - MOTOR FEI-54110001990.A0 54110001990	£158.44	£190.13
20 - PRESSURE PIECE FEI-31415095009.A16 31415095009	£1.60	£1.92
30 - MOTOR HOUSING FEI-31901155010.A0 31901155010	-
40 - TOGGLE SWITCH FEI-30701249004.A26 30701249004	£20.57	£24.68
50 - SWITCH FEI-30701290010.A1 30701290010	-
51 - FILLISTER HEAD SCREW FEI-43014044030.A1 43014044030	-
60 - INSERT FEI-30240288000.A0 30240288000	-
70 - HOLDER FEI-30240285000.A5 30240285000	£11.26	£13.51
80 - SEALING RING FEI-32612129000.A1 32612129000	-
90 - GROOVED BALL BEARING FEI-41701119250.A3 41701119250	-
100 - COVER FEI-32416111000.A0 32416111000	-
170 - CABLE HARNESS FEI-30719754990.A0 30719754990	-
200 - ELECTRONICS FEI-30762411990.A0 30762411990	£167.24	£200.69
210 - SWITCH PUSHBUTTON FEI-32805191002.A0 32805191002	£6.67	£8.00
220 - COUNTERSUNK SCREW FEI-43066009038.A53 43066009038	£1.60	£1.92
300 - SEAL FEI-30610041000.A13 30610041000	-
350 - INTERMEDIATE GEAR BOX FEI-31506367005.A1 31506367005	-
360 - GEARBOX HOUSING FEI-31508251002.A21 31508251002	-
460 - BALL FEI-41708014001.A59 41708014001	£1.60	£1.92
470 - BUSH FEI-31603045005.A30 31603045005	£37.70	£45.24
480 - SEALING RING FEI-40612093004.A38 40612093004	£1.60	£1.92
490 - SLEEVE FEI-30503151006.A22 30503151006	£6.65	£7.98
500 - SPIRAL SPRING FEI-30901362001.A21 30901362001	£1.60	£1.92
510 - RING FEI-32601274004.A14 32601274004	£4.96	£5.95
520 - CIRCLIP FEI-42615147001.A1 42615147001	£1.60	£1.92
550 - GROOVED BALL BEARING FEI-41701202018.A44 41701202018	£6.92	£8.30
560 - DISC FEI-32415042004.A3 32415042004	£10.18	£12.21
570 - NEEDLE CAGE FEI-41715029009.A15 41715029009	£5.91	£7.09
580 - GEAR-WHEEL Z=52 FEI-33653002000.A0 33653002000	-
590 - GROOVED BALL BEARING FEI-41701010010.A28 41701010010	£8.58	£10.30
600 - DOG CLUTCH SHAFT FEI-33408020004.A1 33408020004	£54.66	£65.59
610 - SPIRAL SPRING FEI-30901232008.A2 30901232008	£1.60	£1.92
620 - BOLT FEI-30220028005.A1 30220028005	£4.22	£5.06
630 - SCREW FEI-33022034001.A7 33022034001	£4.24	£5.09
640 - SET SCREW FEI-43058002044.A4 43058002044	-
690 - TOOL HOLDER FEI-30104136000.A8 30104136000	-
705 - STOP SLEEVE FEI-30505069011.A26 30505069011	£41.28	£49.53
710 - BALL FEI-41708019004.A53 41708019004	£1.60	£1.92
720 - SEALING RING FEI-40612071009.A17 40612071009	£3.89	£4.67
730 - SLEEVE FEI-32127068000.A16 32127068000	£33.28	£39.93
950 - SCREW FEI-43074010000.A56 43074010000	£1.60	£1.92
960 - SCREW FEI-43072010009.A72 43072010009	£1.60	£1.92
1010 - HOLDER FEI-63901011059.A28 63901011059	-
1040 - SUSPENSION DEVICE FEI-30232046008.A29 30232046008	-
5000 - TOOL HOLDER Â¼ EXTERNAL HEXAGON FEI-60510215003.A28 60510215003	£40.12	£48.15
5010 - BIT Â¼ HEXAGON HEAD FEI-62712109034.A13 62712109034	£16.55	£19.86
5020 - ALLEN KEY SW2 FEI-62907029006.A13 62907029006	£3.29	£3.95
5040 - HOLDER FEI-64203001000.A1 64203001000	£9.37	£11.24
5190 - TOOL CASE FEI-33901128060.A1 33901128060	-
5200 - HANDLE FEI-32119122000.A72 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A149 30232050000	£10.78	£12.94
5300 - CASE INSERT FEI-33904419000.A0 33904419000	-
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A79 32160003014	-
