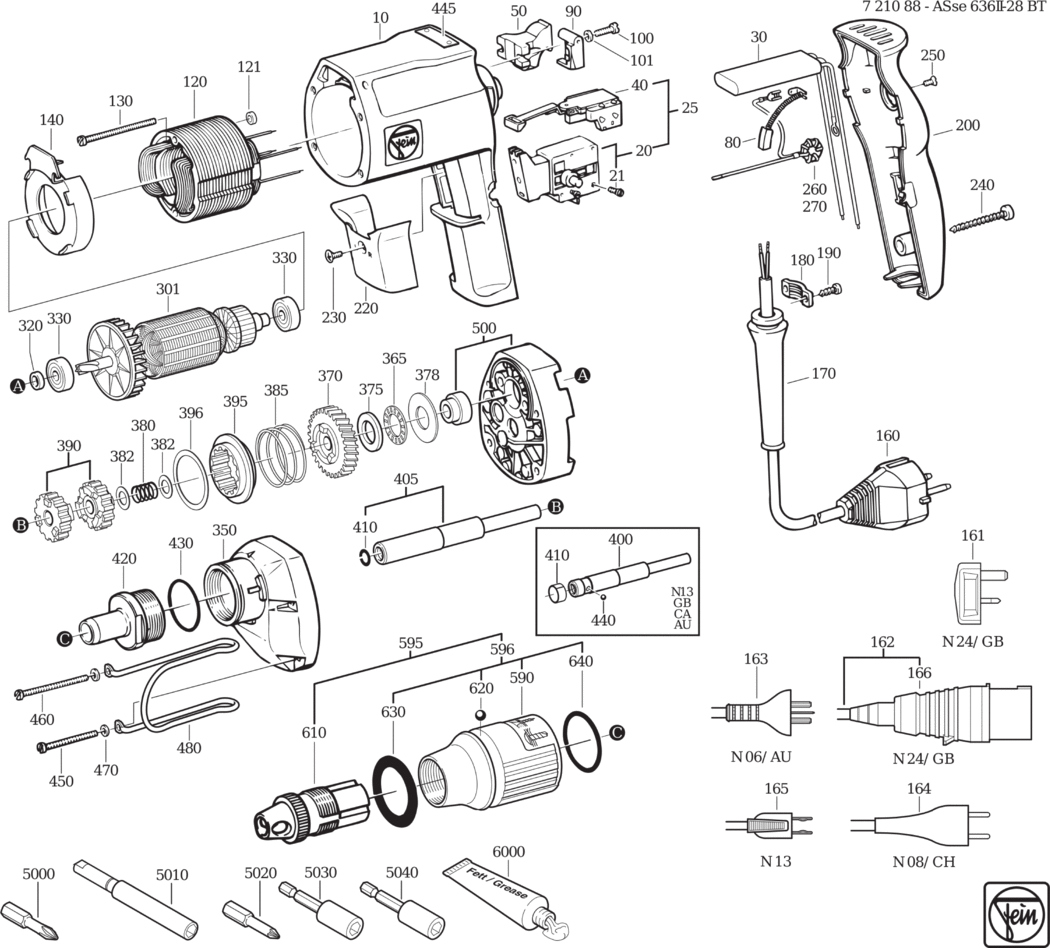

An exploded diagram and spare parts listing for the Fein ASse 636II-28 BT (50Hz 110V) / 72108800113
Ex VAT Inc VAT
10 - MOTOR HOUSING FEI-31901117021.A26 31901117021 -
20 - SPEED SETTING SWITCH FEI-30701234002.A12 30701234002 £69.81 £83.77
21 - CYLINDER HEAD SCREW FEI-43013052033.A79 43013052033 £1.60 £1.92
25 - SPEED SETTING SWITCH FEI-30701234011.A5 30701234011 -
30 - CAPACITOR FEI-30722179010.A5 30722179010 £9.72 £11.66
40 - TOGGLE SWITCH FEI-30701238001.A4 30701238001 £16.72 £20.06
50 - BRUSH HOLDER FEI-30712043001.A21 30712043001 £8.32 £9.98
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711059007.A32 30711059007 £7.74 £9.29
90 - CAP FEI-30713010009.A9 30713010009 £1.60 £1.92
100 - CYLINDER HEAD SCREW FEI-43002014998.A31 43002014998 -
101 - CIRCLIP FEI-42443002992.A104 42443002992 £1.60 £1.92
120 - STATOR FEI-51274007118.A0 51274007118 -
121 - RING FEI-32601267006.A9 32601267006 -
130 - CYLINDER HEAD SCREW FEI-43002024997.A16 43002024997 £1.60 £1.92
140 - AIR GUIDE RING FEI-31428122005.A3 31428122005 -
160 - CABLE FEI-30706322014.A1 30706322014 -
170 - CABLE GROMMET FEI-31413142009.A61 31413142009 £1.60 £1.92
180 - CABLE CLAMPING PIECE FEI-32431021007.A149 32431021007 £1.60 £1.92
190 - SHEET METAL SCREW 3 5X13 FEI-43046002005.A32 43046002005 -
200 - COVER FEI-31201066005.A6 31201066005 £11.06 £13.27
220 - SWITCH PUSHBUTTON FEI-32805120000.A20 32805120000 £3.67 £4.40
230 - COUNTERSUNK SCREW FEI-43066006032.A17 43066006032 £1.60 £1.92
240 - SHEET METAL SCREW FEI-43046024005.A14 43046024005 £1.60 £1.92
250 - COUNTERSUNK SCREW FEI-43066002992.A19 43066002992 £1.60 £1.92
260 - CONNECTING CABLE FEI-30719117014.A12 30719117014 £3.78 £4.54
270 - CONNECTING CABLE FEI-30719118012.A3 30719118012 £3.78 £4.54
301 - ARMATURE Z=5 FEI-53274003111.A6 53274003111 £96.77 £116.13
320 - SEALING RING FEI-32612084001.A7 32612084001 £3.44 £4.13
330 - GROOVED BALL BEARING FEI-41701001172.A219 41701001172 £9.63 £11.56
350 - GEARBOX HOUSING FEI-31508235003.A4 31508235003 £11.05 £13.26
355 - NEEDLE ROLLER FEI-41709040005.A0 41709040005 -
365 - NEEDLE CAGE FEI-41715041009.A8 41715041009 -
370 - GEAR-WHEEL FEI-33657161007.A20 33657161007 £58.47 £70.16
375 - SHAFT WASHER FEI-41719027001.A0 41719027001 -
378 - DISC FEI-41719026007.A28 41719026007 £2.82 £3.38
380 - SPIRAL SPRING FEI-30901139007.A25 30901139007 £1.60 £1.92
382 - DISC FEI-32624094032.A27 32624094032 £1.60 £1.92
385 - SPIRAL SPRING FEI-30901339009.A1 30901339009 £1.60 £1.92
390 - CLUTCH RING Z=13 FEI-30102101013.A16 30102101013 £51.24 £61.49
395 - CLUTCH PART FEI-30101037004.A4 30101037004 £33.42 £40.10
396 - DISC FEI-32408375002.A1 32408375002 £4.67 £5.60
405 - TOOL HOLDER FEI-30104110011.A0 30104110011 -
410 - SEALING RING FEI-40612112007.A36 40612112007 £1.60 £1.92
420 - BUSH FEI-31603014004.A16 31603014004 £51.46 £61.75
430 - SEALING RING FEI-40612093004.A33 40612093004 £1.60 £1.92
450 - CYLINDER HEAD SCREW FEI-43002021992.A21 43002021992 £1.60 £1.92
460 - CYLINDER HEAD SCREW FEI-43002024997.A15 43002024997 £1.60 £1.92
470 - CIRCLIP FEI-42443002992.A105 42443002992 £1.60 £1.92
480 - FIXING CLIP FEI-30232038001.A5 30232038001 -
500 - INTERMEDIATE GEAR BOX FEI-31506307026.A8 31506307026 £41.44 £49.73
590 - SLEEVE FEI-30505061004.A0 30505061004 -
595 - STOP SLEEVE FEI-32127057017.A2 32127057017 -
596 - STOP SLEEVE FEI-30505061013.A13 30505061013 -
610 - STOP SLEEVE FEI-32127057008.A5 32127057008 £34.42 £41.31
620 - BALL FEI-41708019004.A42 41708019004 £1.60 £1.92
630 - SEALING RING FEI-40612071009.A4 40612071009 £3.89 £4.67
640 - SEALING RING FEI-40612068004.A13 40612068004 -
5000 - INSERT FEI-62712109012.A4 62712109012 -
5010 - TOOL HOLDER Ø 7 MM WITH EXTERNAL FLAT FEI-60110210018.A2 60110210018 -
5020 - INSERT FEI-62712112007.A0 62712112007 -
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003217.A28 32160003217 -
