Fein KBB 38 / 72720224110 Spare Parts

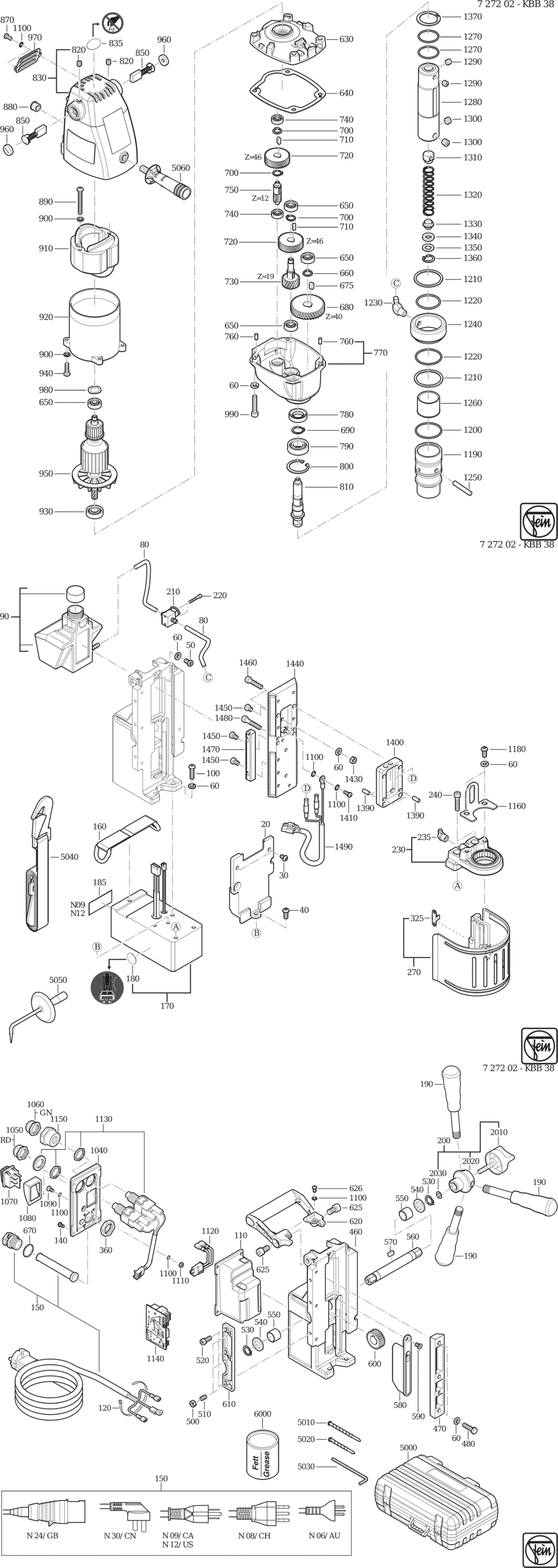

An exploded diagram and spare parts listing for the Fein KBB 38 / 72720224110

	Ex VAT	Inc VAT
20 - COVER FEI-31298335170.A0 31298335170	-
30 - SCREW FEI-43098705060.A11 43098705060	-
40 - SCREW FEI-43098705370.A2 43098705370	-
50 - SCREW FEI-43098706050.A14 43098706050	-
60 - DISC FEI-42498727210.A2 42498727210	£1.60	£1.92
70 - DISC FEI-42498720640.A2 42498720640	-
80 - HOSE FEI-31498760060.A0 31498760060	-
90 - CONTAINER FEI-32198190050.A1 32198190050	-
100 - SCREW FEI-43098706440.A1 43098706440	-
110 - HOUSING INSERT FEI-31498531000.A0 31498531000	-
120 - CABLE TIE FEI-30798757100.A2 30798757100	£1.60	£1.92
140 - SCREW FEI-43098703230.A11 43098703230	-
150 - CABLE WITH PLUG GB FEI-30798592070.A0 30798592070	£90.57	£108.68
160 - BELT FEI-32198121000.A12 32198121000	£24.88	£29.85
170 - MAGNETIC FOOT 120V FEI-33298491000.A0 33298491000	-
180 - STICKER FEI-32217407000.A29 32217407000	-
190 - HANDLE FEI-32198114010.A4 32198114010	£19.05	£22.86
200 - CONNECTING PIECE FEI-31698391000.A22 31698391000	£44.05	£52.86
210 - VALVE FEI-31498762000.A1 31498762000	£26.91	£32.29
220 - SCREW FEI-43098703190.A1 43098703190	-
230 - HOLDER FEI-31598291020.A1 31598291020	-
240 - SCREW FEI-43098706540.A5 43098706540	-
260 - SCREW FEI-43098704080.A2 43098704080	-
270 - PROTECTIVE GRILLE FEI-63998611020.A1 63998611020	-
360 - NUT FEI-30798757544.A12 30798757544	£3.04	£3.65
460 - HOUSING FEI-31298391081.A0 31298391081	-
470 - GUIDE FEI-31298331040.A2 31298331040	-
480 - SCREW FEI-43098706460.A1 43098706460	-
500 - NUT FEI-42098746060.A1 42098746060	-
510 - SCREW FEI-43098706120.A1 43098706120	-
520 - SCREW FEI-43098706240.A1 43098706240	-
530 - RING FEI-42698740160.A7 42698740160	£1.60	£1.92
540 - DISC FEI-31698320055.A16 31698320055	-
550 - BUSH FEI-31698320040.A0 31698320040	£3.54	£4.25
560 - SHAFT FEI-33298320040.A5 33298320040	£38.13	£45.76
570 - FEATHER KEY FEI-40298745000.A5 40298745000	-
580 - HOUSING INSERT FEI-33298331020.A4 33298331020	£2.70	£3.24
590 - SCREW FEI-43098705120.A7 43098705120	-
600 - GEAR-WHEEL FEI-33698682000.A2 33698682000	£36.42	£43.70
610 - PLATE FEI-33298310000.A2 33298310000	-
620 - HANDLE FEI-31298330020.A11 31298330020	£19.50	£23.40
625 - SCREW FEI-43098708100.A7 43098708100	-
626 - SCREW FEI-43098704060.A15 43098704060	£1.60	£1.92
630 - COVER FEI-31998631020.A2 31998631020	£45.33	£54.40
640 - SEAL FEI-32498611000.A2 32498611000	£11.53	£13.84
650 - GROOVED BALL BEARING FEI-41798730200.A6 41798730200	£18.80	£22.56
660 - CIRCLIP FEI-42698740140.A2 42698740140	-
670 - SEAL FEI-30610034008.A11 30610034008	£1.60	£1.92
675 - FEATHER KEY FEI-40298745020.A2 40298745020	-
680 - GEAR-WHEEL FEI-33698681010.A0 33698681010	-
690 - CIRCLIP FEI-42698740170.A2 42698740170	-
700 - RING FEI-42698740120.A3 42698740120	-
710 - FEATHER KEY FEI-40298745040.A6 40298745040	£3.12	£3.75
720 - GEAR-WHEEL FEI-33698681030.A3 33698681030	-
730 - SHAFT TOOTHED FEI-33698681020.A16 33698681020	-
740 - GROOVED BALL BEARING FEI-41798730120.A10 41798730120	-
750 - PINION FEI-33698681040.A11 33698681040	£23.88	£28.66
760 - PIN FEI-40298742003.A11 40298742003	-
770 - GEARBOX HOUSING FEI-52298691070.A4 52298691070	-
780 - SEALING RING FEI-40698763020.A12 40698763020	-
790 - GROOVED BALL BEARING FEI-41798730450.A11 41798730450	-
800 - RING FEI-42698741350.A2 42698741350	-
810 - SHAFT FEI-33498621000.A4 33498621000	£93.08	£111.69
820 - SCREW FEI-43098705000.A6 43098705000	-
830 - MOTOR HOUSING FEI-31998631080.A3 31998631080	-
835 - STICKER FEI-32217406002.A23 32217406002	£1.60	£1.92
850 - CARBON BRUSH (SOLD SINGLY) FEI-30798651060.A6 30798651060	£16.68	£20.01
870 - SCREW FEI-43098704200.A7 43098704200	-
880 - SLEEVE FEI-30798757000.A2 30798757000	£1.60	£1.92
890 - SCREW FEI-43098705600.A12 43098705600	-
900 - DISC FEI-42498720540.A18 42498720540	-
910 - STATOR FEI-51298651030.A3 51298651030	-
920 - SLEEVE FEI-31998631040.A4 31998631040	£18.80	£22.56
930 - GROOVED BALL BEARING FEI-41798730390.A17 41798730390	£35.33	£42.40
940 - SCREW FEI-43098705440.A2 43098705440	-
950 - ARMATURE 120V FEI-53298651010.A3 53298651010	£153.20	£183.84
960 - COVER FEI-30798651080.A0 30798651080	£9.34	£11.21
970 - PROTECTIVE GRILLE FEI-32498611020.A4 32498611020	£1.60	£1.92
980 - DISC FEI-42498726140.A4 42498726140	-
990 - SCREW FEI-43098706635.A4 43098706635	-
1040 - PLATE FEI-30798591047.A1 30798591047	-
1050 - PUSHBUTTON FEI-30798755275.A9 30798755275	£8.29	£9.95
1060 - PUSHBUTTON FEI-30798755270.A7 30798755270	£8.29	£9.95
1070 - SWITCH FEI-30798755410.A8 30798755410	£33.88	£40.66
1080 - COVER FEI-31498531020.A9 31498531020	£5.54	£6.65
1090 - SCREW FEI-43098704330.A0 43098704330	£2.24	£2.69
1100 - DISC FEI-42498720440.A1 42498720440	£1.60	£1.92
1110 - HEX NUT FEI-42001027045.A6 42001027045	£1.60	£1.92
1120 - CONNECTING CABLE FEI-30798591065.A1 30798591065	-
1130 - SWITCH MODULE FEI-30798591058.A5 30798591058	£58.83	£70.60
1140 - ELECTRONICS 50HZ120V FEI-30798550260.A3 30798550260	£86.15	£103.38
1150 - PROTECTIVE CAP FEI-32498520090.A10 32498520090	£3.95	£4.74
1160 - HOLDER FEI-30298210020.A3 30298210020	£9.88	£11.86
1180 - SCREW FEI-43098706160.A1 43098706160	-
1190 - SLEEVE FEI-33498221020.A1 33498221020	£68.63	£82.36
1200 - SEALING RING FEI-40698763520.A1 40698763520	-
1210 - CIRCLIP FEI-42698740440.A0 42698740440	-
1220 - SEALING RING FEI-40698763500.A2 40698763500	-
1230 - NIPPLE FEI-31498761000.A0 31498761000	£15.65	£18.78
1240 - DISTRIBUTOR FEI-33498220020.A2 33498220020	£66.49	£79.79
1250 - PIN FEI-40298742080.A1 40298742080	-
1260 - SLEEVE FEI-33498221040.A2 33498221040	£12.84	£15.41
1270 - SEALING RING FEI-40698763540.A2 40698763540	-
1280 - SHAFT FEI-33498222000.A1 33498222000	£97.48	£116.97
1290 - SET SCREW FEI-43045024088.A1 43045024088	-
1300 - SCREW FEI-43098709000.A23 43098709000	£1.60	£1.92
1310 - PRESSURE PIECE FEI-33498221080.A2 33498221080	£14.85	£17.82
1320 - SPRING FEI-30998744080.A0 30998744080	£2.76	£3.31
1330 - PLUNGER FEI-33498221060.A1 33498221060	£12.22	£14.67
1340 - SEALING RING FEI-42498726040.A4 42498726040	£5.77	£6.92
1350 - DISC FEI-42498726060.A10 42498726060	£1.60	£1.92
1360 - CIRCLIP FEI-42698741190.A21 42698741190	£1.60	£1.92
1370 - RING FEI-42698740340.A2 42698740340	-
1390 - PIN FEI-40298742020.A6 40298742020	-
1400 - FLANGE FEI-31998631120.A3 31998631120	£22.29	£26.75
1410 - SCREW FEI-43098704200.A5 43098704200	-
1430 - NUT FEI-42098746060.A0 42098746060	-
1440 - GUIDE FEI-31998631100.A3 31998631100	£82.61	£99.13
1450 - SCREW FEI-43098706050.A12 43098706050	-
1460 - SCREW FEI-43098706540.A3 43098706540	-
1470 - GEAR RACK FEI-33698680020.A14 33698680020	£40.58	£48.70
1480 - SCREW FEI-43098706580.A4 43098706580	-
1490 - CONNECTING CABLE FEI-30798591026.A1 30798591026	£38.95	£46.74
1510 - PLUG FEI-30798753140.A4 30798753140	-
2010 - CLAMPING UNIT FEI-64298120140.A12 64298120140	-
2020 - CONNECTING PIECE FEI-31698321000.A1 31698321000	£39.75	£47.70
2030 - DISC FEI-42098746000.A12 42098746000	-
5000 - CASE FEI-33998140092.A1 33998140092	£114.39	£137.27
5010 - CENTERING PIN FEI-63134998310.A29 63134998310	£25.18	£30.21
5020 - CENTERING PIN FEI-63134998300.A1 63134998300	£25.18	£30.21
5030 - WRENCH FEI-62998780030.A10 62998780030	£3.35	£4.02
5040 - BELT FEI-32198131000.A10 32198131000	£50.73	£60.88
5050 - SWARF HOOK FEI-64298160400.A8 64298160400	-
5060 - HANDLE FEI-32198114100.A3 32198114100	£10.71	£12.85
6000 - LUBRICANT TUBE 100G FEI-32198766050.A4 32198766050	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A190 34130054061	-
