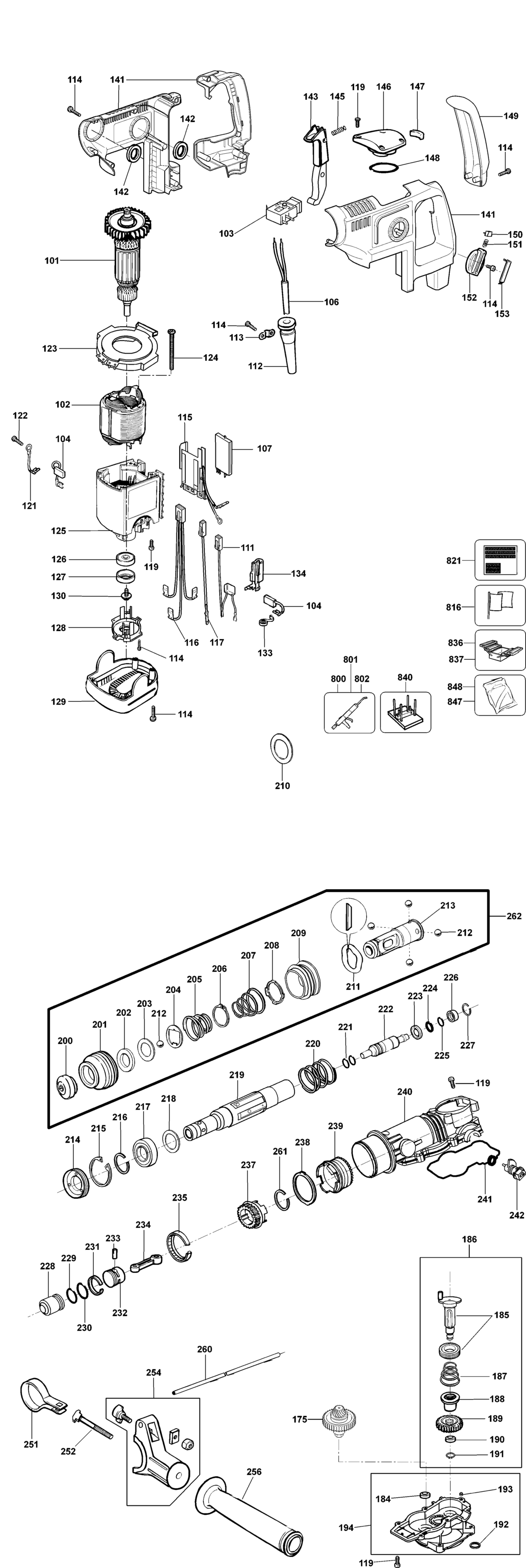

An exploded drawing and spare parts listing for the Elu BH32EK Type 1 Rotary Hammer
Ex VAT Inc VAT
101 - NO LONGER AVAILABLE BDE-000000-00.A21283 000000-00 -
102 - FIELD 230V BDE-377653-08.A1 377653-08 -
103 - SWITCH SA BDE-487175-49.A2 487175-49 -
104 - BRUSH KIT BDE-487131-00.A2 487131-00 £14.19 £17.03
107 - ELECTRONIC 230V BDE-328649-20.A7 328649-20 -
111 - CAPACITOR SA BDE-487087-00.A3 487087-00 £5.72 £6.87
112 - CORD PROTECTOR BDE-323091-01.A75 323091-01 £1.50 £1.80
113 - CORD CLAMP BDE-821070.A457 821070 £1.50 £1.80
114 - SCREW BDE-330065-08.A11 330065-08 £1.50 £1.80
115 - HOLDER BDE-329845-00.A10 329845-00 £15.63 £18.76
116 - LEAD SA BDE-329777-00.A1 329777-00 £3.70 £4.44
117 - LEAD SA BDE-329776-00.A7 329776-00 £2.21 £2.65
119 - SCREW TORX BDE-324007-11.A48 324007-11 £1.50 £1.80
121 - LEAD BDE-328856-01.A1 328856-01 £1.42 £1.70
122 - SCREW BDE-330065-24.A0 330065-24 £1.42 £1.70
123 - GUIDE BDE-327486-00.A7 327486-00 -
124 - SCREW BDE-330065-21.A5 330065-21 £1.50 £1.80
125 - NO LONGER AVAILABLE BDE-000000-00.A21285 000000-00 -
126 - BEARING BDE-N542566.A4 N542566 £12.17 £14.60
127 - SLEEVE BDE-325279-00.A23 325279-00 -
128 - HOLDER BEARING BDE-327487-00.A1 327487-00 £1.42 £1.70
129 - END CAP BDE-327489-01.A7 327489-01 £3.70 £4.44
130 - SCREW BDE-324119-02.A31 324119-02 £1.50 £1.80
133 - BRUSH SPRING BDE-326667-00.A63 326667-00 £1.50 £1.80
134 - HOLDER BDE-326933-01.A22 326933-01 £3.30 £3.96
141 - NO LONGER AVAILABLE BDE-000000-00.A21286 000000-00 -
142 - RING BDE-327577-00.A0 327577-00 £1.42 £1.70
143 - TRIGGER BDE-487094-01.A6 487094-01 £3.70 £4.44
145 - SPRING BDE-326438-00.A32 326438-00 -
146 - COVER HOUSING BDE-327499-02.A0 327499-02 -
147 - FILTER BDE-327586-00.A8 327586-00 -
148 - O RING BDE-323711-15.A8 323711-15 £1.50 £1.80
149 - SWITCH COVER BDE-327500-00.A8 327500-00 -
150 - NO LONGER AVAILABLE BDE-000000-00.A21287 000000-00 -
151 - SPRING BDE-323395-31.A0 323395-31 £1.42 £1.70
152 - LEVER BDE-327501-00.A0 327501-00 £1.78 £2.13
153 - CAP BDE-327509-00.A0 327509-00 £1.42 £1.70
175 - NO LONGER AVAILABLE BDE-000000-00.A21288 000000-00 -
184 - BEARING BDE-330003-39.A95 330003-39 £2.78 £3.34
185 - BEARING SA BDE-487074-49.A0 487074-49 £41.24 £49.49
186 - NO LONGER AVAILABLE BDE-000000-00.A21289 000000-00 -
187 - SPRING BDE-328769-00.A0 328769-00 -
188 - SLEEVE BDE-327507-00.A8 327507-00 £11.87 £14.24
189 - NO LONGER AVAILABLE BDE-000000-00.A21290 000000-00 -
190 - BEARING BDE-323872-05.A1 323872-05 £1.78 £2.13
191 - CIRCLIP BDE-324822-05.A7 324822-05 £1.42 £1.70
192 - SEAL BDE-327141-03.A4 327141-03 £12.17 £14.60
193 - SLEEVE BDE-327575-00.A19 327575-00 £1.50 £1.80
194 - CASTING SA BDE-327568-00.A8 327568-00 £25.05 £30.06
200 - CAP BDE-323489-00.A102 323489-00 £1.66 £1.99
201 - NO LONGER AVAILABLE BDE-000000-00.A21291 000000-00 -
202 - NO LONGER AVAILABLE BDE-000000-00.A21292 000000-00 -
203 - NO LONGER AVAILABLE BDE-000000-00.A21293 000000-00 -
204 - WASHER BDE-578387-00.A120 578387-00 £1.66 £1.99
205 - SPRING BDE-871690.A124 871690 £1.66 £1.99
206 - CIRCLIP BDE-324822-00.A1 324822-00 -
207 - SPRING BDE-487118-00.A40 487118-00 £1.50 £1.80
208 - NO LONGER AVAILABLE BDE-000000-00.A21294 000000-00 -
209 - NO LONGER AVAILABLE BDE-000000-00.A21295 000000-00 -
211 - NO LONGER AVAILABLE BDE-000000-00.A21296 000000-00 -
212 - NO LONGER AVAILABLE BDE-000000-00.A21297 000000-00 -
213 - NO LONGER AVAILABLE BDE-000000-00.A21298 000000-00 -
214 - NO LONGER AVAILABLE BDE-000000-00.A21299 000000-00 -
215 - RETAINER BDE-575279-00.A1 575279-00 £3.70 £4.44
216 - NO LONGER AVAILABLE BDE-000000-00.A21300 000000-00 -
217 - NO LONGER AVAILABLE BDE-000000-00.A21301 000000-00 -
218 - NO LONGER AVAILABLE BDE-000000-00.A21302 000000-00 -
219 - NO LONGER AVAILABLE BDE-000000-00.A21303 000000-00 -
220 - SPRING BDE-323395-26.A1 323395-26 £1.42 £1.70
221 - O RING BDE-323711-39.A3 323711-39 £1.42 £1.70
222 - NO LONGER AVAILABLE BDE-000000-00.A21304 000000-00 -
223 - WASHER BDE-327533-00.A4 327533-00 £5.72 £6.87
224 - O RING BDE-323711-31.A3 323711-31 £1.42 £1.70
225 - O RING BDE-323711-32.A1 323711-32 -
226 - NO LONGER AVAILABLE BDE-000000-00.A21305 000000-00 -
227 - NO LONGER AVAILABLE BDE-000000-00.A21306 000000-00 -
228 - NO LONGER AVAILABLE BDE-000000-00.A21307 000000-00 -
229 - O RING BDE-487037-00.A8 487037-00 £10.85 £13.02
230 - O RING BDE-323711-10.A36 323711-10 £1.50 £1.80
231 - PISTON RING BDE-325905-01.A1 325905-01 £1.50 £1.80
232 - PISTON BDE-327520-00.A1 327520-00 £12.17 £14.60
233 - PIN BDE-329818-00.A7 329818-00 £4.58 £5.49
234 - CON ROD BDE-327519-00.A7 327519-00 £1.78 £2.13
235 - RING BDE-327492-00.A0 327492-00 £1.42 £1.70
237 - SLEEVE BDE-327527-00.A7 327527-00 £9.17 £11.00
238 - WASHER BDE-327553-00.A0 327553-00 £1.42 £1.70
239 - NO LONGER AVAILABLE BDE-000000-00.A21308 000000-00 -
240 - HOUSING SA BDE-477193-00.A7 477193-00 £78.95 £94.74
241 - SEAL BDE-327518-00.A1 327518-00 £1.42 £1.70
242 - CAM BDE-327502-00.A8 327502-00 £1.42 £1.70
251 - COLLAR BDE-327493-00.A8 327493-00 £7.18 £8.62
252 - BOLT BDE-327544-00.A0 327544-00 £3.70 £4.44
254 - CLAMP SA BDE-487103-49.A8 487103-49 -
256 - HANDLE BDE-327545-00.A8 327545-00 £10.57 £12.68
260 - DEPTH ROD BDE-326205-00.A47 326205-00 £3.70 £4.44
261 - RETAINER BDE-323763-07.A0 323763-07 £1.42 £1.70
262 - NO LONGER AVAILABLE BDE-000000-00.A21309 000000-00 -
800 - NO LONGER AVAILABLE BDE-000000-00.A21310 000000-00 -
801 - GREASE 100 GMS BDE-586778-04.A7 586778-04 £40.21 £48.25
802 - BIT GREASE 50G BDE-328771-07.A20 328771-07 £7.18 £8.62
816 - NO LONGER AVAILABLE BDE-000000-00.A21311 000000-00 -
821 - NO LONGER AVAILABLE QS BDE-000000-00.A21312 000000-00 -
836 - SERVICE TOOL BDE-559613-99.A1 559613-99 £38.80 £46.56
837 - SERVICE TOOL BDE-559611-99.A1 559611-99 £34.00 £40.80
840 - SERVICE TOOL BDE-559610-99.A3 559610-99 £24.39 £29.27
847 - NO LONGER AVAILABLE BDE-000000-00.A21313 000000-00 -
