Elu MBH20 Type 2 Rotary Hammer Spare Parts

Elu MBH20 Type 2 Rotary Hammer Spare Parts

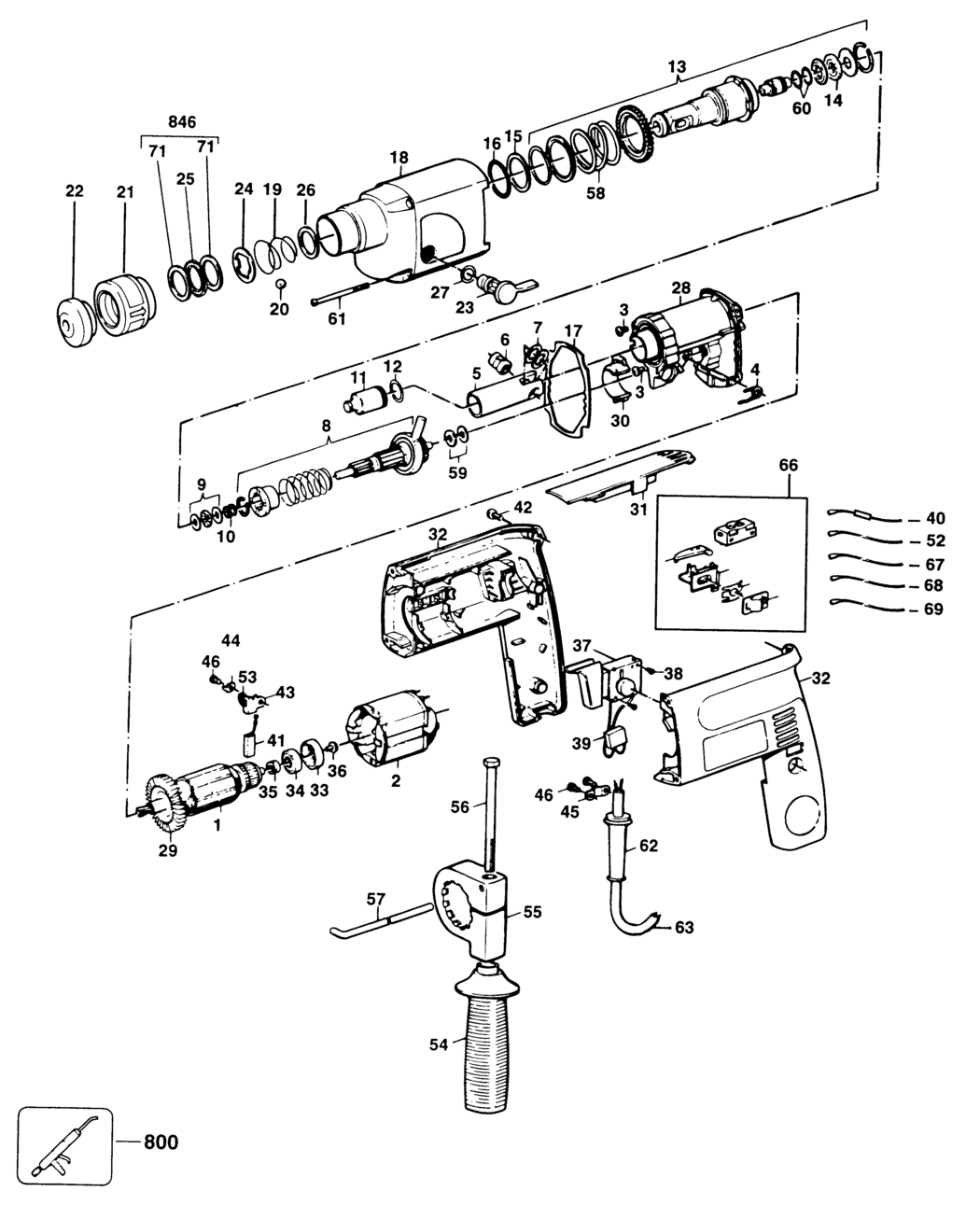

An exploded drawing and spare parts listing for the Elu MBH20 Type 2 Rotary Hammer
Ex VAT Inc VAT
1 - NO LONGER AVAILABLE 240V BDE-000000-00.A49018 000000-00 -
1 - NO LONGER AVAILABLE 115V BDE-000000-00.A49019 000000-00 -
1 - NO LONGER AVAILABLE 220V BDE-000000-00.A49020 000000-00 -
2 - NO LONGER AVAILABLE 115V BDE-000000-00.A49021 000000-00 -
2 - NO LONGER AVAILABLE 220V BDE-000000-00.A49022 000000-00 -
2 - NO LONGER AVAILABLE 240V BDE-000000-00.A49023 000000-00 -
3 - NO LONGER AVAILABLE BDE-000000-00.A49024 000000-00 -
4 - NO LONGER AVAILABLE BDE-000000-00.A49025 000000-00 -
5 - NO LONGER AVAILABLE BDE-000000-00.A49026 000000-00 -
6 - AXLE BDE-487143-00.A74 487143-00 £7.85 £9.42
7 - NO LONGER AVAILABLE BDE-000000-00.A49027 000000-00 -
8 - NO LONGER AVAILABLE BDE-000000-00.A49028 000000-00 -
9 - NO LONGER AVAILABLE BDE-000000-00.A49029 000000-00 -
10 - NO LONGER AVAILABLE BDE-000000-00.A49030 000000-00 -
11 - NO LONGER AVAILABLE BDE-000000-00.A49031 000000-00 -
12 - O RING BDE-577168-00.A76 577168-00 £1.50 £1.80
13 - NO LONGER AVAILABLE BDE-000000-00.A49039 000000-00 -
14 - RETAINER BDE-N451068.A43 N451068 £1.50 £1.80
15 - NO LONGER AVAILABLE BDE-000000-00.A49032 000000-00 -
16 - NO LONGER AVAILABLE BDE-000000-00.A49033 000000-00 -
17 - NO LONGER AVAILABLE BDE-000000-00.A49034 000000-00 -
18 - NO LONGER AVAILABLE BDE-000000-00.A49035 000000-00 -
19 - SPRING BDE-871690.A53 871690 £1.66 £1.99
20 - BALL 7MM BDE-583890-00.A236 583890-00 £1.66 £1.99
21 - NO LONGER AVAILABLE BDE-000000-00.A49036 000000-00 -
22 - NO LONGER AVAILABLE BDE-000000-00.A49037 000000-00 -
23 - NO LONGER AVAILABLE BDE-000000-00.A49038 000000-00 -
24 - WASHER BDE-578387-00.A59 578387-00 £1.66 £1.99
25 - SPACER BDE-323480-00.A15 323480-00 £1.82 £2.19
26 - NO LONGER AVAILABLE BDE-000000-00.A49040 000000-00 -
27 - NO LONGER AVAILABLE BDE-000000-00.A49041 000000-00 -
28 - NO LONGER AVAILABLE BDE-000000-00.A49042 000000-00 -
29 - NO LONGER AVAILABLE BDE-000000-00.A49043 000000-00 -
30 - NO LONGER AVAILABLE BDE-000000-00.A49044 000000-00 -
31 - NO LONGER AVAILABLE BDE-000000-00.A49045 000000-00 -
32 - NO LONGER AVAILABLE BDE-000000-00.A49046 000000-00 -
33 - SLEEVE BDE-870052.A176 870052 £1.50 £1.80
34 - BEARING BDE-330003-19.A150 330003-19 £2.78 £3.34
35 - NO LONGER AVAILABLE BDE-000000-00.A49050 000000-00 -
36 - SCREW BDE-911276.A59 911276 £1.42 £1.70
37 - NO LONGER AVAILABLE 115V BDE-000000-00.A49047 000000-00 -
37 - NO LONGER AVAILABLE 220V BDE-000000-00.A49048 000000-00 -
37 - NO LONGER AVAILABLE 240V BDE-000000-00.A49049 000000-00 -
38 - SCREW BDE-911026.A19 911026 £1.50 £1.80
39 - NO LONGER AVAILABLE 220V BDE-000000-00.A49051 000000-00 -
39 - CAPACITOR 240V BDE-321384.A186 321384 £1.50 £1.80
39 - NO LONGER AVAILABLE 115V BDE-000000-00.A49052 000000-00 -
40 - NO LONGER AVAILABLE 115V BDE-000000-00.A49053 000000-00 -
40 - NO LONGER AVAILABLE 220V BDE-000000-00.A49054 000000-00 -
40 - NO LONGER AVAILABLE 240V BDE-000000-00.A49055 000000-00 -
41 - NO LONGER AVAILABLE 115V BDE-000000-00.A49056 000000-00 -
41 - BRUSH 230V 220V BDE-320876.A15 320876 £7.18 £8.62
41 - BRUSH 230V 240V BDE-320876.A16 320876 £7.18 £8.62
42 - SCREW BDE-911325.A10 911325 -
43 - NO LONGER AVAILABLE BDE-000000-00.A49057 000000-00 -
44 - NO LONGER AVAILABLE BDE-000000-00.A49058 000000-00 -
45 - CORD CLAMP BDE-821070.A717 821070 £1.50 £1.80
46 - SCREW BDE-D911324.A85 D911324 -
52 - NO LONGER AVAILABLE BDE-000000-00.A49059 000000-00 -
53 - NO LONGER AVAILABLE BDE-000000-00.A49060 000000-00 -
54 - NO LONGER AVAILABLE BDE-000000-00.A49061 000000-00 -
55 - NO LONGER AVAILABLE BDE-000000-00.A49062 000000-00 -
56 - SCREW BDE-813918.A15 813918 -
57 - DEPTH STOP BDE-580787-00.A56 580787-00 £1.50 £1.80
58 - NO LONGER AVAILABLE BDE-000000-00.A49063 000000-00 -
59 - BEARING AXIAL BDE-324430-03.A85 324430-03 -
60 - NO LONGER AVAILABLE BDE-000000-00.A49064 000000-00 -
61 - NO LONGER AVAILABLE BDE-000000-00.A49065 000000-00 -
62 - CORD PROTECTOR BDE-916968.A2 916968 -
63 - CORDSET (M/PLUG) GB 240V BDE-330060-44.A44 330060-44 £14.57 £17.48
63 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A49066 000000-00 -
66 - SWITCH KIT BDE-323135-49.A10 323135-49 -
67 - NO LONGER AVAILABLE BDE-000000-00.A49077 000000-00 -
68 - NO LONGER AVAILABLE BDE-000000-00.A49078 000000-00 -
69 - LEAD 200MM BLACK BDE-878756.A33 878756 -
71 - WASHER BDE-323492-00.A17 323492-00 -
80 - NO LONGER AVAILABLE BDE-000000-00.A49084 000000-00 -
81 - WASHER 7 BDE-324431-03.A37 324431-03 -
800 - GREASE 90 GMS BDE-870889-02.A207 870889-02 £7.85 £9.42
846 - NO LONGER AVAILABLE BDE-000000-00.A49067 000000-00 -
