Elu MBH24L Type 3 Rotary Hammer Spare Parts

Home Details Reviews Delivery

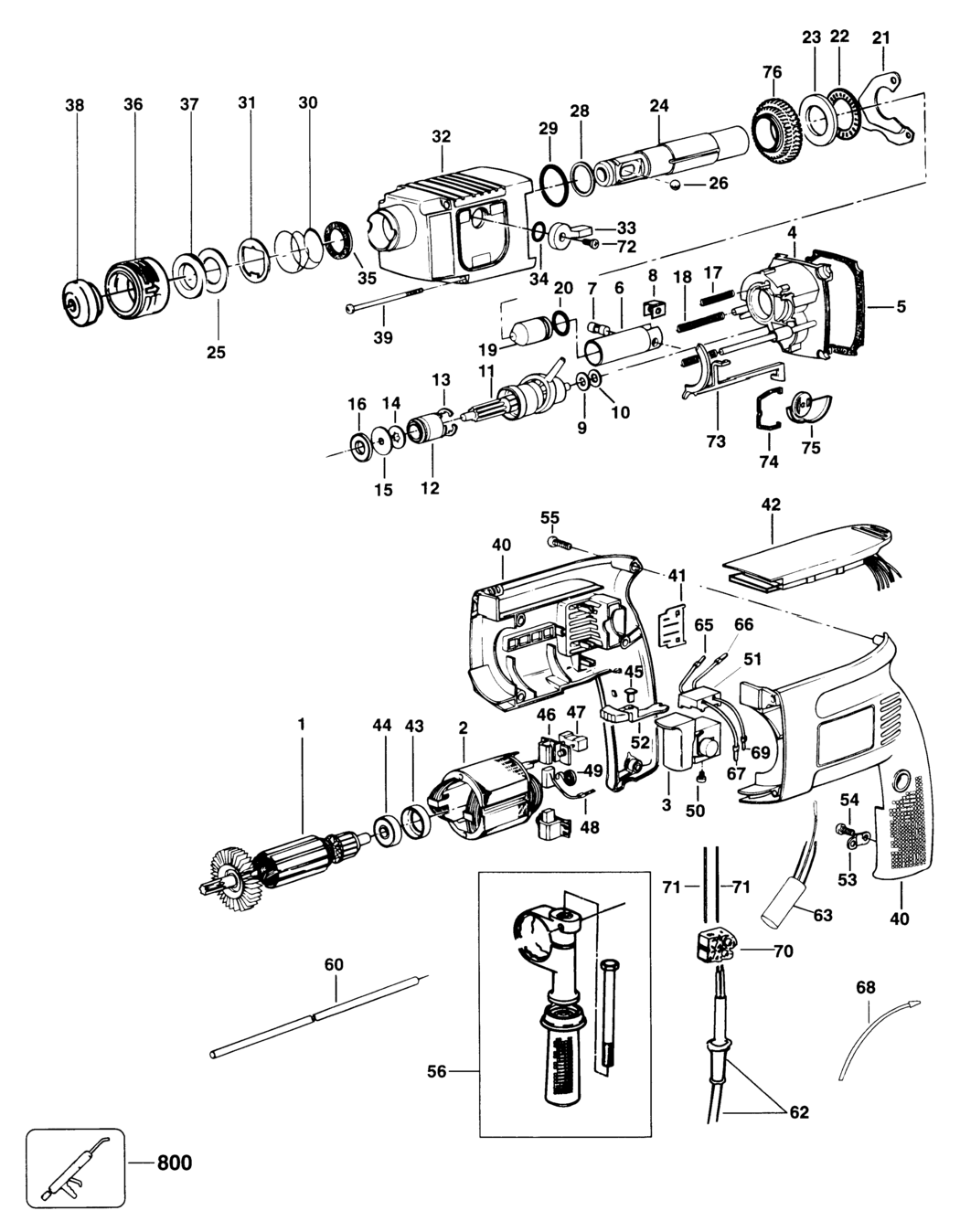

An exploded drawing and spare parts listing for the Elu MBH24L Type 3 Rotary Hammer

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE MBH24L BDE-000000-00.A114975 000000-00	-
1 - NO LONGER AVAILABLE MBH24 BDE-000000-00.A114976 000000-00	-
2 - NO LONGER AVAILABLE MBH24 BDE-000000-00.A114977 000000-00	-
2 - NO LONGER AVAILABLE MBH24L BDE-000000-00.A114978 000000-00	-
3 - NO LONGER AVAILABLE BDE-000000-00.A114979 000000-00	-
4 - NO LONGER AVAILABLE BDE-000000-00.A114980 000000-00	-
5 - NO LONGER AVAILABLE BDE-000000-00.A114981 000000-00	-
6 - NO LONGER AVAILABLE BDE-000000-00.A114982 000000-00	-
7 - NO LONGER AVAILABLE BDE-000000-00.A114983 000000-00	-
8 - NO LONGER AVAILABLE BDE-000000-00.A114984 000000-00	-
9 - BEARING AXIAL BDE-324430-03.A22 324430-03	-
10 - WASHER 7 BDE-324431-03.A100 324431-03	-
11 - GEAR BDE-324155-00.A16 324155-00	-
12 - SLEEVE BDE-325232-01.A28 325232-01	£18.42	£22.10
13 - NO LONGER AVAILABLE BDE-000000-00.A114985 000000-00	-
14 - NO LONGER AVAILABLE BDE-000000-00.A114986 000000-00	-
15 - NO LONGER AVAILABLE BDE-000000-00.A114987 000000-00	-
16 - NO LONGER AVAILABLE BDE-000000-00.A114988 000000-00	-
17 - NO LONGER AVAILABLE BDE-000000-00.A114989 000000-00	-
18 - NO LONGER AVAILABLE BDE-000000-00.A114990 000000-00	-
19 - NO LONGER AVAILABLE BDE-000000-00.A114991 000000-00	-
20 - O RING BDE-323711-25.A34 323711-25	£1.82	£2.19
21 - NO LONGER AVAILABLE BDE-000000-00.A114992 000000-00	-
22 - NO LONGER AVAILABLE BDE-000000-00.A114993 000000-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A114994 000000-00	-
24 - NO LONGER AVAILABLE BDE-000000-00.A114995 000000-00	-
25 - WASHER BDE-323492-00.A71 323492-00	-
26 - BALL 7MM BDE-583890-00.A115 583890-00	£1.66	£1.99
28 - NO LONGER AVAILABLE BDE-000000-00.A114996 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A114997 000000-00	-
30 - SPRING BDE-871690.A176 871690	£1.66	£1.99
31 - WASHER BDE-578387-00.A175 578387-00	£1.66	£1.99
32 - NO LONGER AVAILABLE BDE-000000-00.A114998 000000-00	-
33 - NO LONGER AVAILABLE BDE-000000-00.A114999 000000-00	-
34 - O RING BDE-323711-07.A76 323711-07	£1.82	£2.19
35 - SEAL SA BDE-324432-00.A9 324432-00	£5.88	£7.06
36 - COLLAR BDE-576756-00.A47 576756-00	-
37 - SPACER BDE-323480-00.A79 323480-00	£1.82	£2.19
38 - CAP BDE-323489-00.A196 323489-00	£1.66	£1.99
39 - SCREW BDE-324044-02.A20 324044-02	£1.42	£1.70
40 - NO LONGER AVAILABLE BDE-000000-00.A115000 000000-00	-
41 - NO LONGER AVAILABLE BDE-000000-00.A115001 000000-00	-
42 - NO LONGER AVAILABLE MBH24 BDE-000000-00.A115002 000000-00	-
42 - NO LONGER AVAILABLE MBH24L BDE-000000-00.A115003 000000-00	-
43 - CAP BDE-323481-00.A26 323481-00	£1.50	£1.80
44 - BEARING BDE-605040-63.A45 605040-63	£3.30	£3.96
45 - NO LONGER AVAILABLE BDE-000000-00.A115004 000000-00	-
46 - BRUSH HOLDER BDE-323496-01.A10 323496-01	-
47 - NO LONGER AVAILABLE BDE-000000-00.A115005 000000-00	-
48 - BRUSH 230V MBH24 BDE-323660-01.A46 323660-01	£7.18	£8.62
48 - NO LONGER AVAILABLE MBH24L BDE-000000-00.A115006 000000-00	-
49 - NO LONGER AVAILABLE BDE-000000-00.A115007 000000-00	-
50 - SCREW BDE-911026.A168 911026	£1.50	£1.80
51 - SWITCH REVERSE BDE-324400-00.A11 324400-00	-
52 - LEVER BDE-323490-08.A16 323490-08	-
53 - CORD CLAMP BDE-821070.A120 821070	£1.50	£1.80
54 - SCREW BDE-323924-08.A68 323924-08	£1.50	£1.80
55 - NO LONGER AVAILABLE BDE-000000-00.A115008 000000-00	-
56 - HANDLE SIDE SA BDE-939794-02.A28 939794-02	£14.57	£17.48
60 - DEPTH STOP BDE-580787-00.A221 580787-00	£1.50	£1.80
62 - NO LONGER AVAILABLE MBH24L BDE-000000-00.A115009 000000-00	-
62 - CORDSET MBH24 BDE-324438-73.A10 324438-73	-
63 - NO LONGER AVAILABLE MBH24 BDE-000000-00.A115010 000000-00	-
63 - CAPACITOR MBH24L BDE-320842-03.A46 320842-03	-
65 - NO LONGER AVAILABLE BDE-000000-00.A115011 000000-00	-
66 - NO LONGER AVAILABLE BDE-000000-00.A115012 000000-00	-
67 - NO LONGER AVAILABLE BDE-000000-00.A115013 000000-00	-
68 - LEAD 200MM BLACK BDE-878756.A68 878756	-
70 - CONNECTOR BDE-323534-00.A130 323534-00	£1.50	£1.80
71 - NO LONGER AVAILABLE BDE-000000-00.A115014 000000-00	-
72 - SCREW BDE-324007-10.A5 324007-10	£1.50	£1.80
73 - NO LONGER AVAILABLE BDE-000000-00.A115015 000000-00	-
74 - NO LONGER AVAILABLE BDE-000000-00.A115016 000000-00	-
75 - NO LONGER AVAILABLE BDE-000000-00.A115017 000000-00	-
76 - NO LONGER AVAILABLE BDE-000000-00.A115018 000000-00	-
800 - GREASE 90 GMS BDE-870889-02.A695 870889-02	£7.85	£9.42

Attribute Name	Value
Brand	Elu
