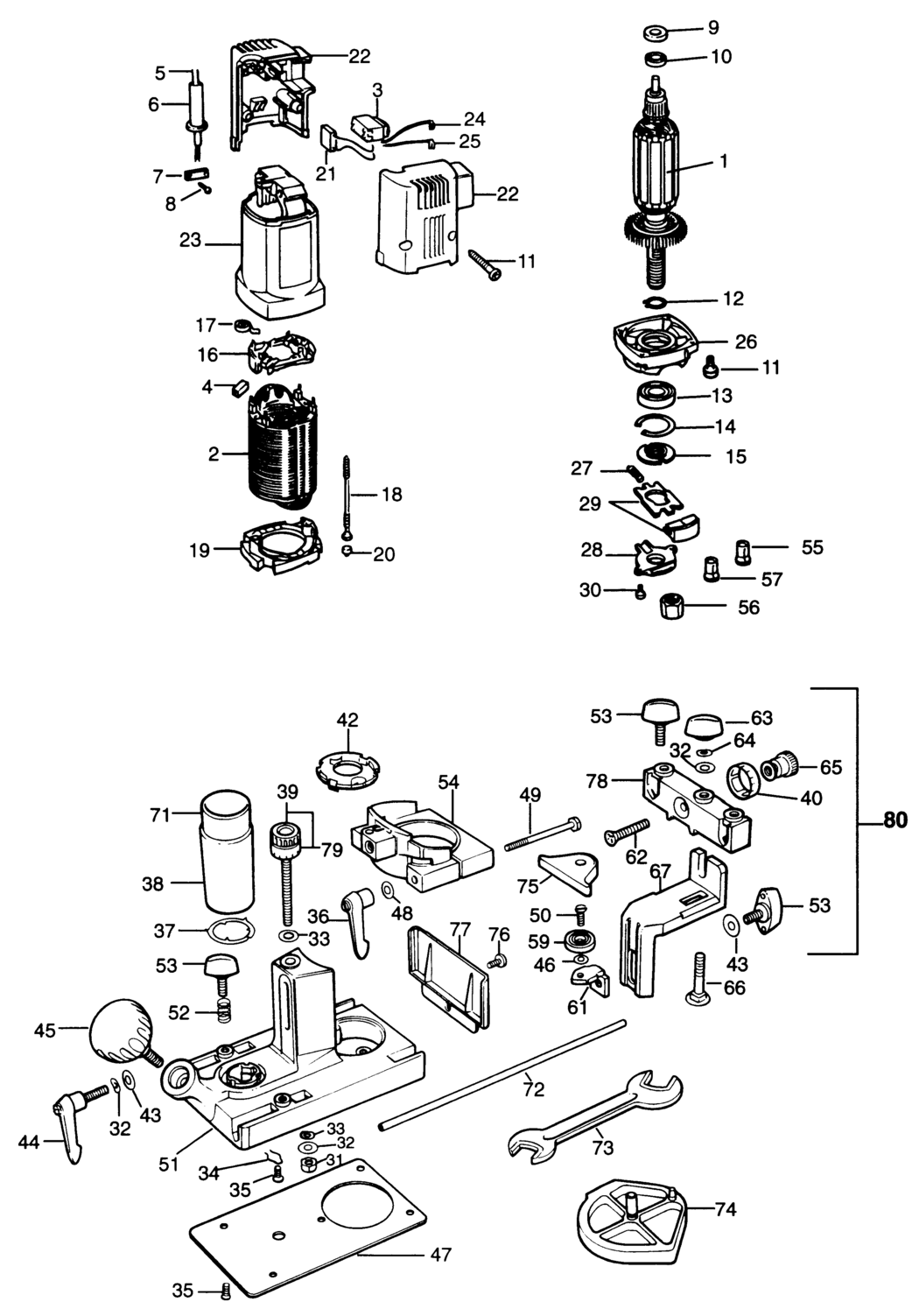

An exploded drawing and spare parts listing for the Elu MKF267 Type 2 Laminate Trimmer
Ex VAT Inc VAT
1 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A54771 000000-00 -
1 - ARMATURE GB 240V BDE-868630-00.A10 868630-00 £107.82 £129.39
2 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A54772 000000-00 -
2 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A54773 000000-00 -
3 - SWITCH BDE-N566709.A42 N566709 £30.08 £36.10
4 - BRUSH GB 115V BDE-930802-00.A61 930802-00 £7.18 £8.62
4 - BRUSH 230V GB 240V BDE-930760-00.A42 930760-00 £5.88 £7.06
5 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A54775 000000-00 -
5 - CORDSET GB 115V BDE-330061-14.A53 330061-14 £93.62 £112.35
6 - PROTECTOR BDE-949835-01.A51 949835-01 -
7 - CORD CLAMP BDE-930103-00.A114 930103-00 £1.50 £1.80
8 - NO LONGER AVAILABLE BDE-000000-00.A54776 000000-00 -
9 - HOLDER BEARING BDE-930029-00.A81 930029-00 £1.50 £1.80
10 - BEARING BDE-330003-34.A60 330003-34 £24.39 £29.27
11 - SCREW BDE-930079-01.A141 930079-01 £1.42 £1.70
12 - RETAINER BDE-930098-00.A48 930098-00 £1.50 £1.80
13 - BEARING BDE-868768-02.A5 868768-02 £10.85 £13.02
14 - RING BDE-931398.A49 931398 -
15 - LOCKING RING BDE-944484-00.A5 944484-00 £1.42 £1.70
16 - BRUSH HOLDER SA GB 240V BDE-930746-00.A10 930746-00 £3.22 £3.86
16 - BRUSH HOLDER PLATE GB 115V BDE-930749-00.A29 930749-00 £4.58 £5.49
17 - BRUSH SPRING BDE-930090-00.A128 930090-00 £1.50 £1.80
18 - SCREW BDE-930077-00.A42 930077-00 £1.42 £1.70
19 - BAFFLE BDE-943173-00.A9 943173-00 £3.22 £3.86
20 - CAP BDE-933657-00.A2 933657-00 £3.22 £3.86
21 - CAPACITOR BDE-949877-01.A22 949877-01 £1.50 £1.80
22 - NO LONGER AVAILABLE BDE-000000-00.A54777 000000-00 -
23 - NO LONGER AVAILABLE BDE-000000-00.A54778 000000-00 -
24 - LEAD GB 115V BDE-949801-11.A2 949801-11 -
24 - LEAD GB 240V BDE-949801-11.A3 949801-11 -
25 - LEAD GB 115V BDE-949801-10.A18 949801-10 -
25 - LEAD GB 240V BDE-949801-10.A19 949801-10 -
26 - HOUSING BDE-943178-01.A8 943178-01 £4.58 £5.49
27 - SPRING COMPRESSION BDE-N406641.A12 N406641 £1.50 £1.80
28 - COVER BDE-944386-00.A13 944386-00 £1.42 £1.70
29 - BUTTON SA BDE-947048-00.A2 947048-00 -
30 - NO LONGER AVAILABLE BDE-000000-00.A54779 000000-00 -
31 - NO LONGER AVAILABLE BDE-000000-00.A54780 000000-00 -
32 - WASHER SPRING BDE-937545-00.A11 937545-00 -
33 - WASHER BDE-930102-00.A88 930102-00 £1.50 £1.80
34 - NO LONGER AVAILABLE BDE-000000-00.A54789 000000-00 -
35 - SCREW.TEMP BDE-945121-00.A26 945121-00 £1.50 £1.80
36 - NO LONGER AVAILABLE BDE-000000-00.A54781 000000-00 -
37 - NO LONGER AVAILABLE BDE-000000-00.A54782 000000-00 -
38 - NO LONGER AVAILABLE BDE-000000-00.A54783 000000-00 -
39 - NO LONGER AVAILABLE BDE-000000-00.A54784 000000-00 -
40 - INDEX BDE-942918-00.A34 942918-00 £1.50 £1.80
42 - NO LONGER AVAILABLE BDE-000000-00.A54785 000000-00 -
43 - NO LONGER AVAILABLE BDE-000000-00.A54786 000000-00 -
44 - NO LONGER AVAILABLE BDE-000000-00.A54787 000000-00 -
45 - NO LONGER AVAILABLE BDE-000000-00.A54788 000000-00 -
46 - WASHER BDE-860073-00.A191 860073-00 £1.50 £1.80
47 - NO LONGER AVAILABLE BDE-000000-00.A54790 000000-00 -
48 - WASHER BDE-930925.A65 930925 -
49 - NO LONGER AVAILABLE BDE-000000-00.A54791 000000-00 -
50 - SCREW BDE-949889-01.A3 949889-01 £1.42 £1.70
51 - NO LONGER AVAILABLE BDE-000000-00.A54792 000000-00 -
52 - SPRING BDE-868082-00.A18 868082-00 £1.50 £1.80
53 - SCREW WING BDE-326573-01.A7 326573-01 £1.82 £2.19
54 - SUPPORT BDE-946284-01.A2 946284-01 -
55 - COLLET 8MM BDE-943269-02.A11 943269-02 £14.57 £17.48
56 - COLLET NUT BDE-943270-00.A5 943270-00 £5.88 £7.06
57 - COLLET 6.35MM COLLET 6.35MM BDE-943269-01.A5 943269-01 £19.90 £23.88
57 - COLLET 6MM COLLET 6MM BDE-943269-00.A12 943269-00 -
59 - BEARING BDE-330003-34.A58 330003-34 £24.39 £29.27
61 - NO LONGER AVAILABLE BDE-000000-00.A54793 000000-00 -
62 - NO LONGER AVAILABLE BDE-000000-00.A54794 000000-00 -
63 - KNOB BDE-942895-01.A3 942895-01 £3.30 £3.96
64 - WASHER BDE-930925.A66 930925 -
65 - NO LONGER AVAILABLE BDE-000000-00.A54795 000000-00 -
66 - NO LONGER AVAILABLE BDE-000000-00.A54796 000000-00 -
67 - NO LONGER AVAILABLE BDE-000000-00.A54797 000000-00 -
71 - NO LONGER AVAILABLE BDE-000000-00.A54798 000000-00 -
72 - NO LONGER AVAILABLE BDE-000000-00.A54799 000000-00 -
73 - WRENCH BDE-945393-00.A8 945393-00 £2.78 £3.34
74 - NO LONGER AVAILABLE BDE-000000-00.A54800 000000-00 -
75 - GUIDE FENCE BDE-946292-00.A3 946292-00 £1.50 £1.80
76 - NO LONGER AVAILABLE BDE-000000-00.A54801 000000-00 -
77 - NO LONGER AVAILABLE BDE-000000-00.A54802 000000-00 -
78 - NO LONGER AVAILABLE BDE-000000-00.A54803 000000-00 -
79 - NO LONGER AVAILABLE BDE-000000-00.A54804 000000-00 -
80 - NO LONGER AVAILABLE BDE-000000-00.A54805 000000-00 -
