Fein ASb 636 (50/60Hz 220/230V) / 72152900225 Spare Parts

Fein ASb 636 ⡐/60Hz 220/230V) / 72152900225 Spare Parts

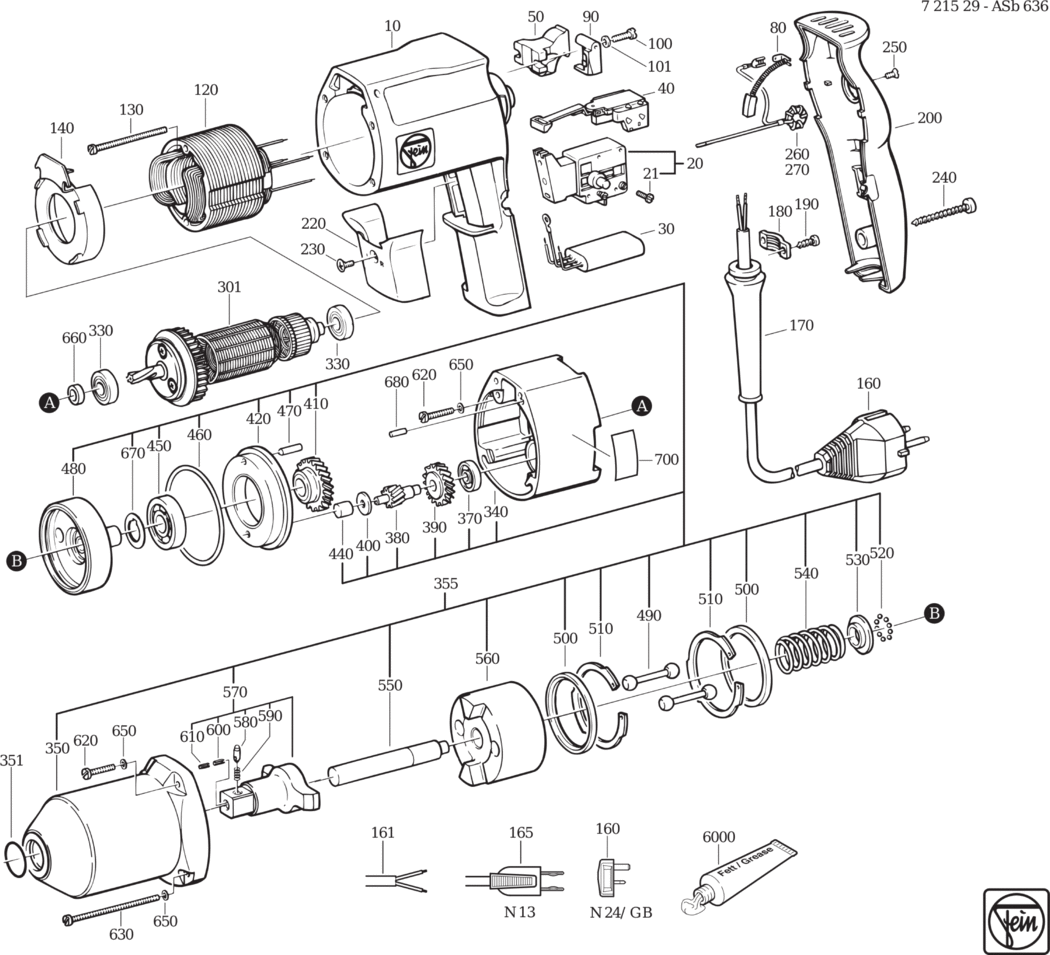

An exploded diagram and spare parts listing for the Fein ASb 636 (50/60Hz 220/230V) / 72152900225

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901117015.A1 31901117015	£110.27	£132.32
20 - SWITCH FEI-30701240007.A1 30701240007	£27.23	£32.68
21 - CYLINDER HEAD SCREW FEI-43013052033.A29 43013052033	£1.60	£1.92
30 - CAPACITOR FEI-30722161013.A26 30722161013	£17.85	£21.42
40 - TOGGLE SWITCH FEI-30701238001.A24 30701238001	£16.72	£20.06
50 - BRUSH HOLDER FEI-30712043001.A19 30712043001	£8.32	£9.98
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711059007.A10 30711059007	£7.74	£9.29
90 - CAP FEI-30713010009.A30 30713010009	£1.60	£1.92
100 - CYLINDER HEAD SCREW FEI-43002014998.A1 43002014998	-
101 - CIRCLIP FEI-42443002992.A21 42443002992	£1.60	£1.92
120 - STATOR 50HZ220V FEI-51203003227.A5 51203003227	£67.36	£80.83
130 - CYLINDER HEAD SCREW FEI-43002025991.A25 43002025991	£1.60	£1.92
140 - INSULATING RING FEI-31428004000.A30 31428004000	£3.67	£4.40
160 - CABLE WITH PLUG FEI-30707175014.A3 30707175014	£17.81	£21.37
170 - CABLE GROMMET FEI-31413164009.A18 31413164009	£2.59	£3.11
180 - CABLE CLAMPING PIECE FEI-32431021007.A55 32431021007	£1.60	£1.92
190 - SHEET METAL SCREW 3 5X13 FEI-43046002005.A1 43046002005	-
200 - COVER FEI-31201066005.A30 31201066005	£11.06	£13.27
220 - SWITCH PUSHBUTTON FEI-32805120000.A6 32805120000	£3.67	£4.40
230 - COUNTERSUNK SCREW FEI-43066006032.A50 43066006032	£1.60	£1.92
240 - SHEET METAL SCREW FEI-43046024005.A40 43046024005	£1.60	£1.92
250 - COUNTERSUNK SCREW FEI-43066002992.A48 43066002992	£1.60	£1.92
260 - RING CORE CHOKE FEI-30764065010.A8 30764065010	£3.54	£4.25
301 - ARMATURE 50HZ220V FEI-53203009220.A5 53203009220	£147.18	£176.62
330 - GROOVED BALL BEARING FEI-41701001172.A79 41701001172	£9.63	£11.56
340 - INTERMEDIATE GEAR BOX FEI-31506156000.A4 31506156000	£91.10	£109.32
350 - GEARBOX HOUSING FEI-31508109009.A3 31508109009	£149.53	£179.44
351 - SEALING RING FEI-40612052004.A4 40612052004	-
355 - GEARBOX HOUSING FEI-31508109024.A1 31508109024	-
370 - GROOVED BALL BEARING FEI-41701202018.A159 41701202018	£6.92	£8.30
380 - GEAR-WHEEL FEI-33757012005.A3 33757012005	-
390 - GEAR-WHEEL FEI-33657023009.A3 33657023009	£34.13	£40.96
400 - DISC FEI-32408159001.A3 32408159001	£3.15	£3.78
410 - GEAR-WHEEL FEI-33657024007.A1 33657024007	£46.99	£56.39
420 - INTERMEDIATE GEAR BOX FEI-31506157004.A1 31506157004	£84.98	£101.98
440 - BUSH FEI-41705005003.A16 41705005003	£5.62	£6.74
450 - GROOVED BALL BEARING FEI-41701010010.A32 41701010010	£8.58	£10.30
460 - SEALING RING FEI-40612004001.A0 40612004001	-
470 - STRAIGHT PIN FEI-40201037000.A5 40201037000	-
480 - DRIVE BLOCK FEI-30110009009.A1 30110009009	£149.74	£179.69
490 - BALL PIN FEI-30111007006.A0 30111007006	£18.31	£21.97
500 - RING FEI-32602036004.A0 32602036004	£37.51	£45.01
510 - CIRCLIP FEI-42644011003.A0 42644011003	-
520 - BALL FEI-41708014001.A16 41708014001	£1.60	£1.92
530 - RING FEI-31710025001.A0 31710025001	£9.04	£10.85
540 - SPIRAL SPRING FEI-30901188008.A4 30901188008	£4.97	£5.96
550 - SHAFT FEI-33406065000.A4 33406065000	£32.24	£38.69
560 - STRIKING BODY FEI-30112011003.A0 30112011003	£207.17	£248.60
570 - TOOL HOLDER FEI-30104043015.A0 30104043015	-
580 - BOLT FEI-30219031003.A2 30219031003	£4.02	£4.82
590 - SPIRAL SPRING FEI-30901074001.A7 30901074001	£1.60	£1.92
600 - CLAMPING SLEEVE FEI-40238004004.A0 40238004004	-
610 - CLAMPING SLEEVE FEI-40238002002.A6 40238002002	-
620 - CYLINDER HEAD SCREW FEI-43002017999.A13 43002017999	£1.60	£1.92
630 - CYLINDER HEAD SCREW FEI-43002029990.A12 43002029990	-
650 - CIRCLIP FEI-42443002992.A22 42443002992	£1.60	£1.92
660 - SEALING RING FEI-32612047006.A0 32612047006	£1.60	£1.92
670 - DISC FEI-32624029032.A35 32624029032	£2.25	£2.70
670 - DISC FEI-32624029026.A0 32624029026	£1.60	£1.92
680 - PIN FEI-40247003007.A0 40247003007	£1.60	£1.92
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003061.A10 32160003061	-
