Fein ASb 647-1 (50/60Hz 220/230V) / 72151200222 Spare Parts

Fein ASb 647-1 ⡐/60Hz 220/230V) / 72151200222 Spare Parts

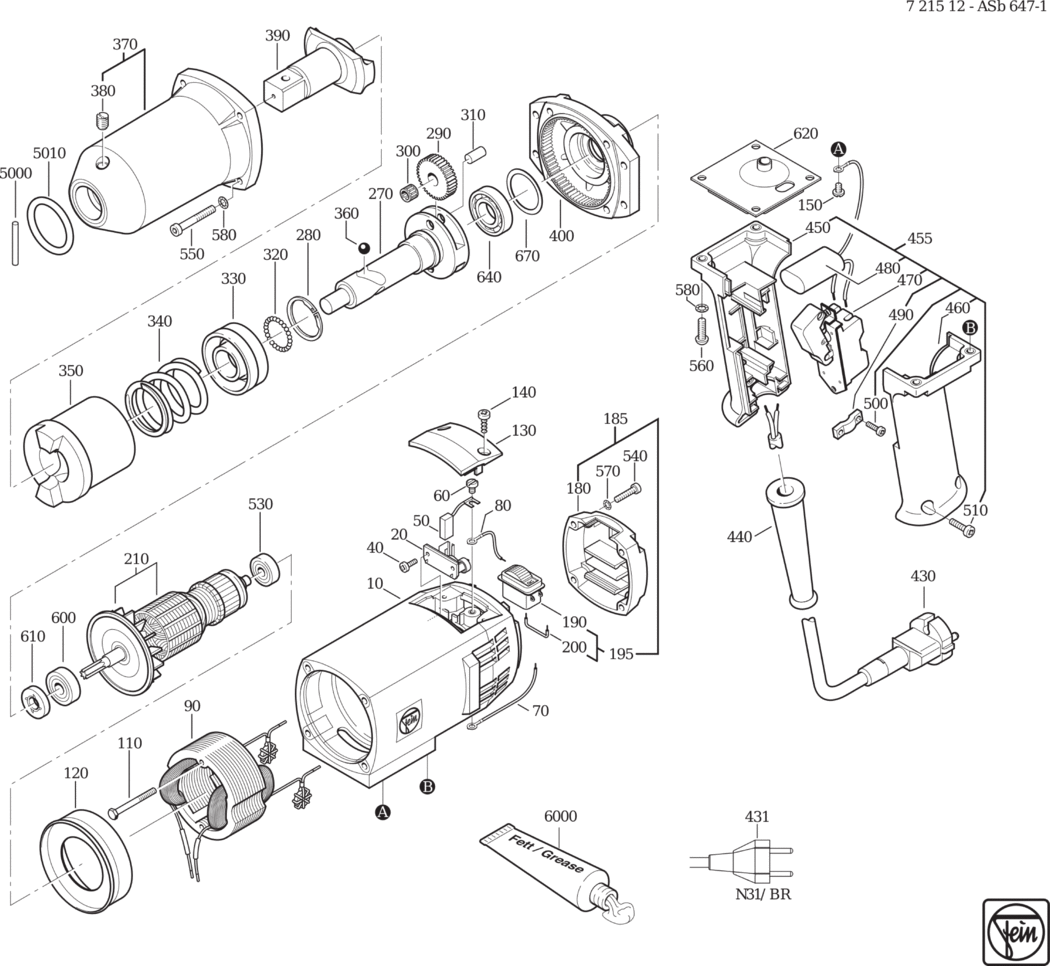

An exploded diagram and spare parts listing for the Fein ASb 647-1 (50/60Hz 220/230V) / 72151200222

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903119003.A6 31903119003	£160.13	£192.16
20 - BRUSH HOLDER FEI-30712067017.A3 30712067017	£11.92	£14.30
40 - FILLISTER HEAD SCREW M3 5X10 FEI-43041001994.A124 43041001994	£1.60	£1.92
50 - CARBON BRUSH (SOLD SINGLY) FEI-30711067004.A46 30711067004	£7.87	£9.44
60 - FLAT HEADED SCREW FEI-43003029048.A72 43003029048	-
70 - CONNECTING CABLE FEI-30719062017.A1 30719062017	£1.60	£1.92
80 - CONNECTING CABLE FEI-30719065013.A14 30719065013	£1.60	£1.92
90 - STATOR 50HZ220V FEI-51212002221.A1 51212002221	£129.98	£155.97
110 - HEXAGON SOCKET SCREW FEI-43001002040.A3 43001002040	-
120 - AIR GUIDE RING FEI-31428022006.A3 31428022006	£7.07	£8.48
130 - COVER FEI-32427040001.A18 32427040001	£3.39	£4.07
140 - SHEET METAL SCREW FEI-43046001002.A46 43046001002	-
150 - FLAT HEADED SCREW FEI-43003029048.A71 43003029048	-
180 - COVER FEI-31207066004.A2 31207066004	£15.29	£18.35
185 - COVER FEI-31207066013.A5 31207066013	-
195 - TOGGLE SWITCH FEI-30701085015.A7 30701085015	£37.68	£45.22
210 - ARMATURE 50HZ220V FEI-53212002223.A0 53212002223	£243.70	£292.44
270 - SHAFT FEI-30110016002.A1 30110016002	£354.92	£425.91
280 - CIRCLIP FEI-42643009005.A2 42643009005	£3.40	£4.08
290 - GEAR-WHEEL FEI-33607072002.A3 33607072002	£33.52	£40.22
300 - NEEDLE CAGE FEI-41715009001.A2 41715009001	£6.37	£7.64
310 - ROLLER FEI-41709006000.A5 41709006000	£1.60	£1.92
320 - BALL FEI-41708014001.A27 41708014001	£1.60	£1.92
330 - RING FEI-32602045000.A1 32602045000	£79.48	£95.37
340 - SPIRAL SPRING FEI-30901231005.A1 30901231005	£14.91	£17.89
350 - STRIKING BODY FEI-30112023009.A2 30112023009	£309.83	£371.80
360 - BALL FEI-41708025004.A1 41708025004	£1.60	£1.92
370 - GEARBOX HOUSING FEI-31508124013.A4 31508124013	£139.71	£167.65
380 - NIPPLE FEI-32131037005.A10 32131037005	-
390 - TOOL HOLDER FEI-30104047005.A0 30104047005	£211.41	£253.69
400 - INTERMEDIATE GEAR BOX FEI-31506195012.A5 31506195012	£254.93	£305.92
430 - CABLE WITH PLUG FEI-30707200019.A6 30707200019	£19.62	£23.54
440 - CABLE GROMMET FEI-31413090003.A55 31413090003	£3.40	£4.08
450 - HANDLE HALF SHELL FEI-31204090003.A11 31204090003	£31.44	£37.73
455 - HANDLE FEI-31204090012.A4 31204090012	-
460 - HANDLE HALF SHELL FEI-31204091002.A11 31204091002	£20.93	£25.12
470 - SWITCH FEI-30701068003.A12 30701068003	£38.18	£45.82
480 - CAPACITOR FEI-30722074009.A11 30722074009	£15.62	£18.75
490 - CABLE CLAMPING PIECE FEI-32431021007.A103 32431021007	£1.60	£1.92
500 - FILLISTER HEAD SCREW FEI-43041011993.A17 43041011993	-
510 - FILLISTER HEAD SCREW FEI-43041023046.A41 43041023046	£1.60	£1.92
530 - GROOVED BALL BEARING FEI-41701204131.A27 41701204131	£9.10	£10.92
540 - CYLINDER HEAD SCREW FEI-43033005047.A5 43033005047	-
550 - CYLINDER HEAD SCREW FEI-43033016055.A34 43033016055	£1.60	£1.92
560 - FILLISTER HEAD SCREW FEI-43014042053.A14 43014042053	-
570 - CIRCLIP M4 FEI-42443003043.A188 42443003043	£1.60	£1.92
580 - CIRCLIP M5 FEI-42443004057.A229 42443004057	£1.60	£1.92
600 - GROOVED BALL BEARING FEI-41701207033.A24 41701207033	£10.15	£12.18
610 - SEALING RING FEI-30602010000.A17 30602010000	£15.52	£18.63
620 - PLATE FEI-32422093007.A4 32422093007	£9.17	£11.00
640 - GROOVED BALL BEARING FEI-41701603013.A7 41701603013	£13.72	£16.46
670 - DISC FEI-32624046034.A11 32624046034	£4.92	£5.90
670 - DISC FEI-32624046028.A9 32624046028	£1.60	£1.92
900 - INFORMATION SIGN FEI-32217084000.A8 32217084000	£2.82	£3.38
5000 - LOCKING PIN BF35-7 FEI-30235007005.A4 30235007005	£5.08	£6.10
5010 - RUBBER RING FEI-40612028008.A4 40612028008	£4.38	£5.26
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A470 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A249 34130054061	-
