Fein FMT 250 Q (50/60Hz 220/230V) / 72294324230 Spare Parts

Fein FMT 250 Q ⡐/60Hz 220/230V) / 72294324230 Spare Parts
Home Details Reviews Delivery

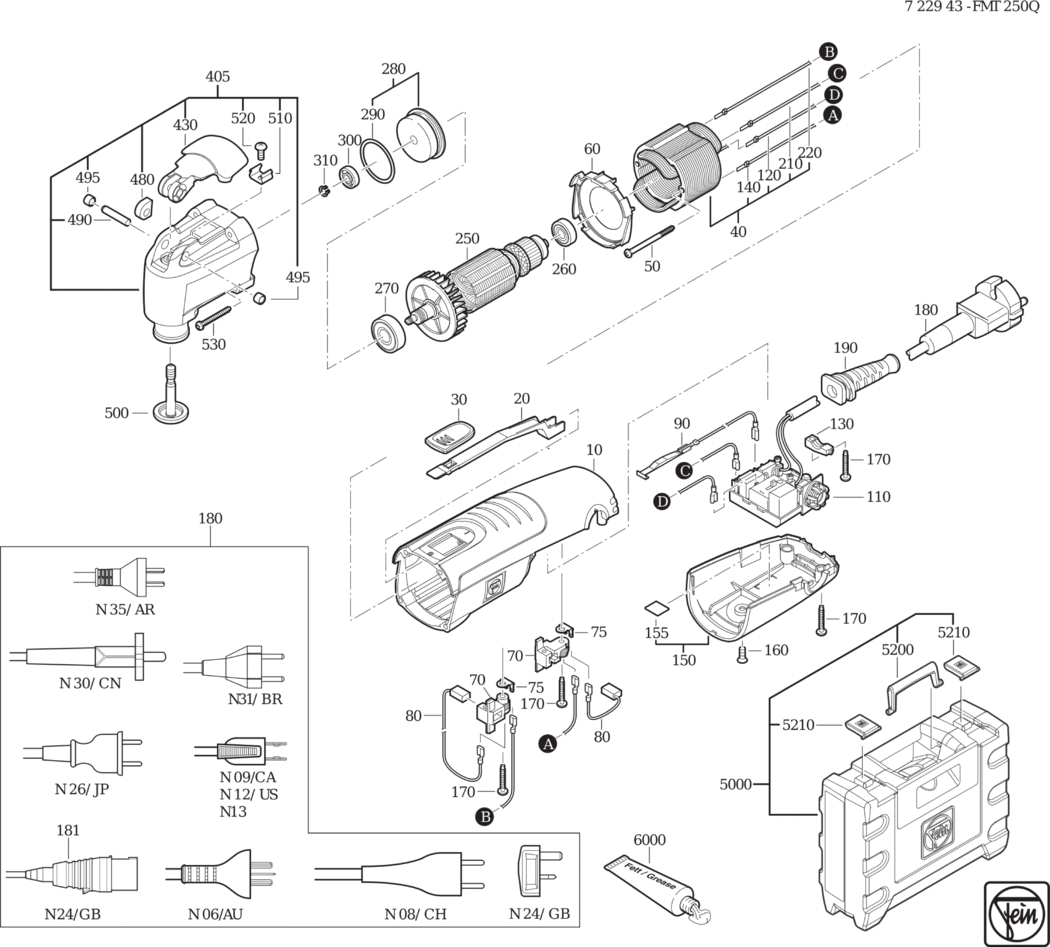

An exploded diagram and spare parts listing for the Fein FMT 250 Q (50/60Hz 220/230V) / 72294324230
Ex VAT Inc VAT
10 - MOTOR HOUSING FEI-31901177000.A12 31901177000 £38.45 £46.14
20 - CONTROL ROD FEI-32816066000.A10 32816066000 £9.62 £11.54
30 - SLIDE SWITCH FEI-32805226000.A10 32805226000 £2.91 £3.49
40 - STATOR FEI-51278002230.A6 51278002230 £70.33 £84.40
50 - SCREW FEI-43074005000.A36 43074005000 £1.60 £1.92
60 - AIR GUIDE RING FEI-31428161000.A37 31428161000 £4.59 £5.51
70 - BRUSH HOLDER FEI-30712087015.A66 30712087015 £7.02 £8.43
75 - CONNECTOR FEI-30717193000.A73 30717193000 £1.60 £1.92
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711129009.A53 30711129009 £6.73 £8.08
90 - CONTACT SPRING FEI-32803019010.A43 32803019010 £10.44 £12.53
110 - ELECTRONICS 100-230V 50/60HZ FEI-30762412990.A12 30762412990 £68.25 £81.90
120 - CONNECTING CABLE FEI-30719642010.A11 30719642010 £1.60 £1.92
130 - CABLE CLAMPING PIECE FEI-32431045000.A49 32431045000 £1.60 £1.92
140 - CONNECTING CABLE FEI-30719641010.A40 30719641010 £1.60 £1.92
150 - COVER FEI-32427127000.A9 32427127000 £8.25 £9.90
155 - PRESSURE PIECE FEI-31415099000.A11 31415099000 £1.60 £1.92
160 - SCREW FEI-43074003000.A33 43074003000 £1.60 £1.92
170 - SCREW 35X20 FEI-43074002000.A35 43074002000 £1.60 £1.92
180 - CABLE WITH PLUG FEI-30707350010.A1 30707350010 £30.95 £37.14
190 - CABLE GROMMET FEI-31413229000.A2 31413229000 £2.25 £2.70
210 - CONNECTING CABLE FEI-30719644010.A10 30719644010 £1.60 £1.92
220 - CONNECTING CABLE FEI-30719643010.A41 30719643010 £1.60 £1.92
250 - ARMATURE FEI-53278001230.A10 53278001230 £88.65 £106.38
260 - GROOVED BALL BEARING FEI-41701001032.A10 41701001032 £10.89 £13.07
270 - GROOVED BALL BEARING FEI-41701007038.A86 41701007038 £10.17 £12.20
280 - BUSH SET FEI-30508043010.A6 30508043010 £11.88 £14.25
290 - SEALING RING FEI-40612167000.A17 40612167000 £1.60 £1.92
300 - GROOVED BALL BEARING FEI-41701000020.A32 41701000020 £13.58 £16.30
310 - CIRCLIP FEI-42616046003.A26 42616046003 £1.60 £1.92
405 - TOOL HEAD QUICK IN FEI-31508294010.A1 31508294010 £117.84 £141.41
430 - LEVER FEI-32805314000.A2 32805314000 £14.63 £17.56
480 - ECCENTRIC RING FEI-32636042000.A25 32636042000 £3.54 £4.25
490 - STRAIGHT PIN FEI-40242064000.A19 40242064000 £1.60 £1.92
495 - BUSH FEI-30507220000.A20 30507220000 £2.60 £3.12
500 - CLAMPING UNIT FEI-30240310010.A2 30240310010 £23.74 £28.49
510 - LOCKING SPRING FEI-30907067000.A16 30907067000 £1.60 £1.92
520 - FILLISTER HEAD SCREW FEI-43064023045.A83 43064023045 £1.60 £1.92
530 - SCREW FEI-43074004000.A14 43074004000 £1.60 £1.92
5000 - CARRYING CASE UNFILLED FEI-33901144010.A12 33901144010 £22.08 £26.49
5010 - EXTRACTOR HOOD FEI-33218151000.A8 33218151000 £6.03 £7.24
5020 - FELT RING FEI-30601106007.A14 30601106007 £2.38 £2.86
5030 - ADAPTER FEI-30605112000.A7 30605112000 £6.71 £8.05
5040 - PIPE FEI-33218123000.A3 33218123000 -
5050 - HOLDER FEI-30232049000.A7 30232049000 £10.48 £12.57
5200 - HANDLE FEI-32125059000.A8 32125059000 £6.41 £7.69
5210 - WIRE CLAMP FEI-30232055000.A9 30232055000 £6.41 £7.69
5400 - ADAPTER HOSE FEI-30605110008.A9 30605110008 £2.37 £2.84
5410 - ADAPTER HOSE FEI-30605109006.A6 30605109006 £2.37 £2.84
5420 - HOSE SLEEVE FEI-30517029001.A15 30517029001 £6.26 £7.51
5430 - HOSE SLEEVE FEI-30517028007.A0 30517028007 £5.12 £6.15
5450 - SANDING PAD SET PERFORATED FEI-63806136220.A1 63806136220 £25.44 £30.53
5500 - DUST EXTRACTION SET FEI-92602092000.A9 92602092000 £70.78 £84.93
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A14 32160003014 -
9000 - OPERATING INSTRUCTIONS FMT250/FMT250Q FEI-34101201060.A0 34101201060 -
9020 - SAFETY INSTRUCTION FEI-34130054061.A402 34130054061 -
