Fein FSC 500 QSL (50/60Hz 220/230V) / 72294600230 Spare Parts

Fein FSC 500 QSL ⡐/60Hz 220/230V) / 72294600230 Spare Parts
Home Details Reviews Delivery

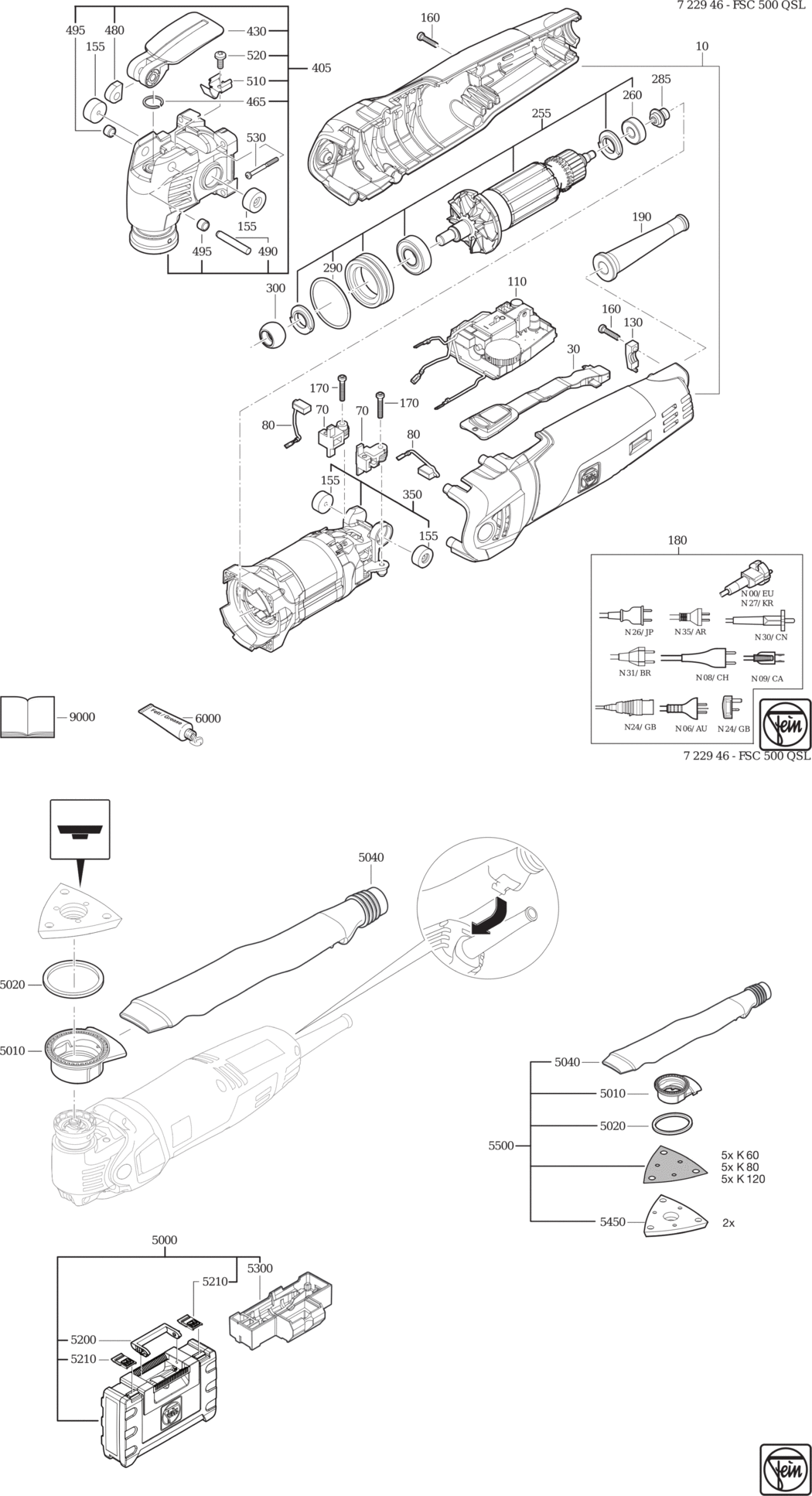

An exploded diagram and spare parts listing for the Fein FSC 500 QSL (50/60Hz 220/230V) / 72294600230
Ex VAT Inc VAT
10 - MOTOR HOUSING FEI-31901180010.A0 31901180010 £54.08 £64.90
30 - SLIDE SWITCH FEI-32805315000.A6 32805315000 £3.88 £4.65
70 - BRUSH HOLDER FEI-30712087015.A41 30712087015 £7.02 £8.43
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711157000.A5 30711157000 £6.85 £8.22
110 - SPEED SETTING SWITCH 100-230V 50/60HZ FEI-30762535990.A1 30762535990 £76.52 £91.83
130 - CABLE CLAMPING PIECE FEI-32431045000.A65 32431045000 £1.60 £1.92
155 - PRESSURE PIECE FEI-31415110000.A4 31415110000 £2.69 £3.23
160 - SCREW FEI-43074010000.A63 43074010000 £1.60 £1.92
170 - SCREW 35X20 FEI-43074002000.A22 43074002000 £1.60 £1.92
180 - CABLE WITH PLUG FEI-30707343017.A12 30707343017 £20.96 £25.15
190 - CABLE GROMMET FEI-31413233000.A67 31413233000 £2.60 £3.12
255 - ARMATURE 50/60H220/230V FEI-53278008230.A0 53278008230 £164.77 £197.72
260 - GROOVED BALL BEARING FEI-41701001260.A399 41701001260 £7.11 £8.53
285 - MAGNET FEI-32172014020.A6 32172014020 £9.42 £11.31
290 - SEALING RING FEI-40612000004.A7 40612000004 £1.60 £1.92
300 - NEEDLE BEARING FEI-41706000001.A0 41706000001 £43.50 £52.20
350 - STATOR 50HZ230V FEI-52278051230.A2 52278051230 £100.37 £120.44
405 - TOOL HEAD FEI-31508299030.A1 31508299030 £183.67 £220.40
430 - LEVER FEI-34300000013.A1 34300000013 £15.67 £18.80
465 - CIRCLIP FEI-42615110009.A9 42615110009 £1.60 £1.92
480 - ECCENTRIC RING FEI-33218150000.A1 33218150000 £3.54 £4.25
490 - PIN FEI-40242043008.A3 40242043008 £2.52 £3.02
495 - BUSH FEI-30507220000.A14 30507220000 £2.60 £3.12
510 - LOCKING SPRING FEI-30907069000.A15 30907069000 £8.55 £10.26
520 - FILLISTER HEAD SCREW FEI-43064023045.A88 43064023045 £1.60 £1.92
530 - SCREW FEI-43082000000.A5 43082000000 £1.60 £1.92
5000 - PLASTIC TOOL CASES FEI-33901154030.A4 33901154030 £60.17 £72.20
5010 - EXTRACTOR HOOD FEI-33218145000.A1 33218145000 -
5020 - FELT RING FEI-30601106007.A23 30601106007 £2.38 £2.86
5040 - SUCTION UNIT FEI-33218137010.A7 33218137010 £18.14 £21.77
5200 - HANDLE FEI-32119122000.A134 32119122000 -
5210 - WIRE CLAMP FEI-30232050000.A132 30232050000 £10.78 £12.94
5300 - INSERT FEI-33904547000.A1 33904547000 -
5450 - SANDING PAD SET PERFORATED FEI-63806136220.A9 63806136220 £25.44 £30.53
5500 - DUST EXTRACTION SET FEI-92602095000.A0 92602095000 £67.16 £80.59
6000 - LUBRICANT TUBE 0 080KG FEI-32160005000.A11 32160005000 -
9000 - N.A. FEI-34101316060.A2 34101316060 -
9020 - SAFETY INSTRUCTION FEI-34130054061.A415 34130054061 -
