Fein RSG 18b (50Hz 400V) / 73601000403 Spare Parts

Fein RSG 18b ⡐Hz 400V) / 73601000403 Spare Parts
Home Details Reviews Delivery

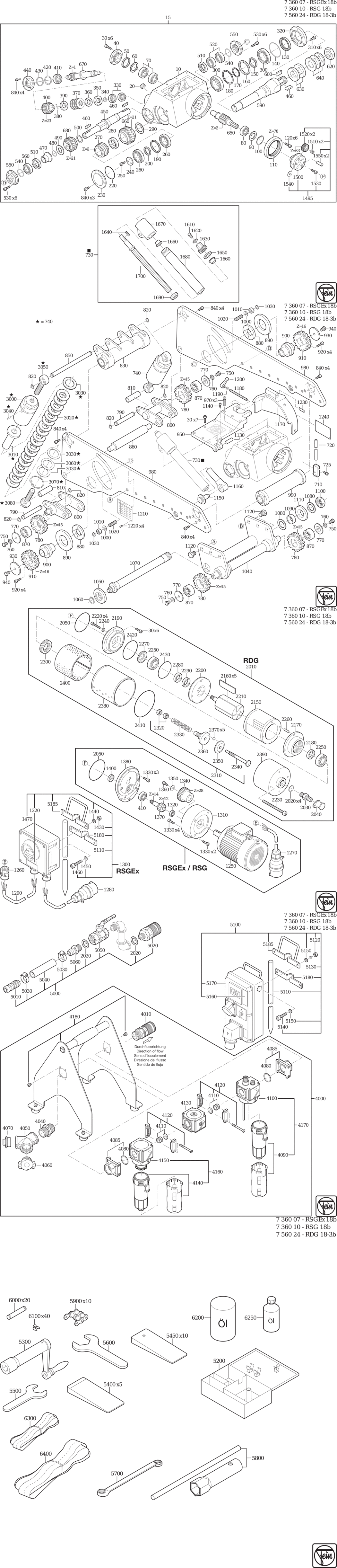

An exploded diagram and spare parts listing for the Fein RSG 18b (50Hz 400V) / 73601000403
Ex VAT Inc VAT
10 - HOUSING FEI-31207063009.A4 31207063009 £2619.39 £3143.27
15 - GEARBOX FEI-31207063030.A0 31207063030 -
20 - SCREW FEI-43043001009.A10 43043001009 -
30 - CYLINDER HEAD SCREW FEI-43035032065.A2 43035032065 -
40 - COVER FEI-32419057000.A5 32419057000 £114.20 £137.04
50 - SEALING RING FEI-40612015004.A6 40612015004 -
60 - DISC FEI-32624012038.A9 32624012038 -
60 - DISC FEI-32624012022.A2 32624012022 -
70 - INCLINED BALL BEARING FEI-41723002010.A4 41723002010 -
80 - GROOVED BALL BEARING FEI-41701016011.A7 41701016011 -
90 - DISC FEI-32408211003.A1 32408211003 £3.22 £3.86
100 - CIRCLIP FEI-42616022006.A0 42616022006 -
110 - GEAR-WHEEL FEI-33804011006.A10 33804011006 £181.90 £218.28
120 - CYLINDER HEAD SCREW FEI-43035009044.A1 43035009044 -
130 - SEALING RING FEI-40608000008.A5 40608000008 -
140 - SEALING RING FEI-40612018009.A5 40612018009 -
150 - RING FEI-32601165003.A1 32601165003 £56.69 £68.03
160 - RING FEI-32601167000.A1 32601167000 £60.98 £73.17
170 - DISC FEI-32624070024.A6 32624070024 £3.92 £4.70
180 - DISC FEI-32624080023.A7 32624080023 £7.07 £8.48
190 - RING FEI-32601168008.A10 32601168008 £52.56 £63.07
200 - RING FEI-32601166006.A10 32601166006 £58.37 £70.04
220 - SEALING RING FEI-40612021004.A7 40612021004 £3.88 £4.65
230 - COVER FEI-32419062006.A3 32419062006 £91.65 £109.98
240 - DISC FEI-32408452000.A5 32408452000 -
250 - CYLINDER HEAD SCREW FEI-43035031062.A9 43035031062 -
260 - TAPERED ROLLER BEARING FEI-41713006007.A0 41713006007 -
270 - WORM FEI-33805006000.A2 33805006000 -
280 - RING FEI-32601169002.A1 32601169002 £42.46 £50.95
290 - DISC FEI-32624071039.A6 32624071039 £5.89 £7.07
290 - DISC FEI-32624071023.A5 32624071023 £2.60 £3.12
300 - TAPERED ROLLER BEARING FEI-41713008009.A11 41713008009 -
310 - CYLINDER HEAD SCREW FEI-43035086069.A6 43035086069 -
320 - COVER FEI-32419060004.A6 32419060004 £194.68 £233.62
330 - INCLINED BALL BEARING FEI-41723001017.A7 41723001017 -
340 - DISC FEI-32624084027.A2 32624084027 £2.78 £3.34
340 - DISC FEI-32624084011.A9 32624084011 £3.72 £4.47
340 - DISC FEI-32624084033.A9 32624084033 £3.70 £4.44
350 - NUT FEI-42008021008.A5 42008021008 -
360 - RING FEI-32601170004.A10 32601170004 £39.83 £47.80
370 - CUP SPRING FEI-30905022007.A7 30905022007 -
380 - STRAIGHT PIN FEI-40201041003.A7 40201041003 -
390 - RING FEI-32601171003.A1 32601171003 £81.92 £98.30
400 - WORM FEI-33807013000.A6 33807013000 -
410 - GROOVED BALL BEARING FEI-41701222016.A12 41701222016 -
420 - DISC FEI-32624019027.A9 32624019027 £6.01 £7.21
420 - DISC FEI-32624019011.A2 32624019011 £6.01 £7.21
430 - SEALING RING FEI-40612022007.A3 40612022007 -
440 - COVER FEI-32419056006.A5 32419056006 £82.56 £99.07
450 - SHAFT FEI-33406099006.A0 33406099006 £938.77 £1126.52
460 - FEATHER KEY FEI-40221044000.A6 40221044000 £3.78 £4.54
470 - SLEEVE FEI-30503064001.A9 30503064001 £162.34 £194.81
480 - SEALING RING FEI-40612016007.A3 40612016007 -
490 - DISC FEI-32408191009.A3 32408191009 £14.52 £17.42
500 - DISC FEI-32624072032.A8 32624072032 £6.51 £7.81
500 - DISC FEI-32624072026.A3 32624072026 £1.60 £1.92
510 - SEALING RING FEI-40608026009.A12 40608026009 -
520 - INCLINED BALL BEARING FEI-41723003014.A8 41723003014 -
530 - CYLINDER HEAD SCREW FEI-43035005045.A9 43035005045 -
540 - SEALING RING FEI-40612019003.A8 40612019003 -
550 - COVER FEI-32419061003.A6 32419061003 £218.93 £262.72
560 - GROOVED BALL BEARING FEI-41701017015.A3 41701017015 -
590 - SHAFT FEI-33406098002.A5 33406098002 £1722.35 £2066.82
600 - FEATHER KEY FEI-40221050005.A8 40221050005 £6.28 £7.53
620 - HEX NUT FEI-42003009007.A6 42003009007 -
630 - DISC FEI-32408188004.A8 32408188004 £77.29 £92.75
640 - DISC FEI-32408187006.A3 32408187006 £93.68 £112.41
650 - WORM FEI-33806003000.A1 33806003000 -
660 - WORM FEI-33807009002.A2 33807009002 -
670 - WORM FEI-33806005002.A8 33806005002 £663.12 £795.75
680 - WORM FEI-33807011003.A4 33807011003 -
710 - PLATE FEI-32433027008.A3 32433027008 -
720 - MOUNTING SHAFT FEI-32715112003.A4 32715112003 -
725 - CYLINDER HEAD SCREW FEI-43033083066.A8 43033083066 £1.60 £1.92
730 - DELIVERY FIXTURE FEI-30520068017.A2 30520068017 £764.38 £917.26
740 - CLAMPING UNIT FEI-32715069041.A4 32715069041 £387.69 £465.23
750 - HEXAGON SOCKET SCREW FEI-43048054109.A0 43048054109 -
760 - DISC FEI-42401017104.A9 42401017104 -
770 - DISC FEI-32415059008.A10 32415059008 -
780 - HOOK AND LOOP WHEEL FEI-32715115009.A9 32715115009 £83.08 £99.70
790 - BOLT FEI-30217317004.A4 30217317004 -
800 - HINGE FEI-33406279012.A7 33406279012 -
810 - SLEEVE FEI-30501340005.A9 30501340005 -
820 - CIRCLIP FEI-42616023000.A36 42616023000 -
830 - CROSSBAR FEI-32715118013.A2 32715118013 -
840 - CYLINDER HEAD SCREW FEI-43033083066.A7 43033083066 £1.60 £1.92
850 - BOLT FEI-30217213009.A5 30217213009 £30.08 £36.09
860 - BOLT FEI-30217316000.A7 30217316000 -
870 - INCLINED BALL BEARING FEI-41711021008.A8 41711021008 -
880 - DISC FEI-32408378007.A9 32408378007 -
890 - DISC FEI-32715117006.A3 32715117006 £136.72 £164.06
900 - SLEEVE FEI-32715122002.A9 32715122002 -
910 - HOOK AND LOOP WHEEL FEI-32715116002.A2 32715116002 £103.88 £124.66
920 - CYLINDER HEAD SCREW FEI-43035097059.A2 43035097059 £1.60 £1.92
930 - DISC FEI-32408374008.A4 32408374008 -
940 - HEXAGON SOCKET SCREW FEI-43001041105.A6 43001041105 -
950 - COVER FEI-32429120000.A10 32429120000 £535.71 £642.85
970 - CYLINDER HEAD SCREW FEI-43035037068.A2 43035037068 -
980 - PAIR OF SIDE PLATES FEI-32715113016.A3 32715113016 -
990 - CROSSBAR FEI-30240361010.A4 30240361010 -
1000 - DISC FEI-42401020139.A1 42401020139 £1.60 £1.92
1010 - HEX NUT FEI-42001034120.A1 42001034120 -
1020 - THREAD BOLT FEI-33021098000.A1 33021098000 £40.53 £48.64
1030 - CIRCLIP FEI-42616013001.A57 42616013001 £1.60 £1.92
1040 - SHAFT FEI-33406283010.A9 33406283010 -
1050 - DISC FEI-32715120000.A10 32715120000 £170.66 £204.79
1060 - CIRCLIP FEI-42616044006.A9 42616044006 -
1070 - SHAFT FEI-33406336000.A5 33406336000 -
1080 - DISC FEI-32408376005.A4 32408376005 £50.00 £60.00
1090 - SLEEVE FEI-30501339003.A4 30501339003 £57.22 £68.67
1100 - HEX NUT FEI-30509052000.A8 30509052000 -
1110 - DISC FEI-32715121009.A3 32715121009 £157.99 £189.59
1120 - SCREW FEI-43012051122.A4 43012051122 -
1130 - BOLT FEI-30217314003.A3 30217314003 £16.47 £19.76
1140 - CYLINDER HEAD SCREW FEI-43033084045.A9 43033084045 -
1150 - THREAD BOLT FEI-33021097002.A11 33021097002 £102.96 £123.55
1160 - HINGE FEI-30509019010.A3 30509019010 £138.71 £166.45
1170 - SAFETY HOOD FEI-31810234000.A8 31810234000 -
1180 - STUD BOLT FEI-43007059080.A3 43007059080 £5.21 £6.25
1190 - DISC FEI-42401019085.A61 42401019085 £1.60 £1.92
1200 - LEVER FEI-32170002005.A9 32170002005 £52.40 £62.88
1210 - INFORMATION SIGN FEI-32215103069.A3 32215103069 -
1220 - RIVET FEI-40204001009.A2 40204001009 -
1230 - INFORMATION SIGN FEI-32215026007.A0 32215026007 £1.60 £1.92
1240 - INFORMATION SIGN FEI-32215104067.A6 32215104067 -
1250 - MOTOR FEI-54399002153.A1 54399002153 -
1260 - CABLE CLAMPING PIECE FEI-30723053004.A2 30723053004 -
1270 - CABLE WITH PLUG FEI-30707371017.A2 30707371017 -
1310 - FLANGE FEI-32436060002.A2 32436060002 -
1320 - GROOVED BALL BEARING FEI-41701010010.A64 41701010010 £8.58 £10.30
1330 - CYLINDER HEAD SCREW FEI-43035048087.A2 43035048087 -
1340 - GEAR-WHEEL FEI-33669025002.A6 33669025002 -
1350 - DISC FEI-42402010082.A0 42402010082 -
1360 - CYLINDER HEAD SCREW FEI-43033077088.A6 43033077088 -
1370 - SHAFT TOOTHED FEI-33811066000.A6 33811066000 -
1380 - FLANGE FEI-32436061001.A5 32436061001 -
1400 - SEALING RING FEI-40608062006.A2 40608062006 -
1495 - PLANETARY GEAR FEI-32715055021.A3 32715055021 £784.80 £941.76
1500 - PLANETARY CARRIER FEI-32715055015.A8 32715055015 £628.10 £753.72
1510 - NEEDLE CAGE FEI-41715016004.A10 41715016004 -
1520 - GEAR-WHEEL FEI-33613071004.A6 33613071004 £66.63 £79.96
1530 - CYLINDER HEAD SCREW FEI-43033064066.A62 43033064066 £1.60 £1.92
1540 - DISC FEI-32402002000.A3 32402002000 £14.39 £17.27
1550 - PIN FEI-40242017000.A9 40242017000 -
1610 - CYLINDER HEAD SCREW FEI-43035029061.A1 43035029061 £1.60 £1.92
1620 - DISC FEI-32402001007.A8 32402001007 £31.64 £37.97
1630 - CLUTCH PART FEI-30101026001.A11 30101026001 £94.46 £113.35
1640 - FEATHER KEY FEI-40221018002.A9 40221018002 -
1650 - SEALING RING FEI-40612020005.A4 40612020005 -
1660 - BUSH FEI-31602087007.A0 31602087007 £8.60 £10.32
1670 - BEARING PIECE FEI-32715114005.A3 32715114005 £244.44 £293.33
1680 - PIPE FEI-30520068008.A9 30520068008 -
1690 - RING FEI-30606008008.A5 30606008008 £24.01 £28.81
1700 - THREAD BOLT FEI-33406146004.A5 33406146004 £233.70 £280.44
2050 - SEALING RING FEI-40612017001.A9 40612017001 £8.16 £9.79
3000 - CLAMPING SLEEVE FEI-32715069013.A7 32715069013 £150.26 £180.31
3010 - BOLT FEI-32715071005.A6 32715071005 £96.34 £115.61
3020 - CUP SPRING FEI-30905023001.A5 30905023001 £11.03 £13.24
3030 - RING FEI-32601172006.A11 32601172006 £19.99 £23.99
3040 - PIN FEI-40247005009.A0 40247005009 -
3050 - RING BOLT FEI-43040004165.A11 43040004165 -
3060 - DISC FEI-32624078049.A5 32624078049 £7.35 £8.82
3070 - CIRCLIP FEI-42616048005.A6 42616048005 -
3080 - RING BOLT FEI-43040005004.A0 43040005004 -
5100 - SWITCHING BOX FEI-30702041014.A1 30702041014 £1950.18 £2340.22
5110 - EXTENSION FEI-32715025009.A2 32715025009 £88.06 £105.67
5120 - HEX NUT FEI-42001007053.A0 42001007053 £1.60 £1.92
5130 - LOCK WASHER M5 FEI-42439004051.A1 42439004051 -
5140 - CYLINDER HEAD SCREW FEI-43002058056.A12 43002058056 £1.60 £1.92
5150 - DISC FEI-42402006059.A3 42402006059 -
5160 - INFORMATION SIGN FEI-32217376065.A3 32217376065 -
5170 - SWITCH FEI-30702041005.A6 30702041005 -
5180 - CLAMP FEI-30230054022.A1 30230054022 £136.28 £163.54
5185 - HANDLE FEI-30230054038.A6 30230054038 -
5200 - TOOL CASE FEI-33901031001.A9 33901031001 -
5300 - N.A. FEI-32122007017.A6 32122007017 -
5450 - SPLITTER WEDGE FEI-63305006008.A3 63305006008 £17.89 £21.47
5500 - JAW SPANNER SW46 FEI-62901016002.A6 62901016002 £31.91 £38.29
5600 - SINGLE HEAD WRENCH FEI-62903010006.A4 62903010006 -
5700 - RING SPANNER 17X19 FEI-62911010000.A5 62911010000 -
5800 - PIPE SOCKET WRENCH FEI-62906014000.A7 62906014000 -
5900 - ROLLER CHAIN FEI-30231029002.A5 30231029002 -
6000 - BOLT FEI-30217216004.A6 30217216004 £3.50 £4.20
6100 - CIRCLIP FEI-42634020005.A0 42634020005 £1.60 £1.92
6200 - LUBRICANT CAN 1.800 KG FEI-32132009013.A6 32132009013 -
6300 - WRIST STRAP FEI-32174009001.A1 32174009001 -
6400 - WRIST STRAP FEI-32174010003.A10 32174010003 -
