Festool CXS / 10010708 Spare Parts

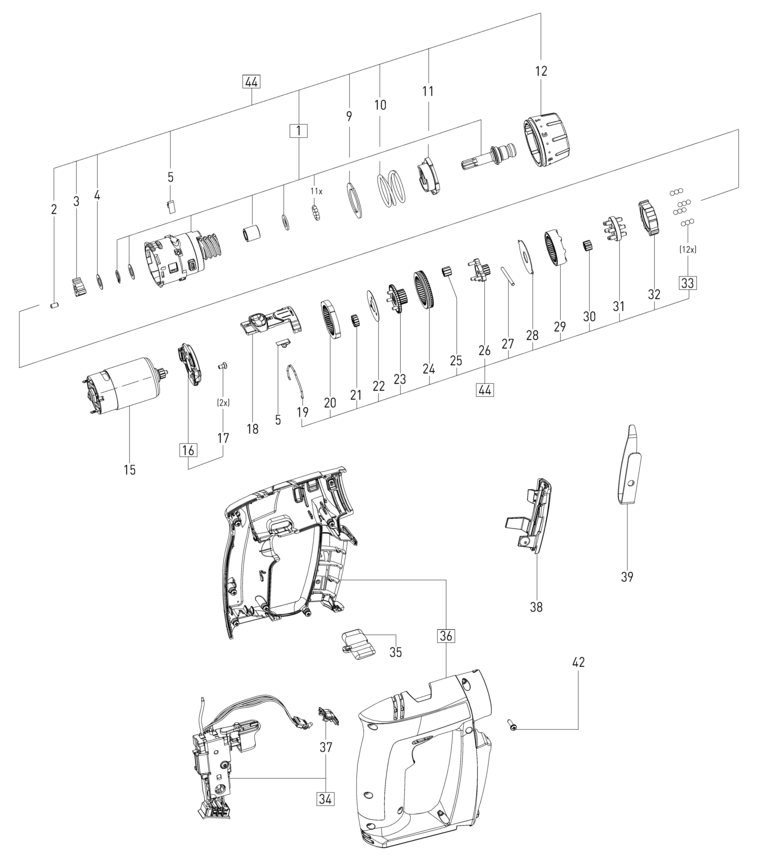

An exploded diagram and spare parts listing for the Festool CXS / 10010708

	Ex VAT	Inc VAT
1 - GEAR HOUSING FSP-500457.A0 500457	£41.75	£50.10
2 - CYLINDER ROLLER FSP-476859.A0 476859	£2.00	£2.40
3 - STUD FSP-475778.A1 475778	£2.00	£2.40
4 - SHIM RING FSP-400884.A11 400884	£2.00	£2.40
5 - SPRING FSP-479011.A1 479011	£2.00	£2.40
9 - PRESSURE DISC FSP-475783.A0 475783	£2.00	£2.40
10 - PRESSURE SPRING FSP-475784.A2 475784	£2.00	£2.40
11 - PRESSURE RING FSP-475785.A0 475785	£2.00	£2.40
12 - ADJUSTING RING FSP-478375.A2 478375	£4.58	£5.49
15 - MOTOR FSP-497615.A1 497615	£41.98	£50.37
16 - MOTOR MOUNT FSP-497614.A0 497614	£13.69	£16.43
17 - RAISED-HEAD SCREW FSP-478441.A1 478441	£2.00	£2.40
18 - GEAR SLIDE FSP-475788.A1 475788	£2.00	£2.40
19 - SWITCHING CLIP FSP-475771.A0 475771	£2.00	£2.40
20 - RING GEAR FSP-475766.A0 475766	£2.94	£3.53
21 - PLANET FSP-475767.A2 475767	£2.00	£2.40
22 - WASHER FSP-475769.A0 475769	£2.00	£2.40
23 - STUD FSP-495638.A2 495638	£5.25	£6.30
24 - SWITCHING RING FSP-475770.A2 475770	£3.12	£3.75
25 - PLANET FSP-475772.A2 475772	£2.00	£2.40
26 - STUD FSP-495639.A0 495639	£3.52	£4.22
27 - PIN FSP-475774.A0 475774	£2.00	£2.40
28 - COVER DISC FSP-475800.A0 475800	£2.00	£2.40
29 - RING GEAR FSP-475775.A2 475775	£5.18	£6.22
30 - PLANET FSP-475776.A0 475776	£2.00	£2.40
31 - STUD FSP-495640.A2 495640	£8.18	£9.81
32 - RING FSP-475780.A0 475780	£5.68	£6.82
33 - BALL (BG 12 STCK) FSP-499321.A1 499321	£8.24	£9.89
34 - SWITCH MODUL FSP-500375.A0 500375	£63.94	£76.73
35 - DESPATCHER FSP-475787.A0 475787	£2.00	£2.40
36 - HOUSING FSP-500374.A0 500374	£21.46	£25.75
37 - LENS FSP-10012150.A0 10012150	£5.68	£6.82
38 - BIT HOLDER FSP-495823.A0 495823	£4.61	£5.53
39 - RETAINING BRACKET FSP-475760.A1 475760	£3.32	£3.98
42 - RAISED-HEAD SCREW 3.0 X 12 MM FSP-228717.A6 228717	£2.00	£2.40
44 - GEAR FSP-499379.A2 499379	£88.15	£105.78
