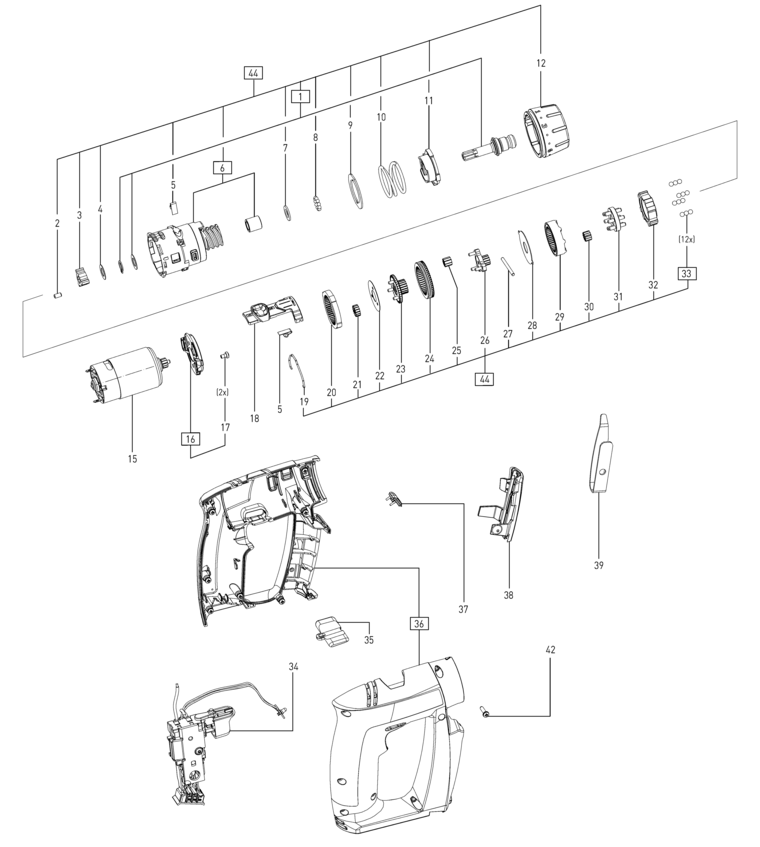

An exploded diagram and spare parts listing for the Festool CXS / 495635
Ex VAT Inc VAT
1 - OUTPUT SHAFT FSP-497612.A0 497612 £38.24 £45.89
2 - CYLINDER ROLLER FSP-476859.A1 476859 £2.00 £2.40
3 - STUD FSP-475778.A0 475778 £2.00 £2.40
4 - SHIM RING FSP-400884.A13 400884 £2.00 £2.40
5 - SPRING FSP-479011.A0 479011 £2.00 £2.40
6 - GEAR HOUSING FSP-497616.A0 497616 £20.22 £24.27
7 - SUPPORTING RING FSP-400009.A11 400009 £2.00 £2.40
8 - BALL 3 MM FSP-200861.A2 200861 £2.00 £2.40
9 - PRESSURE DISC FSP-475783.A1 475783 £2.00 £2.40
10 - PRESSURE SPRING FSP-475784.A1 475784 £2.00 £2.40
11 - PRESSURE RING FSP-475785.A1 475785 £2.00 £2.40
12 - ADJUSTING RING FSP-478375.A1 478375 £4.58 £5.49
15 - MOTOR FSP-497615.A0 497615 £41.98 £50.37
16 - MOTOR MOUNT FSP-497614.A1 497614 £13.69 £16.43
17 - RAISED-HEAD SCREW FSP-478441.A2 478441 £2.00 £2.40
18 - GEAR SLIDE FSP-475788.A0 475788 £2.00 £2.40
19 - SWITCHING CLIP FSP-475771.A2 475771 £2.00 £2.40
20 - RING GEAR FSP-475766.A2 475766 £2.94 £3.53
21 - PLANET FSP-475767.A0 475767 £2.00 £2.40
22 - WASHER FSP-475769.A2 475769 £2.00 £2.40
23 - STUD FSP-495638.A0 495638 £5.25 £6.30
24 - SWITCHING RING FSP-475770.A0 475770 £3.12 £3.75
25 - PLANET FSP-475772.A0 475772 £2.00 £2.40
26 - STUD FSP-495639.A2 495639 £3.52 £4.22
27 - PIN FSP-475774.A2 475774 £2.00 £2.40
28 - COVER DISC FSP-475800.A2 475800 £2.00 £2.40
29 - RING GEAR FSP-475775.A0 475775 £5.18 £6.22
30 - PLANET FSP-475776.A2 475776 £2.00 £2.40
31 - STUD FSP-495640.A0 495640 £8.18 £9.81
32 - RING FSP-475780.A2 475780 £5.68 £6.82
33 - BALL (BG 12 STCK) FSP-499321.A0 499321 £8.24 £9.89
34 - SWITCH MODUL FSP-497634.A0 497634 £41.98 £50.37
35 - DESPATCHER FSP-475787.A1 475787 £2.00 £2.40
36 - HOUSING FSP-497622.A0 497622 £20.63 £24.76
37 - LENS FSP-476525.A0 476525 £2.00 £2.40
38 - BIT HOLDER FSP-495823.A1 495823 £4.61 £5.53
39 - RETAINING BRACKET FSP-475760.A0 475760 £3.32 £3.98
42 - RAISED-HEAD SCREW 3.0 X 12 MM FSP-228717.A5 228717 £2.00 £2.40
44 - GEAR FSP-499379.A0 499379 £88.15 £105.78
