Festool KS 120 REB GB 110V / 10034768 Spare Parts

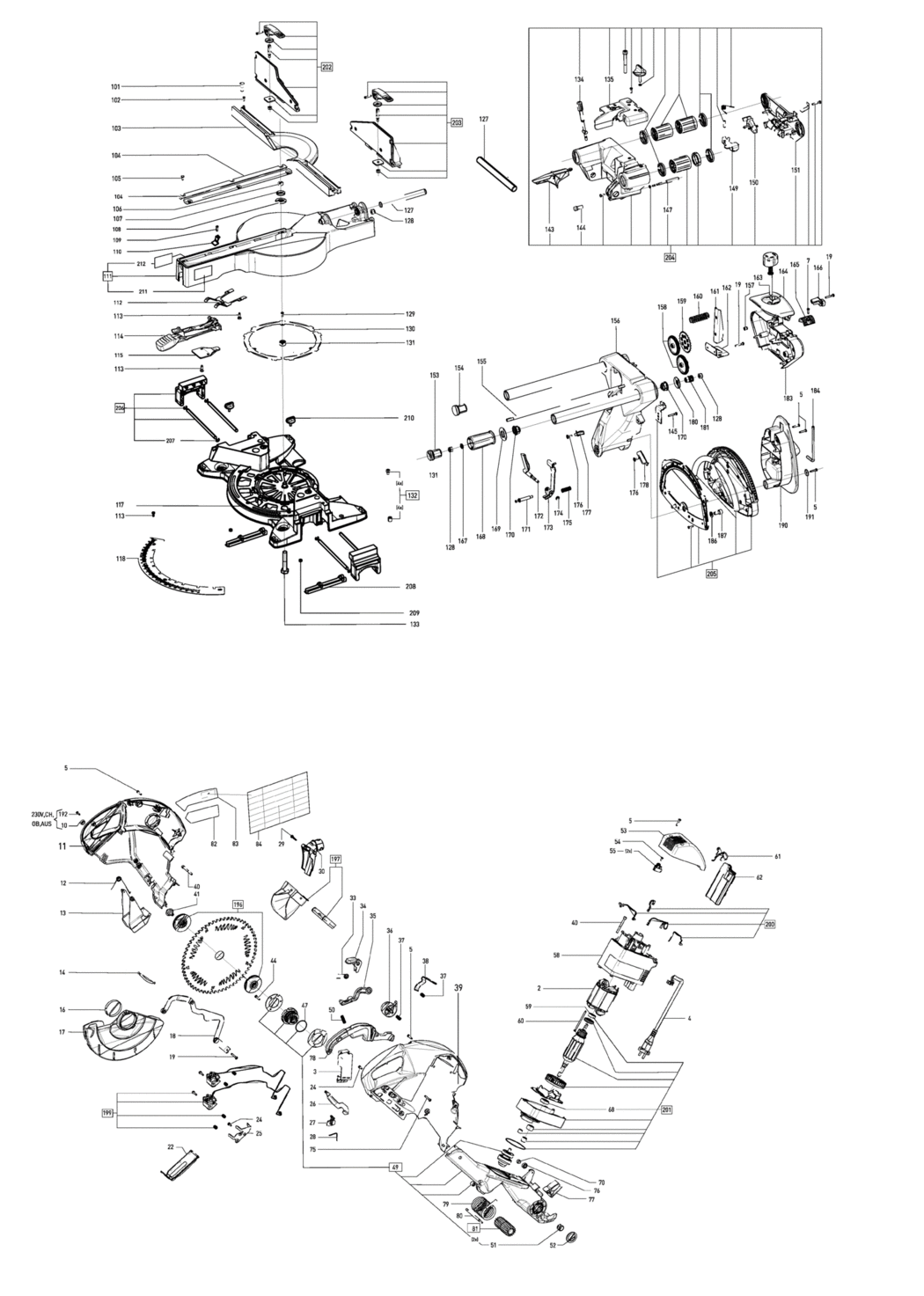

An exploded diagram and spare parts listing for the Festool KS 120 REB GB 110V / 10034768

	Ex VAT	Inc VAT
2 - FIELD ASSEMBLY 120V-230V FSP-494970.A7 494970	£78.62	£94.35
3 - SWITCH MODUL GB 110V FSP-204245.A0 204245	£49.05	£58.86
4 - MAINS CABLE GB 110V FSP-471529.A5 471529	£25.08	£30.09
5 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A32 228567	£2.00	£2.40
7 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-400468.A86 400468	£2.00	£2.40
10 - COVER FSP-471820.A0 471820	£2.00	£2.40
11 - PISTOL STOCK FSP-10801592.A4 10801592	£24.83	£29.80
12 - LEG SPRING FSP-470772.A21 470772	£2.64	£3.17
13 - DUST EXTRACTION ATTACHMENT FSP-10037680.A19 10037680	£6.91	£8.29
14 - DRAW SPRING FSP-709050.A2 709050	£2.38	£2.86
16 - BAND FSP-473432.A0 473432	£2.00	£2.40
17 - PROTECTIVE COVER FSP-10037697.A3 10037697	£17.18	£20.61
18 - SWIVEL LEVER FSP-497504.A17 497504	£22.83	£27.40
19 - RAISED-HEAD SCREW M4 X 25 FSP-400928.A8 400928	£2.00	£2.40
22 - LENS FSP-470717.A21 470717	£2.86	£3.43
24 - RAISED-HEAD SCREW M4 X 10 FSP-228738.A9 228738	£2.00	£2.40
25 - HOLDING PLATE FSP-471209.A11 471209	£3.62	£4.35
26 - BRACKET FSP-470647.A15 470647	£2.66	£3.19
27 - CATCH FSP-473479.A8 473479	£2.00	£2.40
28 - PLATE SPRING FSP-473480.A15 473480	£2.00	£2.40
29 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-400695.A20 400695	£2.00	£2.40
30 - EXTRACTOR CONNECTOR FSP-203889.A1 203889	£12.98	£15.57
31 - APRON FSP-471316.A2 471316	£8.86	£10.63
32 - CLAMP FSP-471315.A12 471315	£3.45	£4.14
33 - TORSION SPRING FSP-470762.A22 470762	£2.00	£2.40
34 - LOCK-OUT MECHANISM FSP-470646.A8 470646	£2.00	£2.40
35 - LEVER FSP-471448.A0 471448	£2.00	£2.40
36 - ROTARY KNOB FSP-470648.A8 470648	£2.00	£2.40
37 - PRESSURE SPRING FSP-470978.A7 470978	£2.00	£2.40
38 - DETENT LEVER FSP-470767.A1 470767	£8.42	£10.11
39 - PISTOL STOCK FSP-10801593.A8 10801593	£20.89	£25.07
40 - CHEESE HEAD SCREW M5 X 50 FSP-219057.A10 219057	£2.00	£2.40
41 - SPECIAL SCREW FSP-10015550.A17 10015550	£13.60	£16.32
44 - RAISED-HEAD SCREW M4 X 20 FSP-228569.A35 228569	£2.00	£2.40
47 - O-RING FSP-470760.A1 470760	£2.00	£2.40
49 - GEAR FSP-205186.A2 205186	£161.27	£193.52
50 - PRESSURE SPRING FSP-474284.A21 474284	£2.00	£2.40
51 - BUSH FSP-400994.A13 400994	£2.00	£2.40
52 - CLAMP FSP-475620.A3 475620	£2.00	£2.40
53 - CAP FSP-470652.A15 470652	£7.95	£9.54
54 - RAISED-HEAD SCREW 3.5 X 8 MM FSP-219047.A91 219047	£2.00	£2.40
55 - BRUSH HOLDER WITH BRUSHES (PAIR) FSP-494785.A17 494785	£25.96	£31.15
58 - MOTOR HOUSING FSP-470650.A8 470650	£18.95	£22.74
59 - BALL BEARING FSP-401525.A67 401525	£4.72	£5.66
60 - RAISED-HEAD SCREW 4.0 X 70 MM FSP-442415.A41 442415	£2.00	£2.40
61 - PUSHER FSP-470649.A8 470649	£2.00	£2.40
62 - ELECTRONIC FSP-204209.A3 204209	£115.32	£138.39
68 - BALL BEARING FSP-789575.A1 789575	£5.99	£7.19
70 - BEARING SLEEVE FSP-478302.A16 478302	£2.88	£3.46
75 - RAISED-HEAD SCREW 3.5 X 12 MM FSP-454296.A17 454296	£2.00	£2.40
76 - ROLLER FSP-10018118.A8 10018118	£5.00	£6.00
77 - BUFFER FSP-470776.A22 470776	£2.00	£2.40
78 - PUSHER FSP-470645.A15 470645	£5.17	£6.20
79 - LEG SPRING FSP-10009631.A2 10009631	-
80 - BOLT FSP-471428.A22 471428	£3.45	£4.14
81 - DISTANCE BUSH FSP-200001.A0 200001	£23.21	£27.85
82 - NAMEPLATE FSP-717275.A0 717275	£2.94	£3.53
83 - LABEL FSP-706973.A5 706973	£4.92	£5.91
84 - WARNING PLATE FSP-706974.A0 706974	£2.00	£2.40
101 - CHEESE HEAD SCREW M8 X 20 FSP-774347.A21 774347	£2.00	£2.40
102 - CHEESE HEAD SCREW M3 X 10 FSP-400934.A21 400934	£2.00	£2.40
103 - STOP FSP-10897365.A3 10897365	£60.04	£72.05
104 - TABLE TOP INSERT FSP-470657.A9 470657	£4.75	£5.70
105 - RAISED-HEAD SCREW M4 X 10 FSP-228733.A87 228733	£2.00	£2.40
106 - HEXAGON NUT M8 FSP-200719.A67 200719	£2.00	£2.40
107 - WASHER 8.4 MM FSP-400996.A14 400996	£2.00	£2.40
108 - SPRING WASHER FSP-479669.A4 479669	£2.00	£2.40
109 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A17 228584	£2.00	£2.40
110 - INDICATOR FSP-470660.A14 470660	£2.00	£2.40
111 - BASE FSP-494968.A3 494968	£189.85	£227.82
112 - CATCH FSP-470664.A17 470664	£15.97	£19.16
113 - SCREW FSP-400709.A57 400709	£2.00	£2.40
114 - LEVER FSP-10607946.A3 10607946	£17.89	£21.47
115 - SPRING PLATE FSP-470665.A6 470665	£8.93	£10.72
117 - SIDE PANEL FSP-10044538.A5 10044538	£189.83	£227.80
118 - SCALE FSP-470663.A6 470663	£36.32	£43.59
127 - BOLT FSP-10016971.A21 10016971	£14.22	£17.07
128 - HEXAGON NUT M8 FSP-200735.A47 200735	£2.00	£2.40
130 - GLIDE PLATE FSP-470662.A17 470662	£2.66	£3.19
131 - BUSH FSP-473215.A17 473215	£2.00	£2.40
132 - BUFFER (4 PCS.) FSP-494780.A1 494780	£38.18	£45.81
133 - HEXAGON SCREW M8 X 45 FSP-400937.A16 400937	£2.00	£2.40
134 - DEPTH STOP FSP-495266.A8 495266	£16.48	£19.78
135 - CLAMPING PLATE FSP-470640.A7 470640	£3.93	£4.72
143 - END STOP FSP-473656.A17 473656	£3.45	£4.14
144 - KNOB FSP-470639.A16 470639	£2.00	£2.40
147 - PIN FSP-470514.A2 470514	£6.39	£7.67
149 - DEPTH STOP FSP-470509.A2 470509	£6.68	£8.01
150 - PUSHER FSP-470631.A5 470631	£2.00	£2.40
151 - COVER FSP-470630.A16 470630	£6.64	£7.97
153 - PLUG FSP-471192.A6 471192	£3.45	£4.14
154 - PLUG FSP-501549.A2 501549	£2.00	£2.40
155 - THREADED ROD FSP-470561.A2 470561	£13.42	£16.11
156 - SWIVEL ARM FSP-495778.A16 495778	£164.72	£197.67
157 - PRESSURE CLAMPING ELEMENT FSP-400287.A48 400287	£4.89	£5.87
158 - GEAR FSP-470886.A0 470886	£2.93	£3.52
159 - ADJUSTING KNOB FSP-471313.A0 471313	£2.94	£3.53
160 - PRESSURE SPRING FSP-471024.A3 471024	£2.00	£2.40
161 - BRAKE LEVER FSP-470508.A21 470508	£5.43	£6.52
162 - BEARING SHEET FSP-470510.A20 470510	£4.37	£5.24
163 - ROTARY KNOB FSP-494172.A20 494172	£15.67	£18.80
164 - CLAMPING LEVER FSP-470634.A8 470634	£7.94	£9.53
165 - CABLE CLAMP FSP-470641.A15 470641	£2.00	£2.40
166 - HOLDER FSP-470636.A8 470636	£3.53	£4.24
167 - WASHER FSP-471193.A15 471193	£2.00	£2.40
168 - KNOB LEVER FSP-470632.A9 470632	£4.75	£5.70
169 - SPRING WASHER FSP-469785.A2 469785	£2.00	£2.40
170 - BUSH FSP-470560.A20 470560	£2.00	£2.40
171 - LOCKING BOLT FSP-470515.A11 470515	£6.39	£7.67
172 - SWIVEL LEVER FSP-494171.A3 494171	£9.15	£10.98
173 - HOOK FSP-470518.A3 470518	£7.99	£9.59
174 - WASHER FSP-208623.A8 208623	£2.00	£2.40
175 - PRESSURE SPRING FSP-471026.A17 471026	£2.00	£2.40
176 - ROUND-HEAD SCREW 3.5 X 14 MM FSP-400981.A2 400981	£2.00	£2.40
177 - INDICATOR FSP-470627.A16 470627	£2.00	£2.40
178 - INDICATOR FSP-470628.A7 470628	£2.00	£2.40
180 - SPRING WASHER FSP-761692.A1 761692	£2.00	£2.40
181 - PINION FSP-470885.A23 470885	£6.39	£7.67
183 - COVER FSP-470635.A16 470635	£11.01	£13.21
184 - PIN KEY FSP-439274.A14 439274	£3.56	£4.27
186 - WASHER 8.4 MM FSP-228601.A0 228601	£2.00	£2.40
187 - CHEESE HEAD SCREW M8 X 16 FSP-200201.A20 200201	£2.00	£2.40
190 - CABLE HOLDER FSP-470642.A7 470642	£22.02	£26.42
191 - WASHER FSP-400929.A17 400929	£2.00	£2.40
192 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A16 228584	£2.00	£2.40
196 - FLANGE FSP-200210.A3 200210	£72.49	£86.99
197 - APRON FSP-200215.A14 200215	£24.21	£29.05
199 - LASER FSP-204545.A2 204545	£58.51	£70.21
201 - END PLATE FSP-204142.A0 204142	£129.92	£155.90
202 - STOP FSP-204073.A4 204073	£59.67	£71.60
203 - STOP FSP-204074.A1 204074	£53.04	£63.65
204 - CART FSP-200199.A16 200199	£148.52	£178.22
205 - SWIVELING SEGMENT FSP-200202.A2 200202	£71.93	£86.32
206 - EXTENSION TABLE FSP-203949.A4 203949	£54.65	£65.58
207 - SERRATED LOCK WASHER FSP-203950.A5 203950	£2.00	£2.40
208 - CLAMP FSP-10030716.A3 10030716	£15.47	£18.56
209 - HEXAGON NUT M6 FSP-228689.A7 228689	£2.00	£2.40
210 - ROTARY KNOB FSP-10034923.A0 10034923	£7.92	£9.51
