Festool KS 88 E GB 240V / 496872 Spare Parts

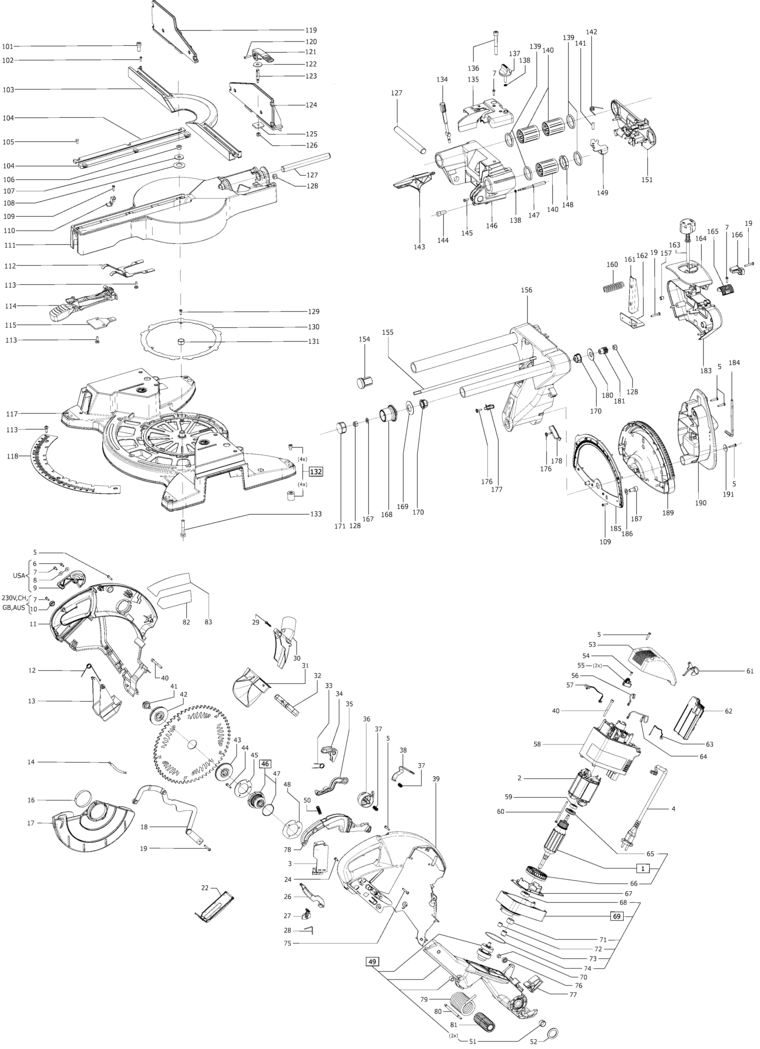

An exploded diagram and spare parts listing for the Festool KS 88 E GB 240V / 496872

	Ex VAT	Inc VAT
2 - FIELD ASSEMBLY FSP-493245.A5 493245	£114.13	£136.96
3 - SWITCH MODUL FSP-496858.A1 496858	£48.34	£58.01
4 - MAINS CABLE GB 240V FSP-471528.A4 471528	£25.08	£30.09
5 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A214 228567	£2.00	£2.40
7 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-400468.A14 400468	£2.00	£2.40
10 - COVER FSP-471820.A20 471820	£2.00	£2.40
11 - PISTOL STOCK FSP-10801592.A13 10801592	£24.83	£29.80
12 - LEG SPRING FSP-470772.A3 470772	£2.64	£3.17
13 - DUST EXTRACTION ATTACHMENT FSP-10037680.A12 10037680	£6.91	£8.29
14 - DRAW SPRING FSP-709050.A13 709050	£2.38	£2.86
16 - BAND FSP-473432.A20 473432	£2.00	£2.40
17 - PROTECTIVE COVER FSP-10037697.A11 10037697	£17.18	£20.61
18 - SWIVEL LEVER FSP-497504.A8 497504	£22.83	£27.40
19 - RAISED-HEAD SCREW M4 X 25 FSP-400928.A14 400928	£2.00	£2.40
22 - LENS FSP-470717.A4 470717	£2.86	£3.43
24 - RAISED-HEAD SCREW M4 X 10 FSP-228738.A56 228738	£2.00	£2.40
26 - BRACKET FSP-470647.A11 470647	£2.66	£3.19
27 - CATCH FSP-473479.A13 473479	£2.00	£2.40
28 - PLATE SPRING FSP-473480.A10 473480	£2.00	£2.40
29 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-400695.A69 400695	£2.00	£2.40
30 - EXTRACTOR CONNECTOR FSP-494307.A10 494307	£9.65	£11.58
33 - TORSION SPRING FSP-470762.A4 470762	£2.00	£2.40
34 - LOCK-OUT MECHANISM FSP-470646.A12 470646	£2.00	£2.40
35 - LEVER FSP-471448.A21 471448	£2.00	£2.40
36 - ROTARY KNOB FSP-470648.A12 470648	£2.00	£2.40
37 - PRESSURE SPRING FSP-470978.A14 470978	£2.00	£2.40
38 - DETENT LEVER FSP-470767.A19 470767	£8.42	£10.11
39 - PISTOL STOCK FSP-10801593.A18 10801593	£20.89	£25.07
40 - CHEESE HEAD SCREW M5 X 50 FSP-219057.A17 219057	£2.00	£2.40
41 - SPECIAL SCREW FSP-10015550.A9 10015550	£13.60	£16.32
44 - RAISED-HEAD SCREW M4 X 20 FSP-228569.A55 228569	£2.00	£2.40
46 - SHAFT FSP-495627.A3 495627	-
47 - O-RING FSP-470760.A19 470760	£2.00	£2.40
49 - GEAR HOUSING FSP-205177.A17 205177	£164.42	£197.30
50 - PRESSURE SPRING FSP-474284.A4 474284	£2.00	£2.40
51 - BUSH FSP-400994.A44 400994	£2.00	£2.40
52 - CLAMP FSP-475620.A8 475620	£2.00	£2.40
53 - CAP FSP-470652.A10 470652	£7.95	£9.54
54 - RAISED-HEAD SCREW 3.5 X 8 MM FSP-219047.A3 219047	£2.00	£2.40
55 - BRUSH HOLDER WITH BRUSHES (PAAR) FSP-497341.A2 497341	£42.10	£50.52
58 - MOTOR HOUSING FSP-470650.A13 470650	£18.95	£22.74
59 - BALL BEARING FSP-401525.A16 401525	£4.72	£5.66
60 - RAISED-HEAD SCREW 4.0 X 70 MM FSP-442415.A31 442415	£2.00	£2.40
61 - PUSHER FSP-478895.A5 478895	£2.00	£2.40
62 - ELECTRONIC FSP-494267.A2 494267	£117.06	£140.47
65 - SOLENOID RING FSP-488965.A9 488965	£3.38	£4.05
68 - BALL BEARING FSP-789575.A58 789575	£5.99	£7.19
70 - BEARING SLEEVE FSP-478302.A10 478302	£2.88	£3.46
75 - RAISED-HEAD SCREW 3.5 X 12 MM FSP-454296.A4 454296	£2.00	£2.40
76 - ROLLER FSP-10018118.A17 10018118	£5.00	£6.00
77 - BUFFER FSP-470776.A4 470776	£2.00	£2.40
78 - PUSHER FSP-470645.A7 470645	£5.17	£6.20
79 - LEG SPRING FSP-10009631.A21 10009631	-
80 - BOLT FSP-471428.A2 471428	£3.45	£4.14
81 - DISTANCE BUSH FSP-200001.A22 200001	£23.21	£27.85
82 - LABEL FSP-478902.A3 478902	£3.00	£3.60
83 - LABEL FSP-478894.A3 478894	£5.09	£6.11
101 - CHEESE HEAD SCREW M8 X 20 FSP-774347.A10 774347	£2.00	£2.40
102 - CHEESE HEAD SCREW M3 X 10 FSP-400934.A2 400934	£2.00	£2.40
103 - STOP FSP-10897365.A13 10897365	£60.04	£72.05
104 - TABLE TOP INSERT FSP-470657.A14 470657	£4.75	£5.70
105 - RAISED-HEAD SCREW M4 X 10 FSP-228733.A18 228733	£2.00	£2.40
106 - HEXAGON NUT M8 FSP-200719.A152 200719	£2.00	£2.40
108 - SPRING WASHER FSP-479669.A18 479669	£2.00	£2.40
109 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A102 228584	£2.00	£2.40
110 - INDICATOR FSP-470660.A9 470660	£2.00	£2.40
111 - BASE FSP-494968.A22 494968	£189.85	£227.82
112 - CATCH FSP-470664.A4 470664	£15.97	£19.16
113 - SCREW FSP-400709.A32 400709	£2.00	£2.40
114 - LEVER FSP-10607946.A18 10607946	£17.89	£21.47
115 - SPRING PLATE FSP-470665.A19 470665	£8.93	£10.72
117 - FRAME FSP-10027727.A9 10027727	£181.97	£218.36
118 - SCALE FSP-470663.A19 470663	£36.32	£43.59
127 - BOLT FSP-10016971.A12 10016971	£14.22	£17.07
128 - HEXAGON NUT M8 FSP-200735.A3 200735	£2.00	£2.40
129 - RAISED-HEAD SCREW 4.0 X 12 MM FSP-400691.A36 400691	£2.00	£2.40
130 - GLIDE PLATE FSP-470662.A4 470662	£2.66	£3.19
131 - BUSH FSP-473215.A9 473215	£2.00	£2.40
132 - BUFFER (4 PCS.) FSP-494780.A16 494780	£38.18	£45.81
133 - HEXAGON SCREW M8 X 45 FSP-400937.A11 400937	£2.00	£2.40
134 - DEPTH STOP FSP-495266.A18 495266	£16.48	£19.78
135 - CLAMPING PLATE FSP-470640.A15 470640	£3.93	£4.72
143 - END STOP FSP-473656.A10 473656	£3.45	£4.14
144 - KNOB FSP-470639.A9 470639	£2.00	£2.40
147 - PIN FSP-470514.A21 470514	£6.39	£7.67
149 - DEPTH STOP FSP-470509.A23 470509	£6.68	£8.01
151 - COVER FSP-470630.A9 470630	£6.64	£7.97
154 - PLUG FSP-501549.A21 501549	£2.00	£2.40
155 - THREADED ROD FSP-470561.A21 470561	£13.42	£16.11
156 - SWIVEL ARM FSP-495778.A10 495778	£164.72	£197.67
157 - PRESSURE CLAMPING ELEMENT FSP-400287.A13 400287	£4.89	£5.87
160 - PRESSURE SPRING FSP-471024.A11 471024	£2.00	£2.40
161 - BRAKE LEVER FSP-470508.A0 470508	£5.43	£6.52
162 - BEARING SHEET FSP-470510.A0 470510	£4.37	£5.24
163 - ROTARY KNOB FSP-494172.A12 494172	£15.67	£18.80
164 - CLAMPING LEVER FSP-470634.A15 470634	£7.94	£9.53
165 - CABLE CLAMP FSP-470641.A8 470641	£2.00	£2.40
166 - HOLDER FSP-470636.A15 470636	£3.53	£4.24
167 - WASHER FSP-471193.A9 471193	£2.00	£2.40
168 - HOLDER FSP-478905.A1 478905	£2.00	£2.40
169 - SPRING WASHER FSP-469785.A23 469785	£2.00	£2.40
170 - BUSH FSP-470560.A1 470560	£2.00	£2.40
171 - CAP FSP-479473.A7 479473	£2.90	£3.48
176 - ROUND-HEAD SCREW 3.5 X 14 MM FSP-400981.A11 400981	£2.00	£2.40
177 - INDICATOR FSP-470627.A9 470627	£2.00	£2.40
178 - INDICATOR FSP-470628.A14 470628	£2.00	£2.40
180 - SPRING WASHER FSP-761692.A14 761692	£2.00	£2.40
181 - PINION FSP-470885.A4 470885	£6.39	£7.67
183 - COVER FSP-470635.A9 470635	£11.01	£13.21
184 - PIN KEY FSP-439274.A59 439274	£3.56	£4.27
185 - BRAKE DISK FSP-495758.A9 495758	£47.05	£56.46
186 - WASHER 8.4 MM FSP-228601.A38 228601	£2.00	£2.40
187 - CHEESE HEAD SCREW M8 X 16 FSP-200201.A2 200201	£2.00	£2.40
189 - BRACKET FSP-494170.A5 494170	£25.45	£30.54
190 - CABLE HOLDER FSP-470642.A14 470642	£22.02	£26.42
191 - WASHER FSP-400929.A12 400929	£2.00	£2.40
196 - FLANGE FSP-200210.A8 200210	£72.49	£86.99
197 - APRON FSP-200215.A9 200215	£24.21	£29.05
200 - FLEXIBLE LEAD FSP-200203.A3 200203	£38.82	£46.58
201 - END SHIELD FSP-202924.A2 202924	£159.88	£191.85
202 - STOP FSP-204073.A7 204073	£59.67	£71.60
203 - STOP FSP-204074.A8 204074	£53.04	£63.65
204 - CART FSP-200199.A1 200199	£148.52	£178.22

Attribute Name	Value
Brand	Festool
